"Bar Fridge" rack support bracket
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Kitchen
- License
- GNU General Public License v3.0
Hola!
Here's the 3D model (SVG extruded via OpenSCAD) for the fridge rack bracket
I tried making it a bit thicker while staying in the dimensions so it is a bit stronger, original one is made from cast metal and the fridge has racks with a lot of weight on it (as in, big packs of 30cl watter bottles), so use with care.

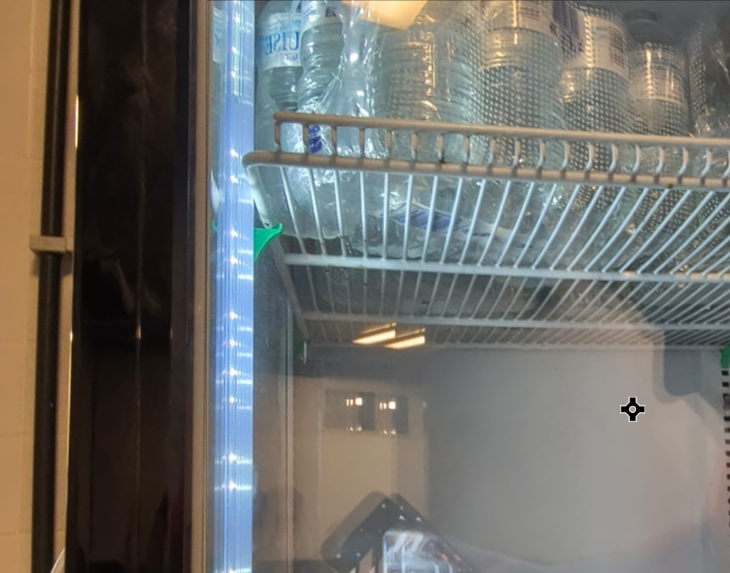

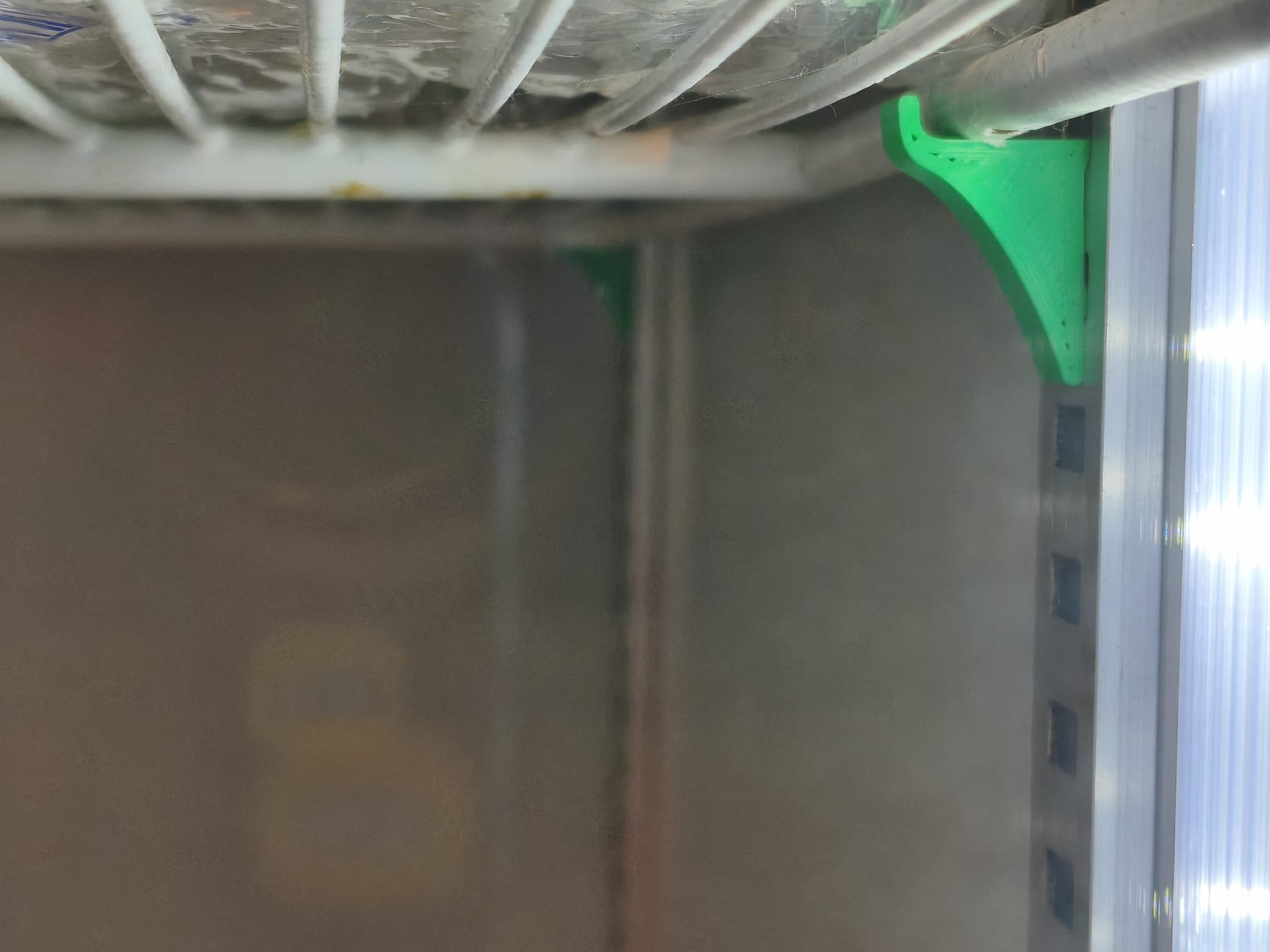

There are also reference pictures in case those could be needed to make adjustments to the depth or thickness of the hooks. The profile extrusion length was crudely measured with a phone ruler app @ 8mm because people where I was at the moment don't just casually have calipers.
People wh
