Elegoo Centauri Carbon Top Plate Riser Extras

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

Source
Printables
Category
Other Printer Parts & Upgrades
License
Creative Commons — Attribution
DetailsMakes & commentsRemixesCollectionsRelated

Added three different options:

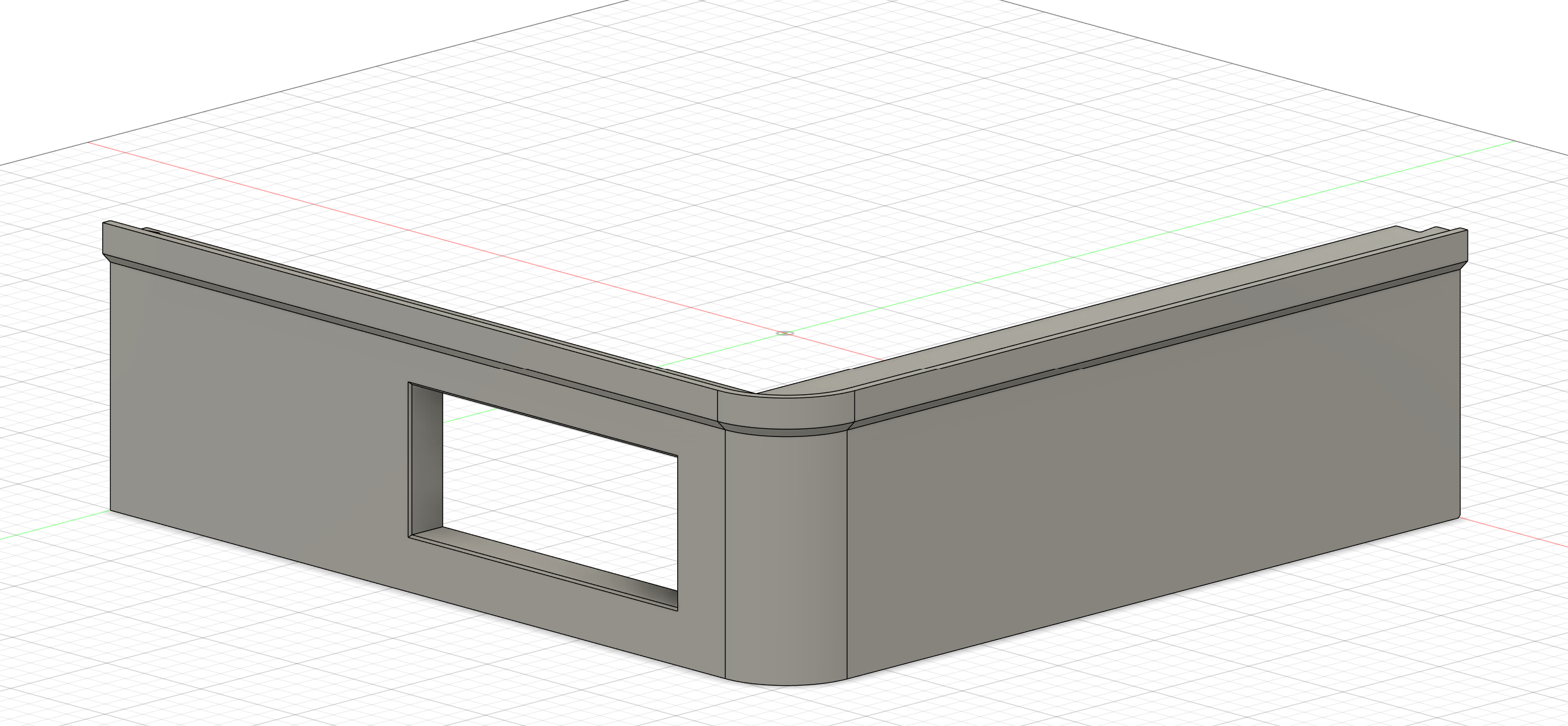

  • Front-Right panel that includes a hole for a thermostat/thermometer (Aliexpress link).

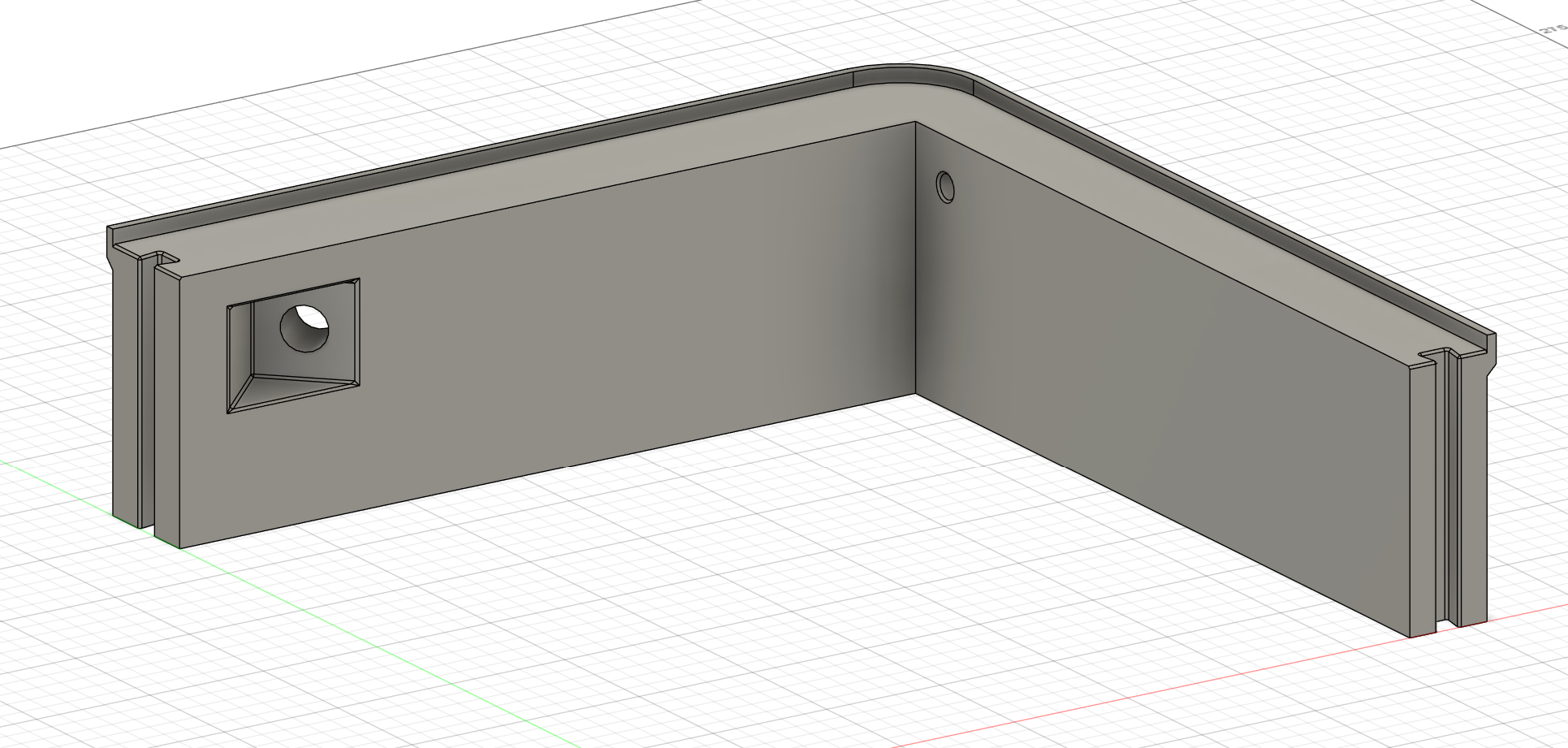

  • Back-Right panel

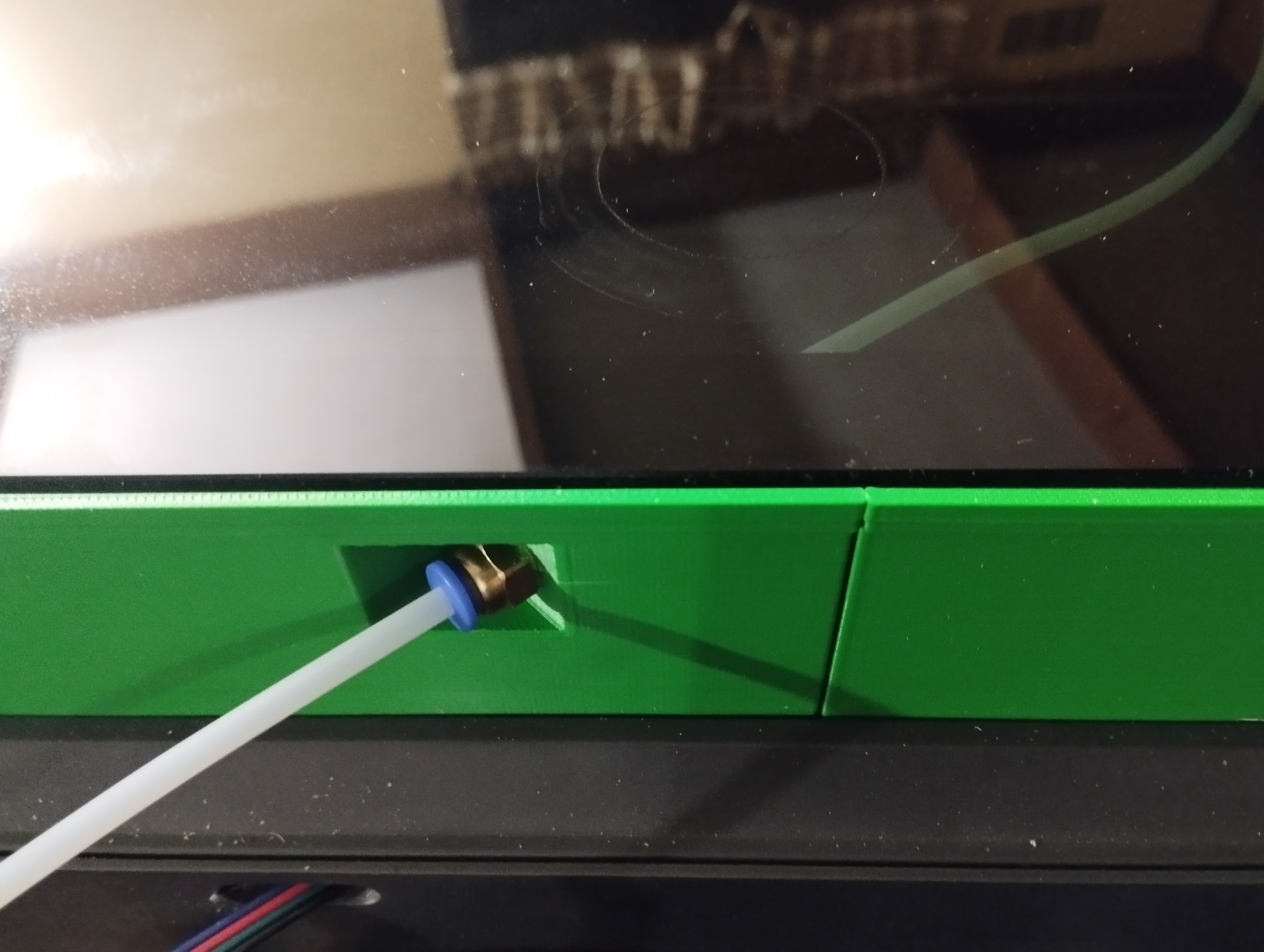

    • With a hole for PTFE adapters (Aliexpress link PC4-01).

    • With a hole for the above PTFE adapters and a 5mm wiring hole.

Printing

Unless you have some kind of wizardry with bridging, you're going to need support on these. The wide hole for the thermostat and the notches for the PTFE hole are primary targets. The actual holes (for the cabling and the PTFE adapters) should be fine.

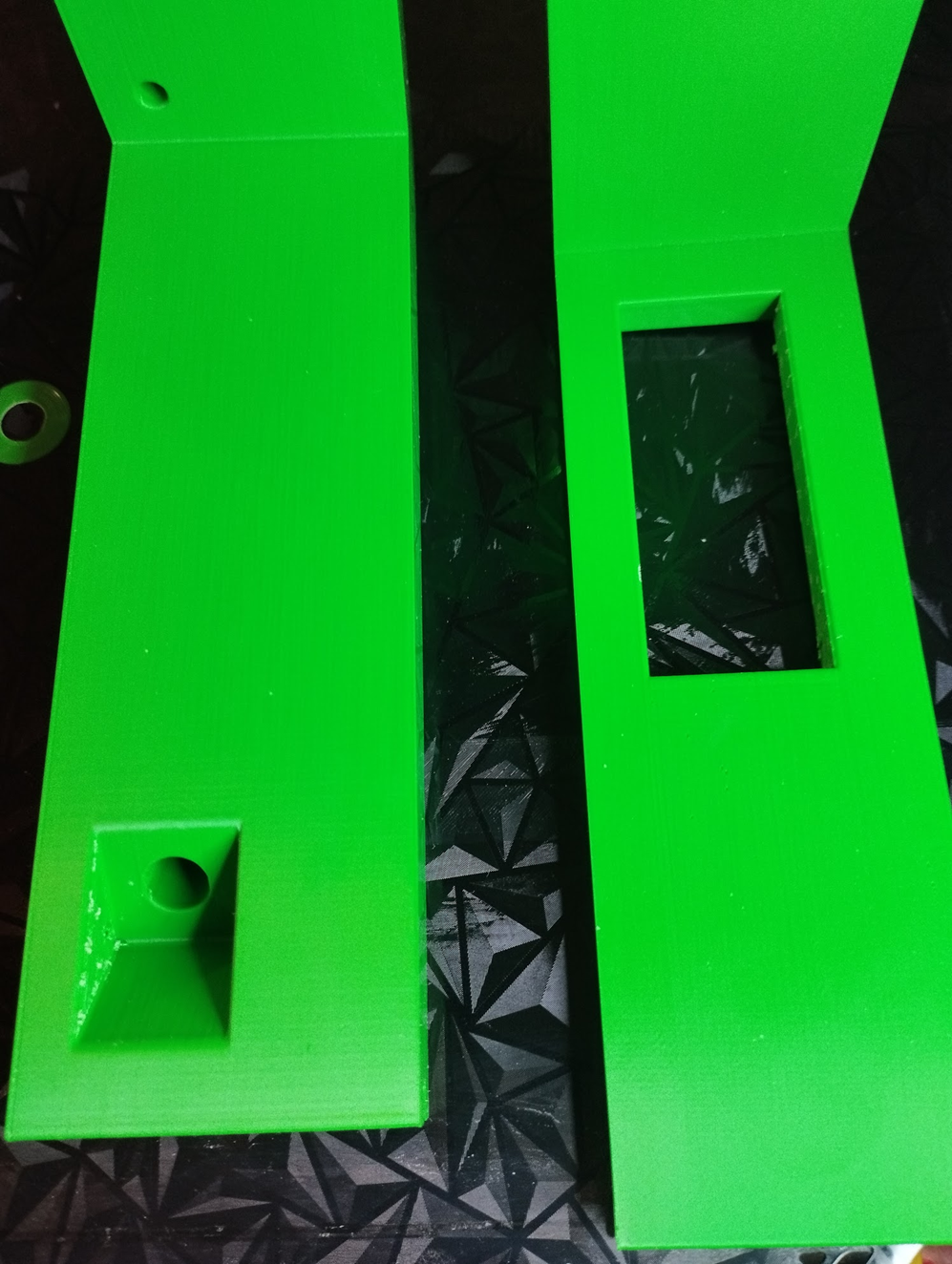

Have tested with PLA, and the clearances are all fine. You may need to finish with a file. Printing with ASA at the moment; will post pictures when done (in 10hrs).

Fitting

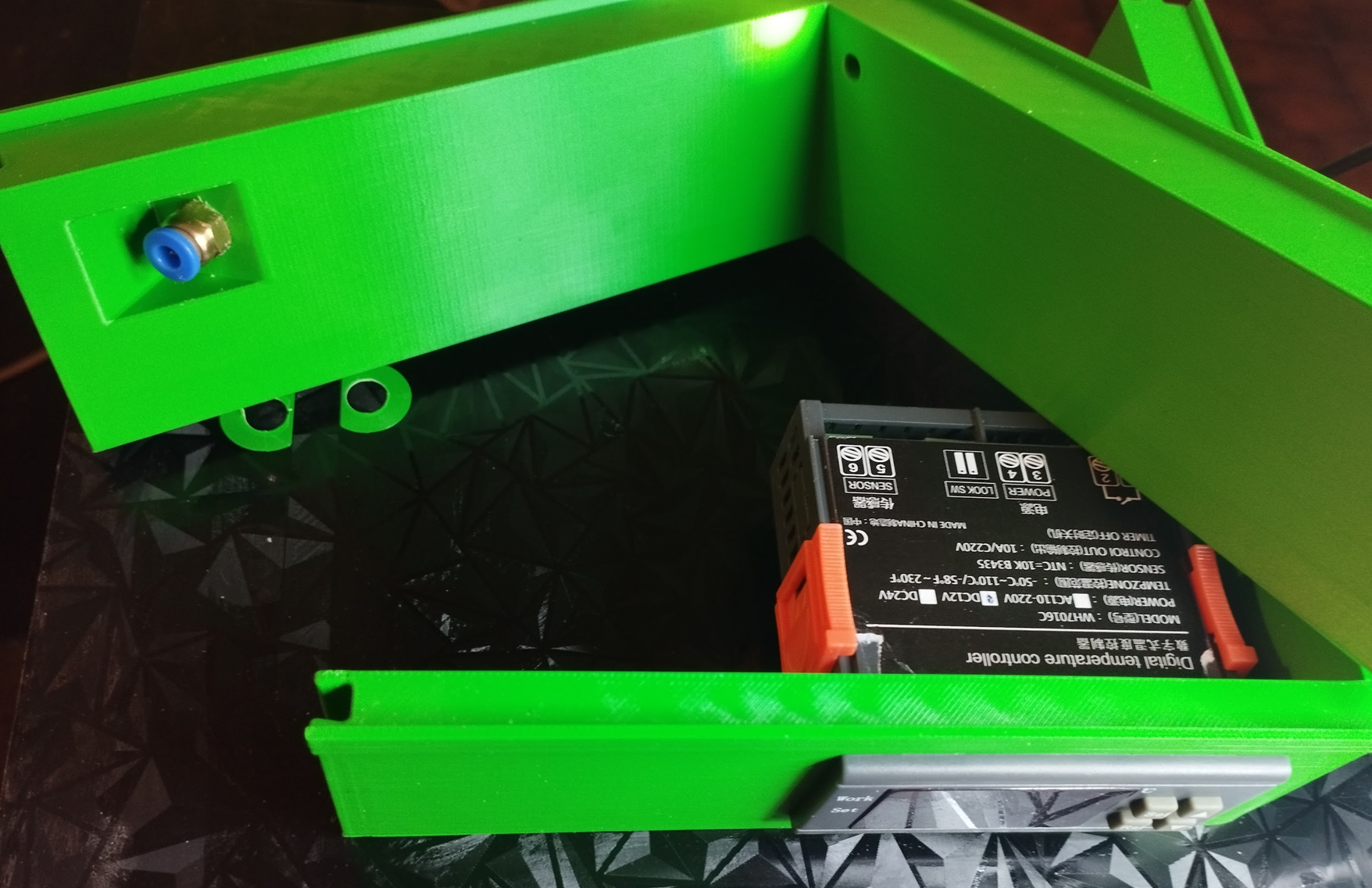

Be careful with the PTFE adapters. They are a bit of a tight fit, and you could split your layers if not careful. They don't need to be fully tight—this isn't a structural requirement on them. Maybe even add a little bit of thread lube.

Part Numbers

PTFE Adapters:

  • PC4-01

Thermostat:

  • SHT2000 (Temp and Humidity)

  • WH7016C (Temp only)

  • STC-1000 (Temp only, dual relays)

  • Any other device with a similar look/design to these two (there are lots on Aliexpress)
