After I had a mishap with my Ender-5 Max and Infinity Flow where the PFTE tube popped out of the toolhead, unspooling over half a half kilogram of filament, I decided I needed to prevent that from happening again.

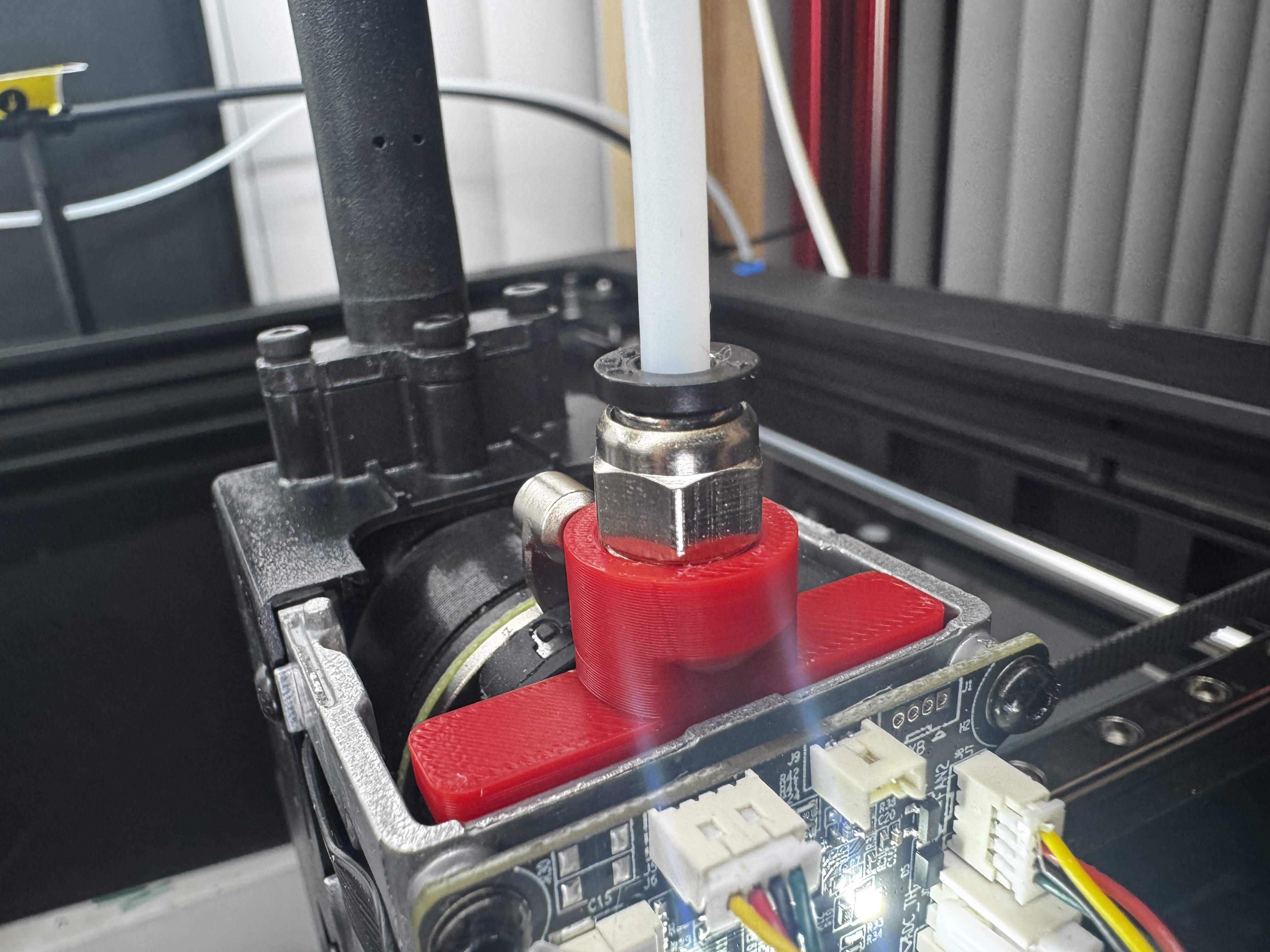

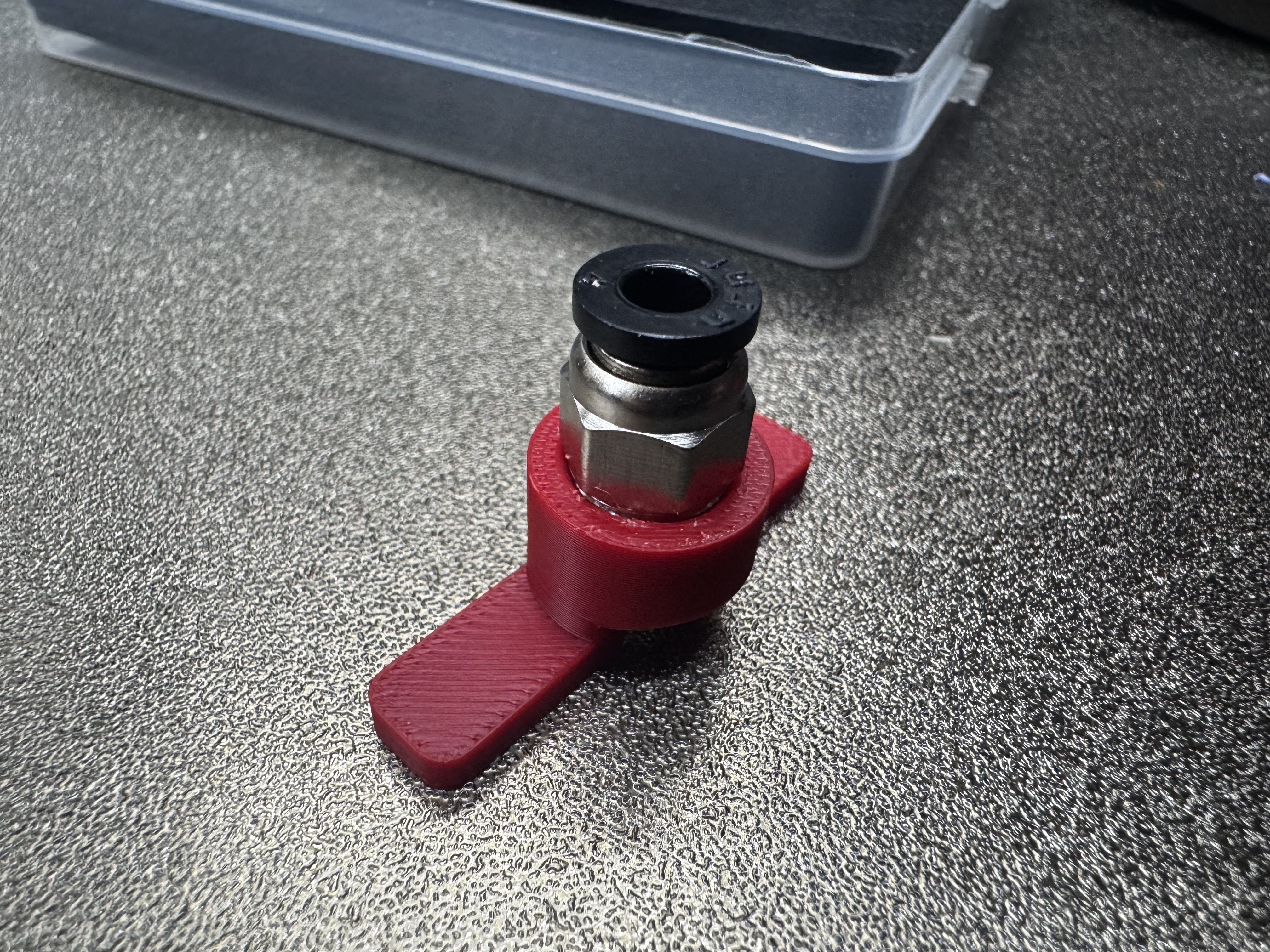

So I created a simple mount for a PC4-M10 PFTE fitting that's held in place by the toolhead cover. Prints with minimal supports.

  1. Attach the fitting into the socket.

  2. Remove the toolhead cover

  3. Remove PFTE tube from the extruder

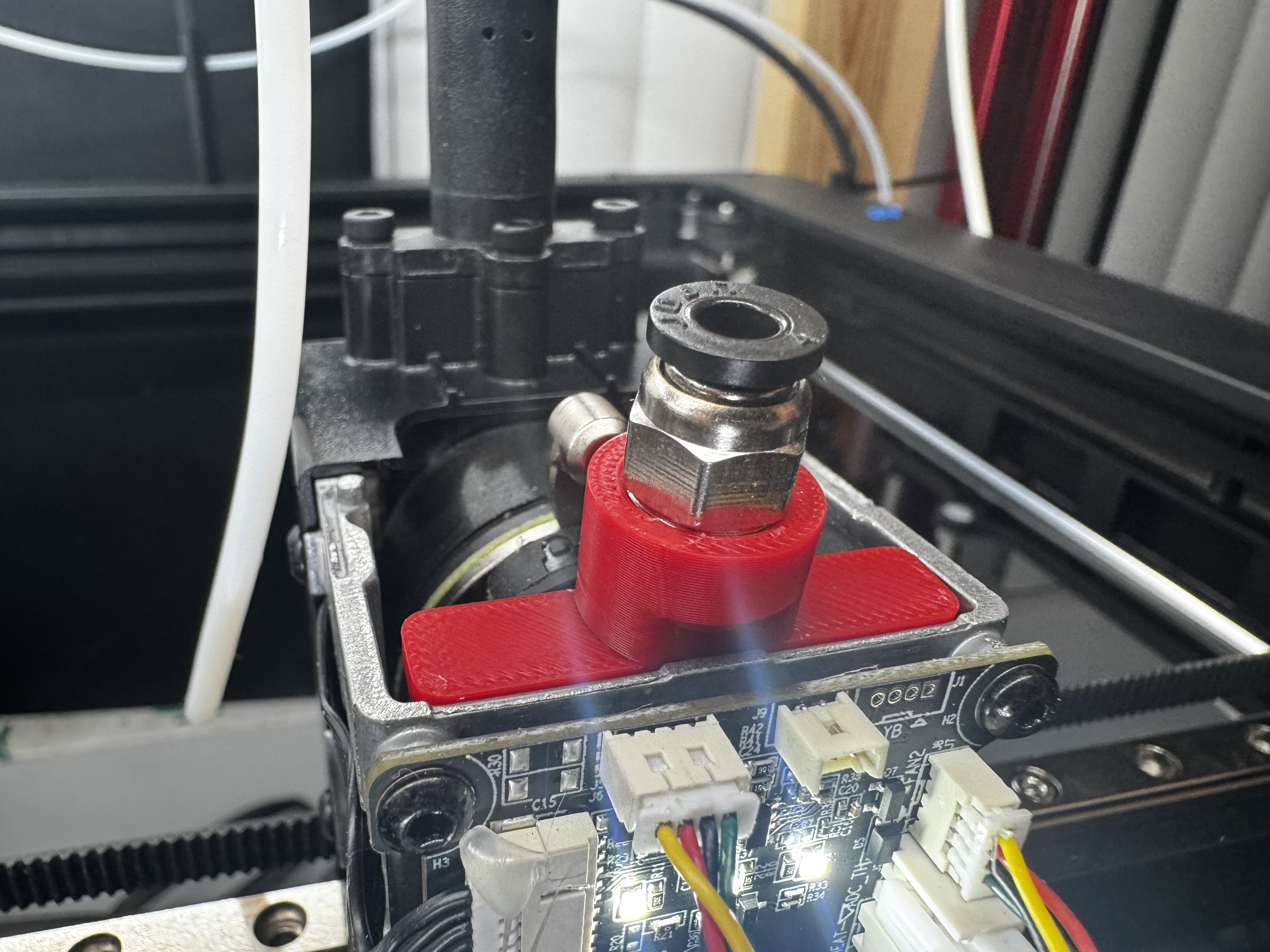

  4. Place the model over the filament inlet on the extruder.

  5. Pass the tube through the coupler, pushing it firmly into the extruder as usual.

  6. Replace the toolhead cover

Print using PETG or ABS/ASA recommended, but PLA is fine if you're not using an enclosure.

Recommended support settings:

Type: Normal (auto)
Style: Snug
Build plate only: Yes
Top Z distance: 0.25
