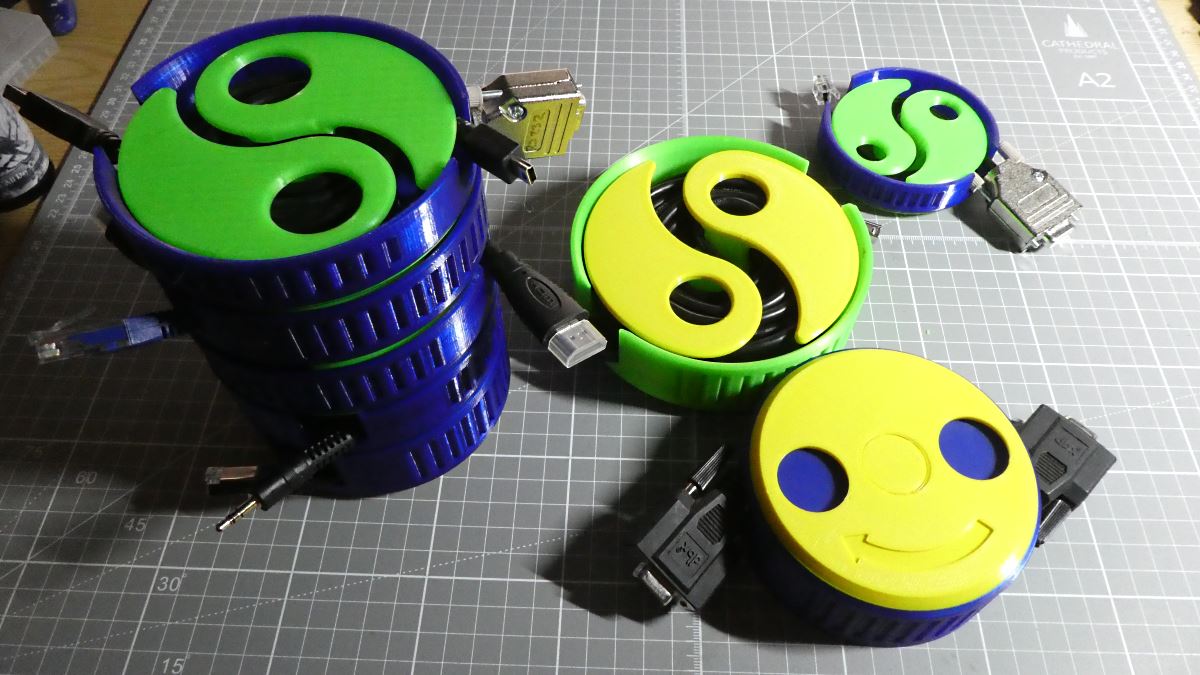

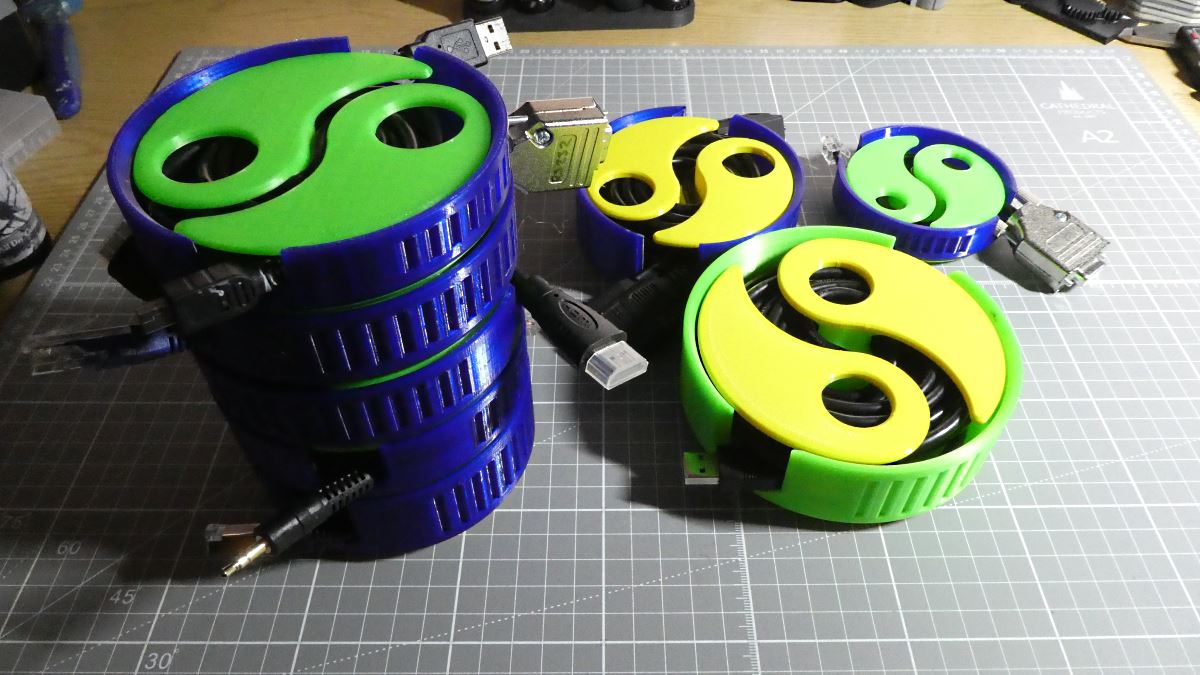

This is a redesign of Joshed's cable winder in five sizes. The cable entry to the winder is more tangential which helps reduce drag on the cable when winding it up.
Mini. Outer Dia 84mm; Inner Dia 75mm; Overall Height 24mm; Capacity: >1.0m (5mm O/D cable)
Small. Outer Dia 104mm; Inner Dia 95mm; Overall Height 24mm; Capacity: >1.5m (5mm O/D cable)
Medium. Outer Dia 104mm; Inner Dia 95mm; Overall Height 30mm; Capacity: >2m (5mm O/D cable)
Large. Outer Dia 104mm; Inner Dia 95mm; Overall Height 40mm; Capacity: >3m (5mm O/D cable)
Xtra Large. Outer Dia 124mm; Inner Dia 115mm; Overall Height 40mm; Capacity: >5m (5mm O/D cable)

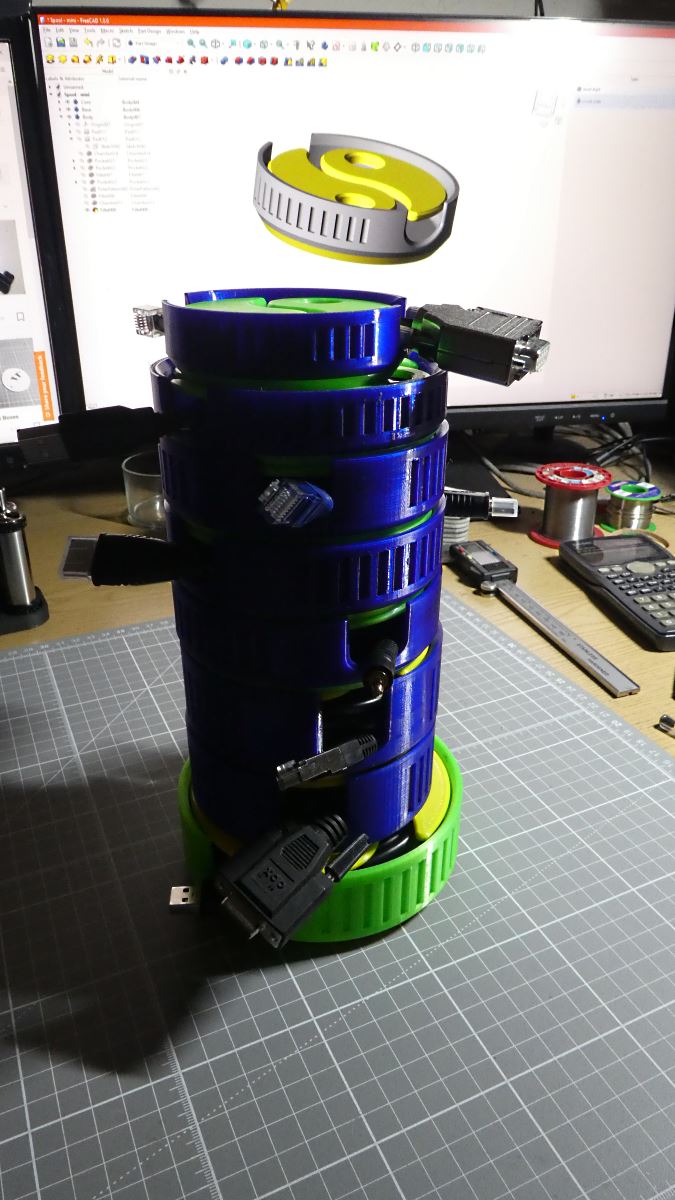

The small, medium and large are all the same diameter and share the same base and will stack together.
I've printed these in PETG with print ok with 2 walls and 15% infill.
