Electronics case
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

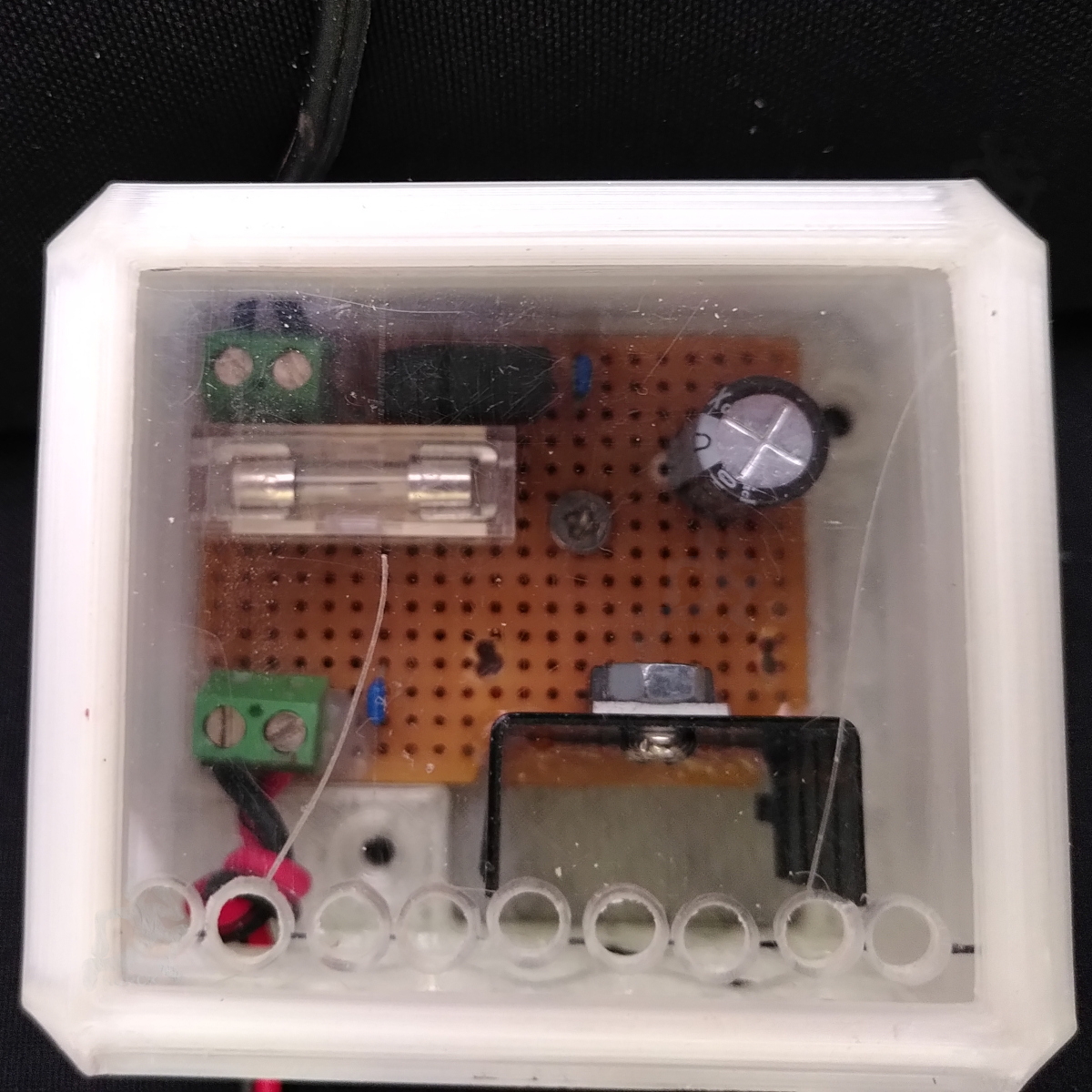

I built a small circuit (55 x 41 mm) to step down 24-30 VAC to 24 VDC and created this case for it. The top is a small piece of acrylic (57 x 51 mm).

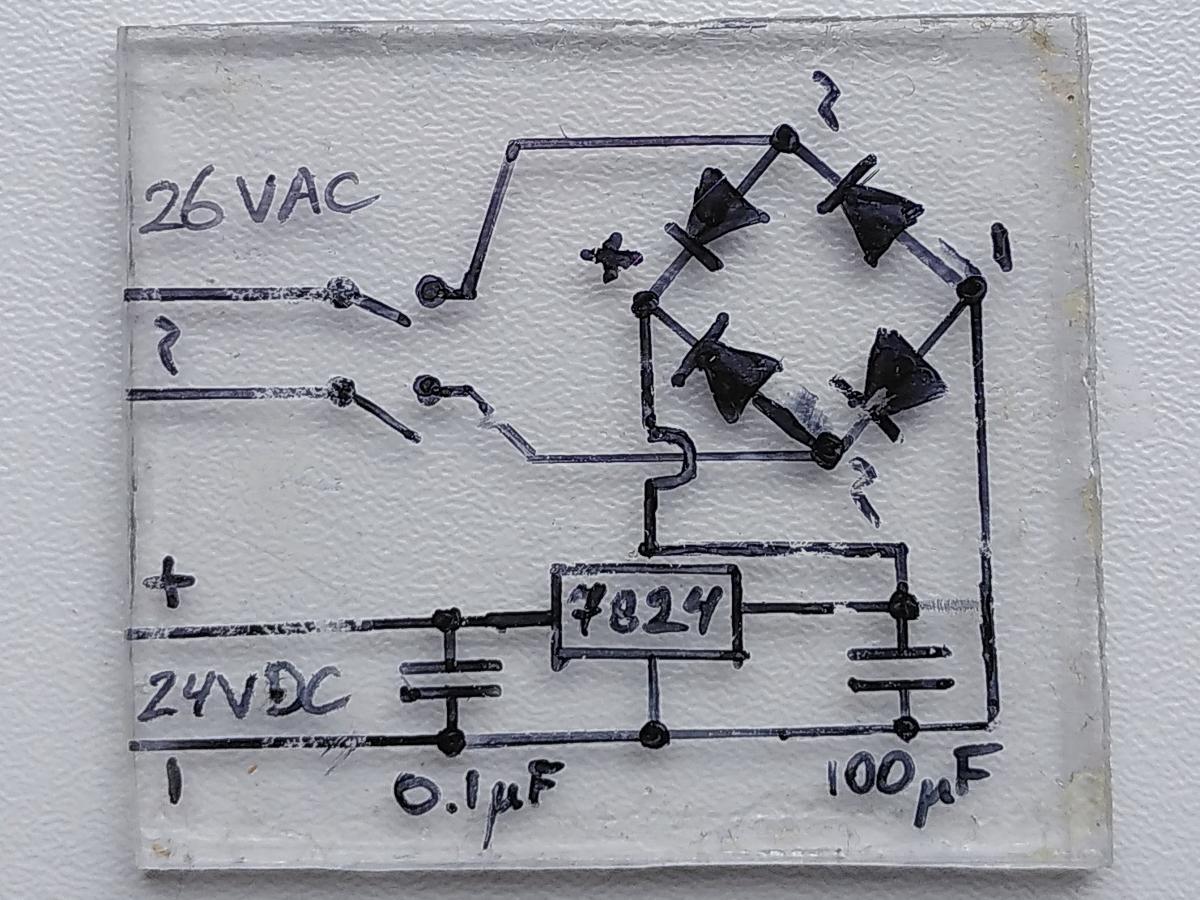

The circuitry first rectifies the input, then flattens out the bumps with a 100 μF capacitor. This is fed into a 7824 voltage regulator (with a heatsink), and then a 0.1 μF capacitor:
Printing
Supports: enabled (I used snug)
