Chair Bolt Retainer v2 (for 5/16-18 bolts with 1/2" head)
Tired of bolts loosening up and legs becoming loose. If you have similar chairs you know what I mean.
I would have safety wired the bolts if the heads were cross drilled.
Instead I came up with this retainer / capture plate to keep the heads from rotating and loosening up.
Retainer plate can be screwed in place or glued.

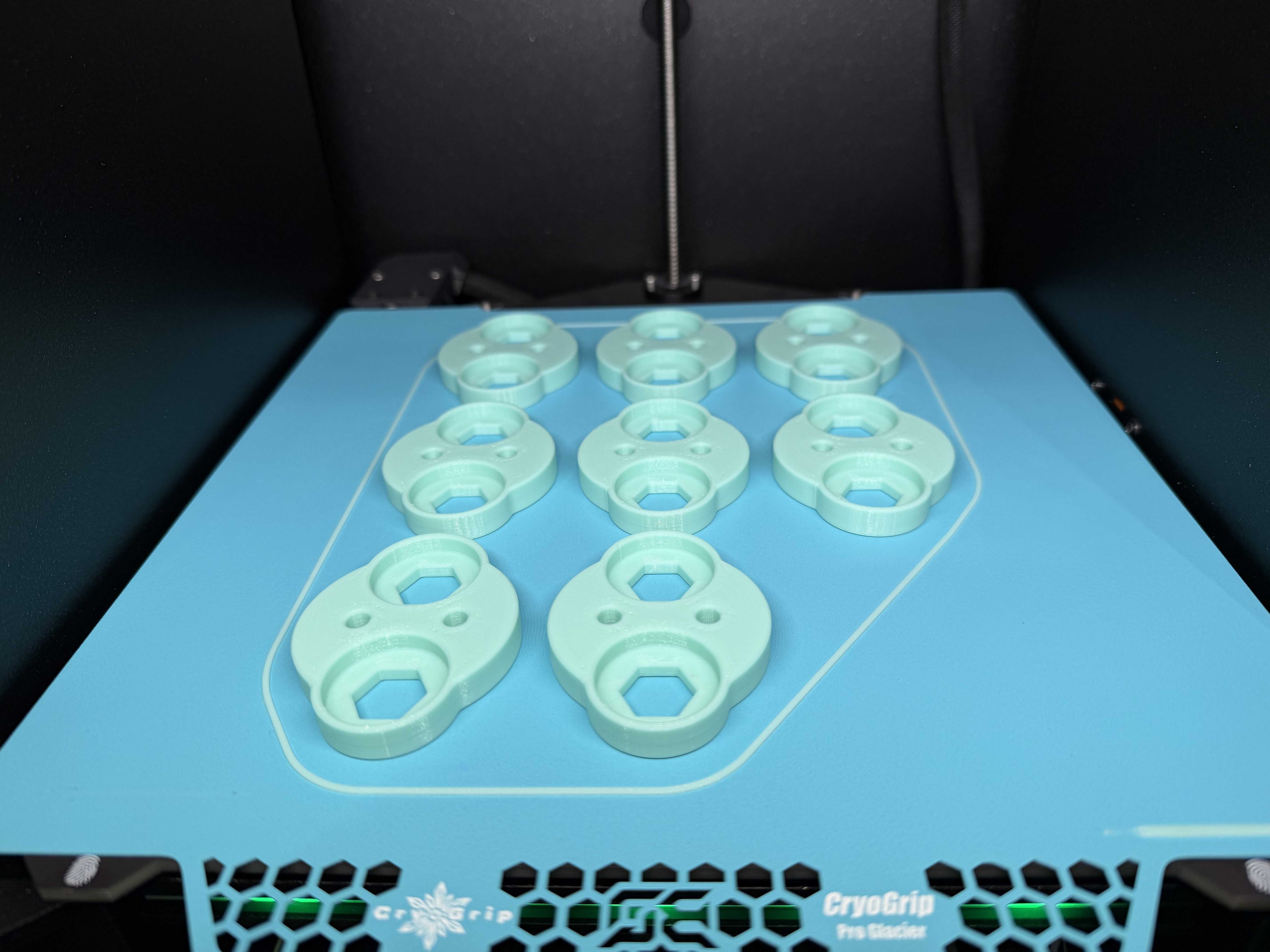

Printed with 3D Fuel Tough PRO PLA +.
Print Settings
3 base layers
3 top layers
6 vertical layers
30% Gyroid infill
Print bed temp - 60 deg C
Print Nozzle temp - 230 deg C
