Snowboarding Binding Hook - Ski Lift Assist
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Winter Sports
- License
- Creative Commons — Attribution — Share Alike
Description

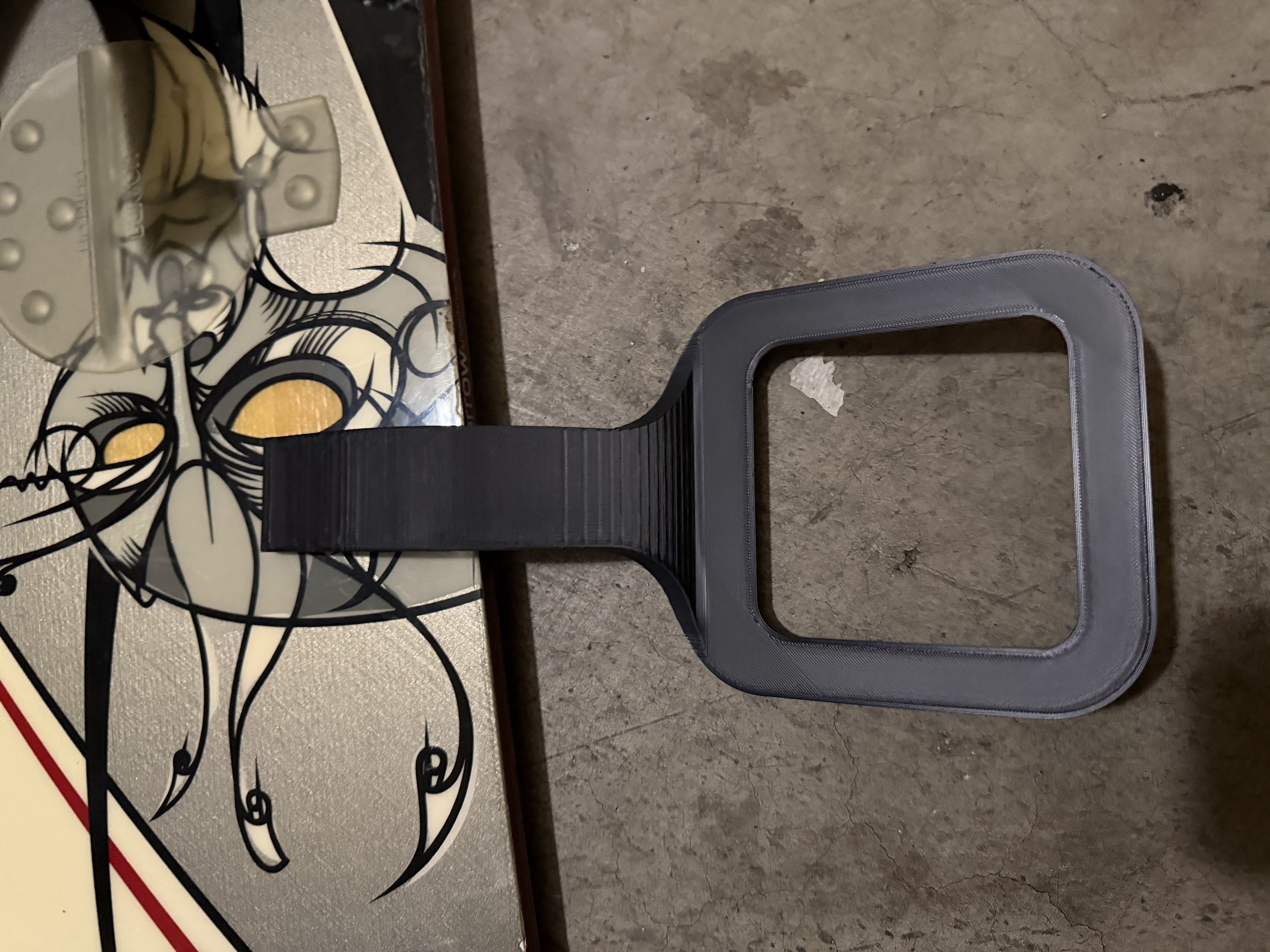

This snowboard binding hook mounts to your rear binding to make skating and unloading ski lifts easier and more controlled. It provides a convenient contact point to lift or guide the board when your back foot is not fully strapped in, giving you better control while moving through flat areas or exiting lifts.

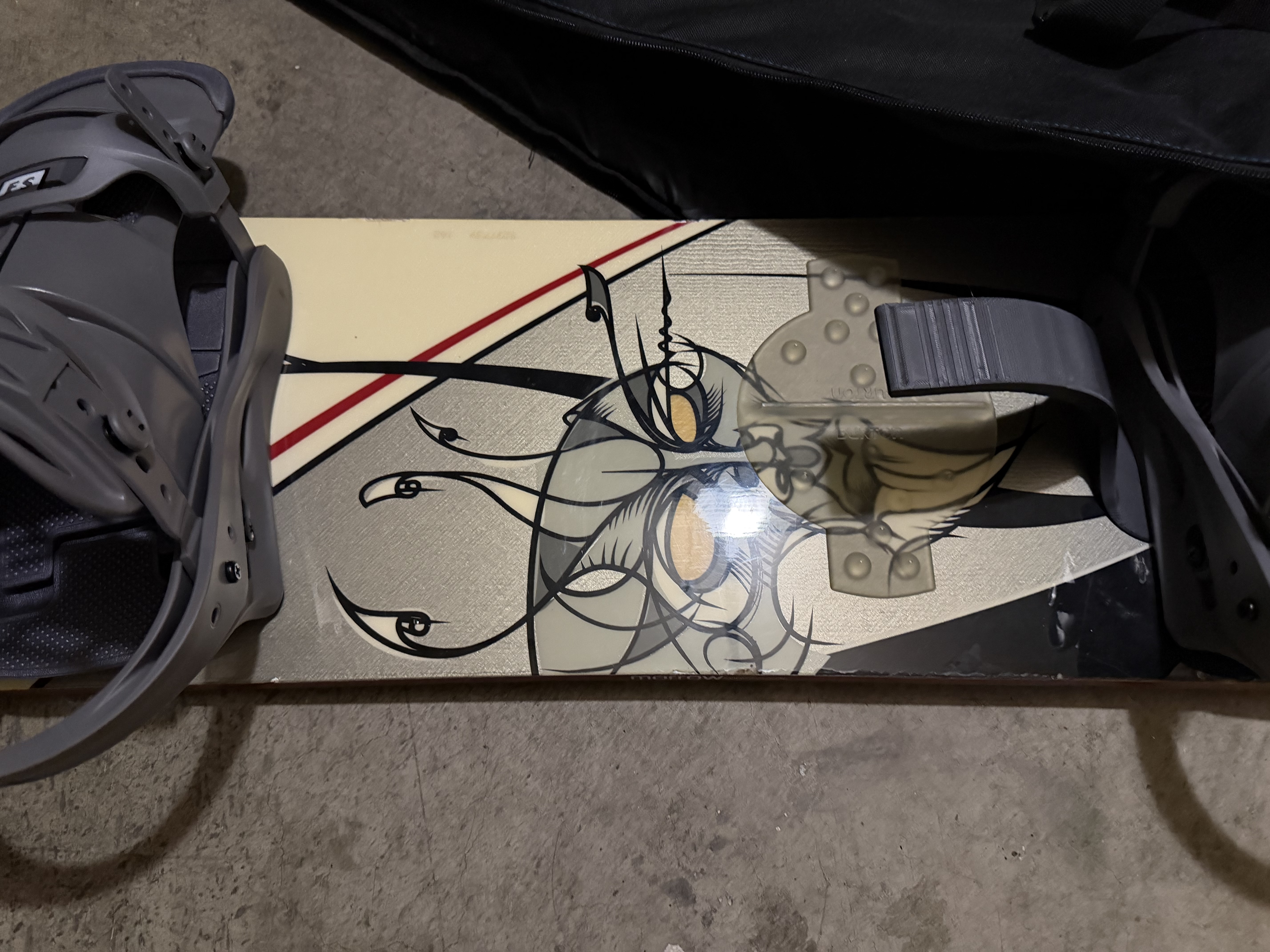

The hook sits just beneath the rear binding and is designed to be very thin, so it does not noticeably raise the binding or affect normal riding. Simply remove the screws for your binding, take off the binding, then line of the hook over the bolt pattern and reinstall the binding
Parts
The model consists of two parts:
Body
Print the main body using a stiff TPU or another slightly flexible filament such as PETG or ASA. A small amount of flexibility helps the part withstand impacts and cold conditions.
Boot Pad
Print the boot pad using soft TPU. This adds a bit of grip and cushioning when sliding your foot into position.
Print Settings
Supports: Yes
Perimeters: 4 or more
Layer Height: 0.25 mm (recommended for strength)
Printer: Printed on a Prusa XL
