Rotating Cube Lamp

This stylish wallmounted lamp features a ring design which allows the lampshade to rotate around the bulb and create different lighting dynamics to play around with. I personally use this lamp everyday, and can choose when I want strong direct lighting, or diffused on the walls around. I can't take credit for the cube design, and it's very likely this design is found somewhere else, but the rotating ring design is something i came up with myself.

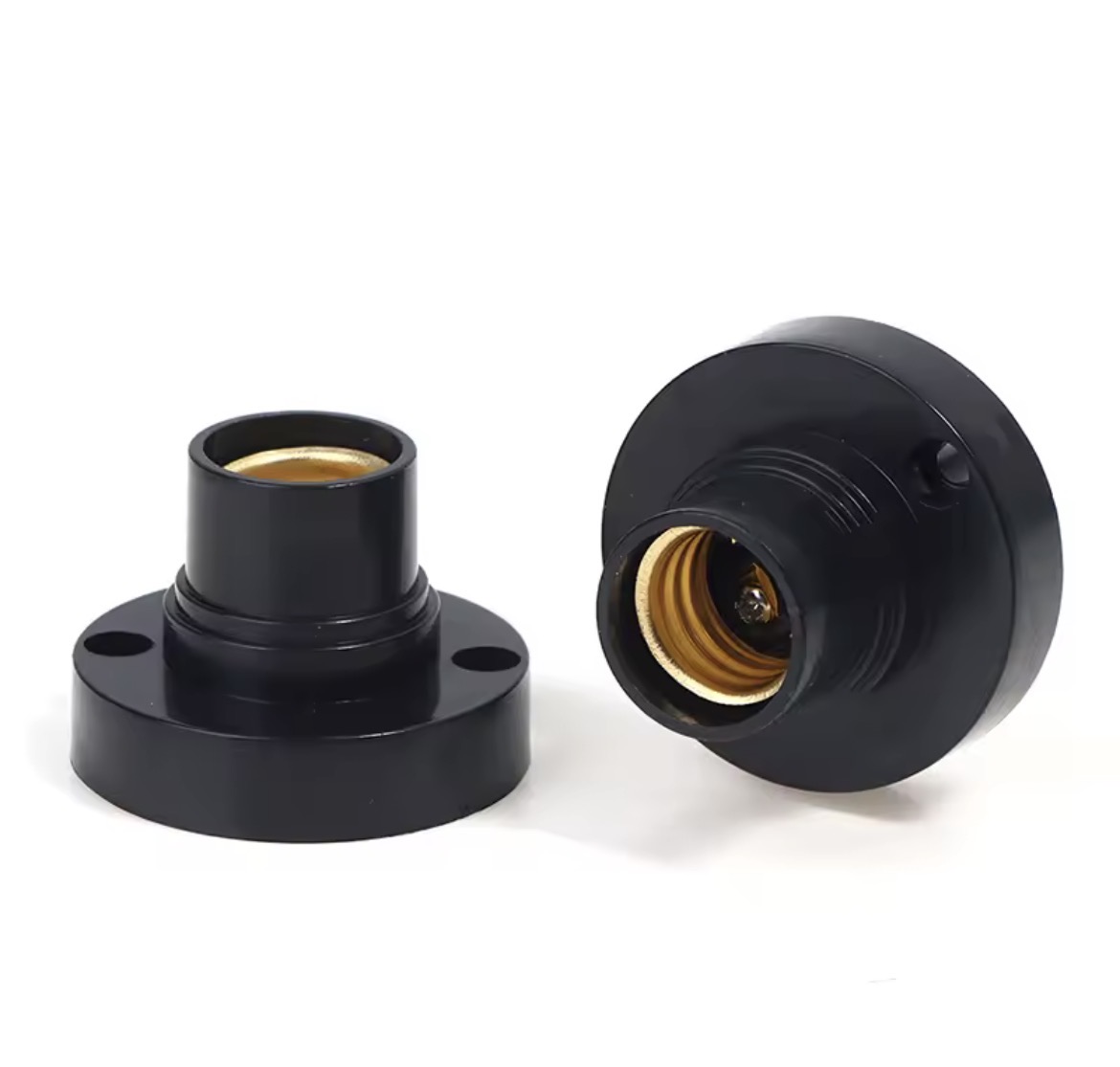

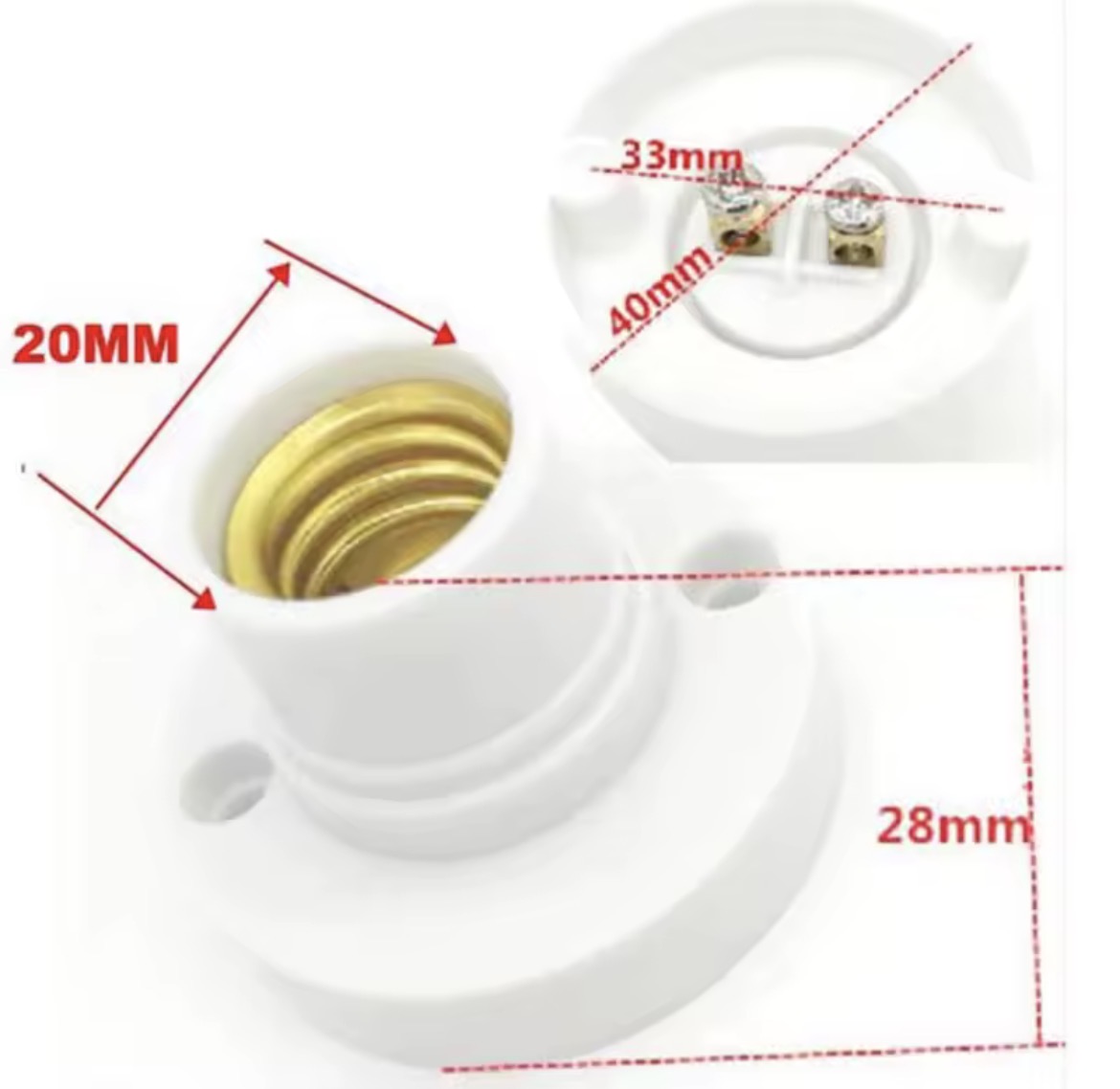

For the hardware you'll need an E14 lightbulb socket holder, commonly found on aliexpress or similar, and if you have trouble finding it on there, theres also a photo of the measurements that the design is based on. You'll also need a cable, preferably with a switch and plug already on it, and the ends stripped. Note the opening f the base which allows for a cable with maximum diameter of around 6-7mm, however I've used a 6mm braided cable (which was one of the thickest I could find), and it worked just fine!

For printing I would use tree supports on the lamp shade ring part, and no supports on the base. I have used PLA for my lamp, but I would reccoment PETG if you have it, however my PLA is holding up perfectly still after 1.5 years and daily use, no signs of thermal warping or similar.

Also note the diameter of the largest part on the bulb cannot bed larger than the lampshade ring, as I would recommend screwing the lamp in the base first, then attaching the lamp shade.

If you have any questions or suggestions, please feel free to comment or message me!
