Parametric Flashlight Mount

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

Source: Printables
Category: Outdoor Sports
License: Creative Commons — Attribution — Noncommercial — Share Alike

Details Makes & comments Remixes Collections

Recently bought a flashlight, but it was an odd size so You couldn't find a mount for it anywhere on the Web? Here is Your solution! Download and adjust the parameters to suit Your flashlight!

To mount a laser pointer or anything with a diameter between 9.17668196 and 13.89105972 mm use the alternative laser mount .f3d file as well as shorter cap bolts*.

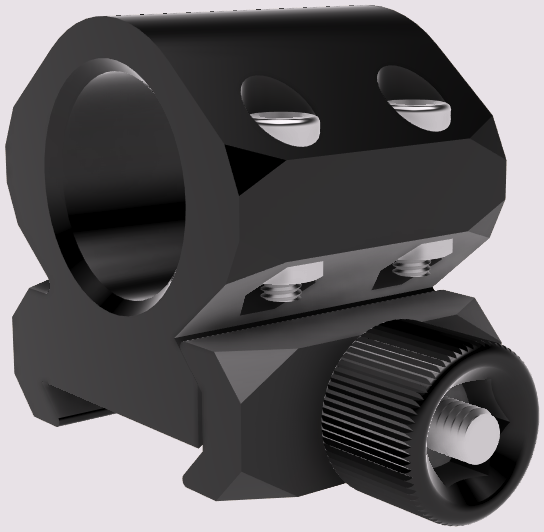

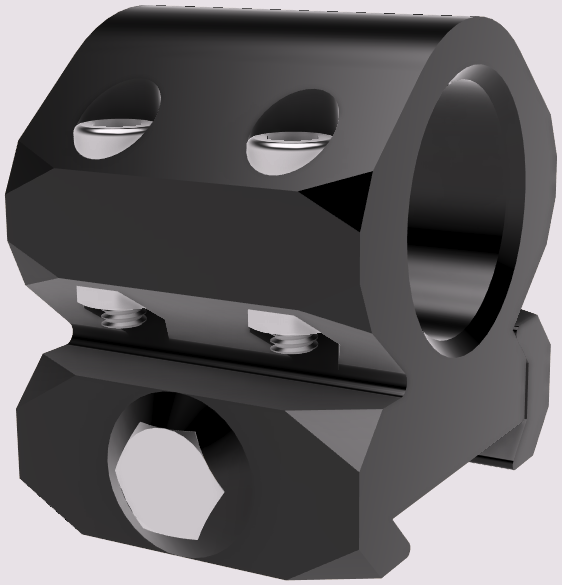

Model contains:

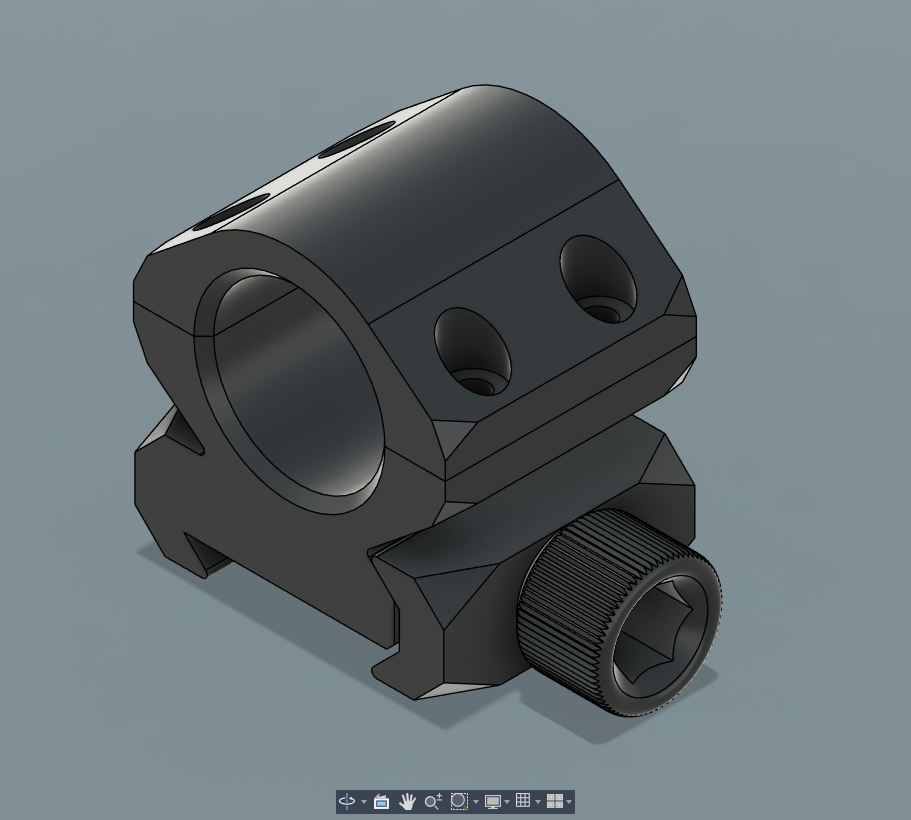

Body - main body that mounts to the picatinny rail with a bolt

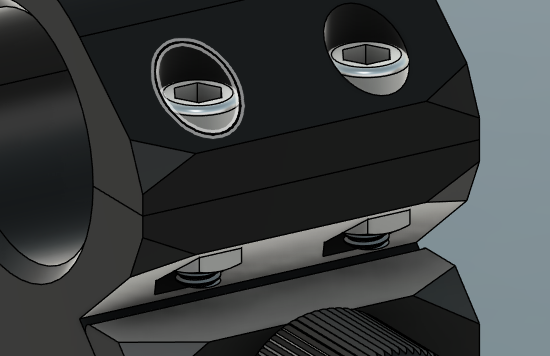

Cap - clamps the flashlight to the body with 4 bolts and 4 nuts
Claw - clamps body to the picatinny rail with

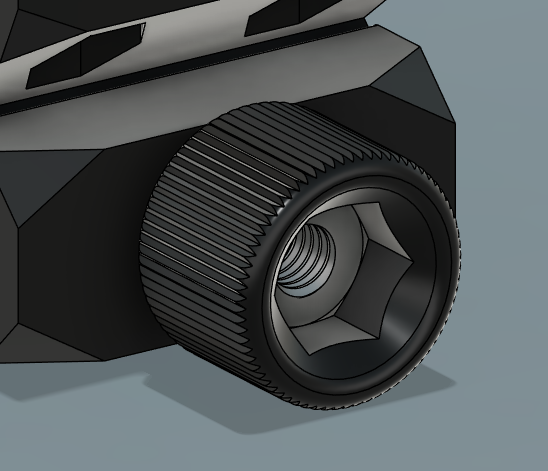

Knob - tightens the claw with an inserted nut
Knob s - a lower profile variant of the regular knob to be used with 5mm shorter mounting bolt**

How to use

Download the .f3d file

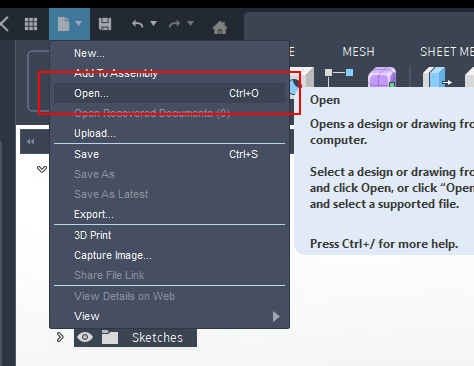

Open in Fusion

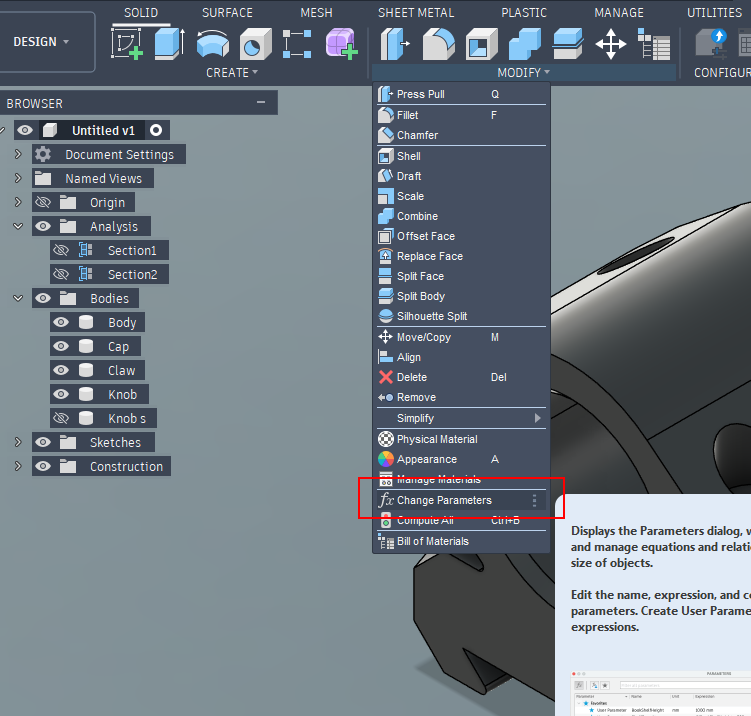

Select Modify -> Change Parameters
Modify parameters to suit
1. Flashlight_Body_Diameter - measure your flashlight's body diameter with a pair of calipers, do take into account that when converting to mesh radiuses seem to become smaller
2. Minimum_Dimension - to match to your printer/printer nozzle
3. Offset - modify this if the mount wiggles side to side
4. Lug_Offset - adjust this if the mount wiggles forward and back (between the rail lugs)
Apply and press 'OK'
Export and print

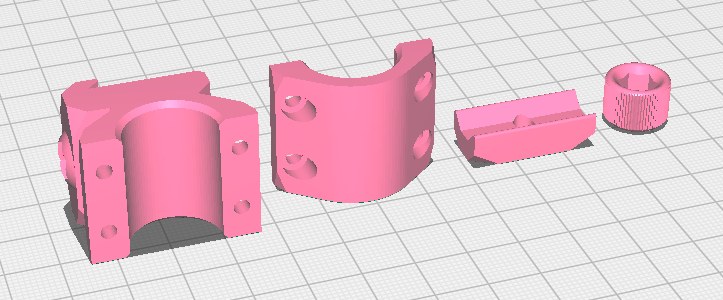

Recommended orientation for printing
