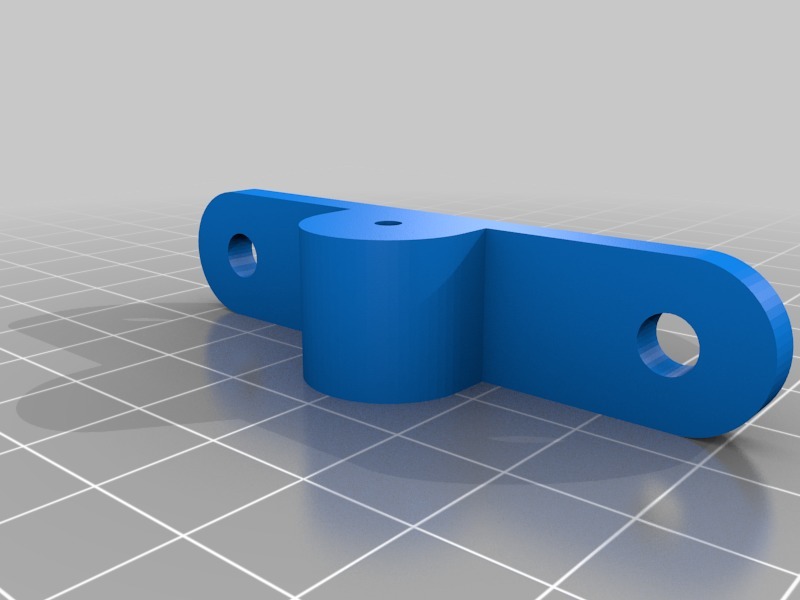

Update: I've added a new picture and stl that has a ptfe stop at the top with a 2.5mm hole for filament to pass through. This will keep the ptfe tube from being pulled up the holder if you ever need to pull on the filament for something like a jam.

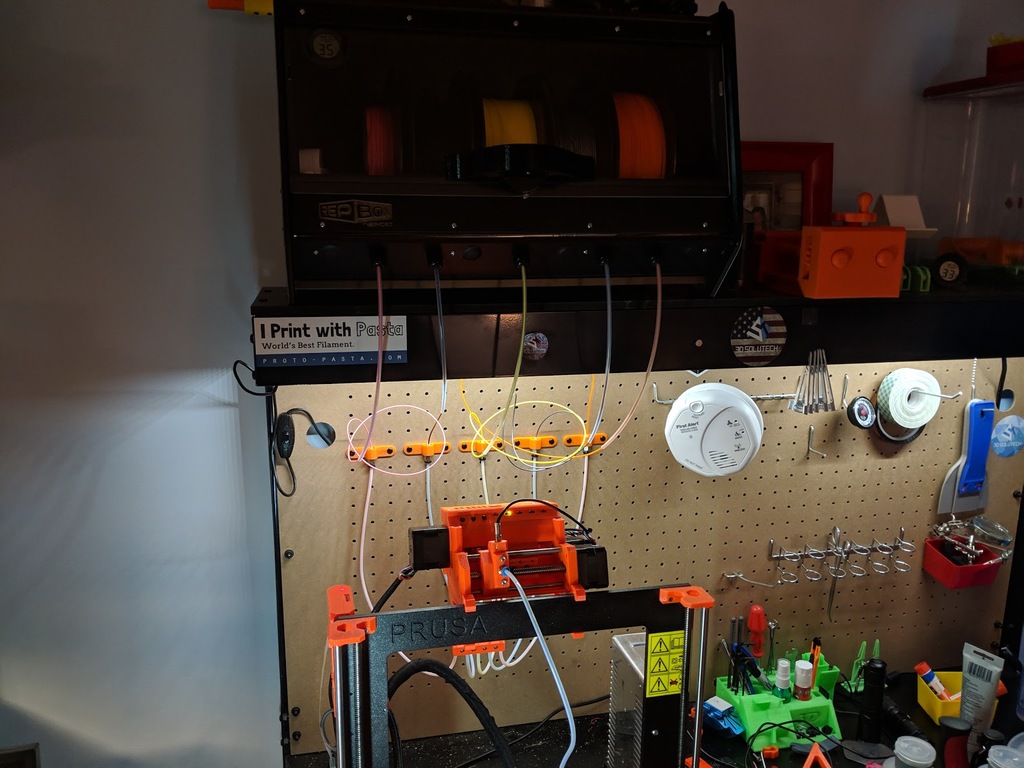

I liked the original wall mount. It actually works on pegboard on its own quite well, the 4 center holes are perfectly spaced for pegboard.

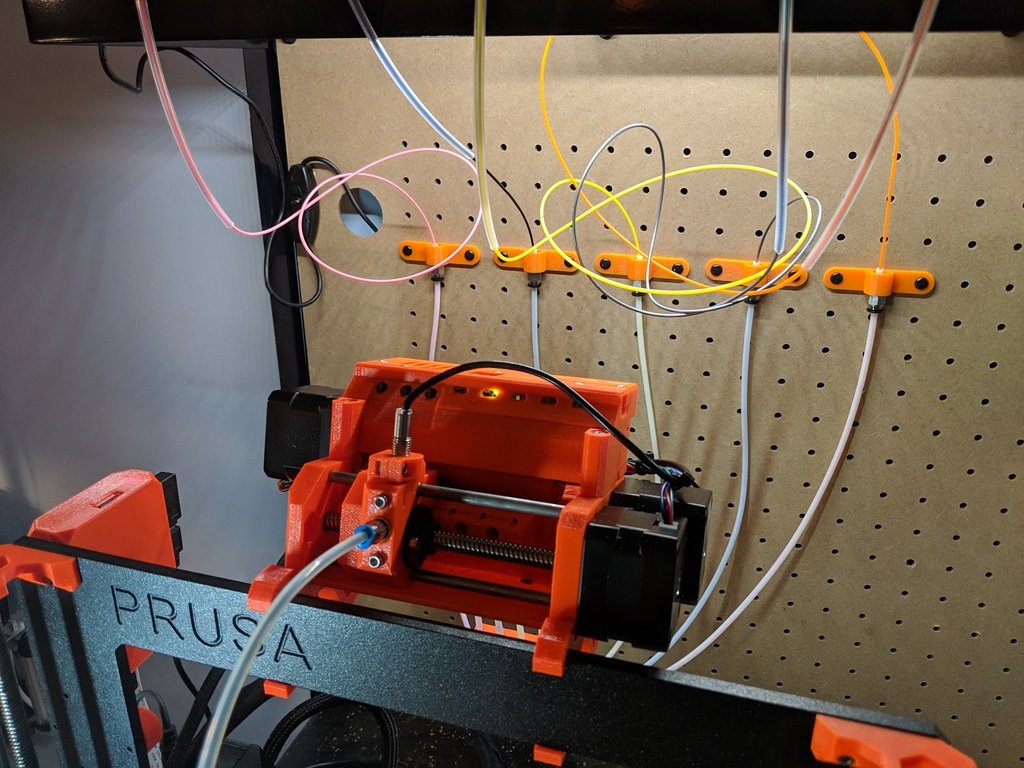

However I wanted more separation to cut down on tangles and resistance on my mmu2 so I made a single festo version that can be wall mounted or mounted to pegboard.
I used plastic push rivets which I've linked below, they work perfect and look really nice. They hold strong but are easily removed.

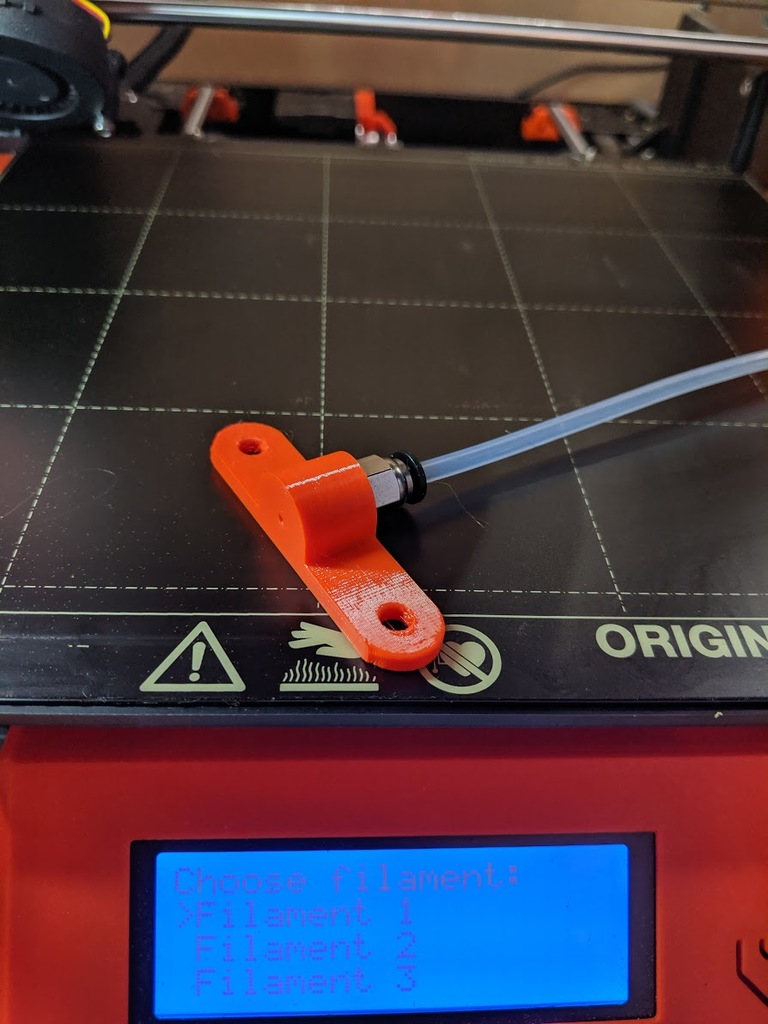

I'll also link the fest/pneumatic fittings I used below.
festo/pneumatic fittings - https://www.amazon.com/gp/product/B01IB81IHG/ref=oh_aui_search_asin_title?ie=UTF8&psc=1
Print Settings
Printer Brand:
MK3
Printer:
Prusa i3
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
20%
Notes:

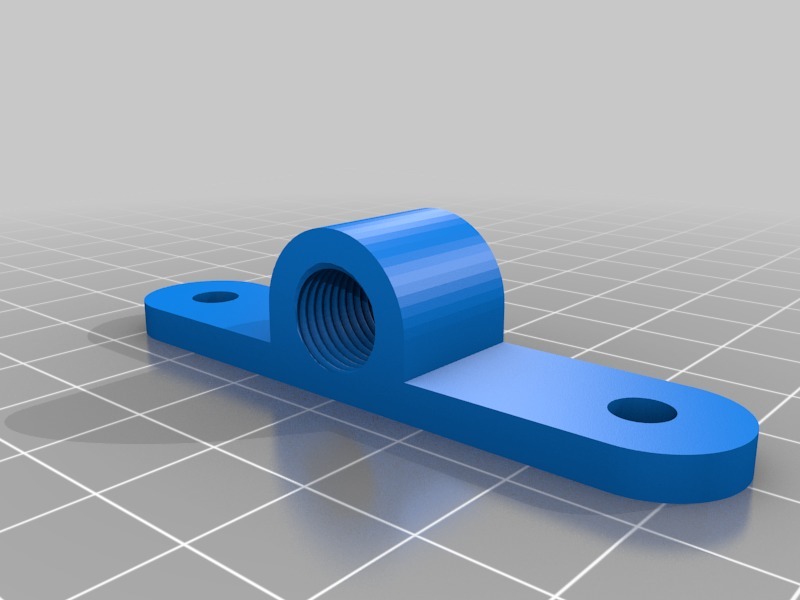

I printed them on edge, the way they would be mounted to a wall so the threads would have the most resolution.
Post-Printing
For the holder with stop you may need to ream the 2.5mm hole if your first layer height isn't adjusted just right.
