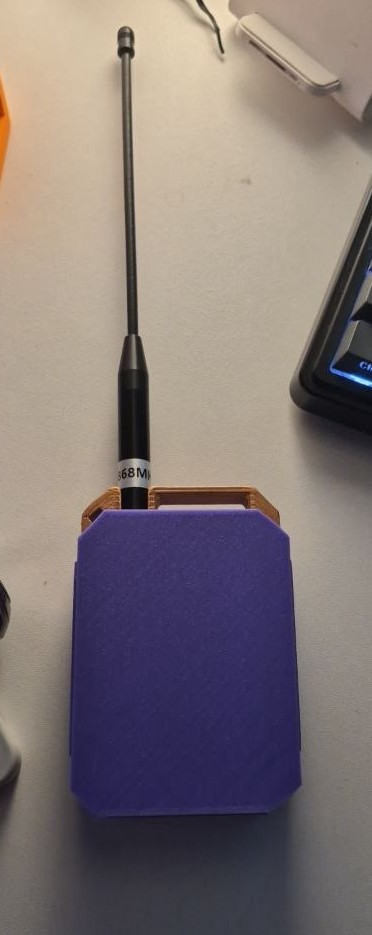

CoreFrame Faketec node
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Portable Devices
- License
- Creative Commons — Attribution — Share Alike
Filament Type: PLA
Infill: 15%
Layer Height: 0.16 mm
Supports: Everywhere
Build Guide

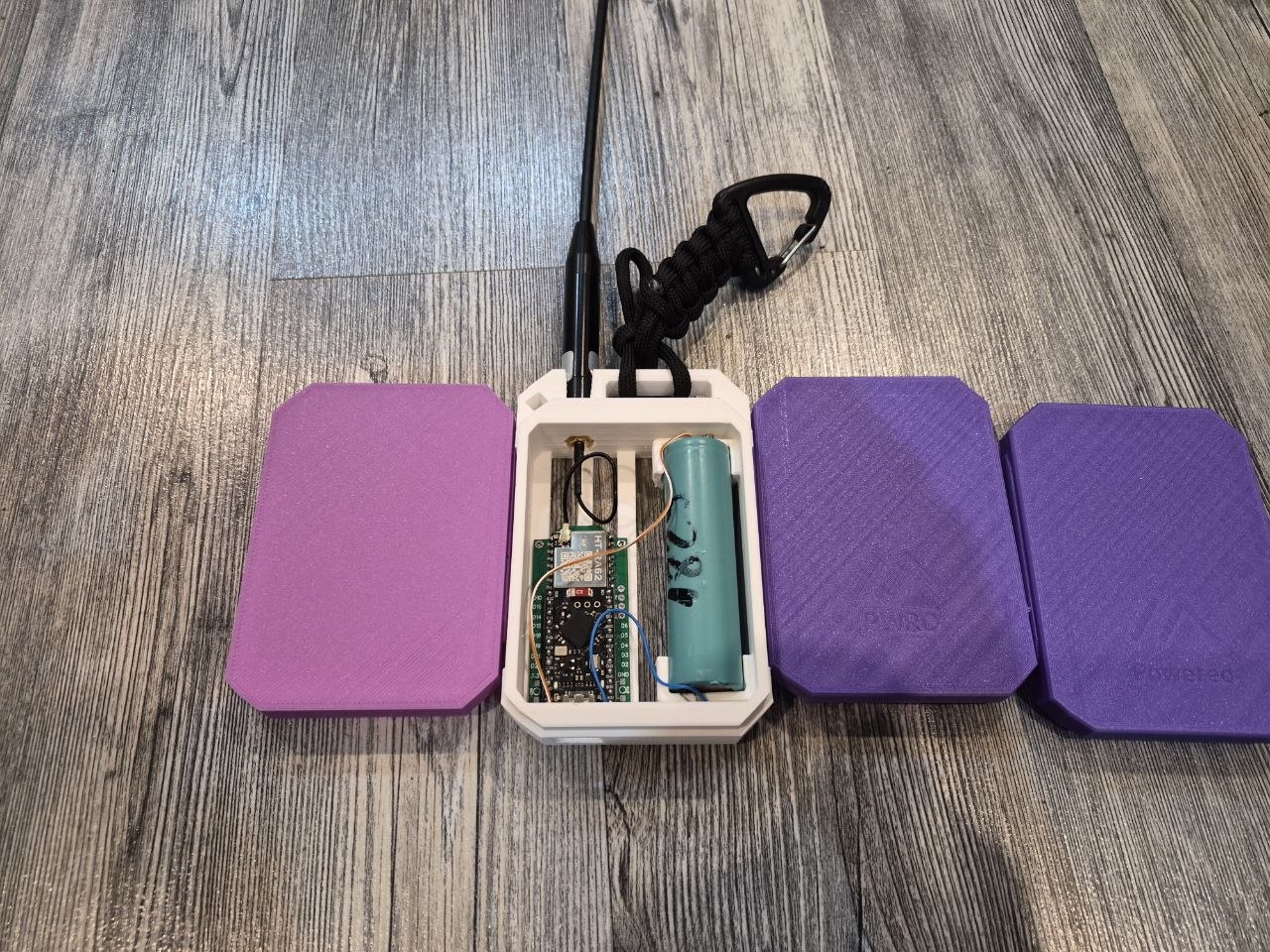

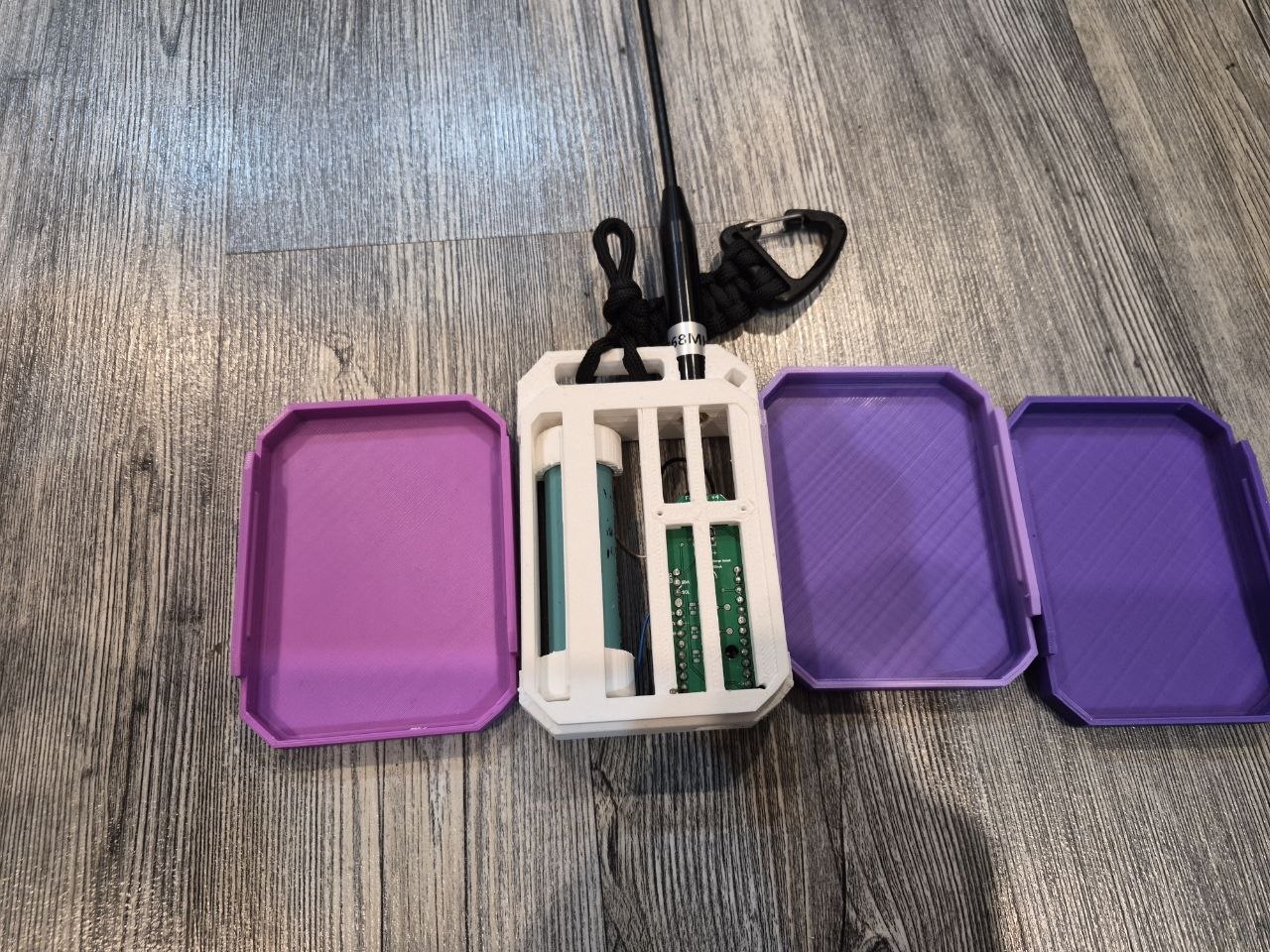

Components used:
ProMicro NRF52840 Development Board (Nice!Nano V2.0 compatible)
SX1262 module
FAKETEC PCB
SMA to IPEX (IPX) pigtail cable (longer than 4 cm recommended to avoid sharp bending)
GIZONT antenna
3-4 screws (used whatever was available)
Notes:
Make sure the pigtail cable is not too short, as it can bend sharply and affect signal quality.
Connect the ProMicro board to the FAKETEC PCB using pin headers (PLS), then trim the pins after soldering.
The panels may be a bit fragile, but they allow light to pass through.
Once the power switch and BMS protection arrive, I will try to integrate them into the model.
