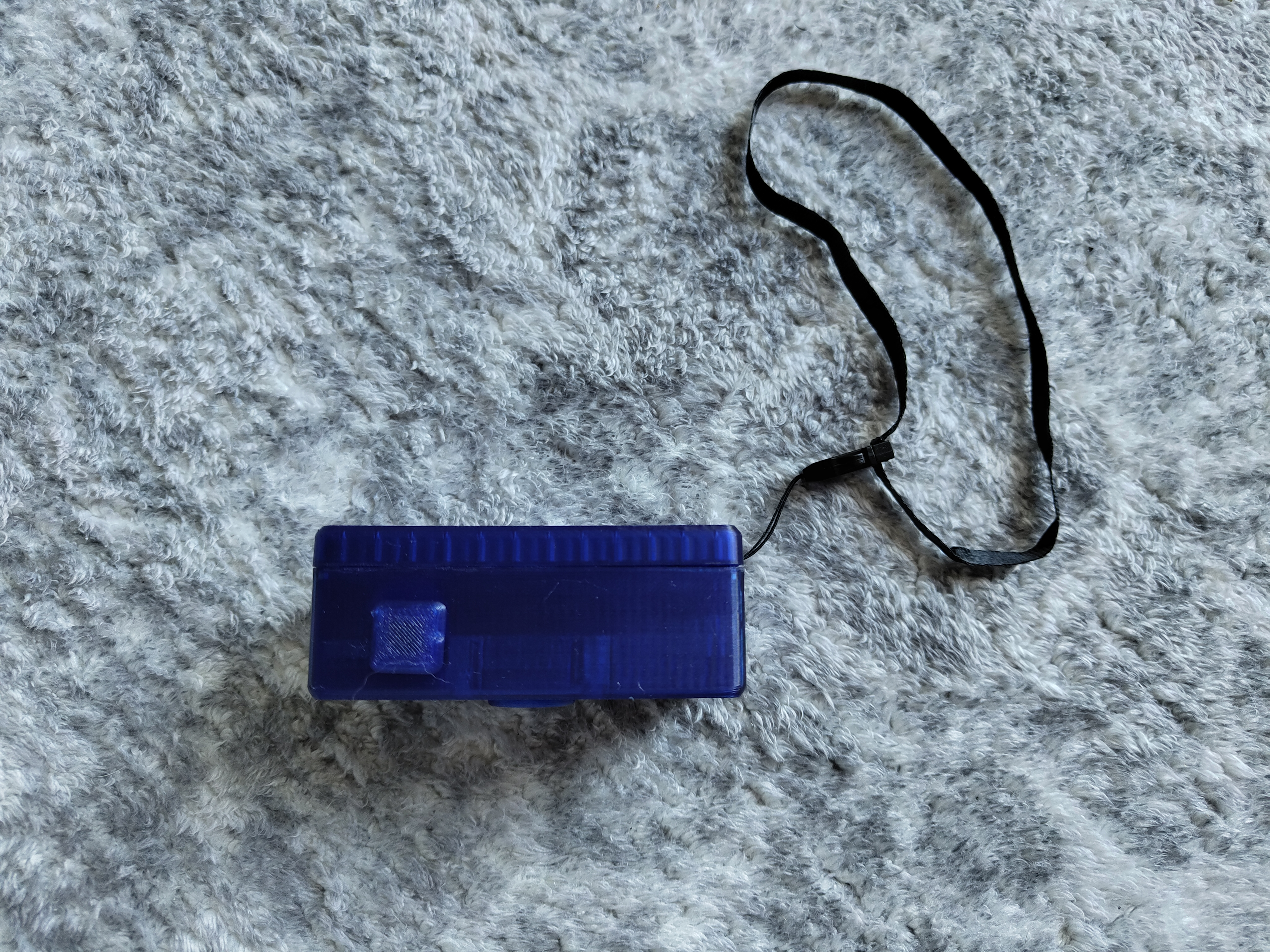

📸 Obscura One – Open Source Camera

Obscura One is a fully open-source, 3D printable DIY camera with a nostalgic early-2000s digital vibe.
It’s designed to be simple, affordable, and easy to build in just a few hours.

The camera is powered by an ESP32-CAM module and controlled with a single button:

  • 1 click → take a photo

  • 2 clicks → photo with flash

  • hold → Wi-Fi mode to download images

All parts are easy to source (under ~€30), and the entire enclosure is fully 3D printable.

👉 Full build guide, wiring, firmware, and files on GitHub:
https://github.com/chriko3/ObscuraOne

Recommended settings:

  • Material: PETG

  • Layer height: 0.15–0.2 mm

  • Infill: ~20%

  • Supports: Required for case and back cover

Note: This is a affiliate link.


The last three pics are photos made with the camera :)
