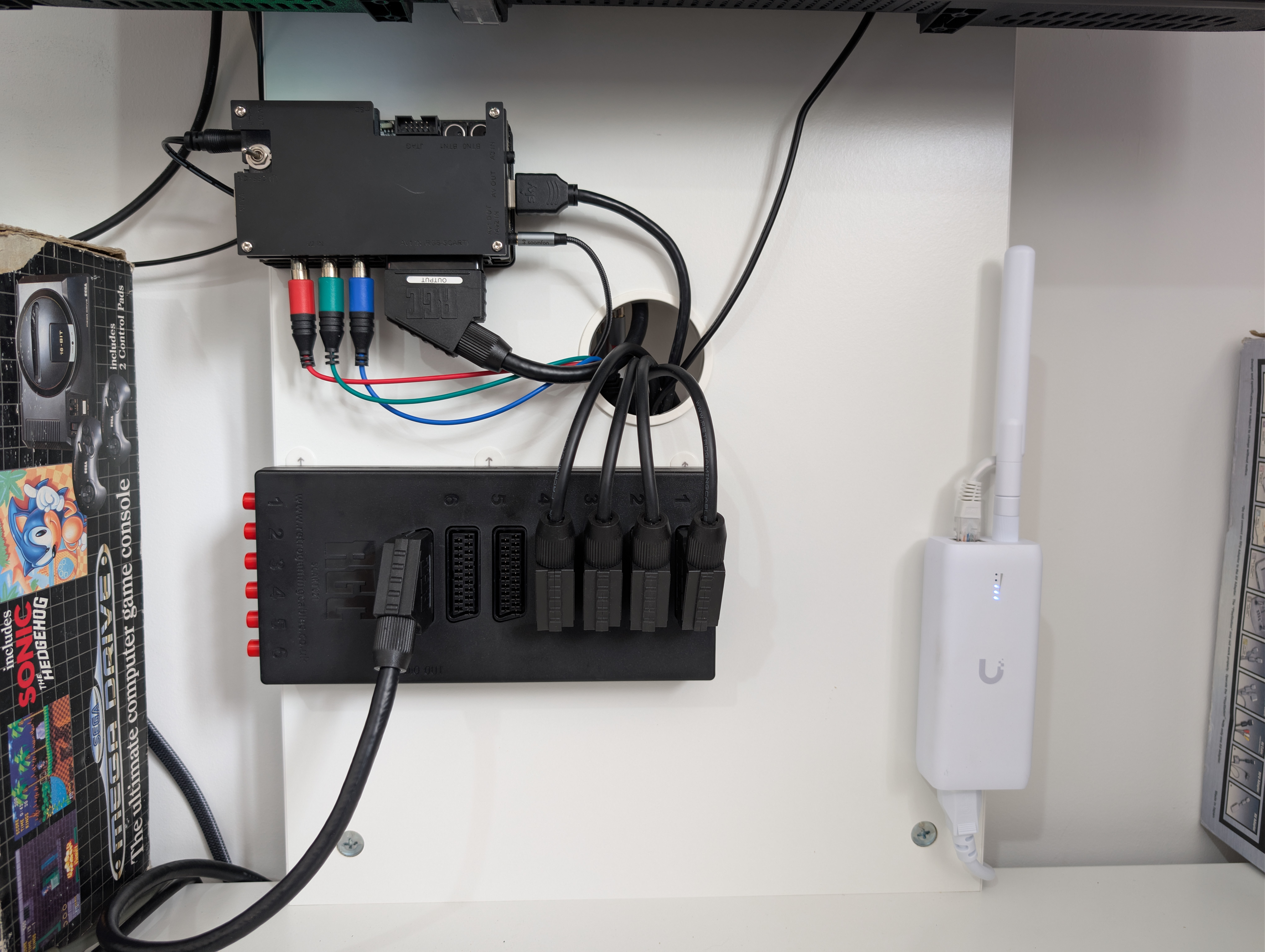

If you're like me and you get easily annoyed with devices getting moved around, then this the solution for you.
Takes less than an hour to print, costs less than £1 in PLA and takes 5 minutes to mount.
Requires 2x M3x10 countersunk head screws, optionally requires 2x M4 countersunk head screws if you don't stick the base to the wall.

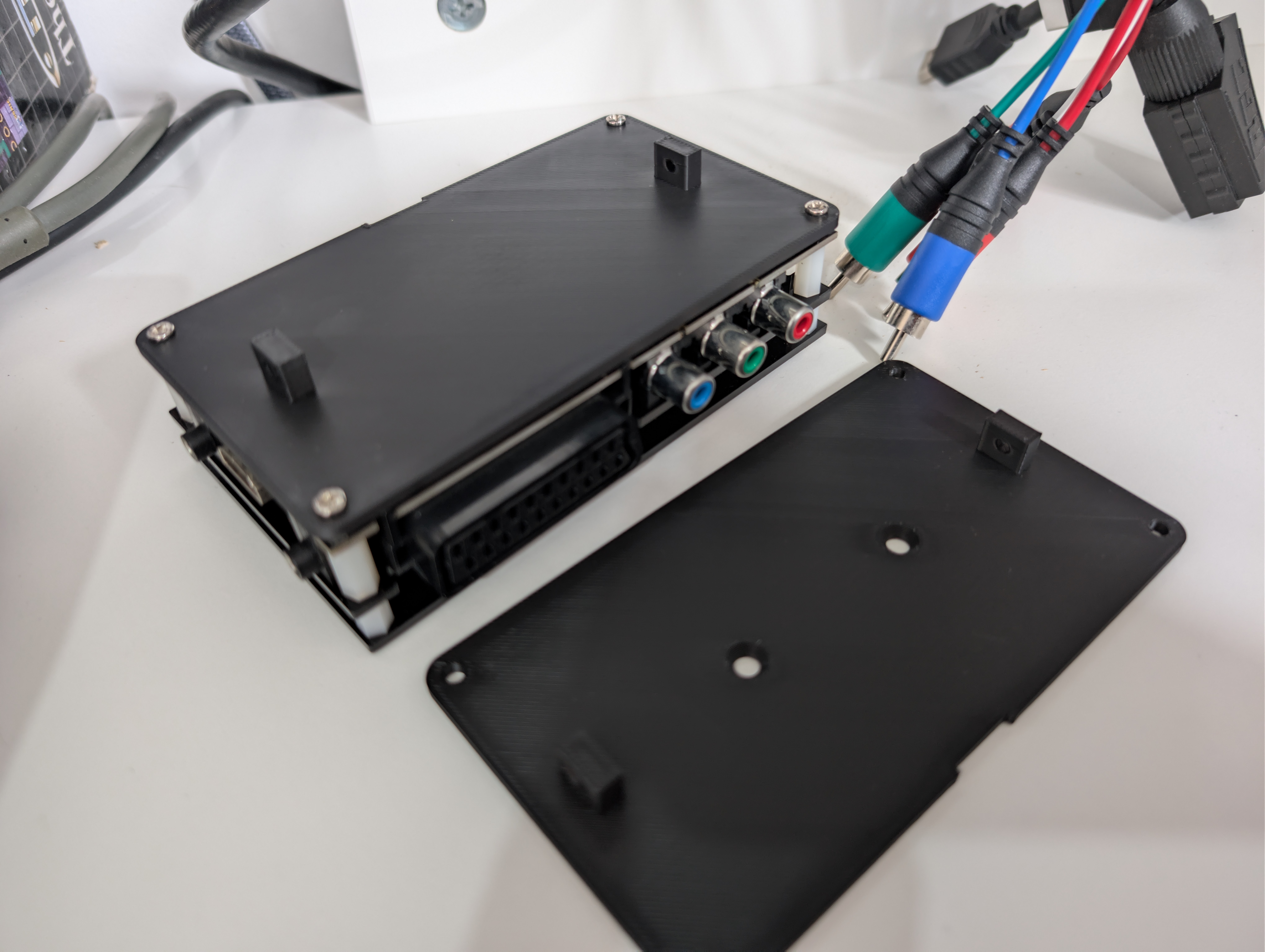

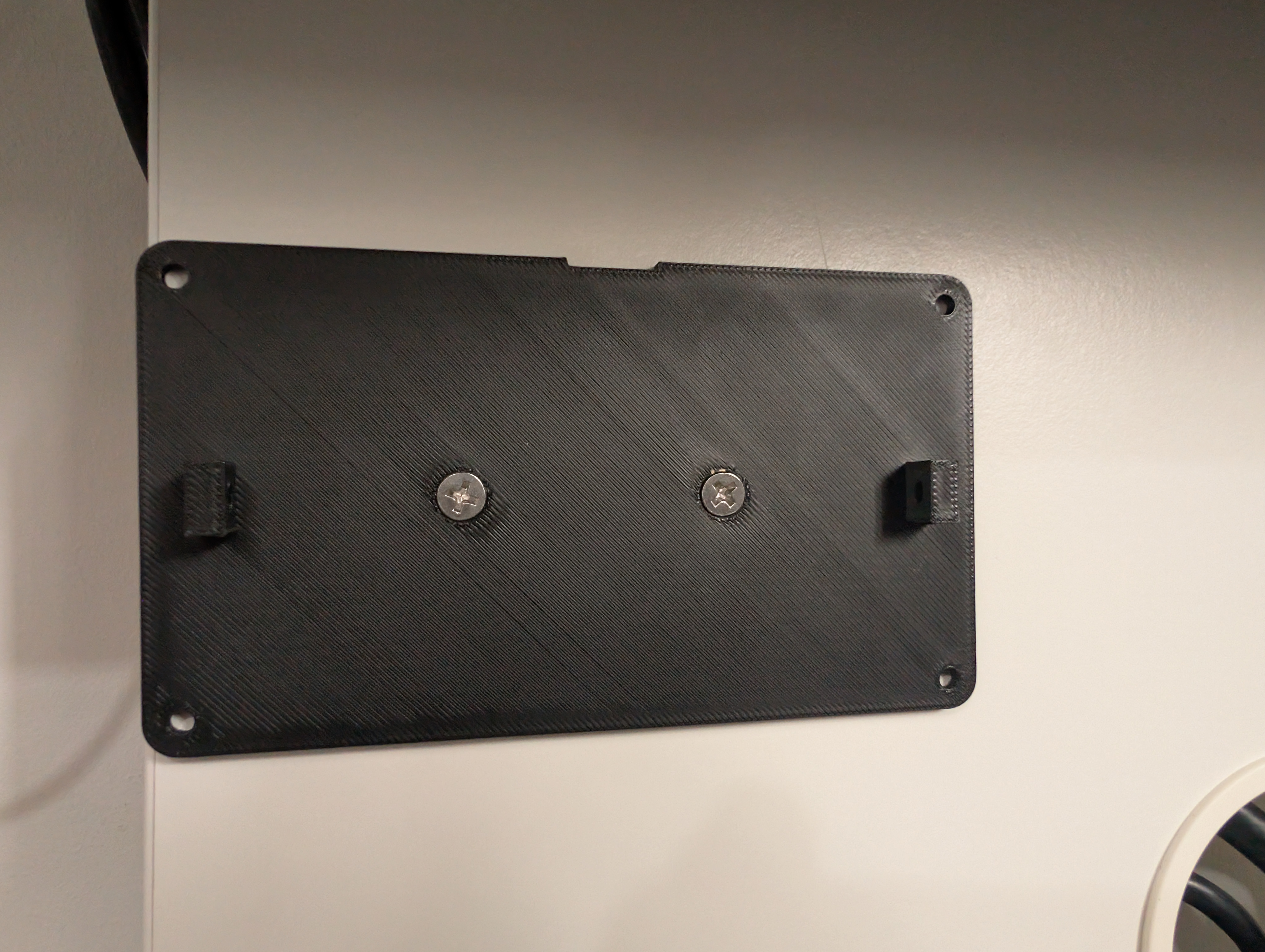

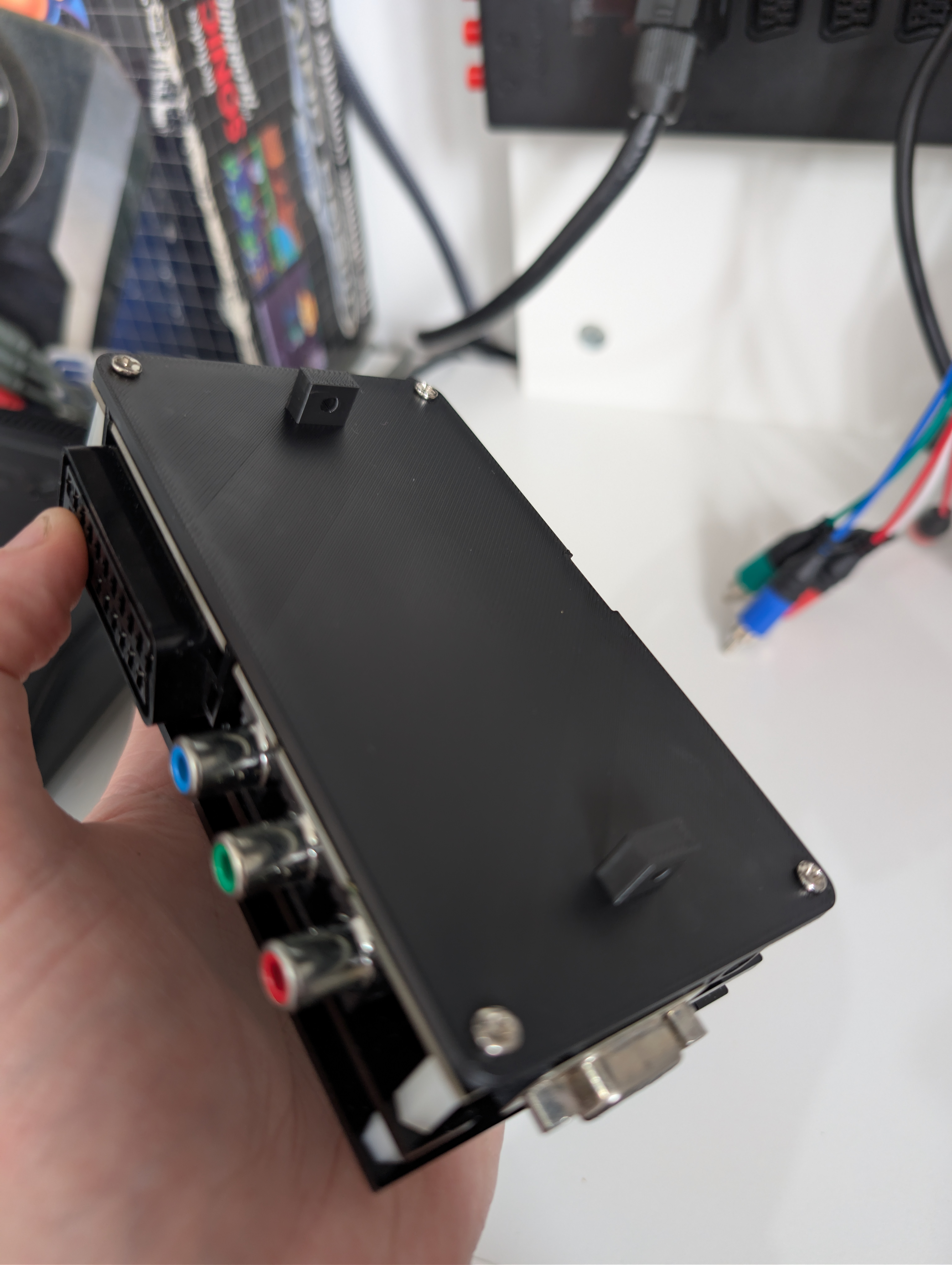

Remove the original base from your OSSC if it has one, keep the screws and nuts, swap it with the wall mount top part. Mount the new base to the surface you wish to attach your OSSC and secure using either two M4 countersunk head screws or adhesive strips.
The cut-outs on the parts should align with each other and with your OSSC MicroSD slot (if it has one).
Align the top and base screw holes and use two M3x10 countersunk screws to secure and you're done.

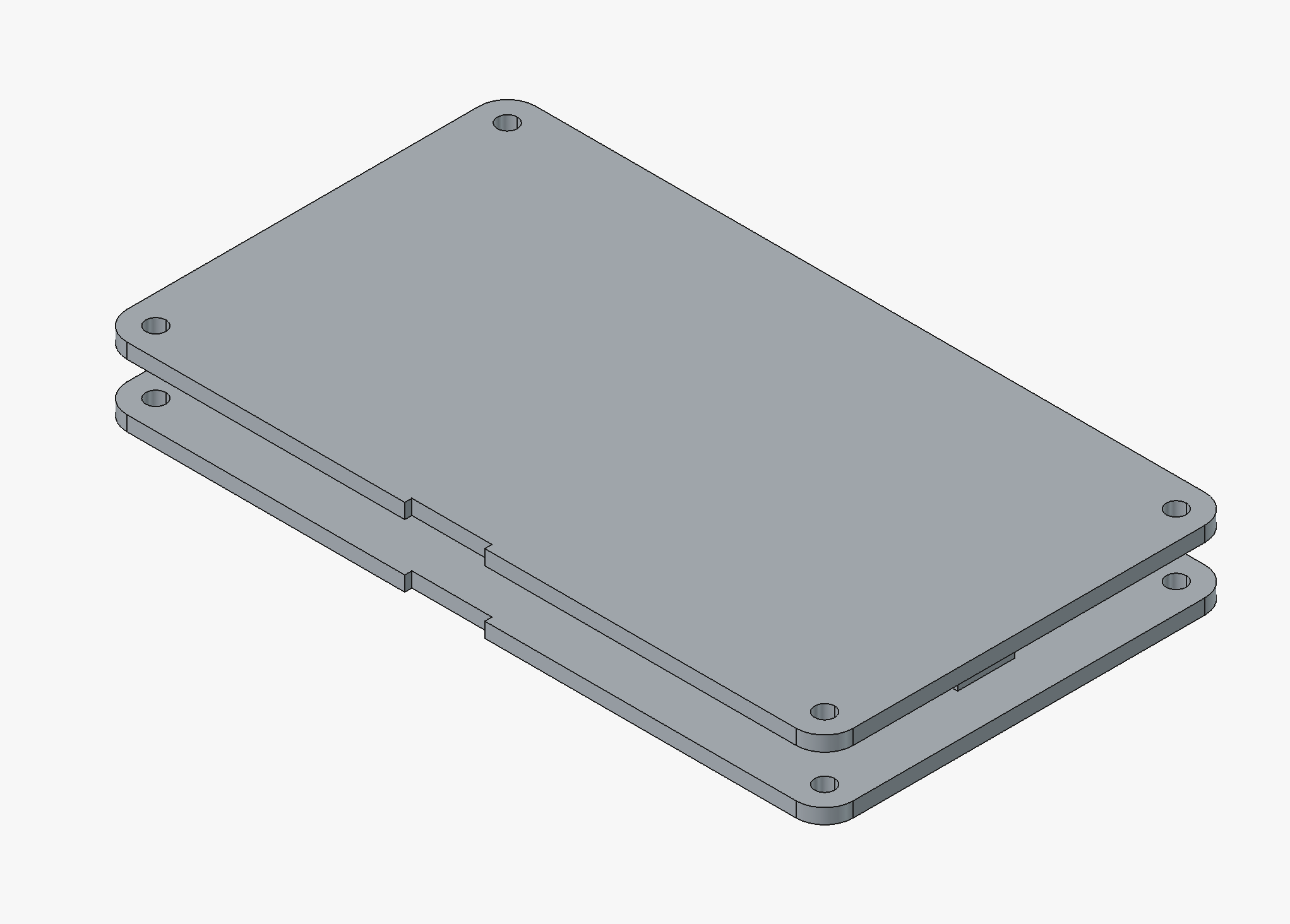

FreeCAD files are included.
