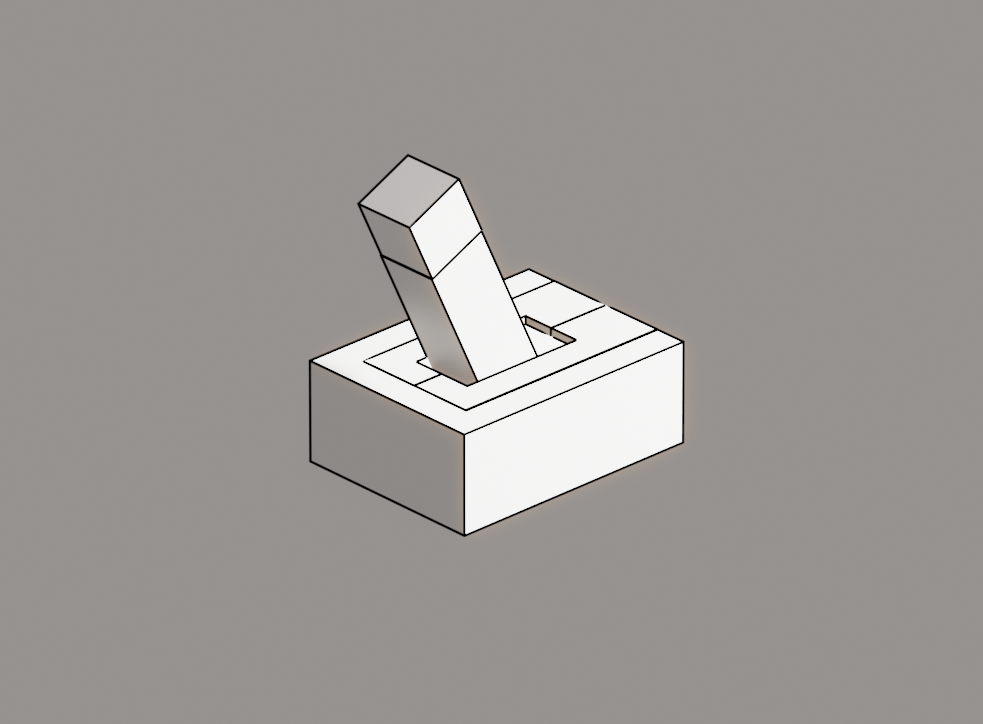

Lever Lightswitch Cover

This easily assembled light switch cover will add joy to the simple action of turning on and off your light switch. This design is perfect for people wanting to add personality and character to their home.

This model is designed to go over the existing cover. It is recommended that it's mounted with double-sided tape to the wall surface surrounding the existing switch cover.

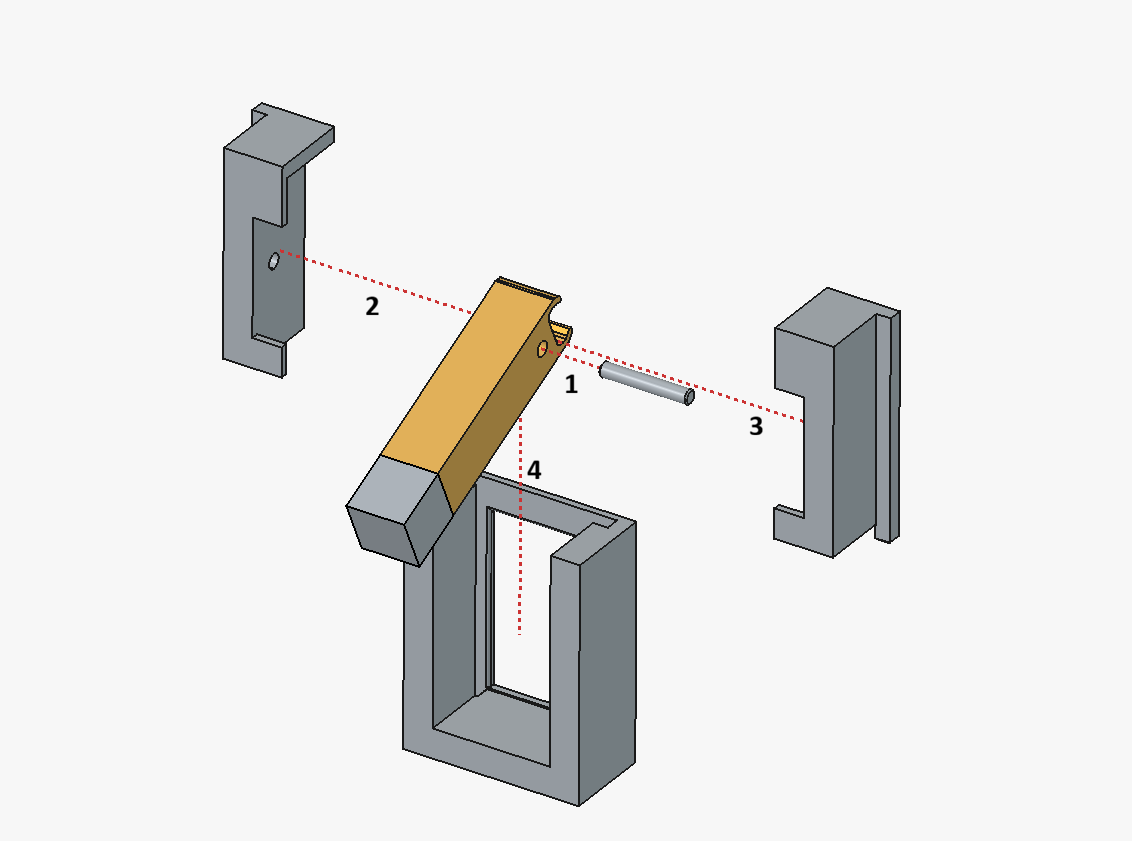

Steps for easy assembly (as shown in the exploded view below):

• Fit the dowel into the hole of the lever.

• Once the dowel is centered inside the lever, fit each main body part into the dowel.

• Then slide the the currently assembled parts down from the top of the mounting plate. Remember to have the end of the model with the pegs facing down when sliding into the mounting plate.

• Enjoy your new light switch cover!

Glue is not necessary for the model to function well.

Supports during printing aren't needed for most of the parts, however the main bodies may need supports for their overhang. PETG is recommended purely for durability reasons.

Disclaimer:

Due to a lack of a 3D printer, personal testing of this model hasn't been possible. However research was done on dimensions and careful work has been done on the measurements of the model to help ensure the functioning of this model. If any issues arise with the measurements of this model, I will be happy to rectify these issues where possible.

Likes, makes, downloads and comments are all greatly appreciated.
