Bifold Door Holder, 65°, for 35 mm Panels
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Holds a bifold door open at 65°: a cap that presses over both panels at the hinge. No tools, no screws.
- Rating
- 0 / 5
- Likes
- 0
- Downloads
- 0
- Makes
- 0
- Views
- 2
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Standard Digital File License

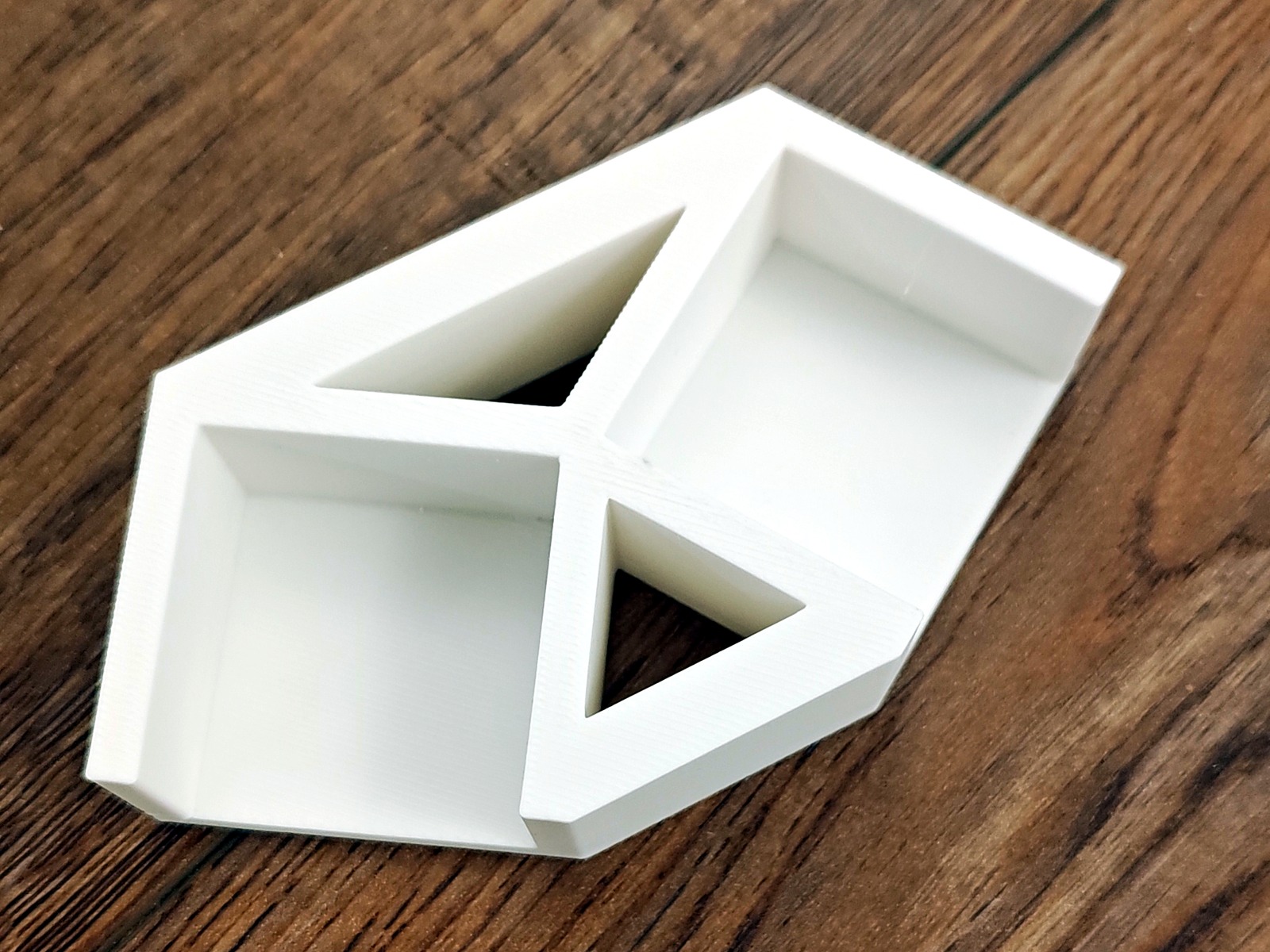

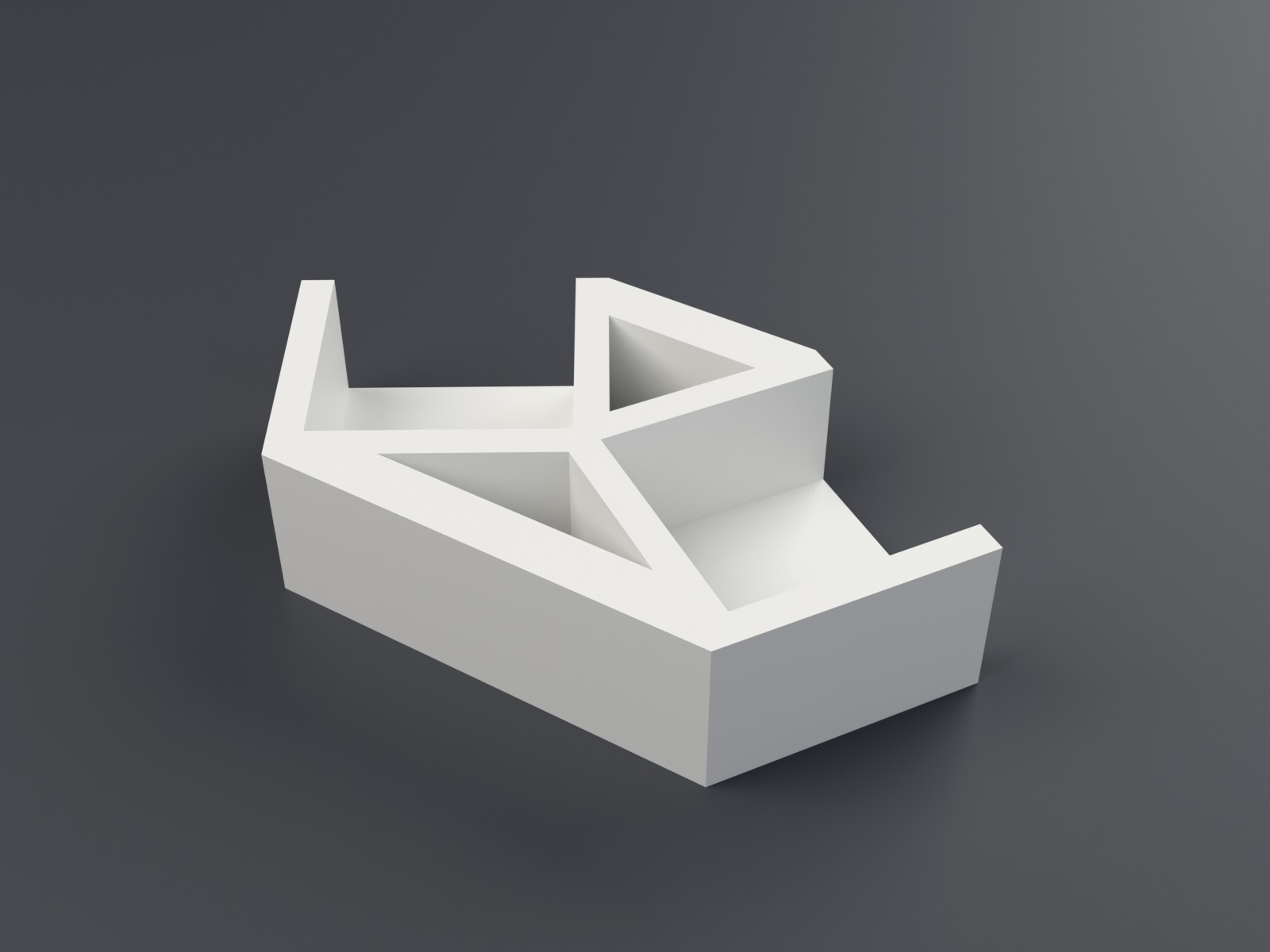

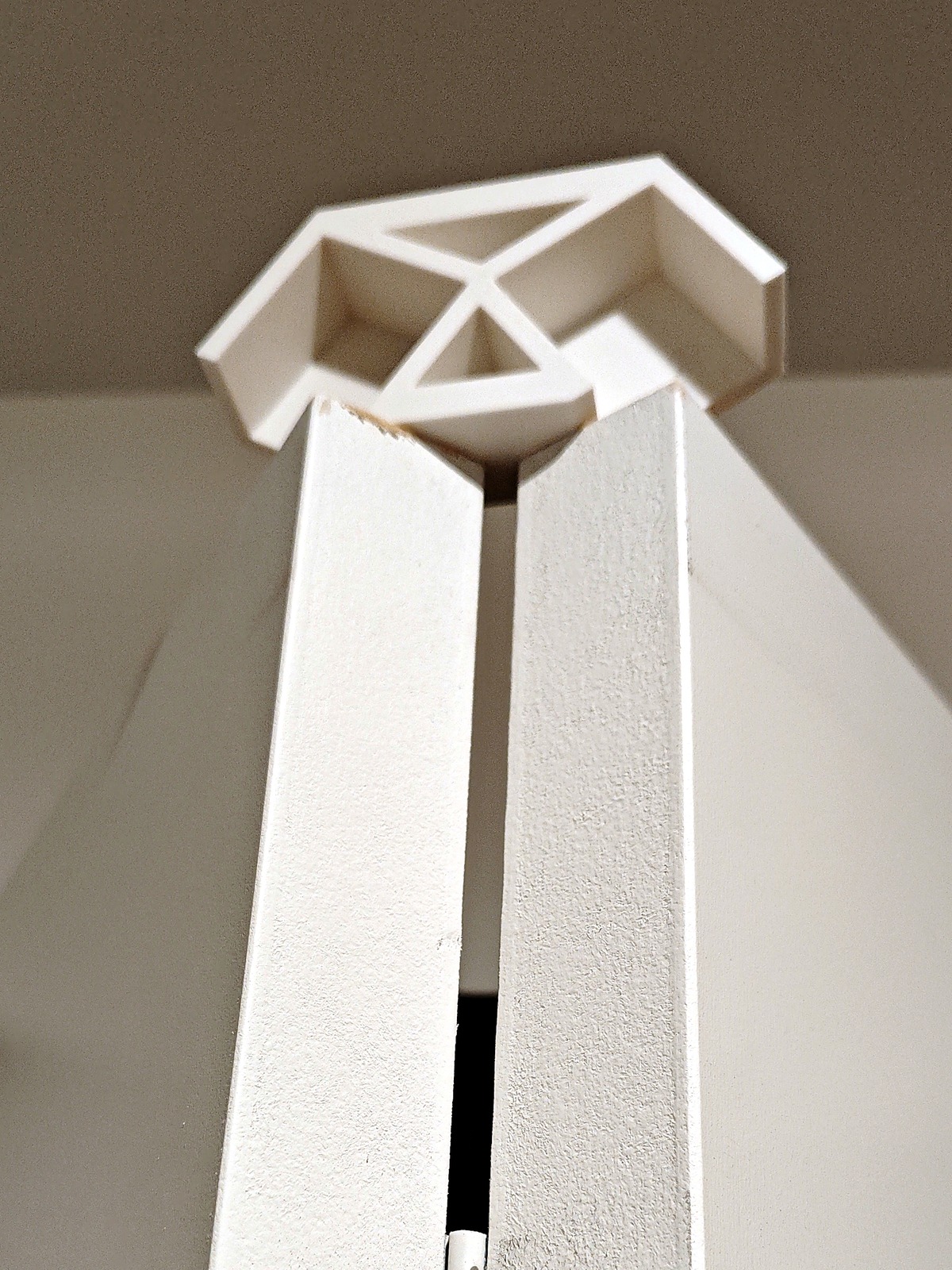

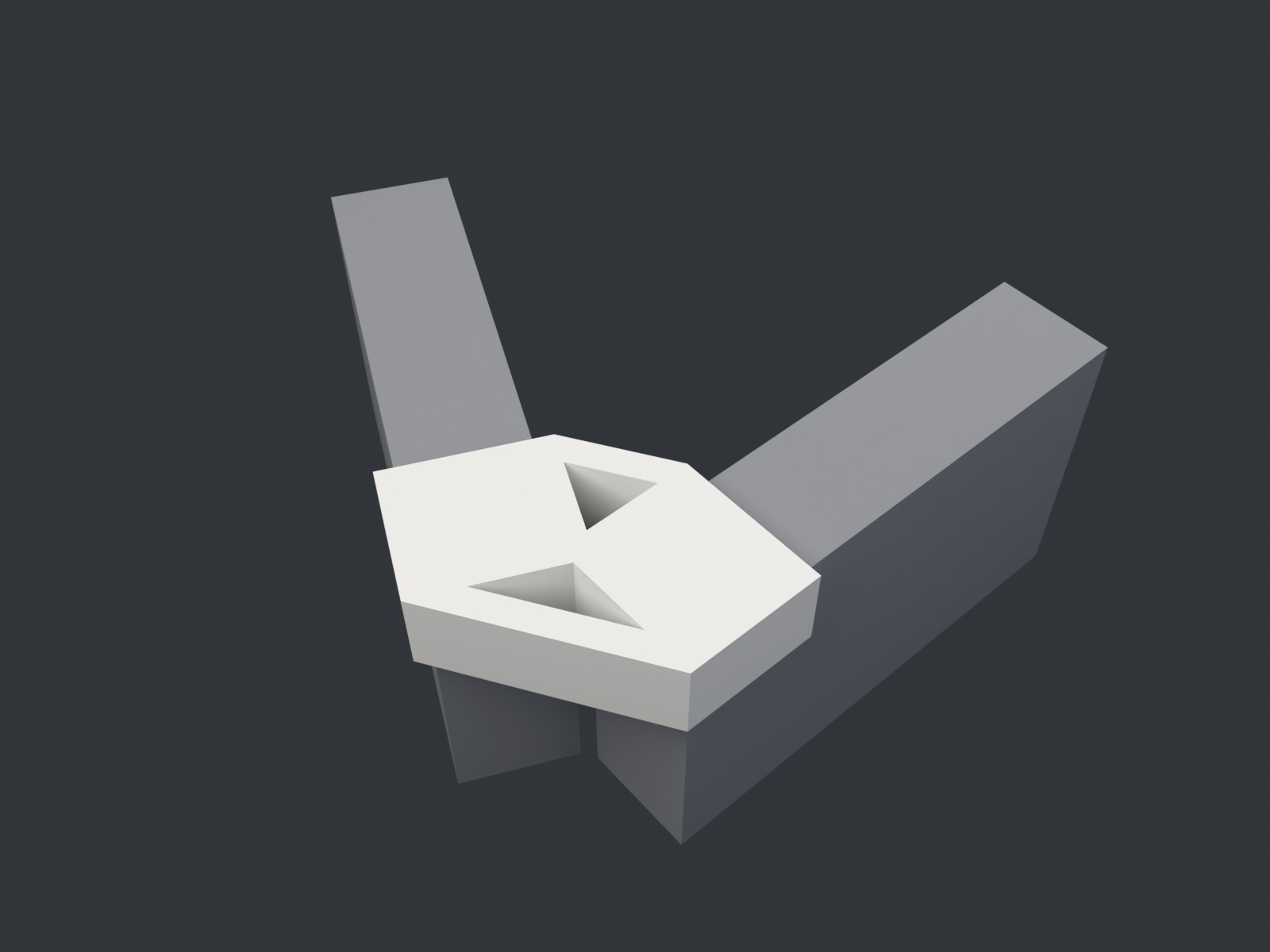

A cap for the top of a bifold door that holds the two panels open at 65°. Fold the door to about 65°, then press the holder down over the top edges at the hinge.
Fit
For panels 35 mm thick, hinged with about a 5 mm gap between them
Slots 35.5 mm wide (0.25 mm clearance each side), 20 mm deep
110 × 58 × 24 mm overall

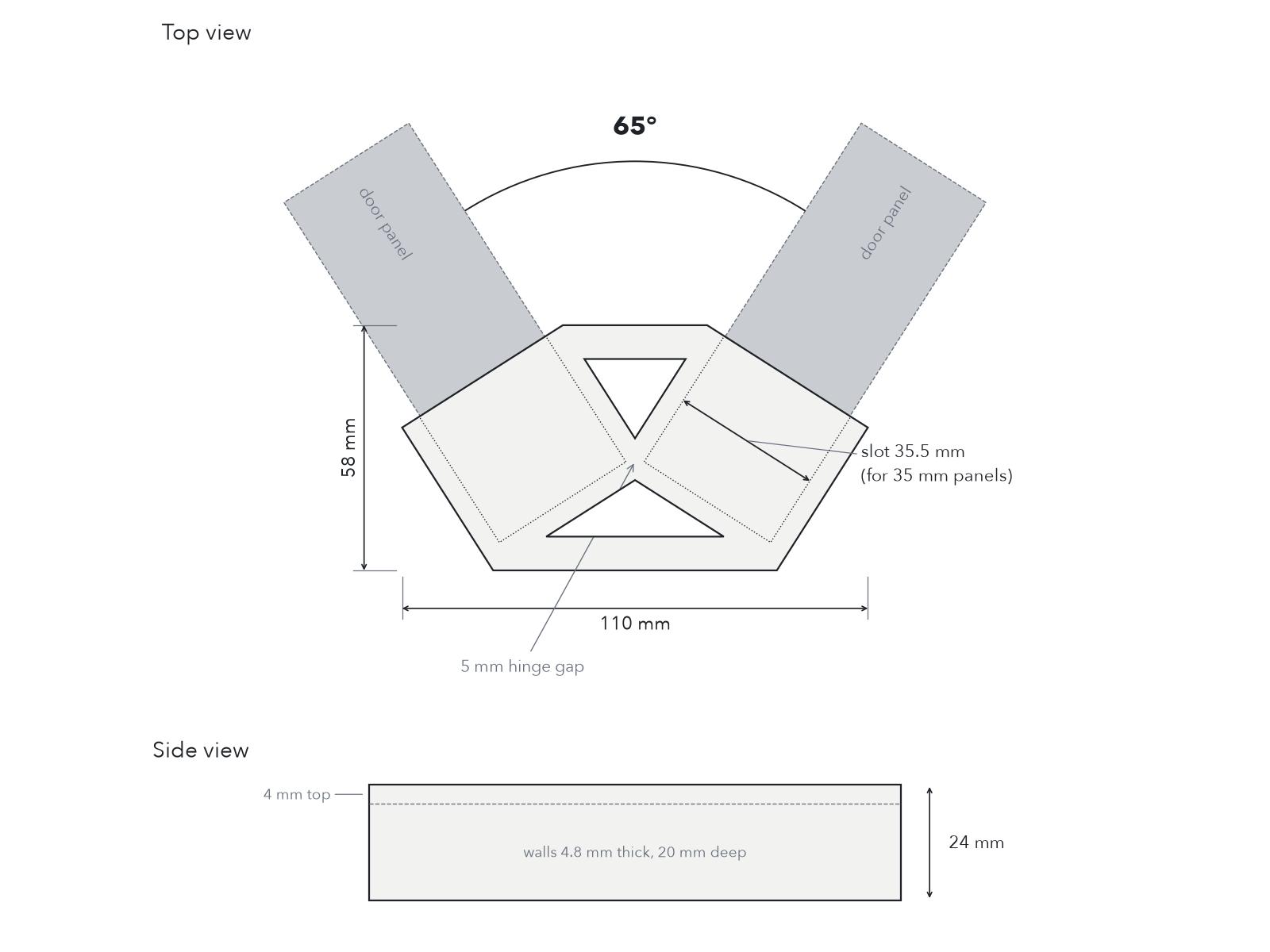

Measure your door's thickness and hinge gap first; the dimension drawing shows every measurement.
Printing
PLA, 0.2 mm layers, 3 walls, 15% infill, no supports. Prints top down as provided, about 72 minutes and 38 g on a Bambu Lab X2D.
Files: the STL, and a Bambu Studio 3MF with these settings.
