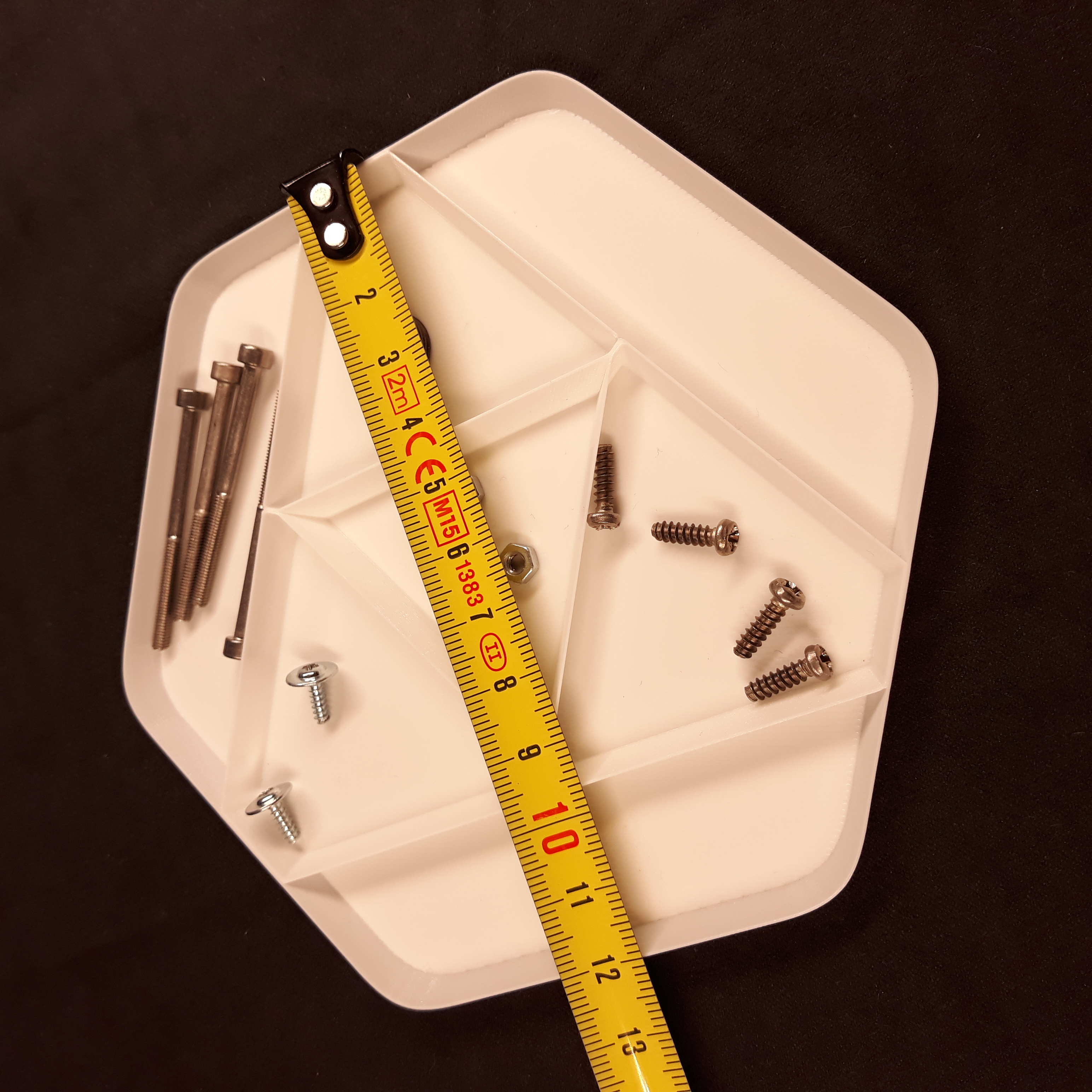

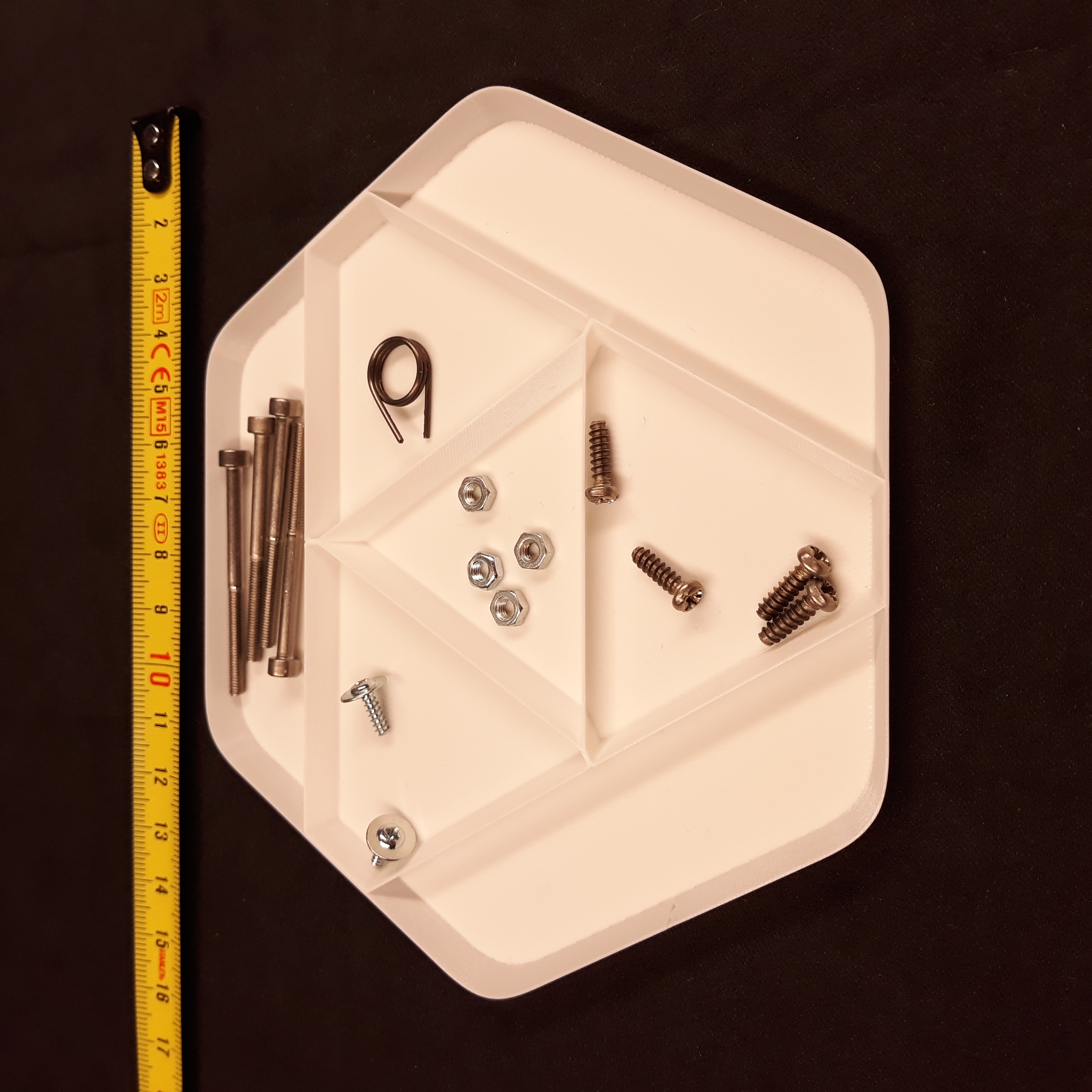

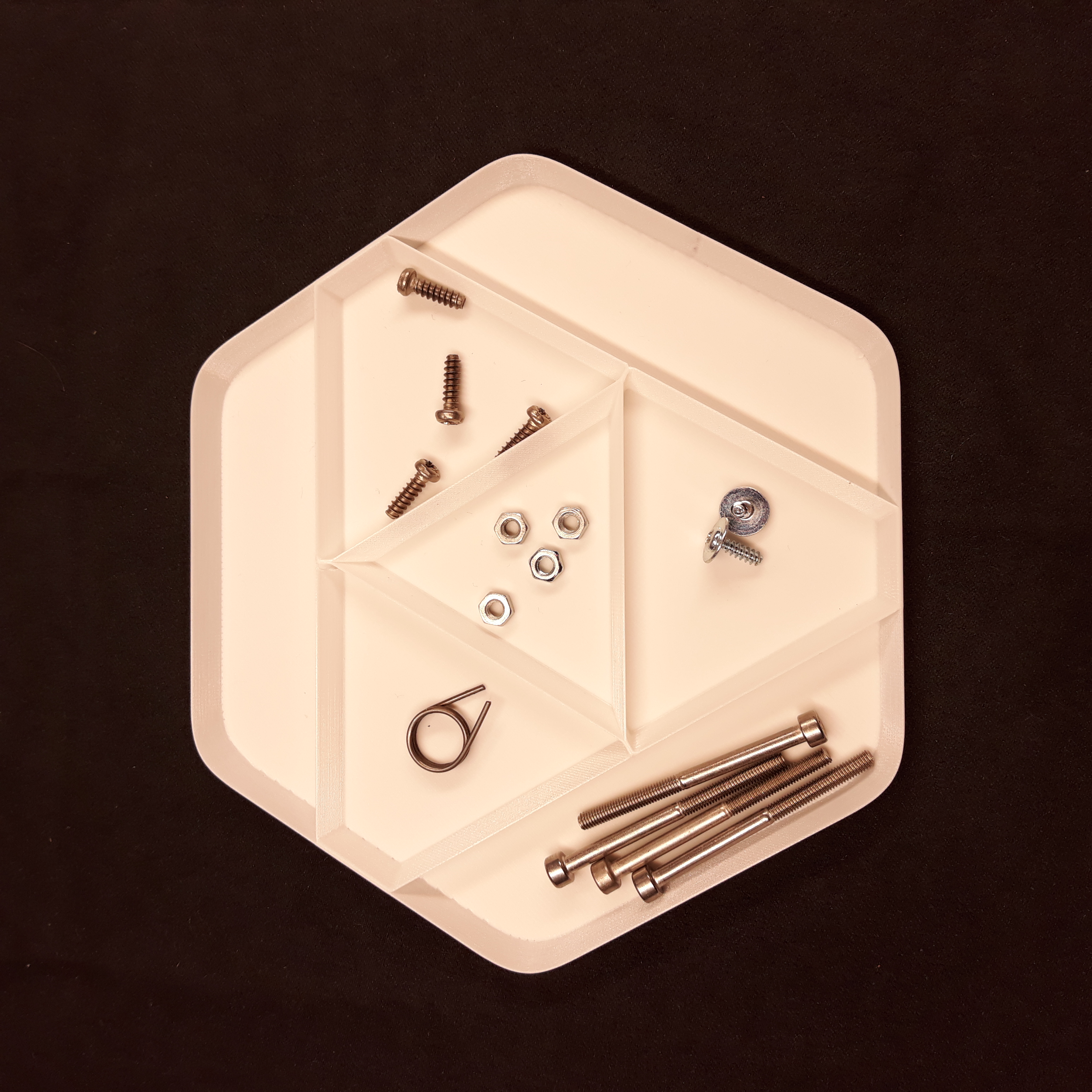

This tray is intended for someone who needs to disassemble or repair something and doesn't want the screws and nuts to roll around the table.

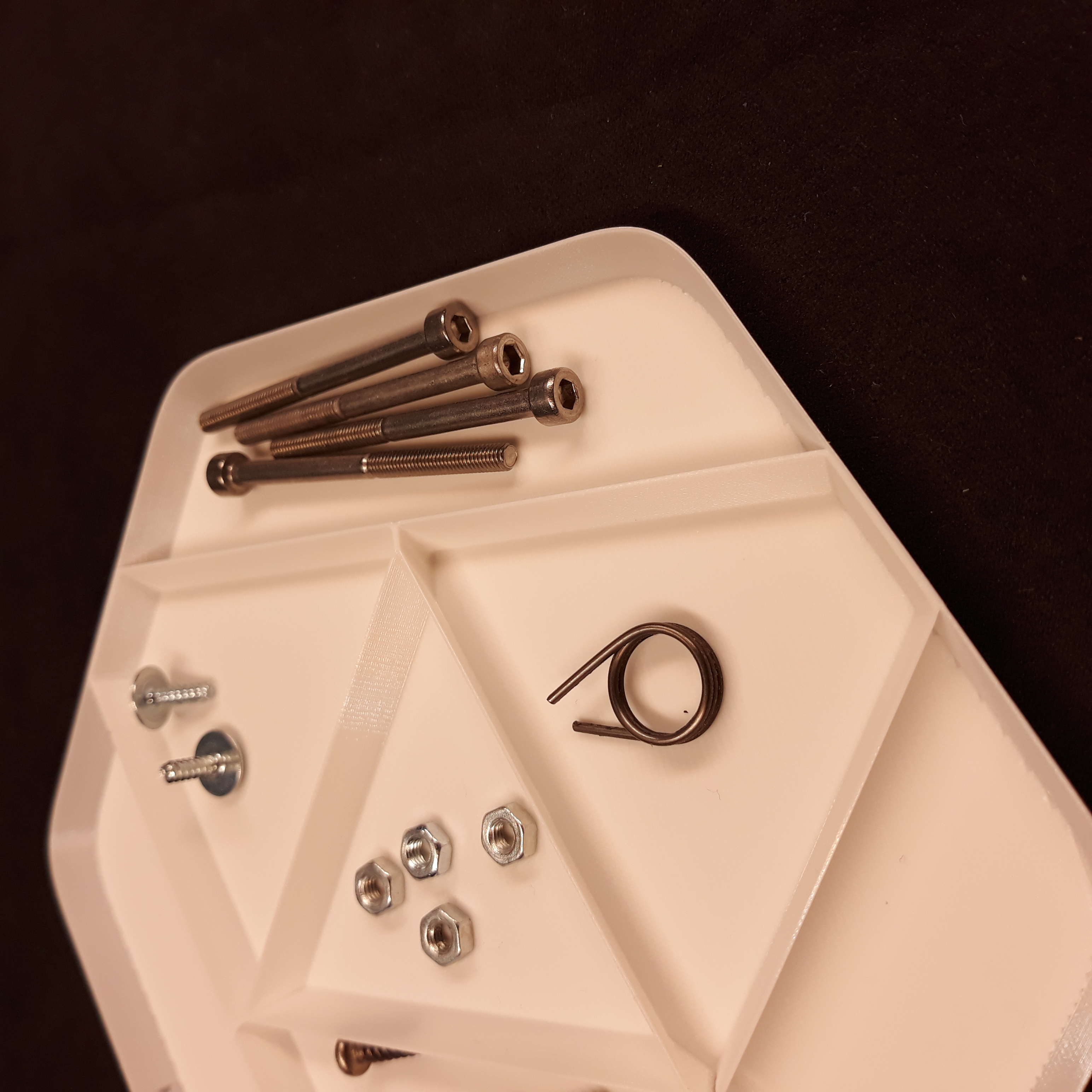

The pockets in the tray can also be used for fasteners removed in important steps. Then they are ready for reassembly in reverse order. You can write numbers in the pockets for better orientation.

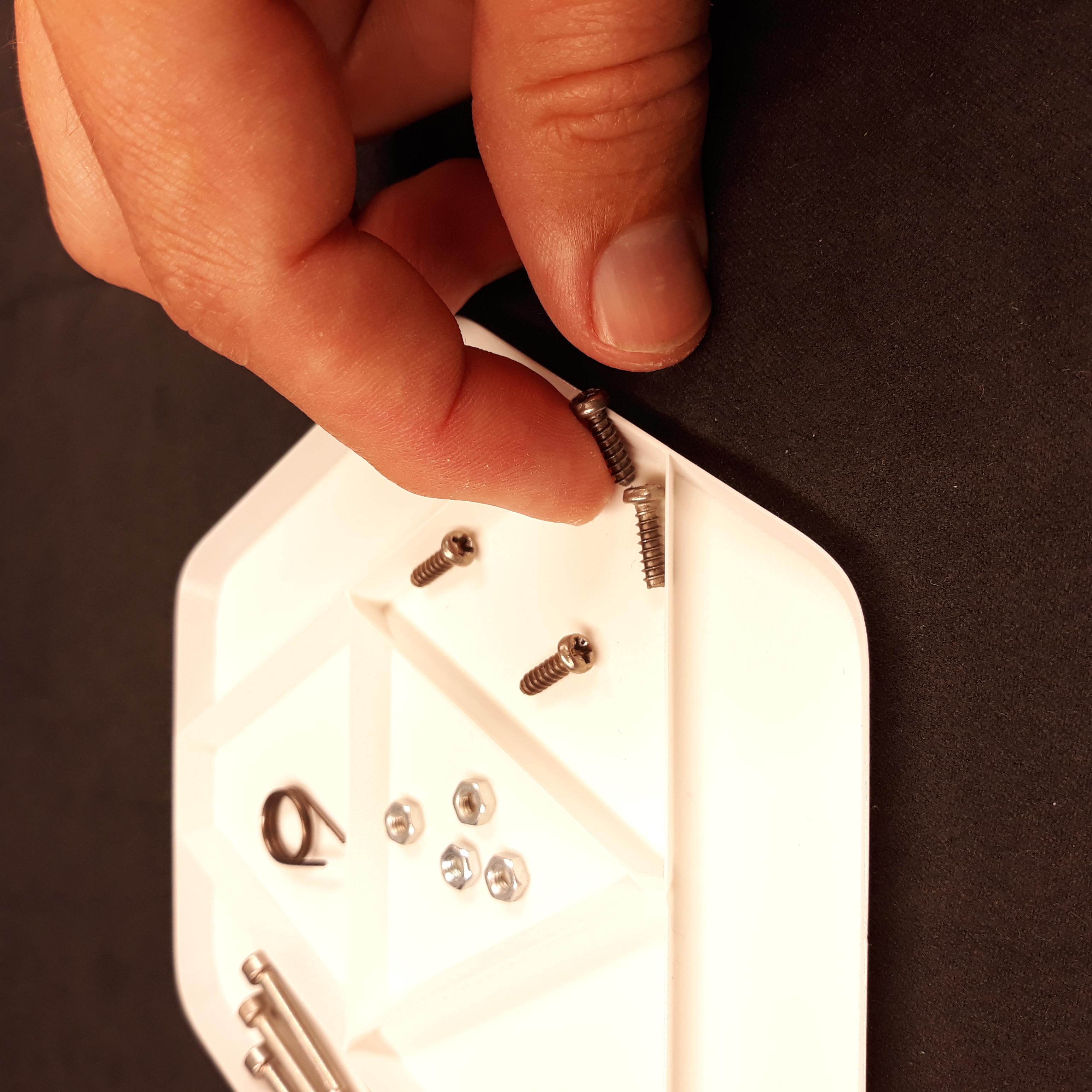

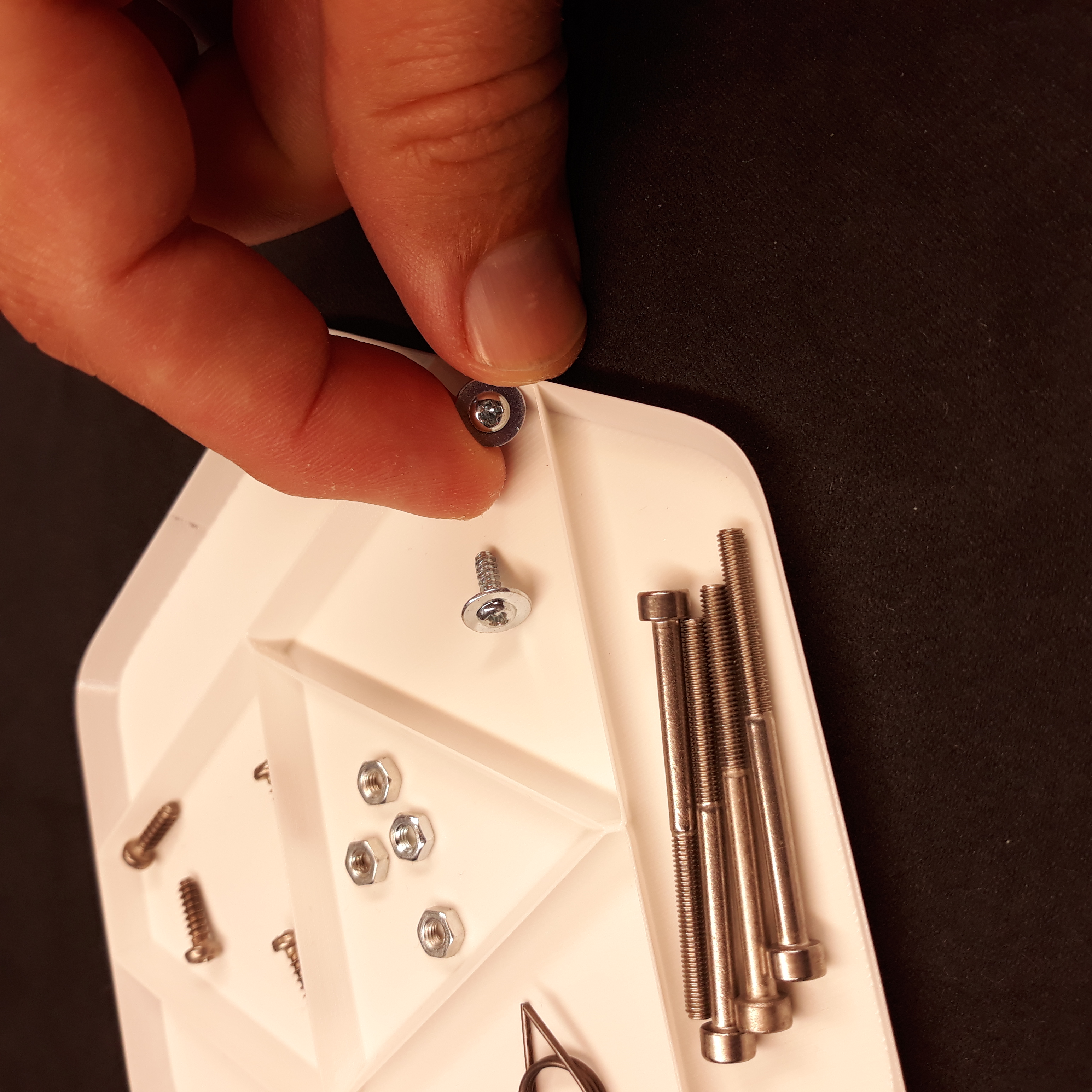

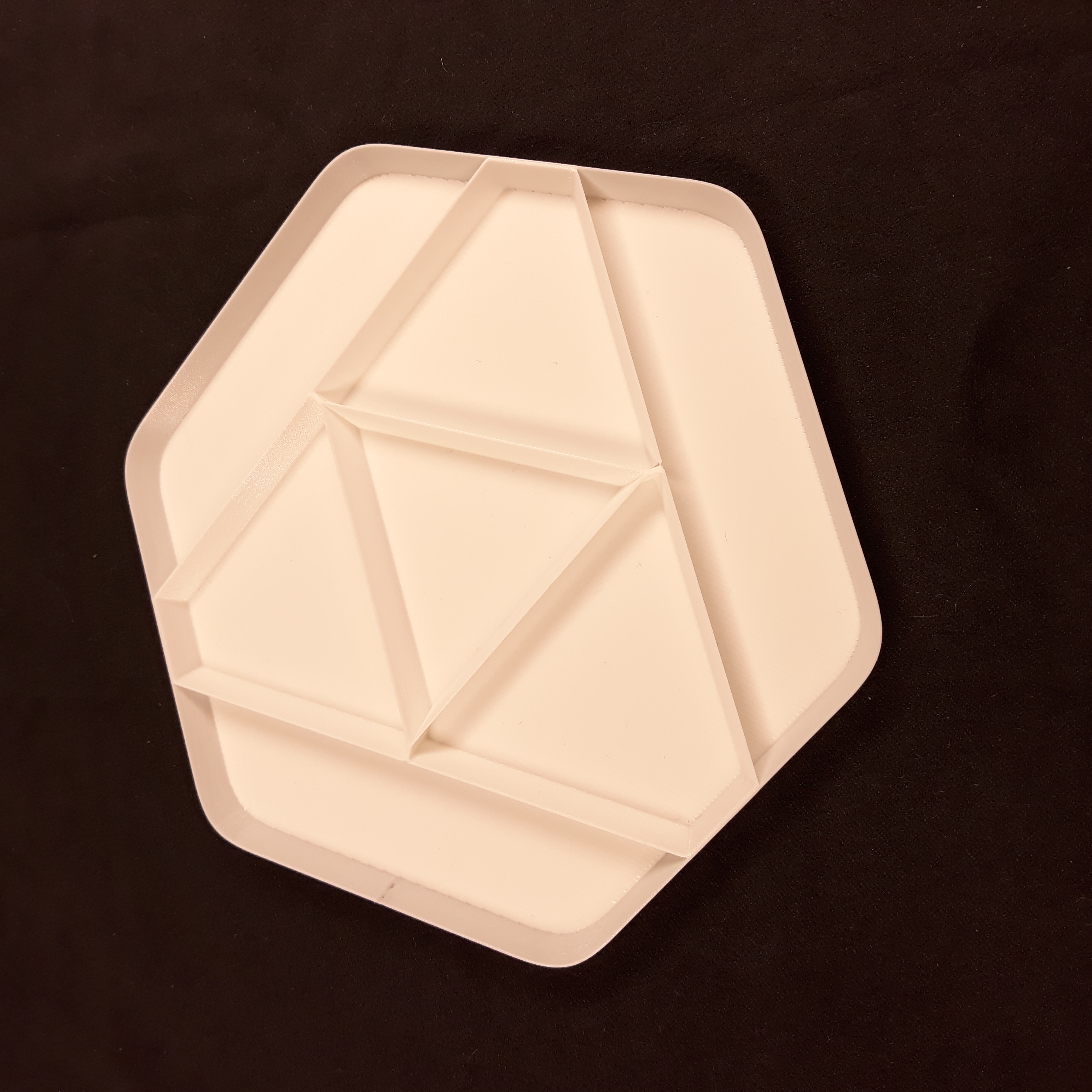

The tray has hexagonal shape, so when you print more of them (another tray can be printed in 1 hour), they will fit together nicely. It is also only 6mm high, so you can easily put it somewhere for storage. The side walls of the pockets are slanted a bit to take fasteners out by hand easily.
So if you have about 5m of filament left, maybe you could go for it ;).

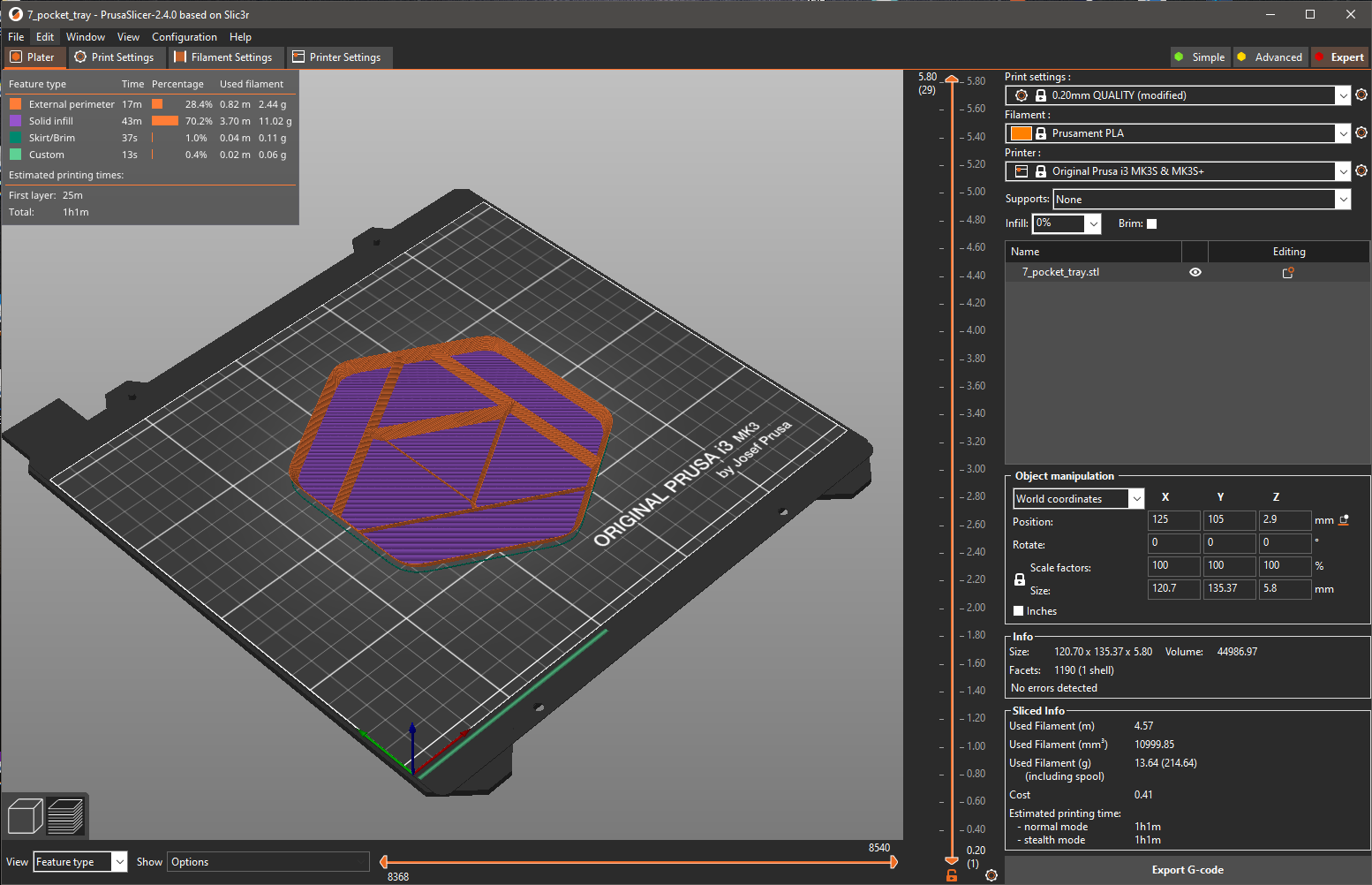

Printing: 0.2mm layer, 4 bottom layers, 0 top layers, 1 perimeter, 0 infill or see 3mf file
