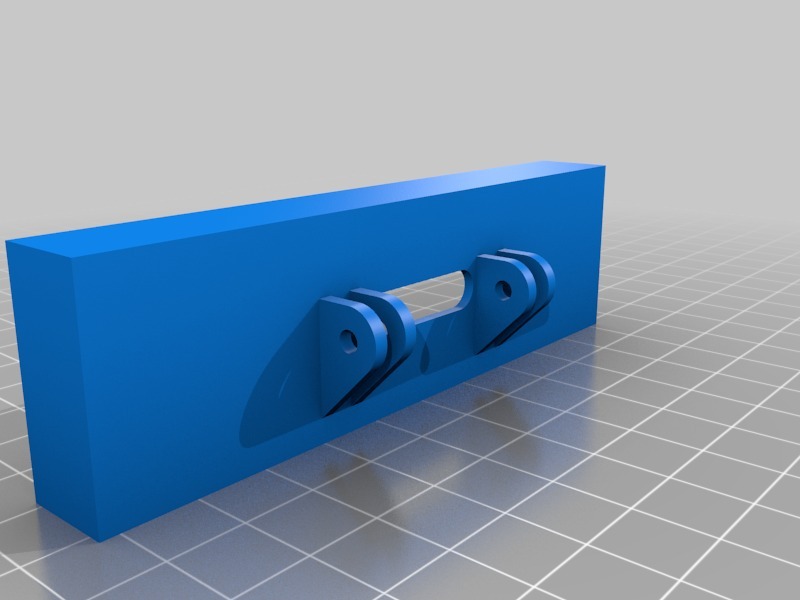

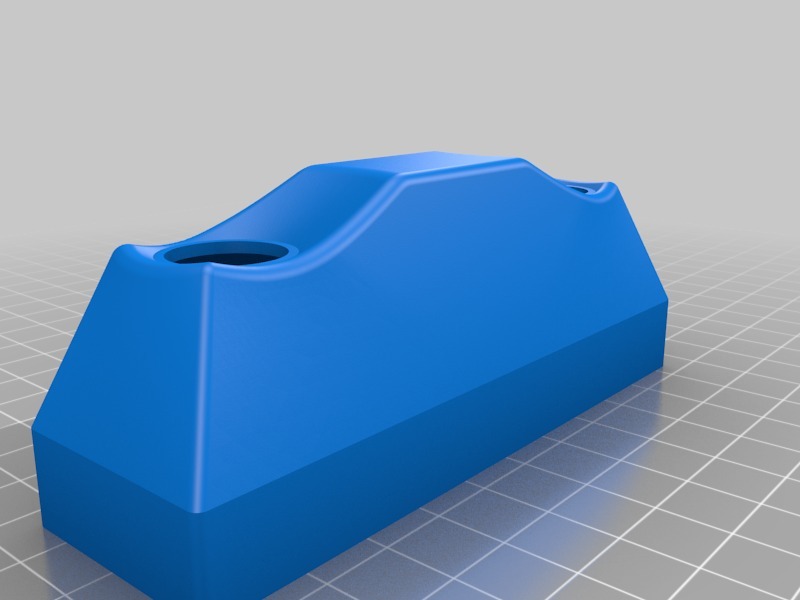

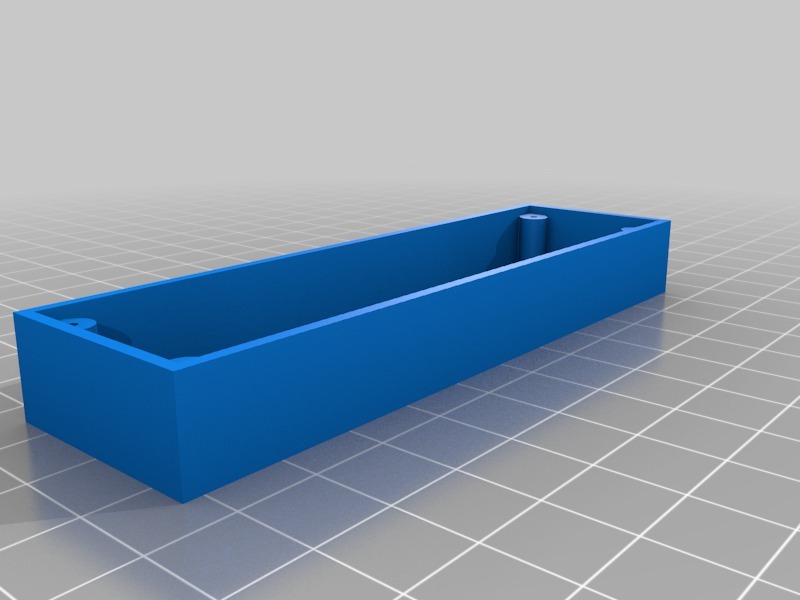

This is a protective cover, and case along with a pivot mount for the Nerdcam3D MK2.

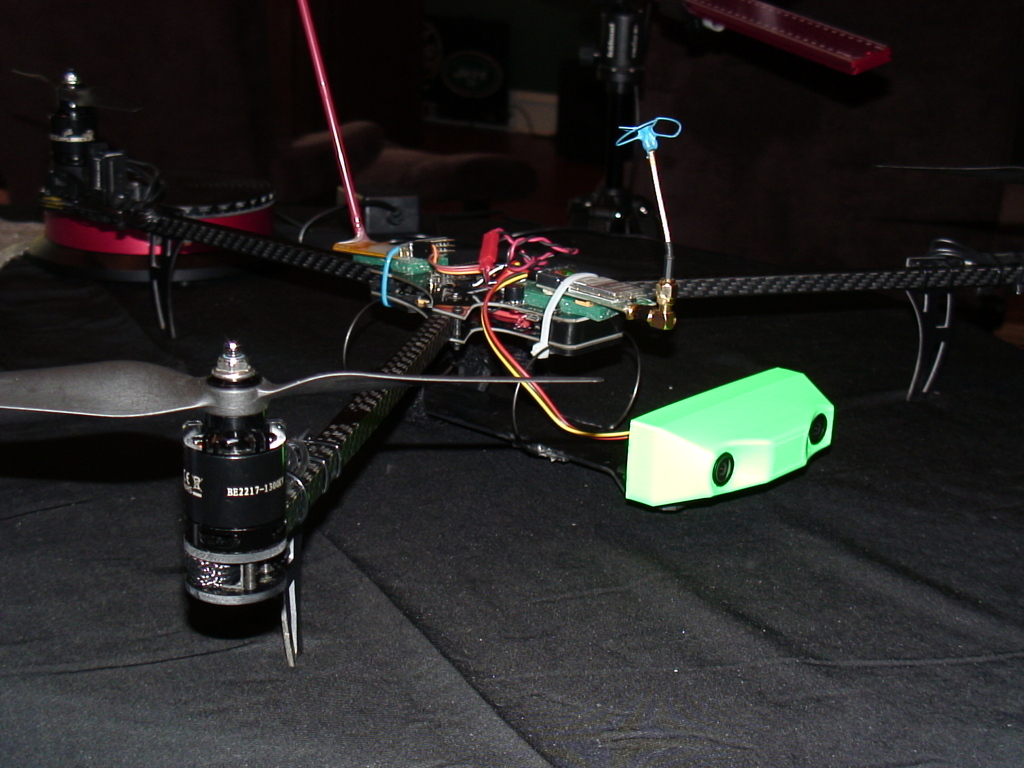

I have it mounted on my rcexplorer tricopter. Awesome camera and tricopter!
Enjoy

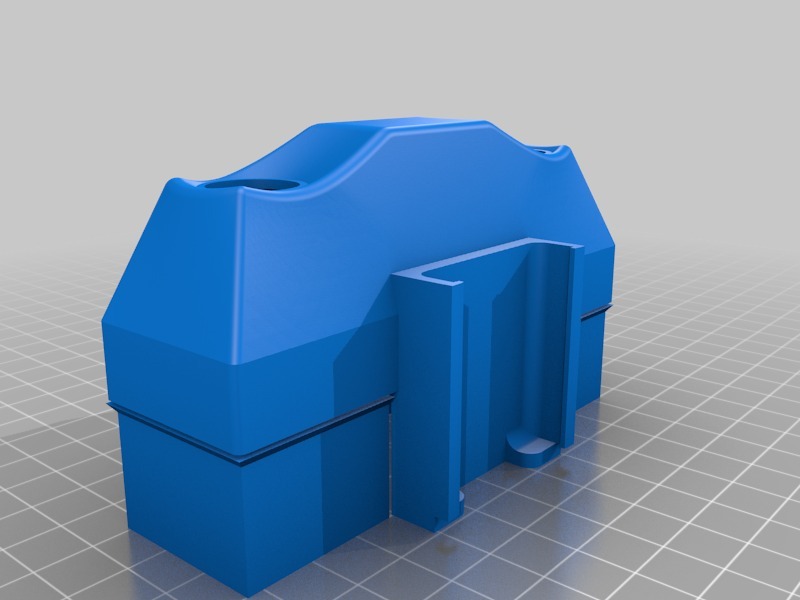

*Update* Added file nerdcam3d-mk2_cover_mobius which is a cover with a mount for the Mobius HD camera.
Print Settings
Printer Brand:
LulzBot
Printer:
TAZ 5
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
.2mm
Infill:
100%
Notes:
I used a .35 nozzle and .42mm print width. 2 shells. The cover wants to warp so use a thick raft or make sure you get good adhesion to the bed.

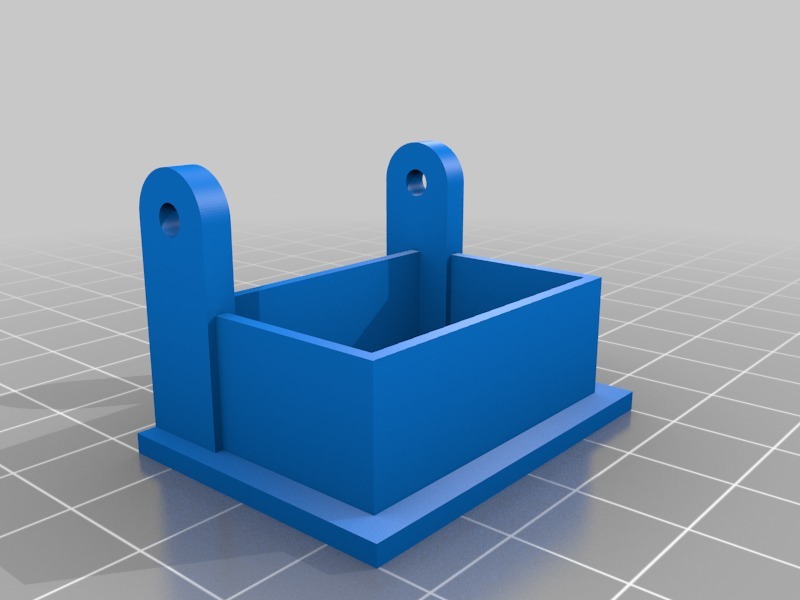

The cover and mount with clevis requires supports.
The cover_mobius is a tricky print. It will require a brim, and 1.5mm supports. It's best to print with a .42mm print width and .2mm layer height. I include a breakaway section at the bottom to reduce support requirements and provide a good connection to the brim. But you will need supports between the breakaway section and the cover perimeter as there is a .8mm space. So the supports should have a 1 layer gap top and bottom in this space.
