Voltmeter/Amperemeter enclosure
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution

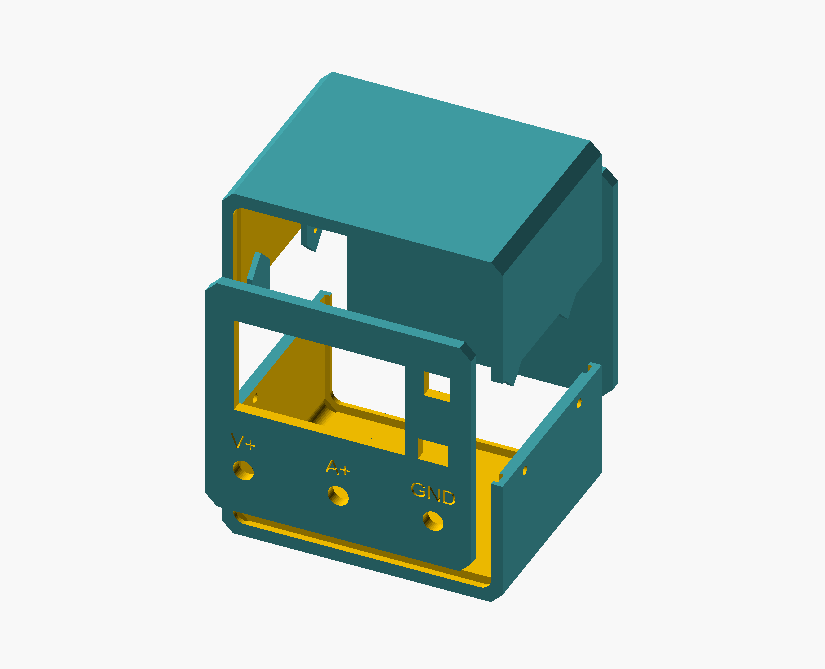

an enclosure for the cheap LED Volt-/Amperemeter.
you need:
- Volt-/Amperemeter
- 3 Banana-Jacks
- 1 7x7 on/off switch
- (optional) 1 JST-Connector
- (optional) circuit board for easy switch and connector mounting
wiring:
OpenScad file included, so you can edit the case for your needs.
I just put the battery inside. Maybe I'll add a battery mount later.
You can add a cap for the on/off switch: https://www.printables.com/model/397151-on-off-switch-cap-7x7
