Webcam Plug - Kit Card
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Put a curtain in front of the laptop screen camera and cover it when you want to ensure discretion.
- Rating
- 5 / 5
- Likes
- 30
- Downloads
- 55
- Makes
- 1
- Views
- 485
- Reviews
- 1
Updated at source:
Model information
- Source
- Printables
- Category
- Accessories
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

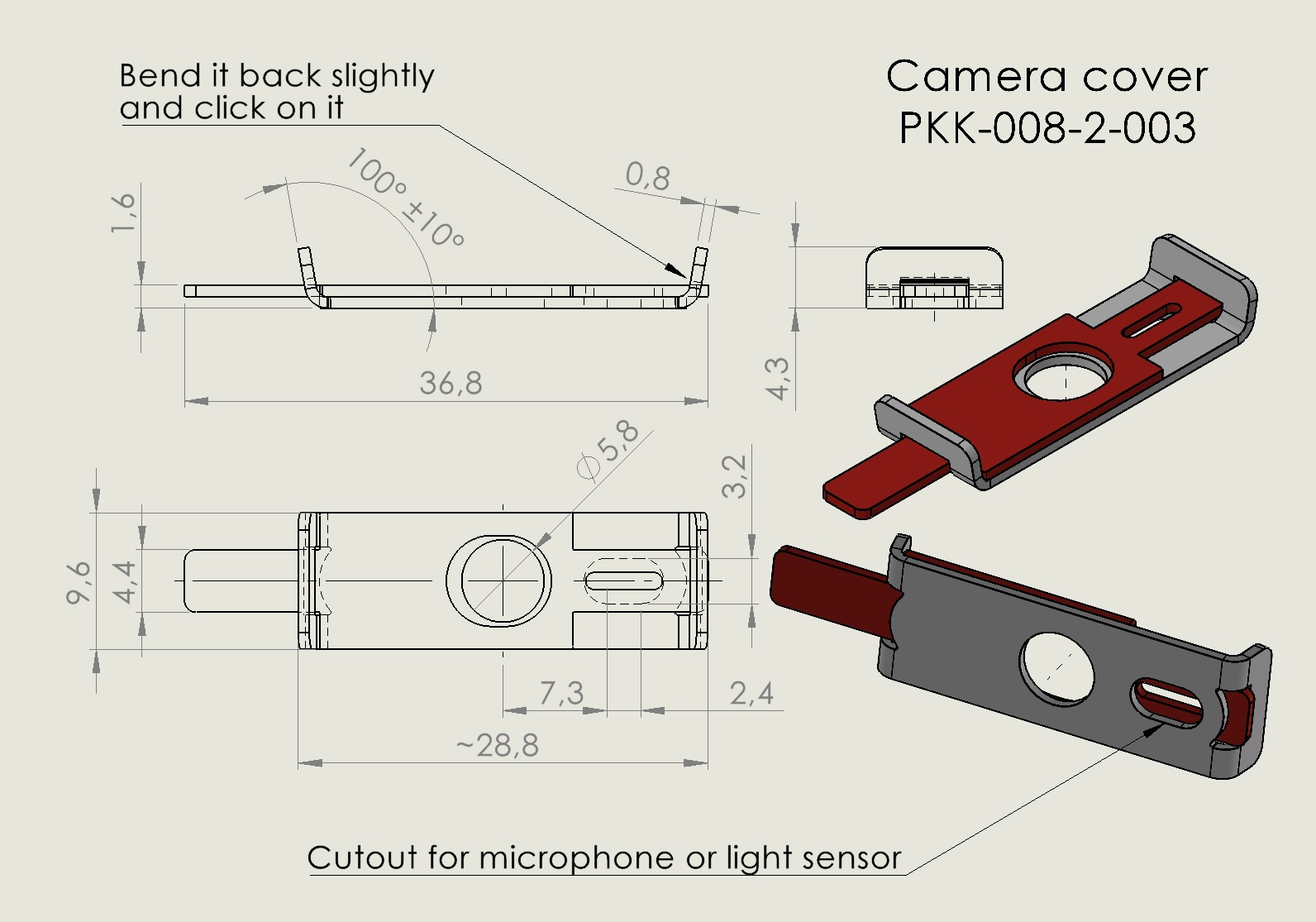

A camera cover with a cutout for a microphone or a light sensor.
Perhaps it will be a matching spacing of holes for your monitor.
The edges used are multiples of 0.4 mm long. Sharp ends R0.2 mm.
To complete the model you will need a tool (e.g. flat pliers). You may need to heat the model if you are using a material that is not malleable. If you use hard epoxy - it will be necessary to cut out the model and glue it.
To make life easier, I've added a 3D model that requires the use of supports when printing, but doesn't require bending.
Stick to the monitor with double-sided adhesive tape.
Bonding with silicone or low temperature glue is less recommended.
When assembling the model, it should be slightly bent and fastened with a click or finish bending gently with pliers.
WARNINGS:
- Not suitable for children under 3 years old.
- If you are not experienced in thermal bending, ask an experienced person for help.
- Wear safety glasses when cutting plastic.
- Do not cut plastic when other people are nearby as the shards may injure them.
- The use of thermal adhesives and silicones carries a serious risk of damage to the camera optics and computer screen housing.
- Be careful not to cover the microphone.
