Flipper Zero - Wi-Fi Dev Board Case (Basic)
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.

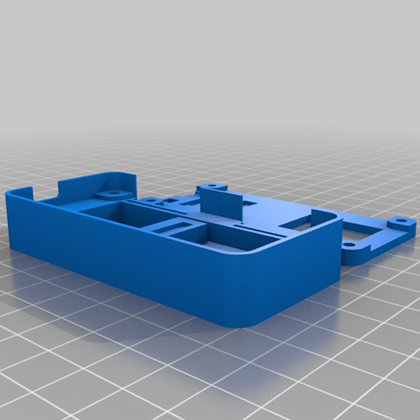

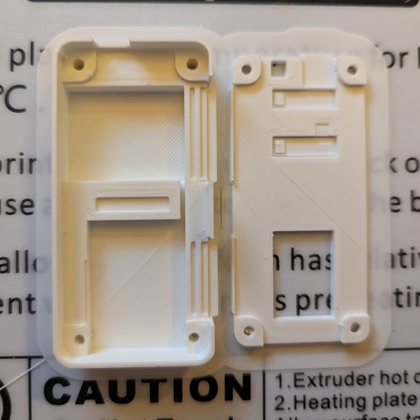

A basic case for the Flipper Zero Wi-Fi Dev Board - remix.
- Rating
- 0 / 5
- Likes
- 24
- Downloads
- 253
- Makes
- 1
- Views
- 1,539
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Portable Devices
- License
- Creative Commons — Attribution — Noncommercial
This print is specifically designed for the basic WiFi board straight out of the box, omitting features such as the antenna and SD card slot.
This creation is a remix of magdong's Wi-Fi Dev Board Case (https://www.thingiverse.com/thing:5564906).
For secure assembly, utilize 4 x M3x12mm screws accompanied by 4 x M3 nuts.
This design also has a pin protector boot cover that can be found in the following locations:
- https://www.printables.com/model/606861
- https://www.thingiverse.com/thing:6104552
- https://github.com/CodyTolene/3D-Printing/tree/main/Flipper%20Zero%20-%20WiFi%20Dev%20Board%20Case%20Boot%20Cover
My print settings:
- Hatchbox PLA
- 0.2mm layer height
- 0.4mm nozzle (line width)
- Enable retraction
- Wall count 3 (+ print thin walls enabled)
- Top/bottom layers: 4
- Infill density: 20%
- Infill pattern: Cubic
- Print temp 200 C
- Bed temp 60 C
- No supports needed
See more designs on my GitHub here: https://github.com/CodyTolene/3D-Printing
