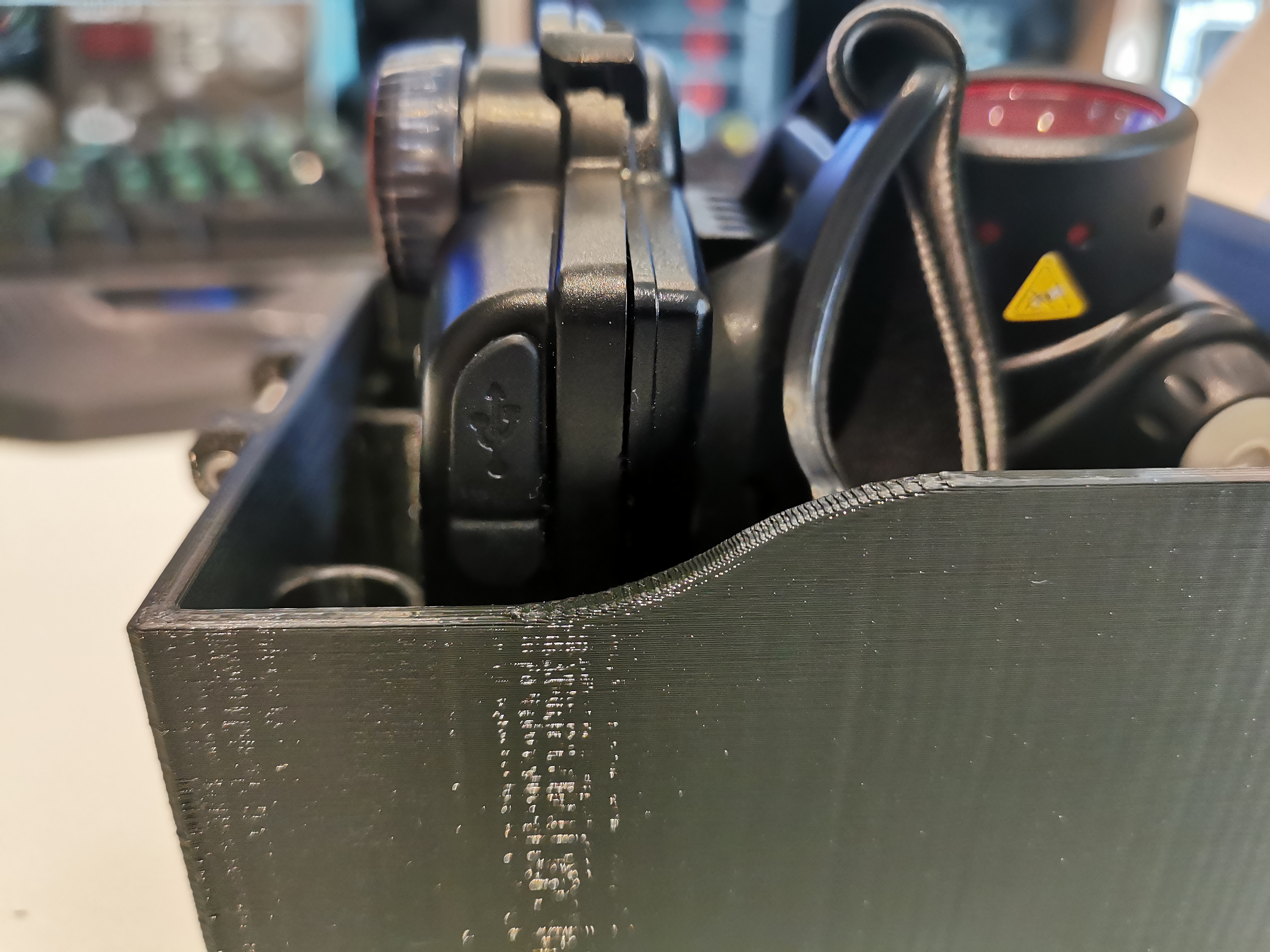

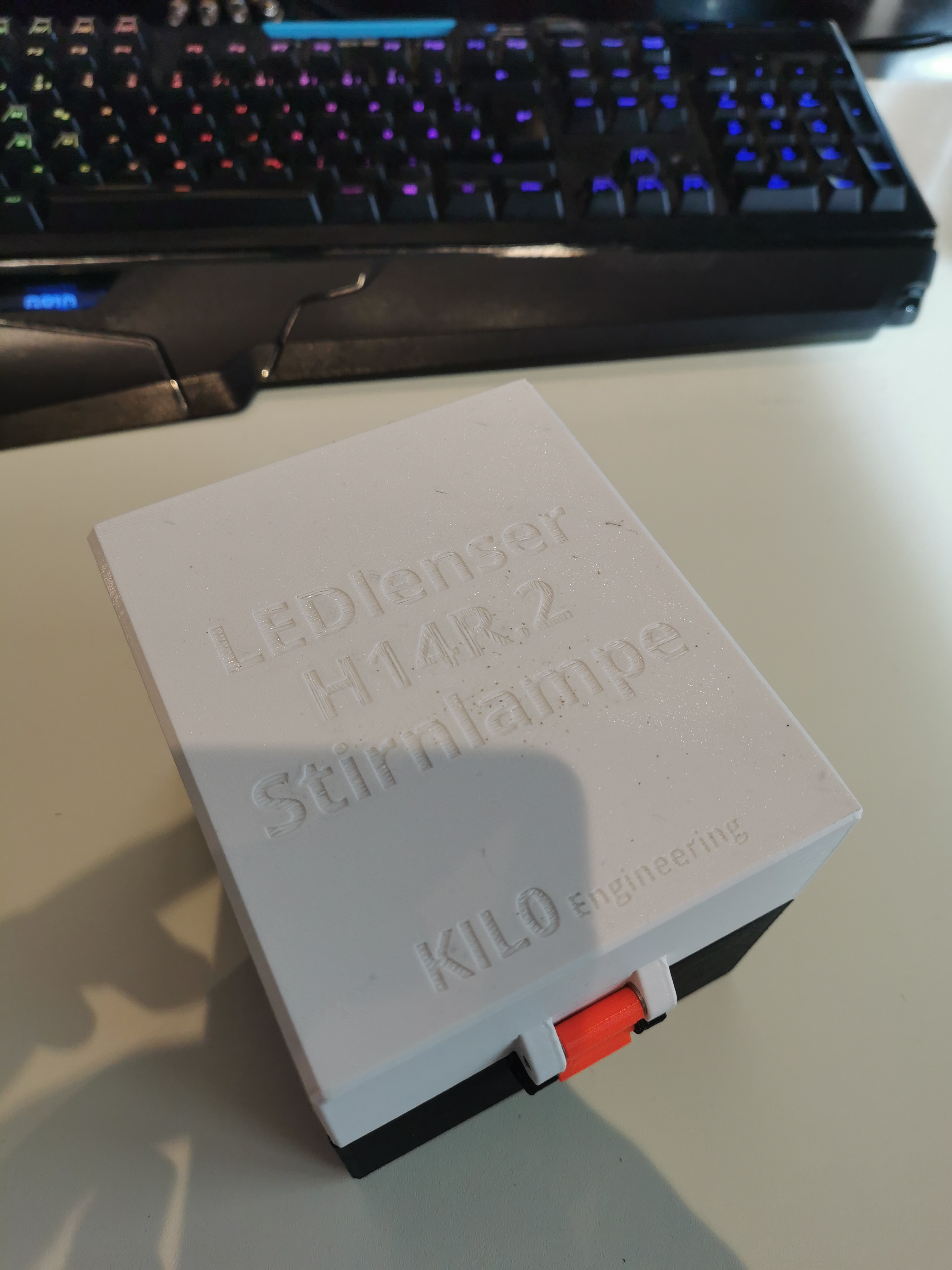

I created this case for my H14R.2 head lamp so it won't accidentally power up inside my pack.

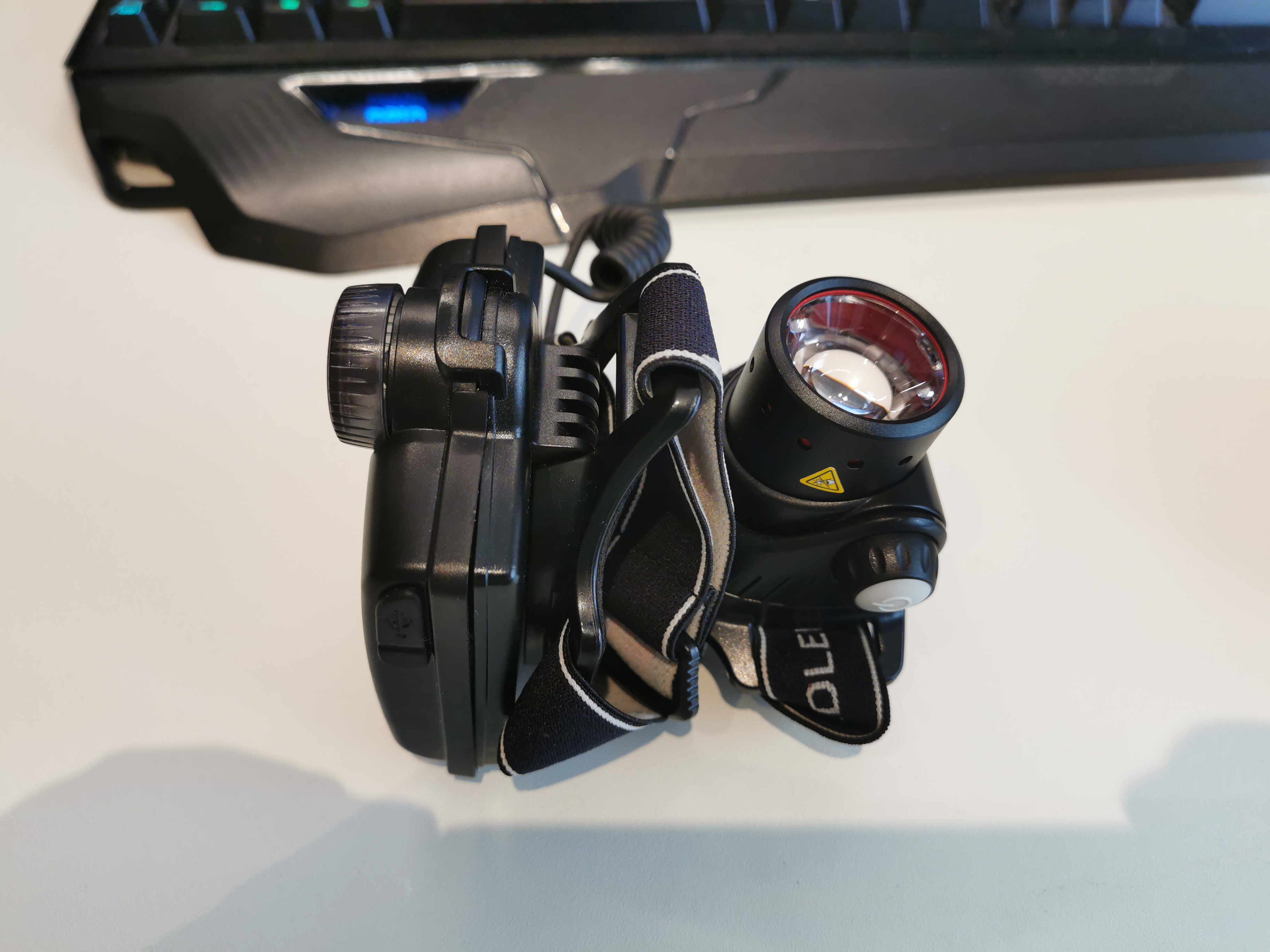

The case is part of a set of cases I created for different stuff I use as an event technician. The lamp needs to be twisted 360° against the power pack to shorten the headbands.

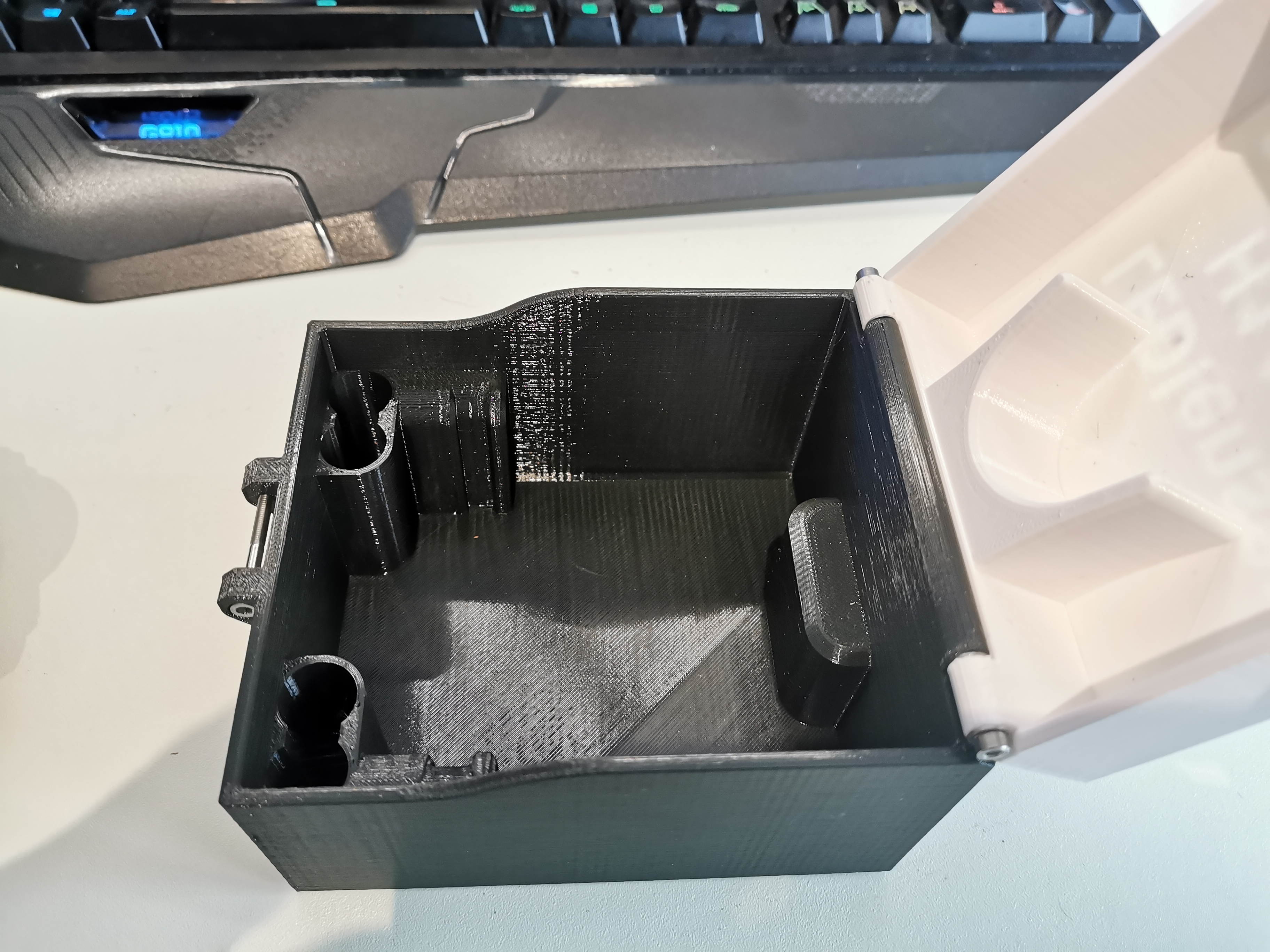

The USB power port can be used while the case is closed. The inside is prepared to hold four AA cells as power backup.
For the hinges use M3x25 mm cylinder head screws with two washers per side, for the lock use M3x20 mm cylinder head screws with two washers in the lid.
