Design Background:

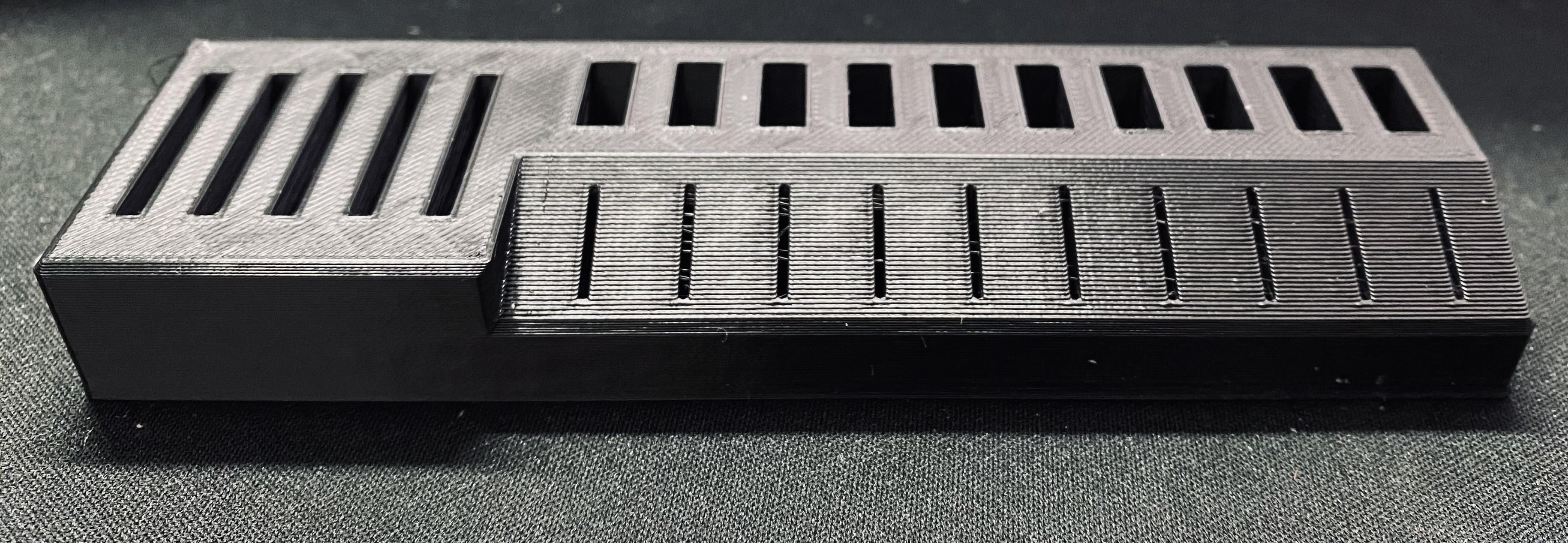

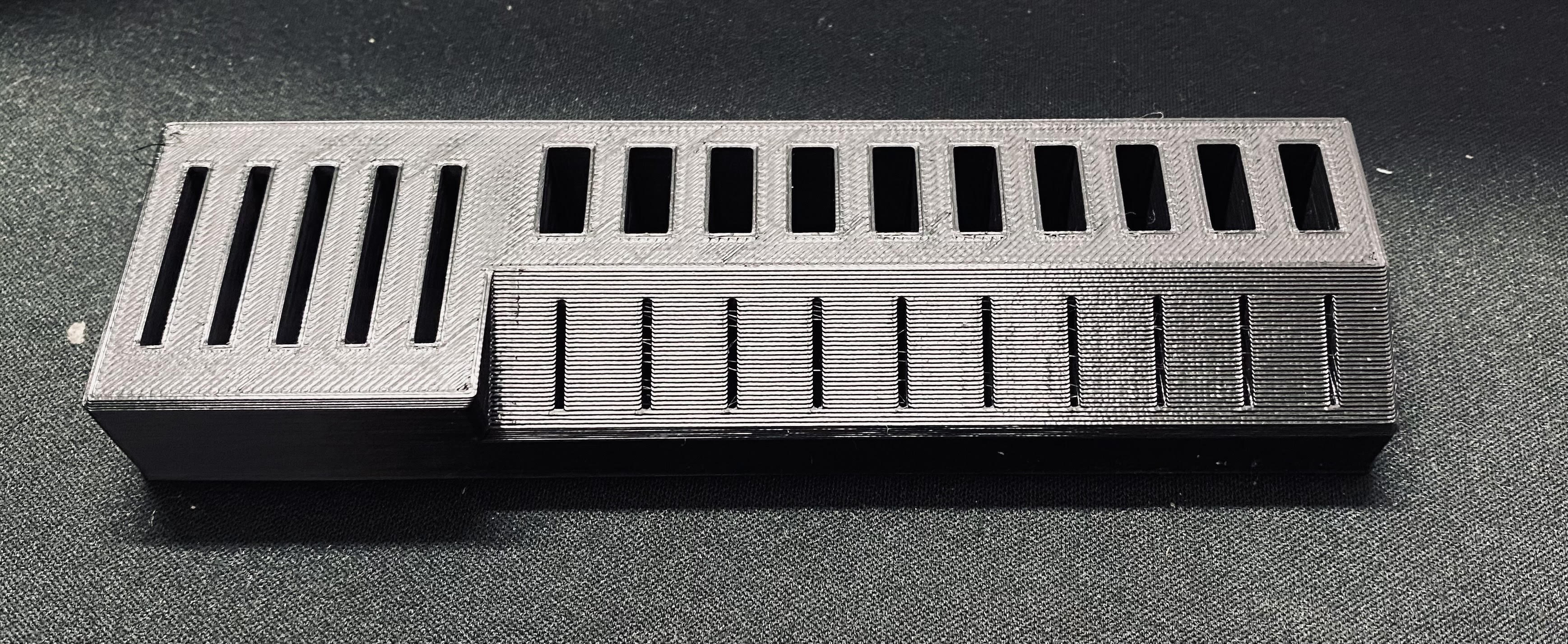

I needed a USB hub for 10 USB drives, 5 SD cards and about 10 Micro SD cards. I searched for one that fit my needs but couldn't find a perfect one. The designs online either had excess number of slots or had a shortage of them.

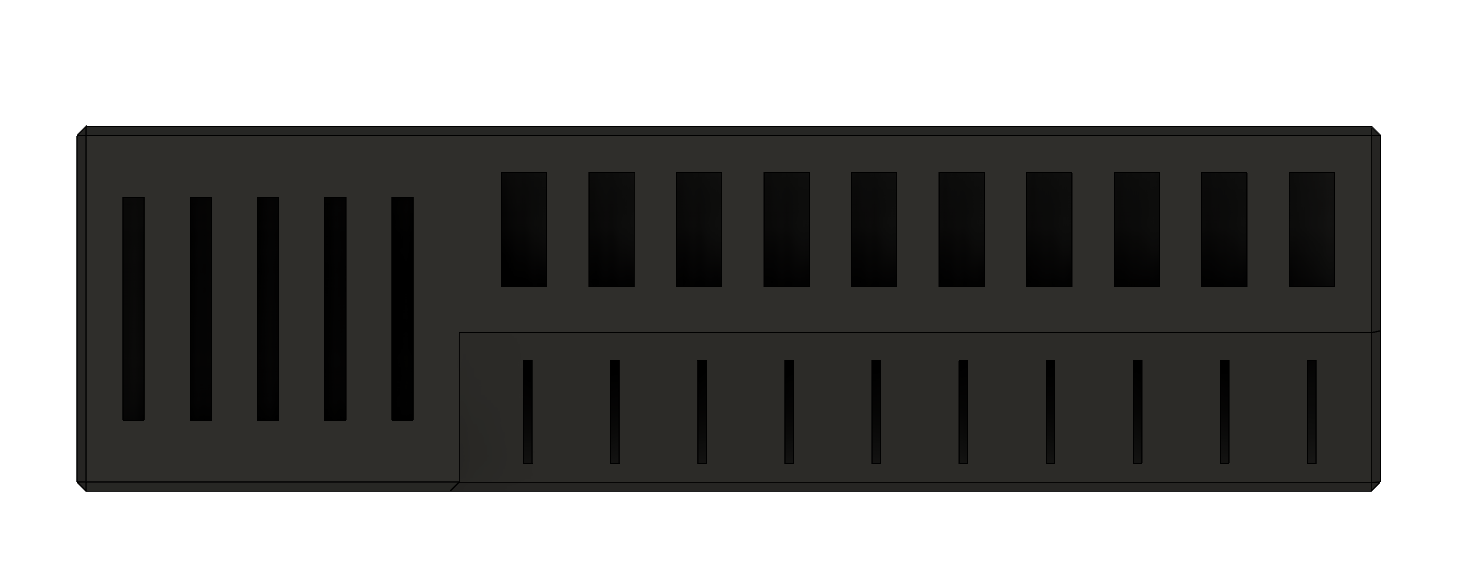

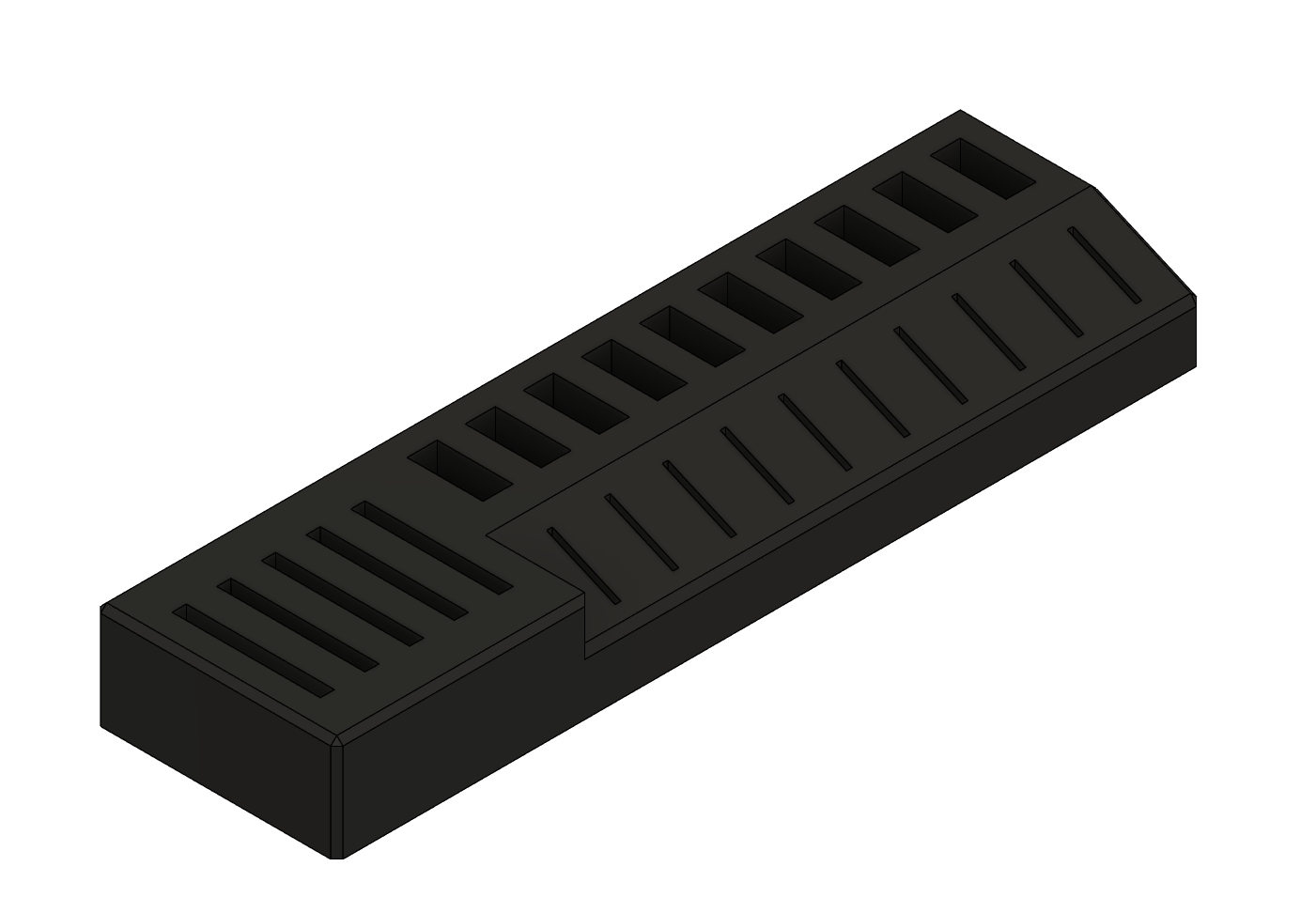

Therefore I have designed a parametric hub where you can decide the number of USB, SD or Micro SD slots you require and design is optimized accordingly.
YOU JUST NEED TO CHANGE 4 PARAMETERS AND YOU ARE DONE!!
- Number of USB Slots (Minimum 1)
- Number of SD Slots (Minimum 1)
- Number of Micro SD Slots (Minimum 1)
- Tolerance (depends on your printer, but the default value should suffice)
Note: You can also mess around with a lot of other parameters if you like, but manipulating the 4 parameters mentioned above is sufficient to generate a customized design.
Design Description:
Please watch both the videos completely to learn how to modify the design as per your liking.
Case 1 - When you want lesser number of slots than what is already provided in the f3d file
Case 2 - When you want more number of slots than what is already provided in the f3d file
Please do leave a comment, I would love to hear from you.
Gracias,
Joamon
