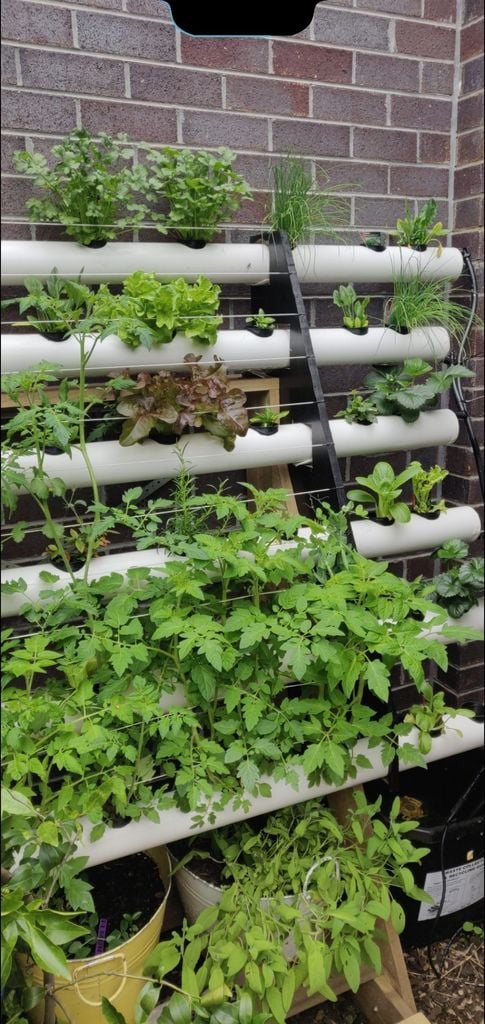

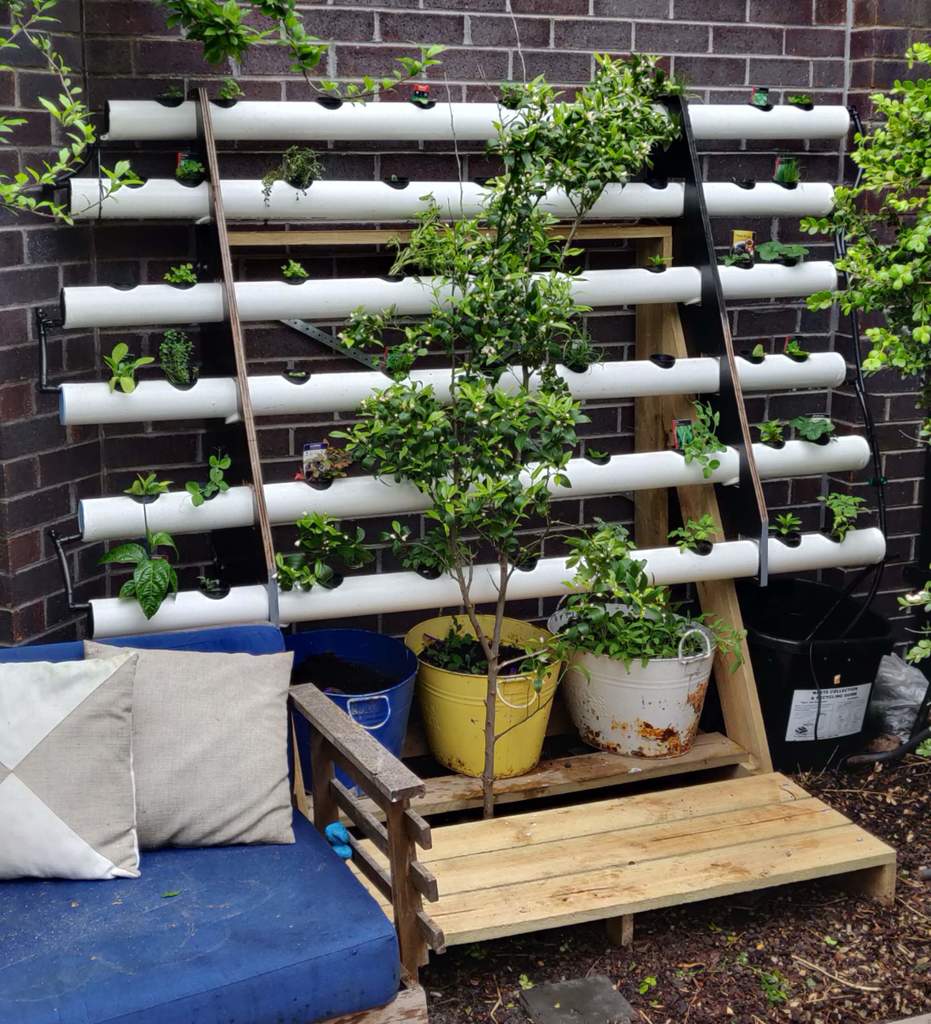

56 plants in less than 2 sq metres. DIY hydroponics NFT (nutrient film technique)
Print Settings
Printer:
Cr10 modified
Resolution:
0.25
Infill:
25%
Filament: eSun PLA+
Black
Notes:
Frame 150x25mm treated pine
90mm down pipe
Pipe holders 12mm shuttering ply

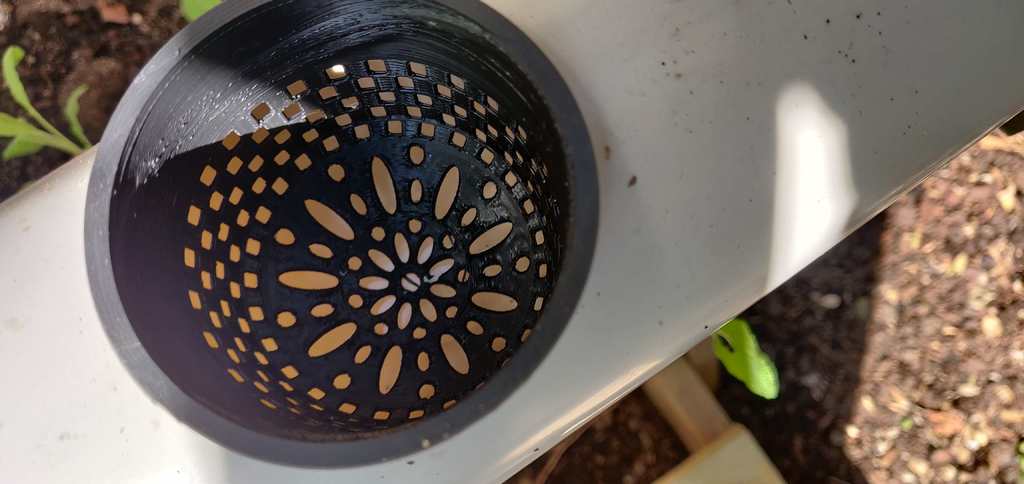

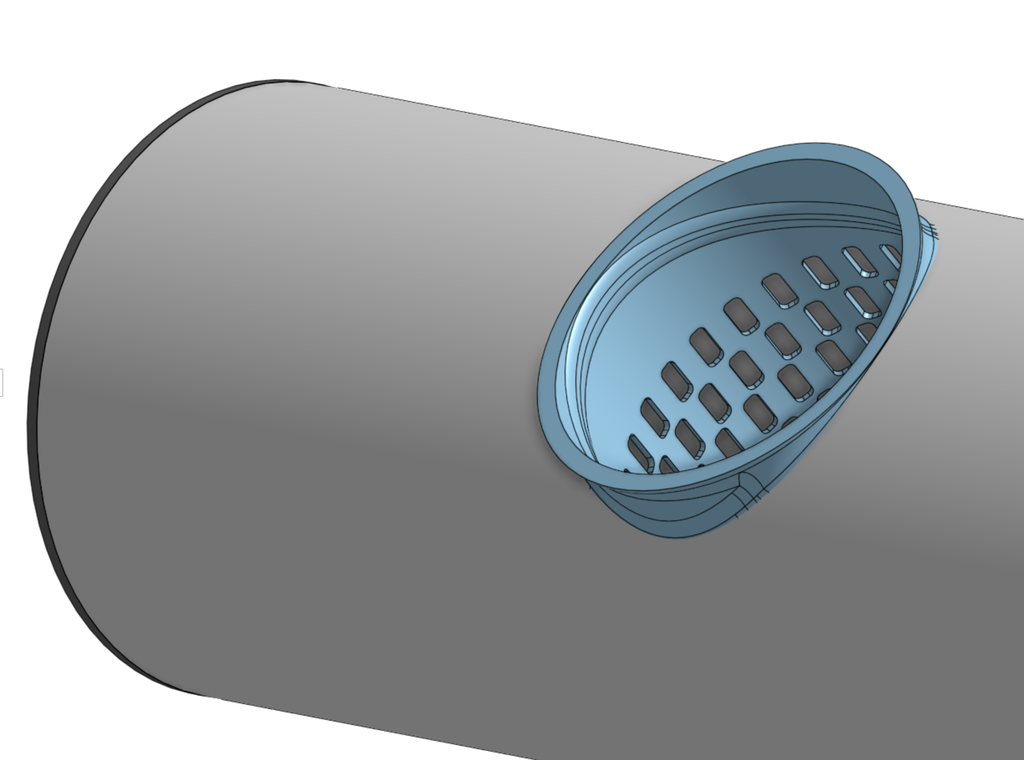

64mm homes for pots

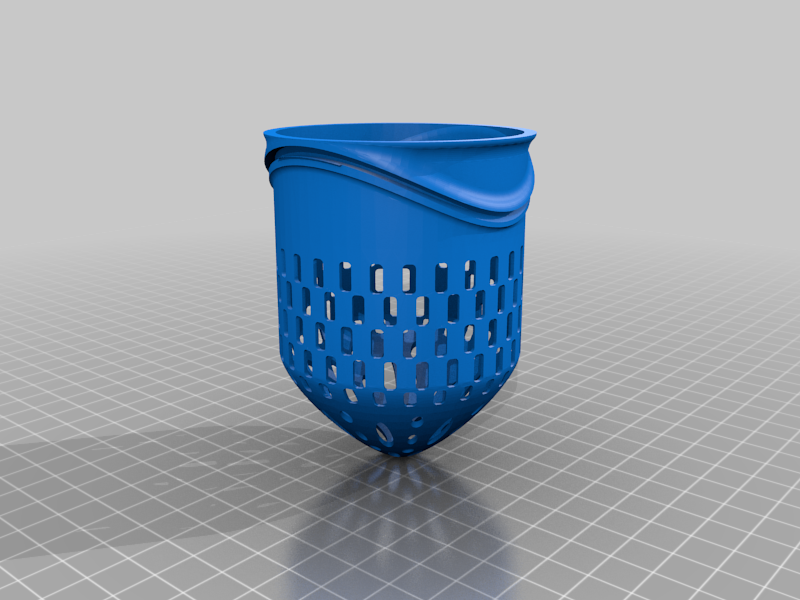

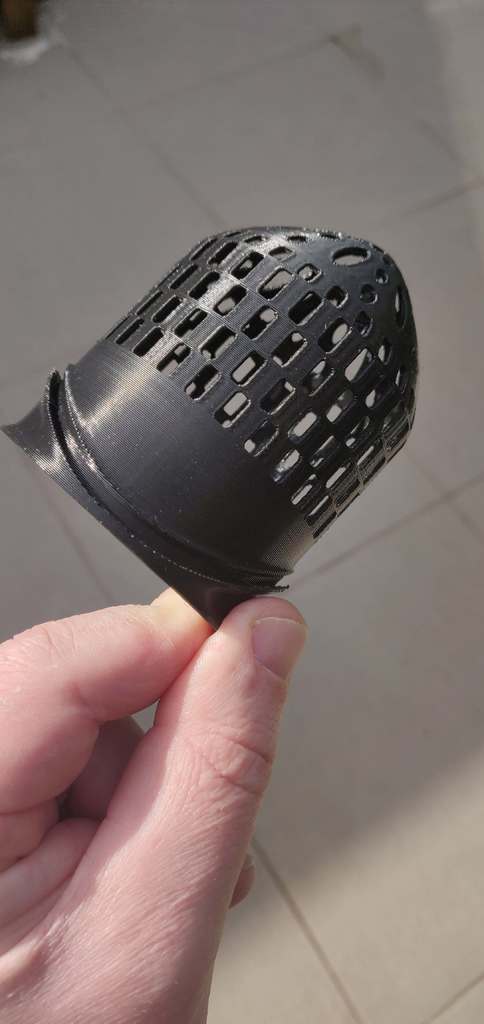

Pots black esun pla+ 0.25mm height no supports

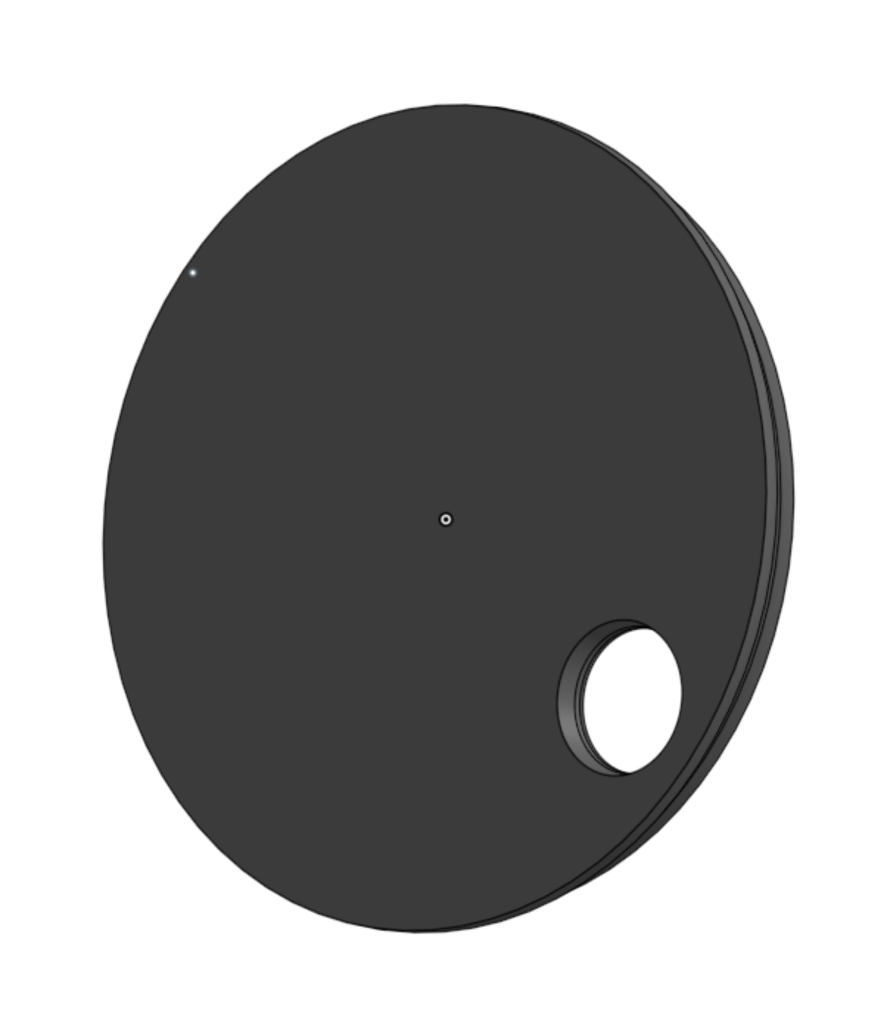

Same for end caps
Pipeworks is 13mm inner diameter heavy duty (2mm wall) gardening/irrigation hose

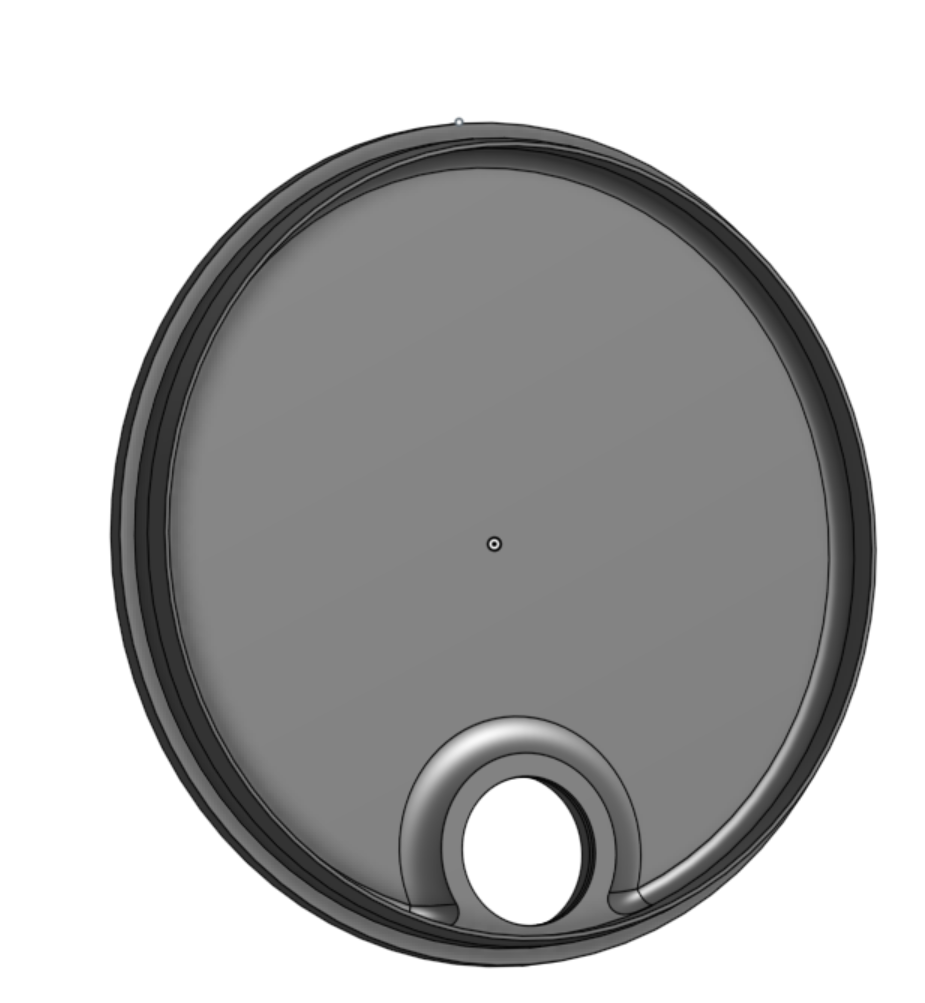

Sealed bottom half of endcaps with silicon
My frame was overkill and could be done with ply alone

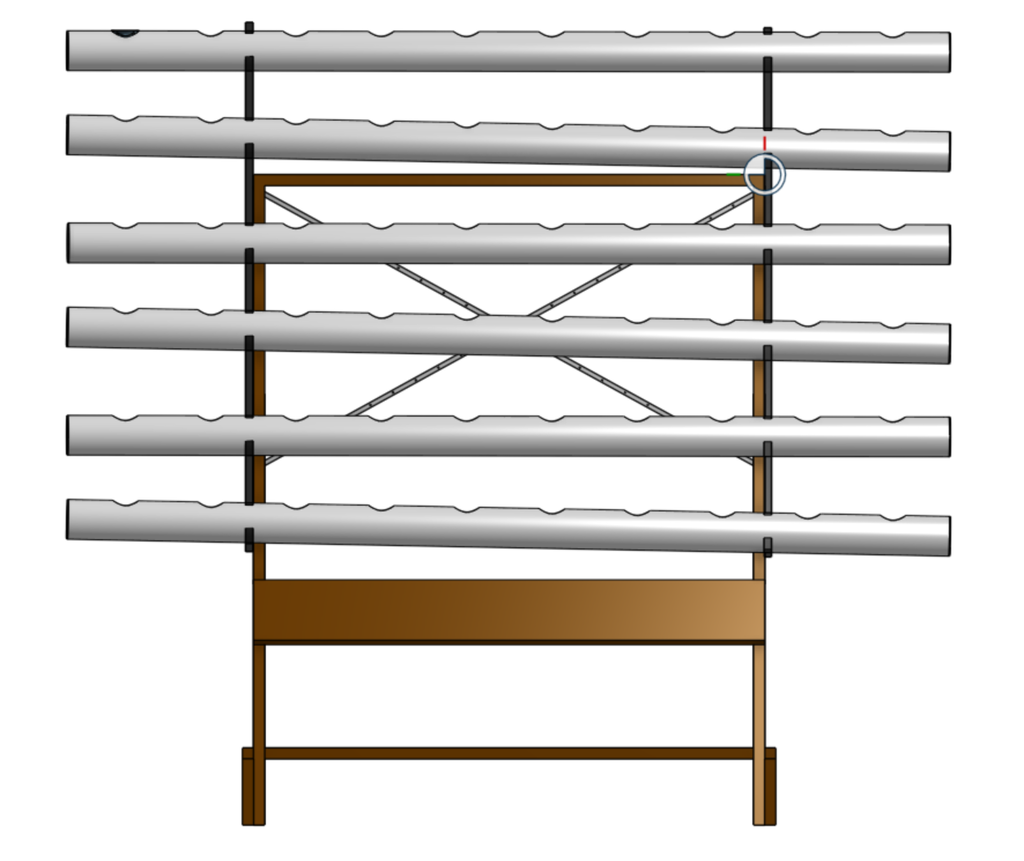

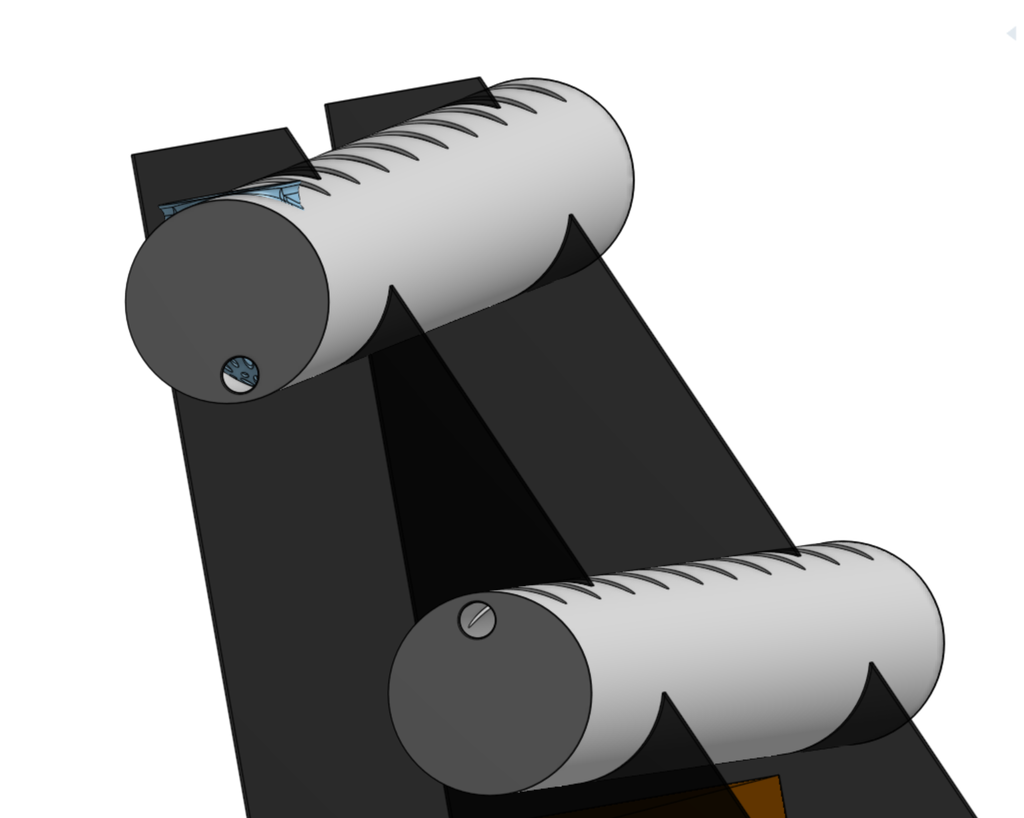

CAD model can be modified using a free account at https://cad.onshape.com/documents/df8859a335c3086f4a3be3e7/w/bb4b4bd6a5115bf5f0a71cc3/e/2112d9d1c4d3cb6743a549c1
Pump https://www.ebay.com.au/p/28027518939?iid=400761325435
Next time is probably go a size down on the pump. It is a almost silent though.
If there's interest in this project I'll redo the instructions along with adding a video link.

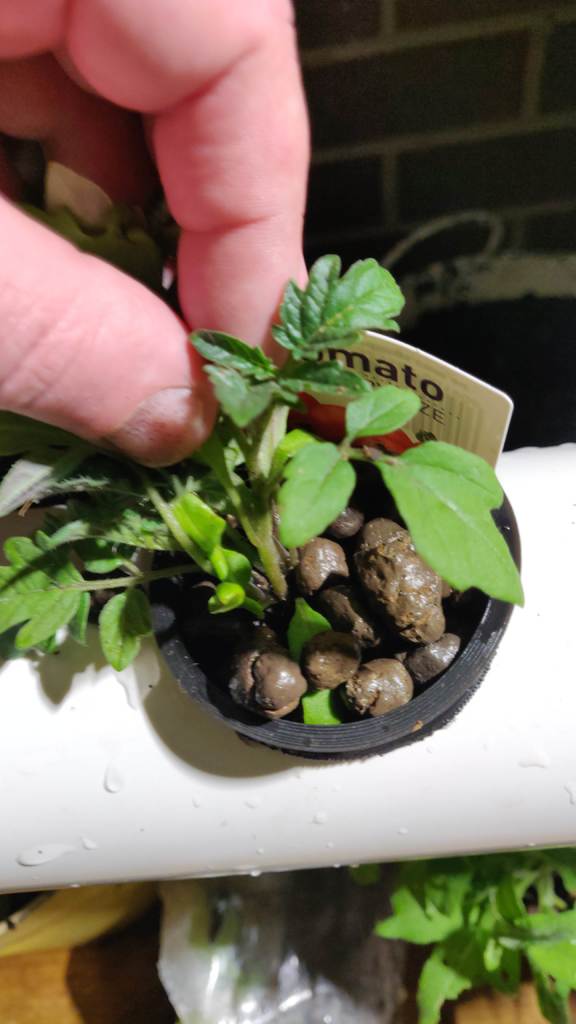

For larger root massed seedlings set slicer to stop print an appropriate height (eg. 3mm from end). Did this by mistake and worked out great.
