ESC Bootloader Flashing Tool
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- RC & Robotics
- License
- Creative Commons — Attribution — Noncommercial

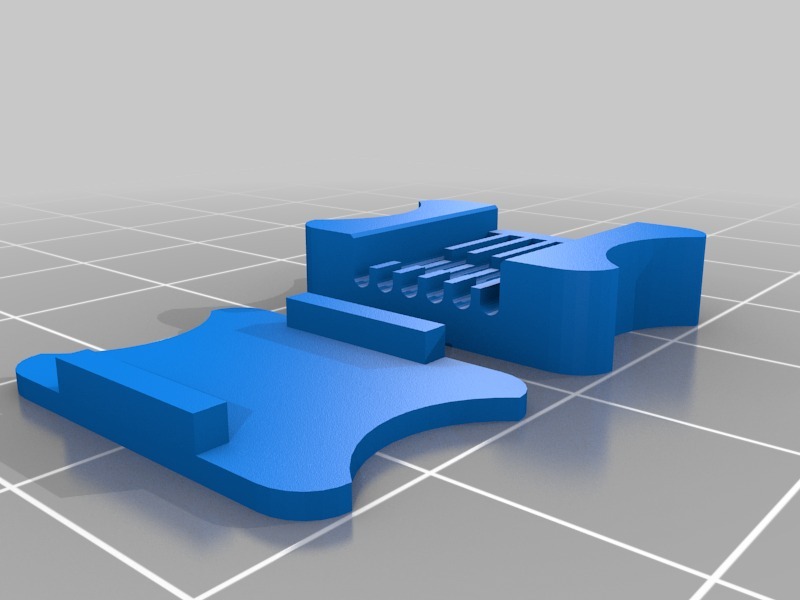

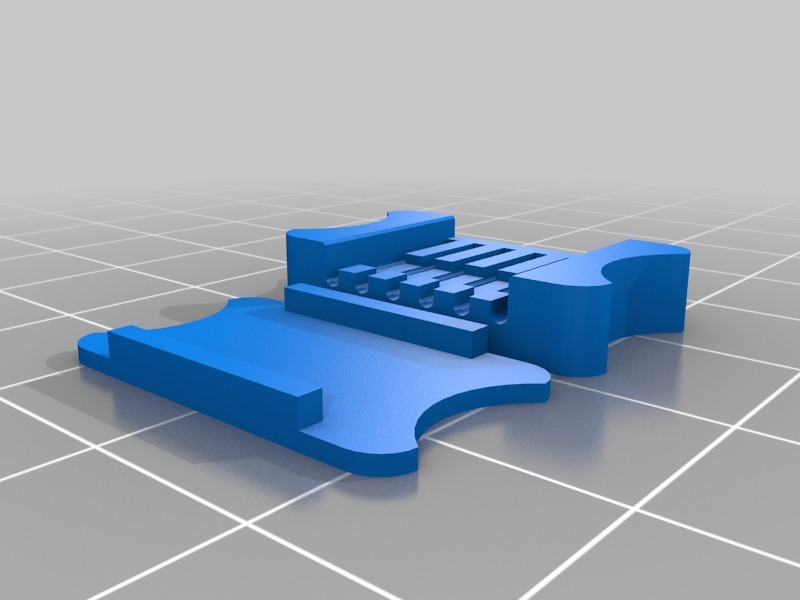

This tool is for better flashing Bootloaders on ESCs.
I designed it for the DYS ESCs. The probe pins has springs inside. =)
You need this:
- Spring Test Probe Pogo Pin Dia 0.68mm Length 16mm http://bit.ly/1N1n1rb
- a bunch of thin wires
hot glue For the german user, i wrote an tutorial for flashing:
http://blog.seidel-philipp.de/esc-bootloader-flashen-simonk-blheli/Edit: uploaded a 2,54 version for universal use
Please upload a photo of your make.
This design is not for commercial use or selling!
