Removable Combination Butterfly Corner Code

I believe, that I created my usefull Removable Combination Butterfly Corner Code for everyone, who need connect a some stuff, like furniture, shelfs or some DIY projects.

I tried to design a very minimalistic and simple design of my Removable Combination Butterfly Corner Code for You and Your building projects. Printing and using is very simple.

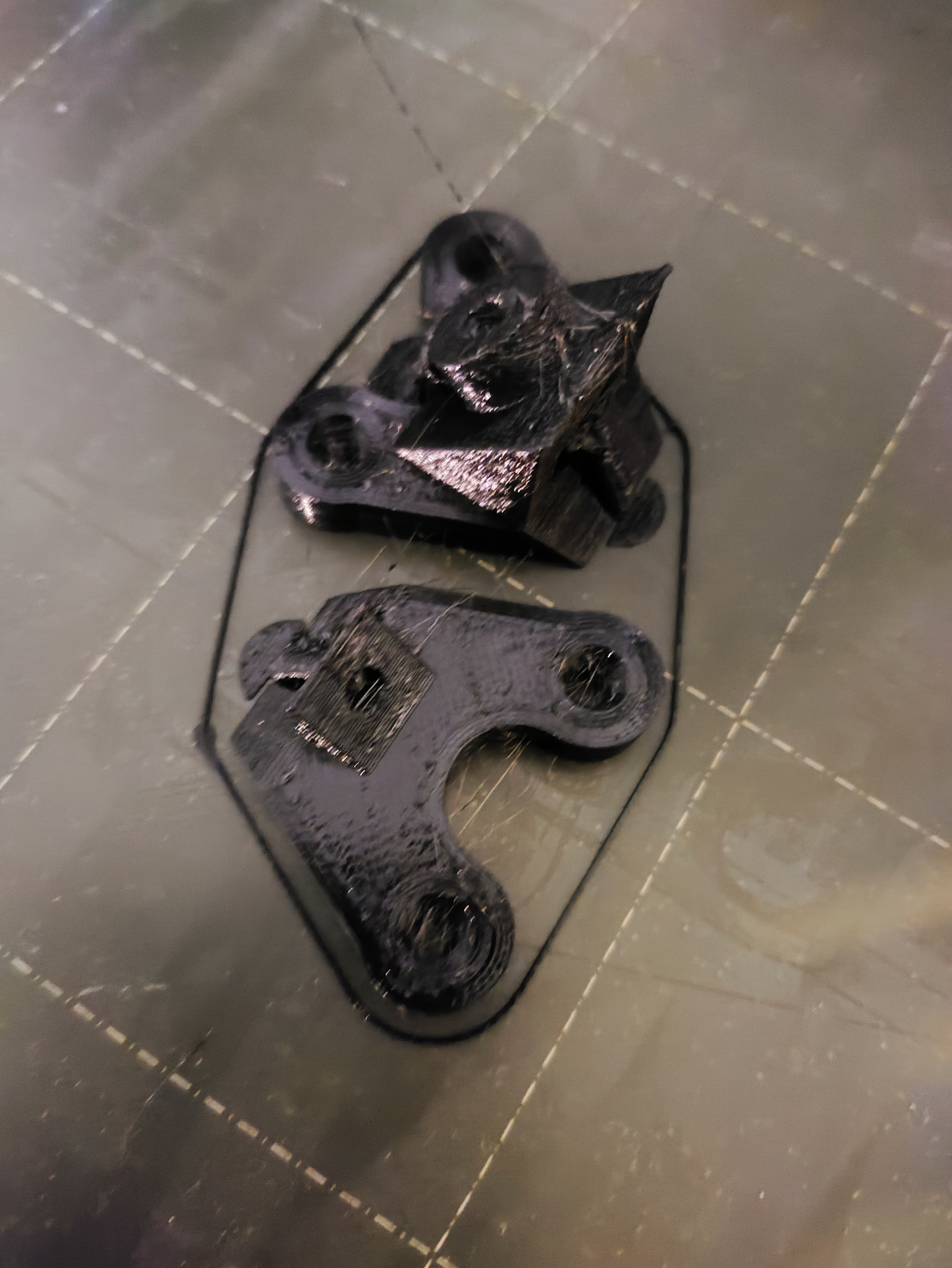

Printing:
Printing is really easy. Just print the attached file.

Instalation:

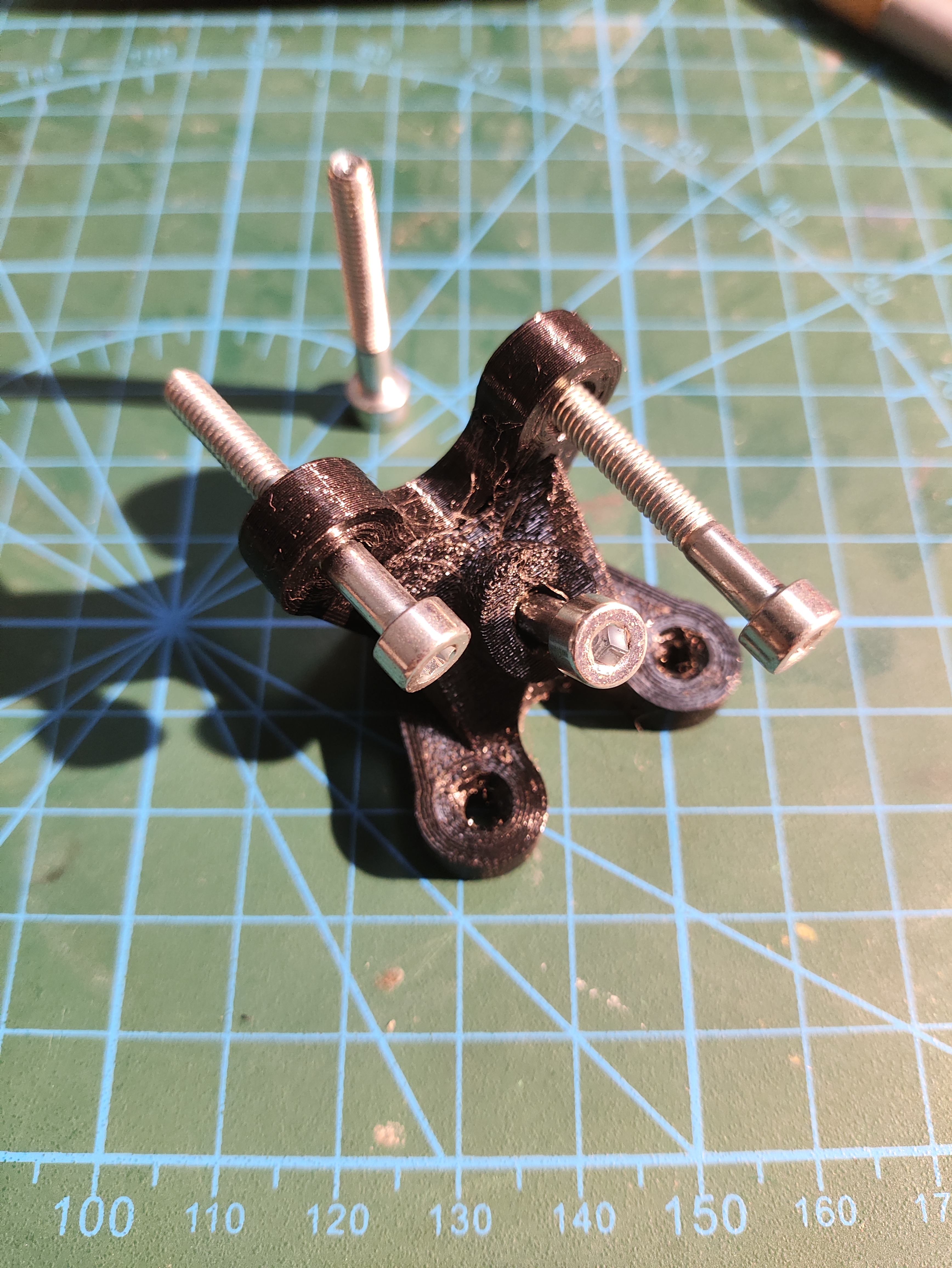

Installation is simple. You will need some M4 screws with countersunk head (5 screws for one Removable Combination Butterfly Corner Code). On testing photo I used a M4 Imbus screws, because I must buy a M4 screws with countersunk head, thitch i recommened. But my Removable Combination Butterfly Corner Code work with any M4 scews as well.

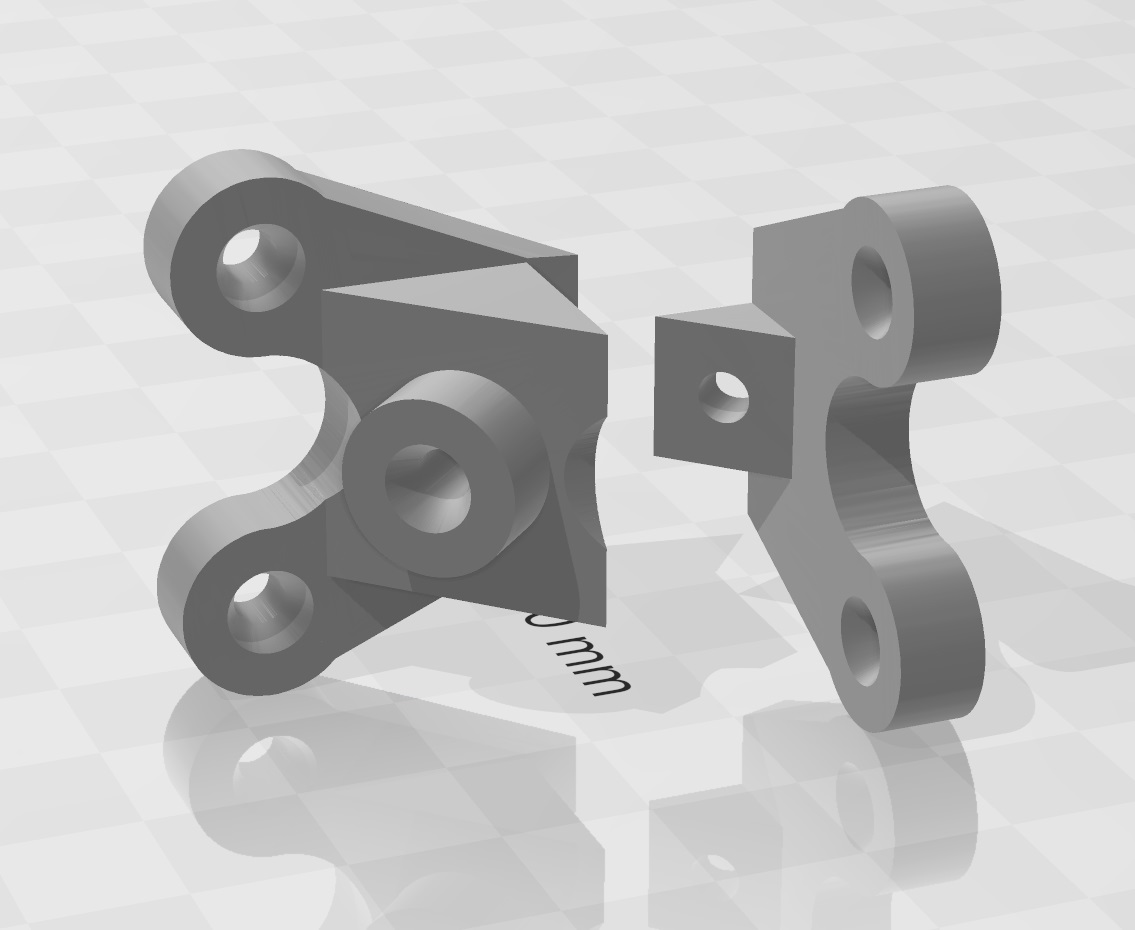

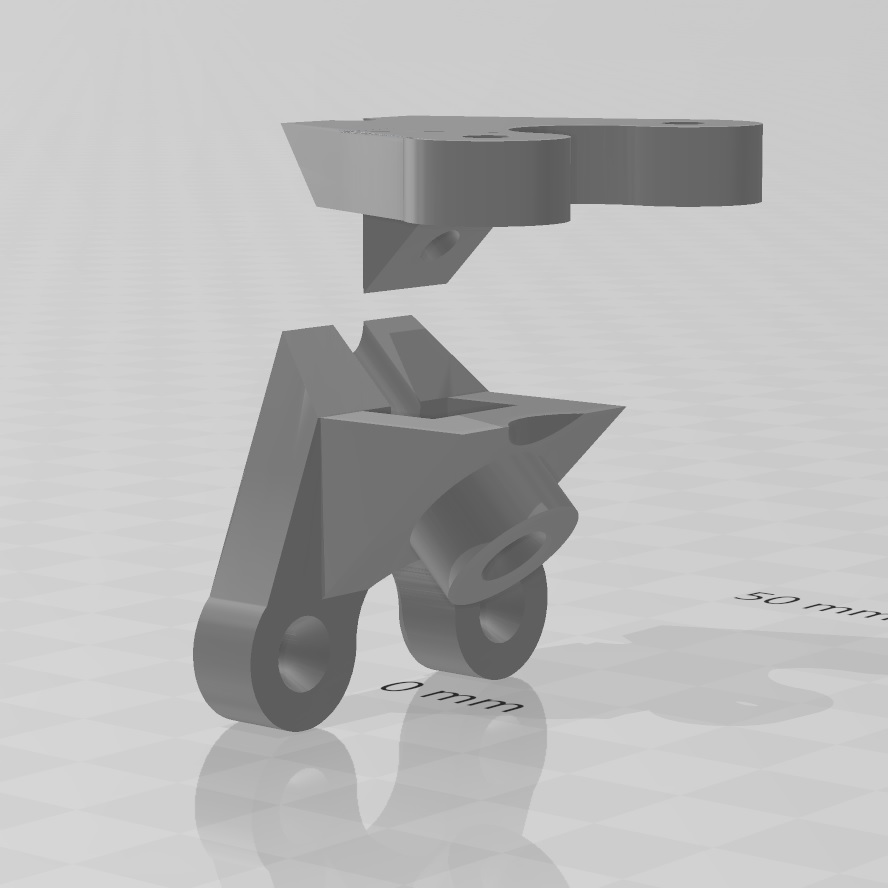

Both horizontally and vertically, the Larger Part (A) must always be mounted on a stable supporting part, such as a wall or furniture wall. The smaller part (B) should be mounted under the part to be connected, for example a shelf or a board...

Also if You need some different sizes, You can take my model and resize them as You need :-)

I hope You like it :-D

Print settings

Printer Brand:
Prusa

Printers:
i3 MK3S+

Rafts:
No

Supports:
Yes

Distinction:
0,20

Filling:
50 % (or you can set more)

Thread Brand:
Prusa

Thread color:
You can use Your favorite color or colour of Your furniture

Fiber material:
PET-G
