Precision applicator
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Medical Tools
- Licencja
- Creative Commons — Public Domain
usage
one rotation moves the plunger 7.5mm which is 0.5mℓ so you can suck or apply tiny amounts of liquid or paste
- for fluids in microscopy/glue/silicone/solder paste/paint mixing/nail polish/grease/sugar icing or in molecular gastronomy.
as control for micro hydraulic actuator, pipette or dropper.
Emergencies (no equipment / power) as manual Perfusor with limited risk of bolus overdose.

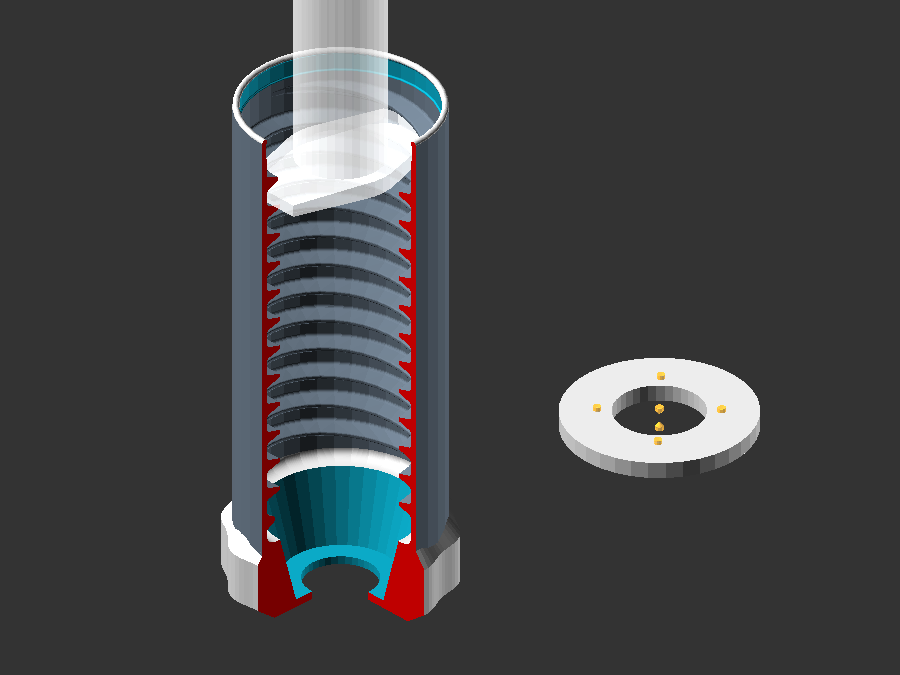

Syringe used
- 2mℓ - plunger 50mm barrel ∅10.5 plunger flange ∅12mm barrel flange 22.5×14

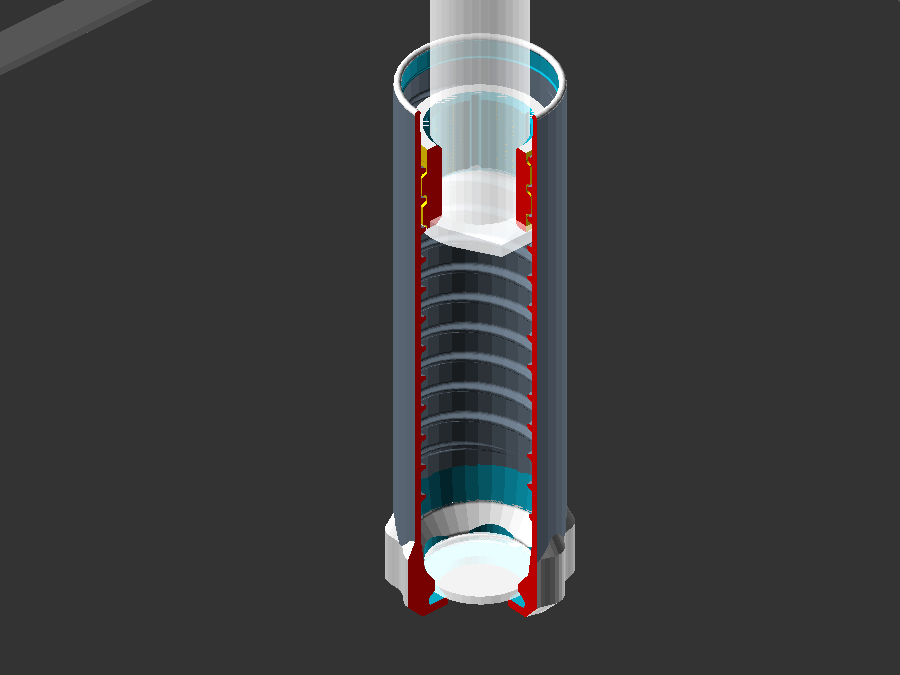

small version
- shorten the barrel flange tips to ∅14mm
- press the plunger flange into the groove of the cap inside -use stick (if pullback wanted)
- press the barrel through the threaded ring till the barrel flange
sizes
For other syringes the script allows to customize this - for some cases you might get away with just scaling it (and/or trimming the barrel flange) - but the rotation/mℓ will probably be off. If you need help, just let me know.
