Pinecil Box
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Gadgets
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
What we will need:
- 6x M3x20 screw
- 1x M3x14 screws
- 1x M3 hex nut
- 1x 608 bearing
- All printed files (soldering wire spool; clampers are needed 2 times)
- Glue (optional)

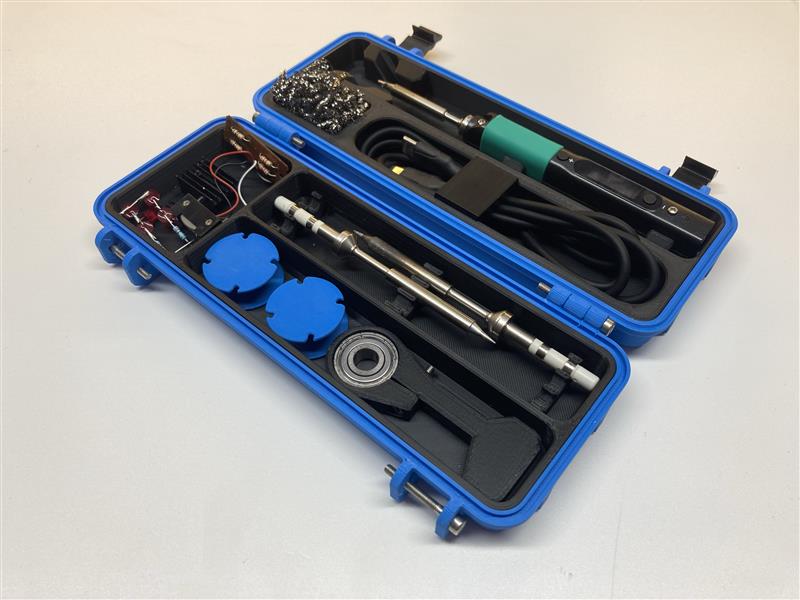

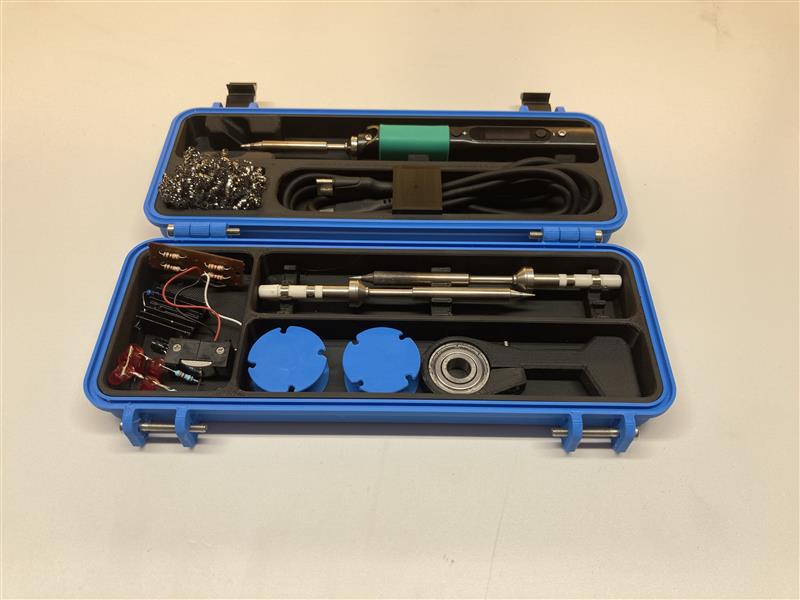

Assembly Instructions for the Pinecil V2 Box
- Insert the 608 bearing into the holder and secure it with 1 M3x14 screw and an M3 hex nut.
- Place the upper inside part into the top part (with the logo). Optionally, use a small amount of glue to secure it in place.
- Secure the 2 clampers to the box using 2 M6x20 screws. Tighten them just enough so the clampers can spin freely.
- Place the lower inside part into the bottom part. Optionally, use a small amount of glue to secure it in place.
- Assemble the top part and bottom part by securing them with 2 M3x20 screws. Tighten them evenly, but don’t overtighten to avoid cracking the parts and make sure they spin smoothly.
- Screw in 2 M3x20 screws just enough so the clampers can lock the box.
