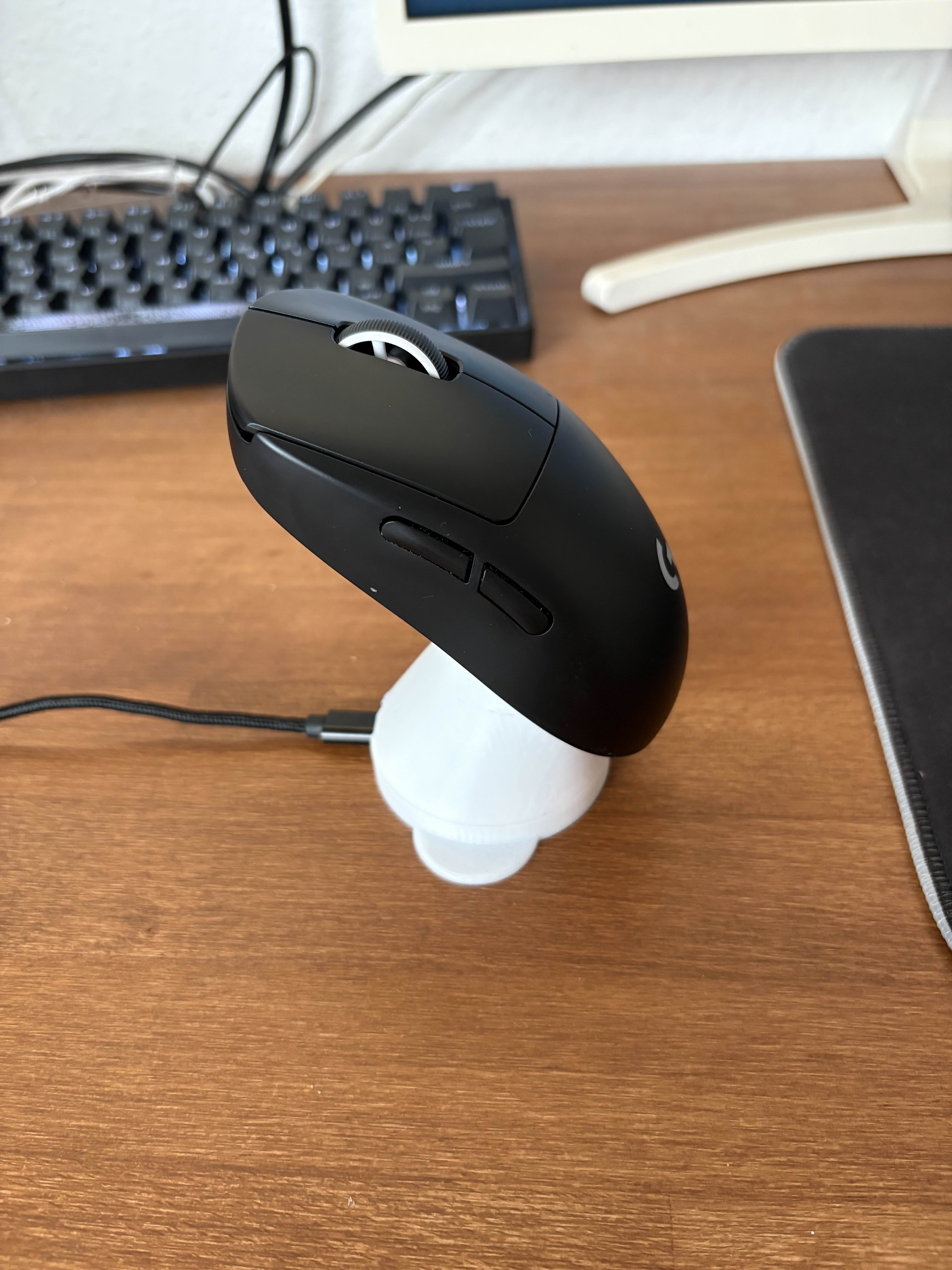

DIY Mouse charging dock which works with any logitech mouse that is Powerplay comatible as it uses the two charging connectors on the bottom.
Part list:

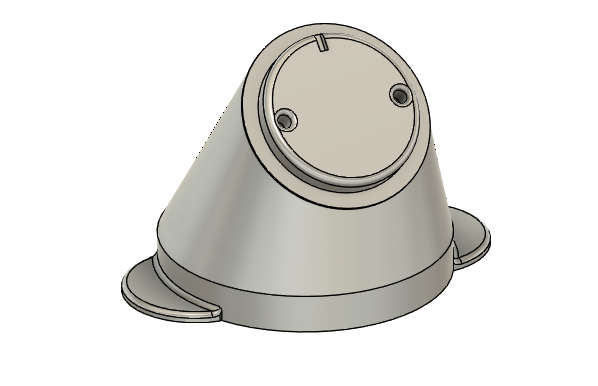

- 3D Printed parts:
- 1x Base
- 1x Coin
- 1x Body
- Electronics:
- 1x TP4056 usb-c board
- 2x ~5cm cable
- diode
- Screws:
- 1x M3 10mm
- 2x M3 16mm
- 2x M3 ring terminal
- 3x M3 nut
- Tools:
- Soldering Iron
- Screwdriver
- Hot glue gun
Assembly:
- Print all Parts

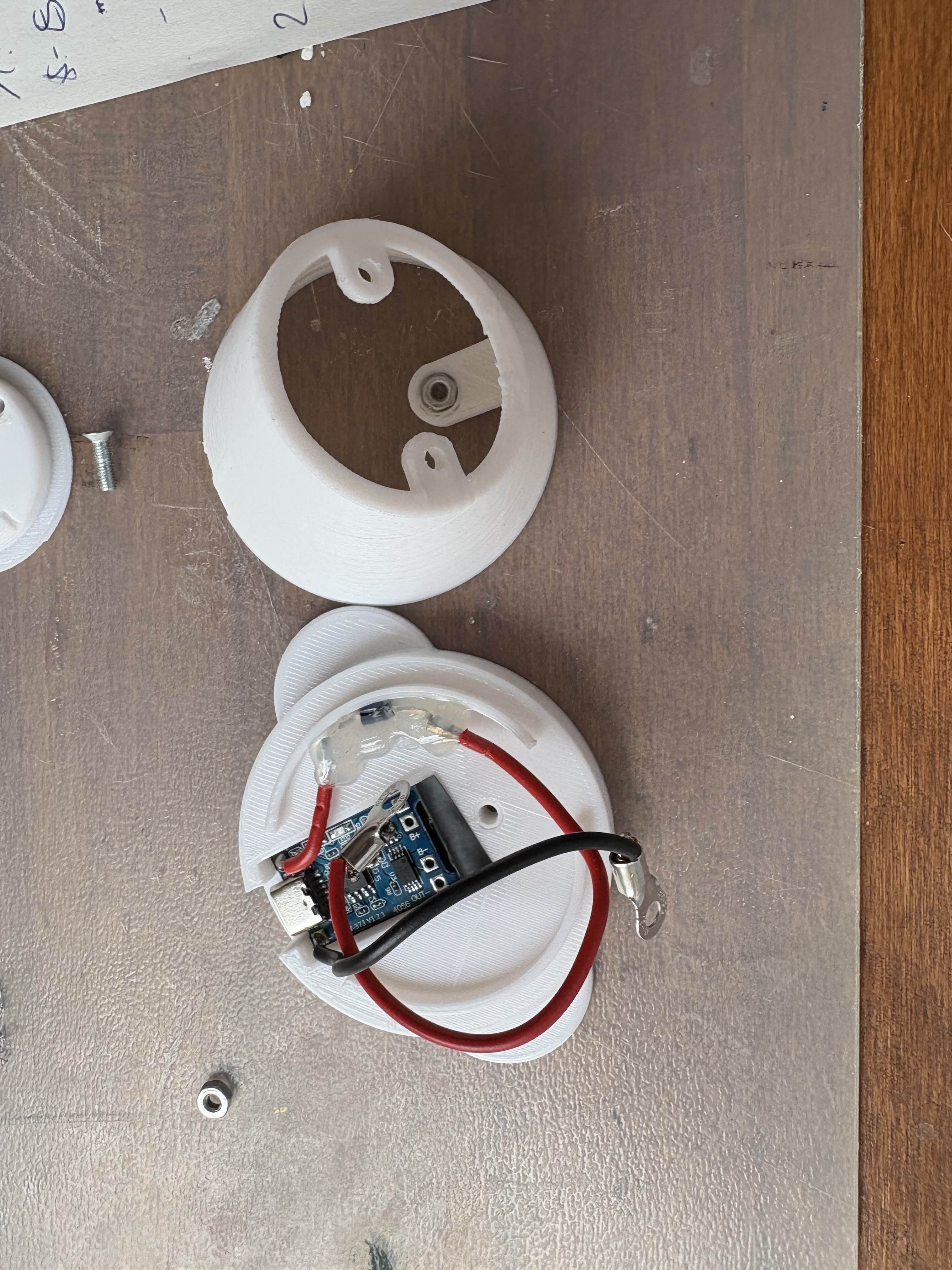

- Glue the TP4056 Board into the cutout in the base

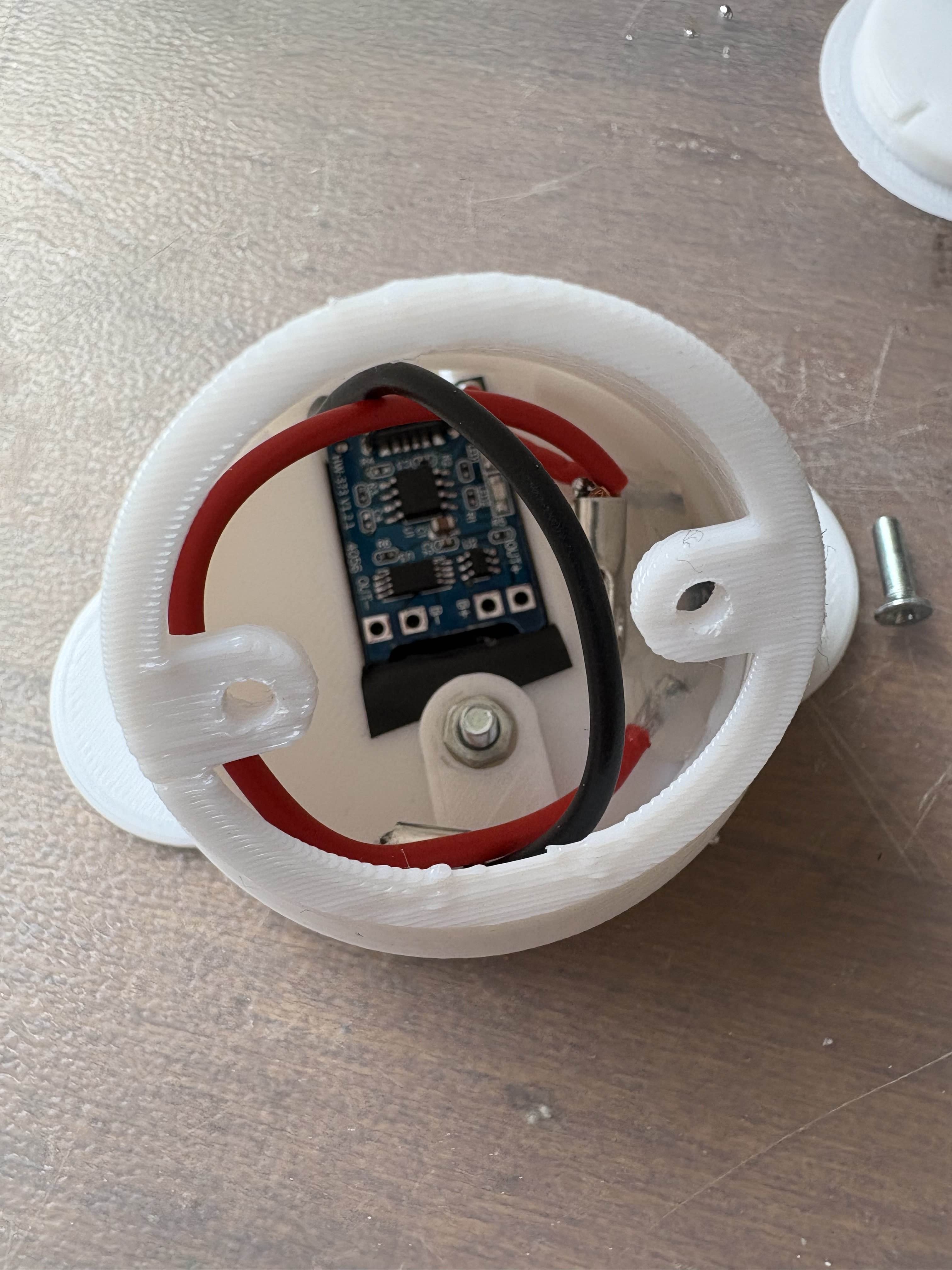

- Soldier the two wires to the terminals right next to the usb port (Not to the battery or out terminals)

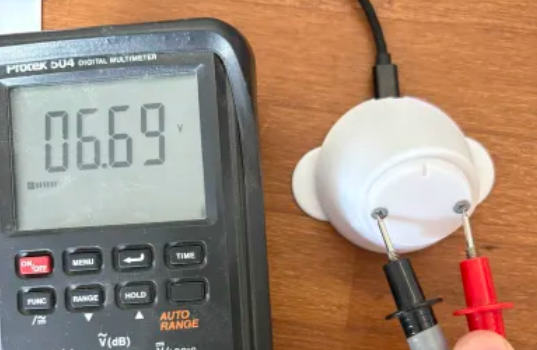

- Optional: Use a diode for extra safety incase you get the wiring wrong. (Check polaritry with a multimeter before charging your mouse)
- Put the other ends of your wires into the ring terminals.

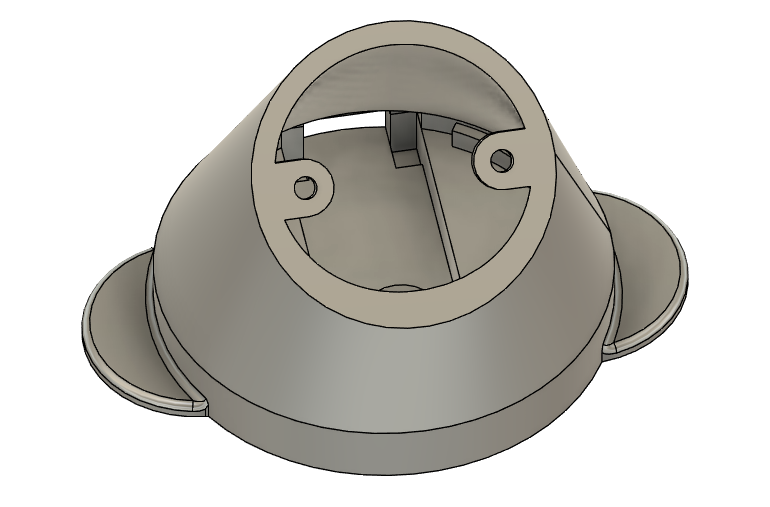

- Insert the nut into the connector connecting body and base. (Use hot glue if the nut can spin freely)

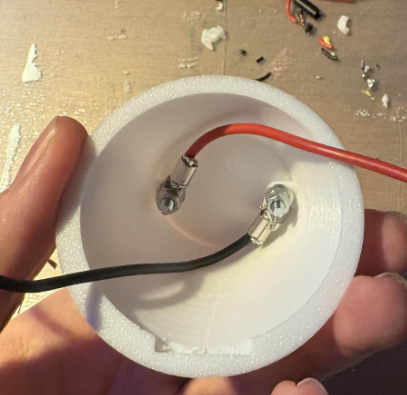

- Connect the coin with the Body using two M3 screws, add the ring terminals (as show in the picture) and secure it with a nut on each screw.
- Screw down the Body to the Base.
- Make sure to check that the right screw is the positive and the left one is the negative terminal. (As shown in the picture)
