INFO

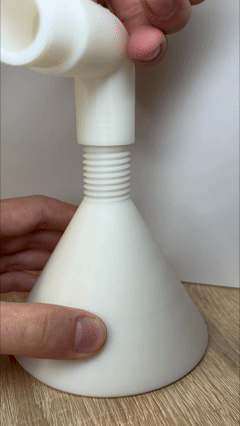

I needed right angled funnel for my lawn mower, but i didnt have one. So i make universal funnel with threaded adapters. I made 4 adapters more about that in adapter section.
Specifications
Threads: Type: ISO Metric, Size: 24 mm, Designation: M24x3, Direction: Right hand
Sizes: Outlet diameter: 17.3 mm - flow: 250 ml/s, Funnel volume: 200 ml
Adapters
Right Angled Threaded
Nozzle: Diameter: 10 mm
Thin nozzle: Diameter 7.3 mm
Straight: Lenght: 100 mm
+
You can type comment with some type adapter you want, and i will do it. I uploaded Fusion project so you can also make your own adapters. I would be happy if you post it here.
