Lifter Pendant Button Guard

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Tools
Licencja
Standard Digital File License
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

Checkboxy zostaw jak są — No AI ✅, NSFW i Political niezaznaczone ✅.

Description — wklej ten sam co na MakerWorld:

A two-piece 3D-printed button guard designed to protect the controls on a lifter/crane pendant remote. Prevents accidental button presses and protects buttons from impacts in industrial environments. Tested in real working conditions.

What's included:

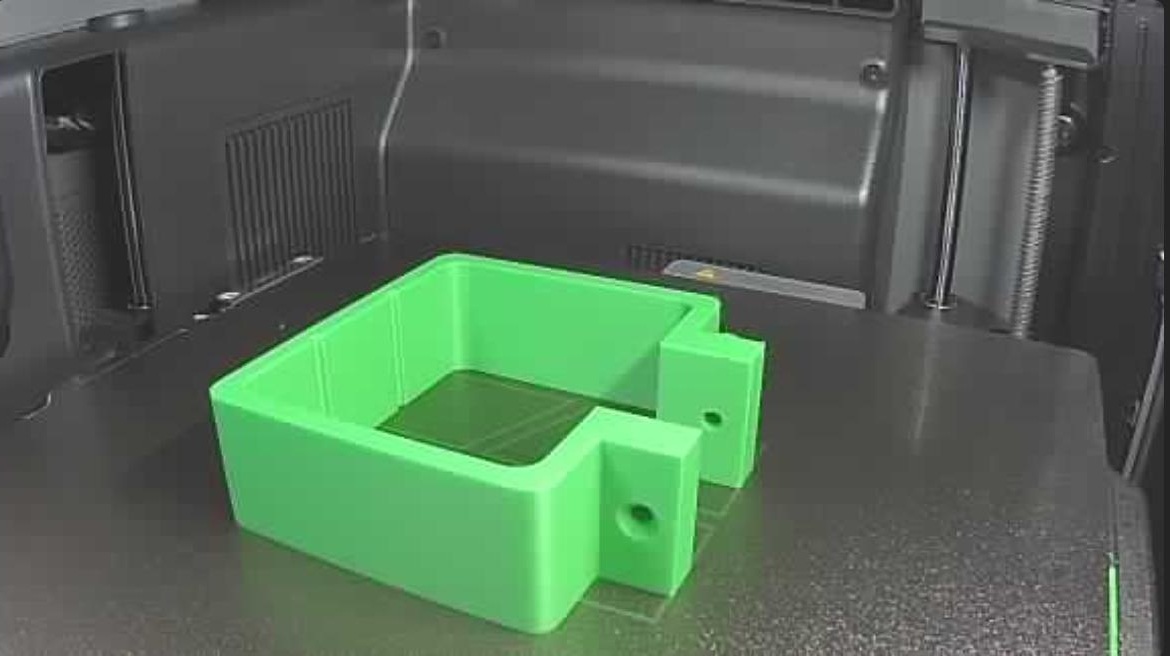

  • ClampBand — main bracket that wraps around the controller housing (95 × 87.5 × 30 mm)

  • ButtonWing — shield piece that covers the buttons (55 × 15 × 30 mm)

  • Assembly requires 1× M5 or M6 bolt + nut

Recommended print settings:

  • Material: PETG or ASA (for industrial/outdoor use; PLA ok for indoor)

  • Layer height: 0.2 mm

  • Infill: 40–60% (needs to be sturdy)

  • Walls: 3–4 perimeters

  • Supports: not required

  • Estimated filament: ~75 g total

  • Print time: ~4–5 h (both parts)

Notes:

  • Designed for a specific pendant controller — measure yours before printing and adjust scale if needed

  • The clamp friction-fits around the housing; the wing attaches with a bolt through the mounting hole

  • Printed and tested in a real industrial environment
