This remix was inspired by a combination of the Bench Mountable Vise by Sneaks and the Vise Miniature Holder by 3D Printing Dude
When it comes to post-processing, assembly work or painting, I prefer having both hands free. Until now, my only option was a small but rather cumbersome chuck. At the same time, I wasn't keen on permanently mounting a vise to my desk, and I definitely didn't want to split my workspace across multiple rooms - So I came up with this version to solve that problem

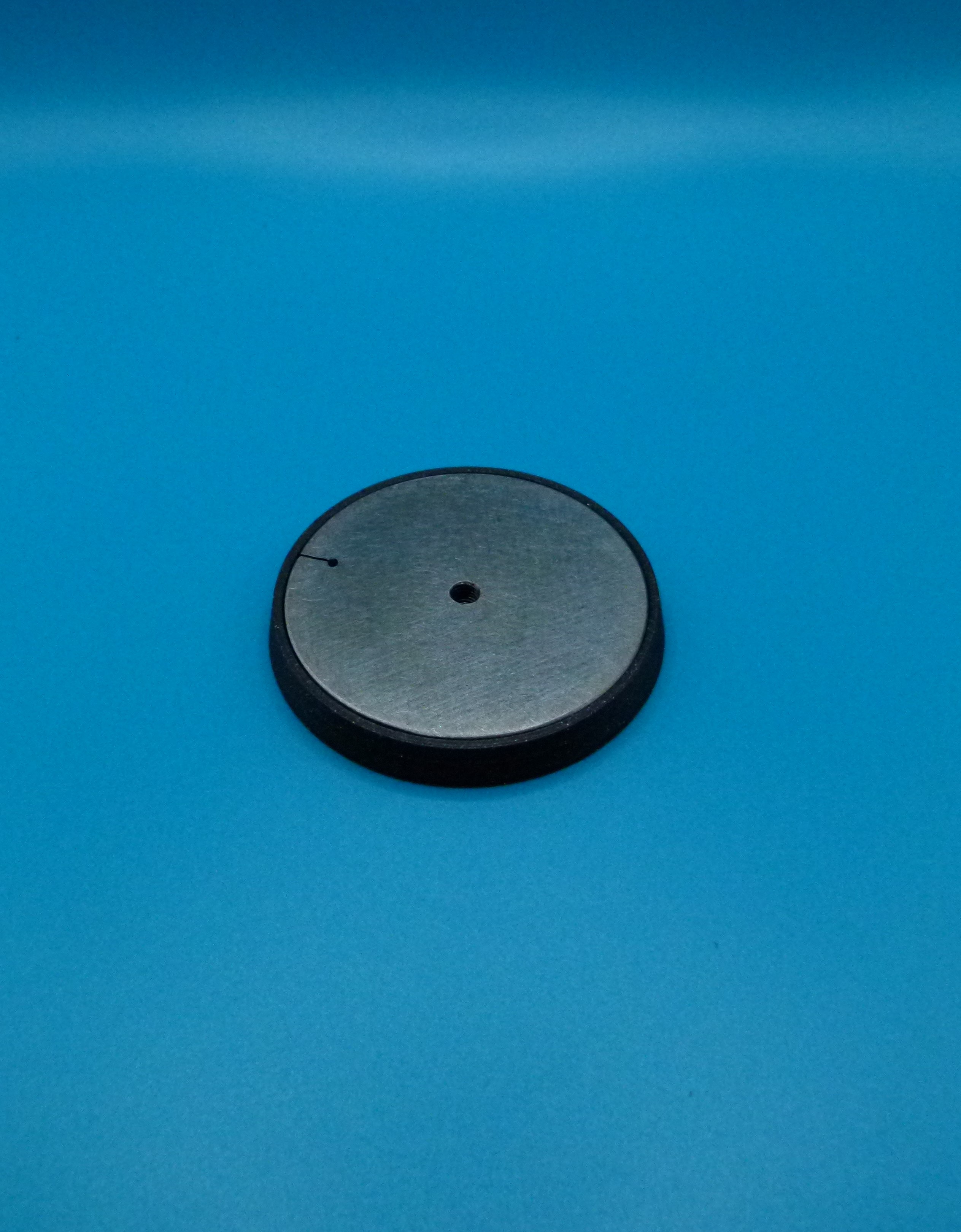

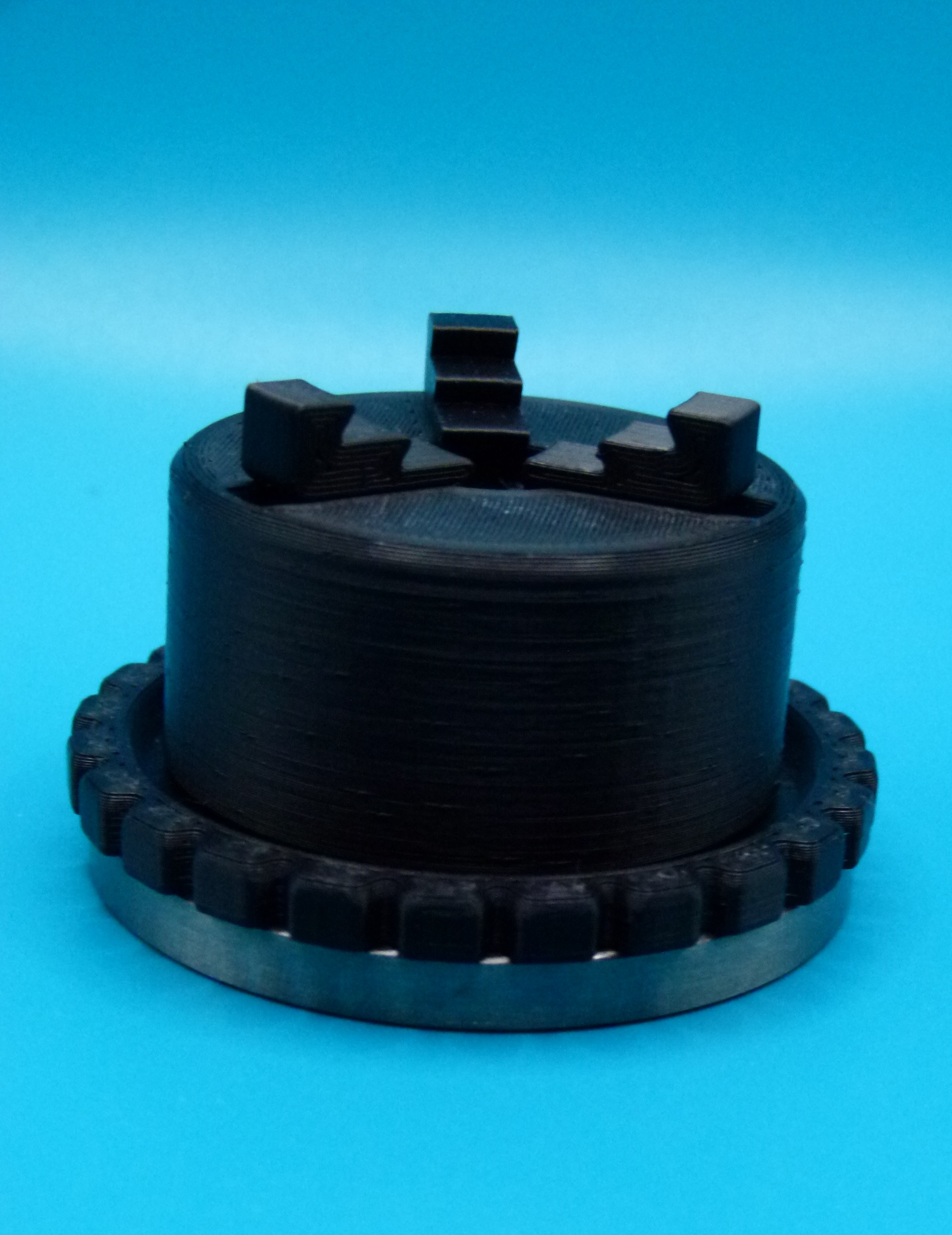

The original model has been modified to reduce the overall height to 35 mm. A 6mm*61 mm steel plate (made from a recycled laser-cut negative) is integrated into the base, bringing the total weight to approximately 185g - This provides enough mass to keep the vise stable while remaining light enough to avoid damaging my desk mat and easy enough to store when not needed

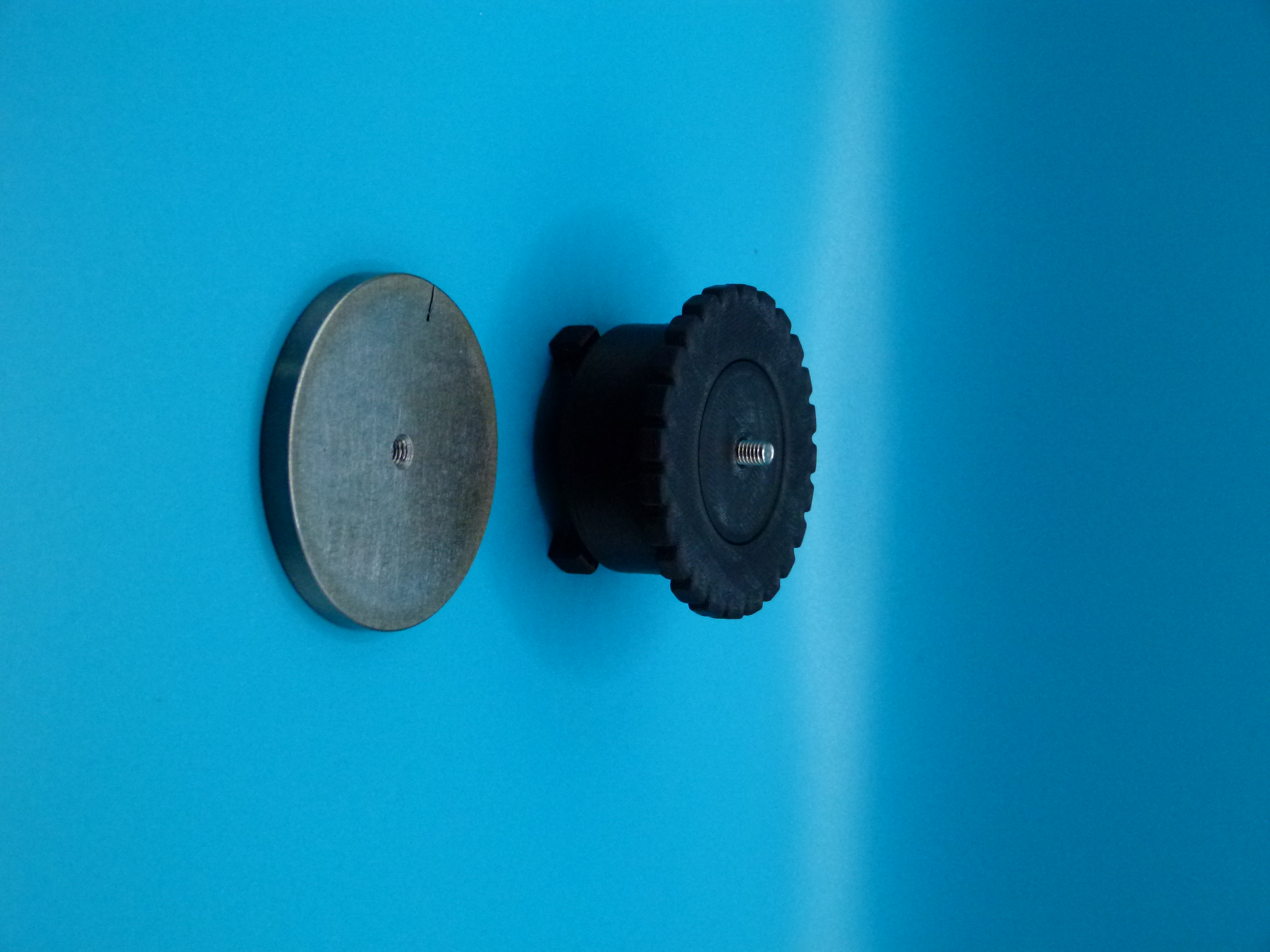

The steel plate also features a central M5 thread, allowing the vise to be mounted directly to the plate from above. The printed base then acts as a lock nut, creating a simple and secure assembly
Parts & Materials
You will need:
1 × M5 × 18mm countersunk screw
A suitable base plate
To make customization as easy as possible, all parts are included as STEP files. This allows the steel plate to be adapted to whatever material or dimensions available
Printing Notes
My first version was printed in ASA and worked without any issues. Later, I reprinted the internal moving parts in iglidur i150, which resulted in smooth operation and made lubrication unnecessary

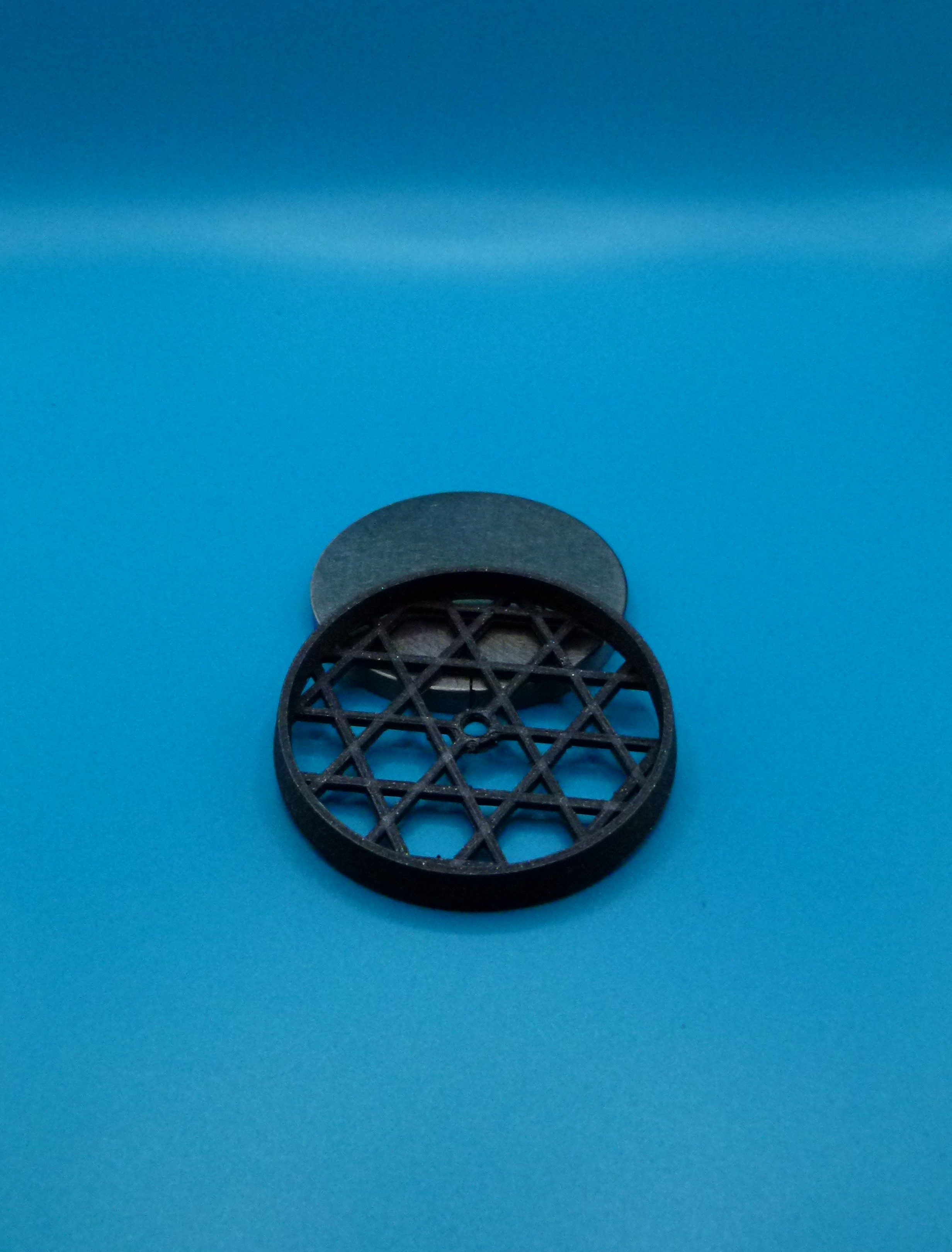

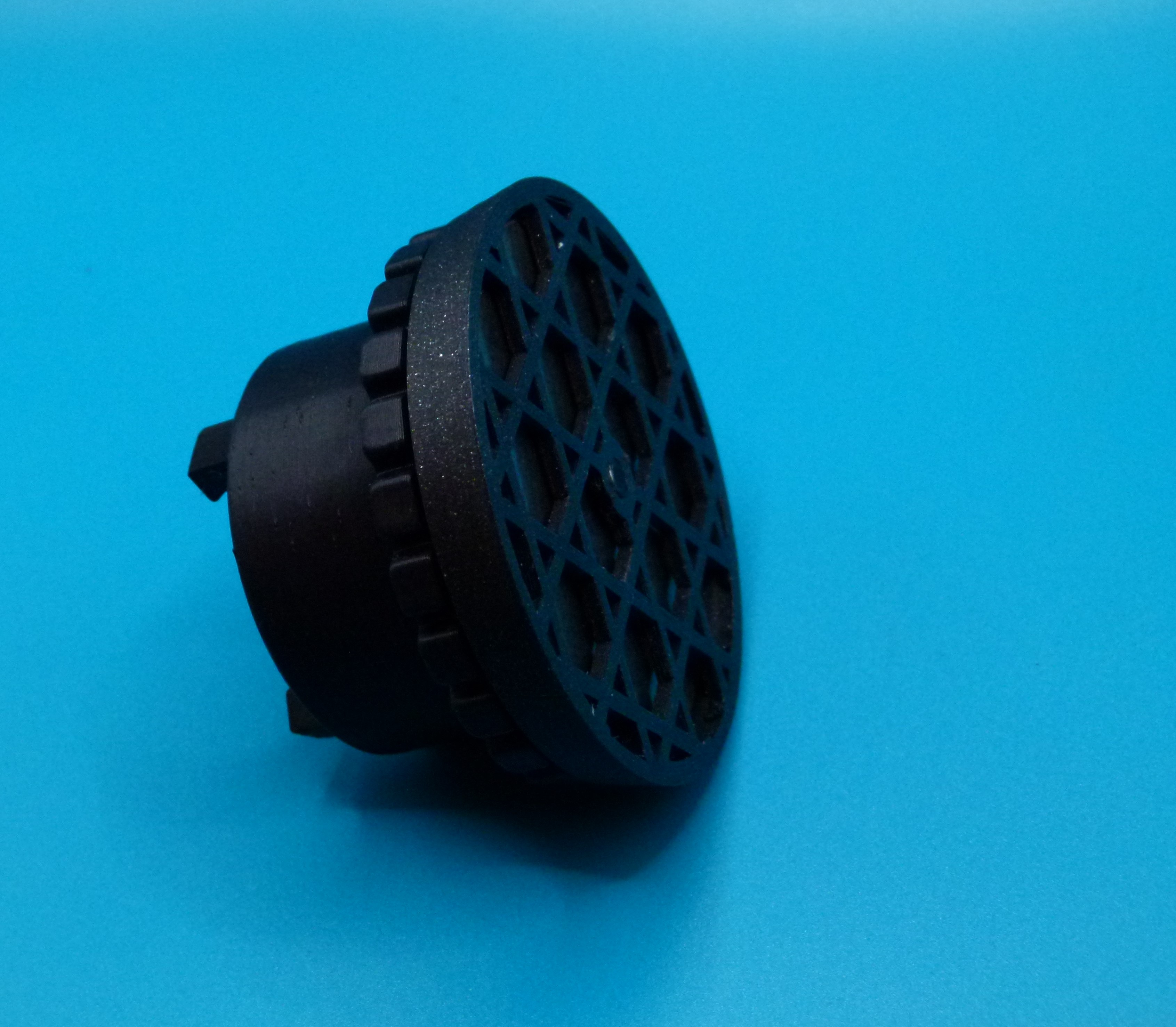

The bottom is printed four-row 36% Tri-Hexagon pattern
Assembly

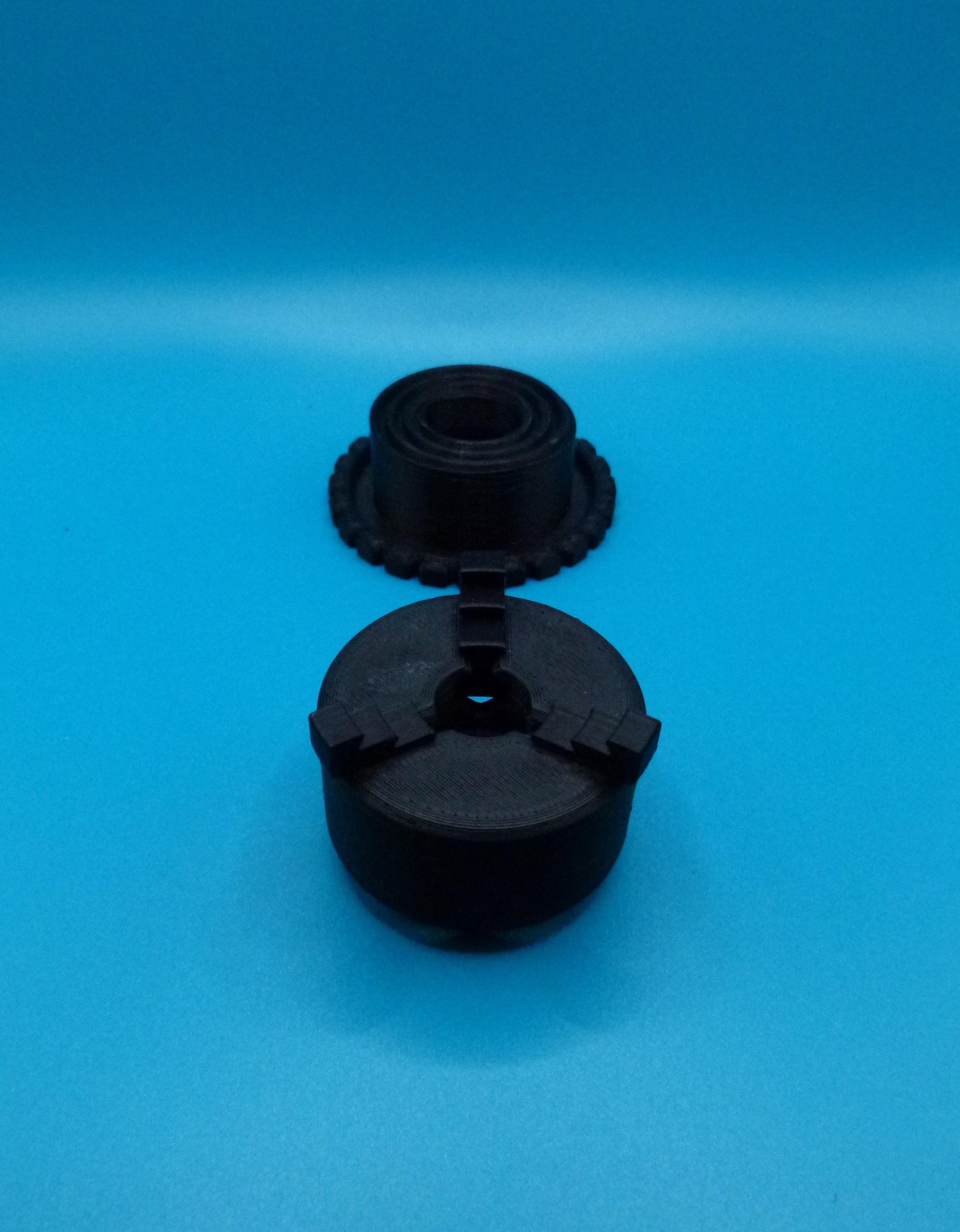

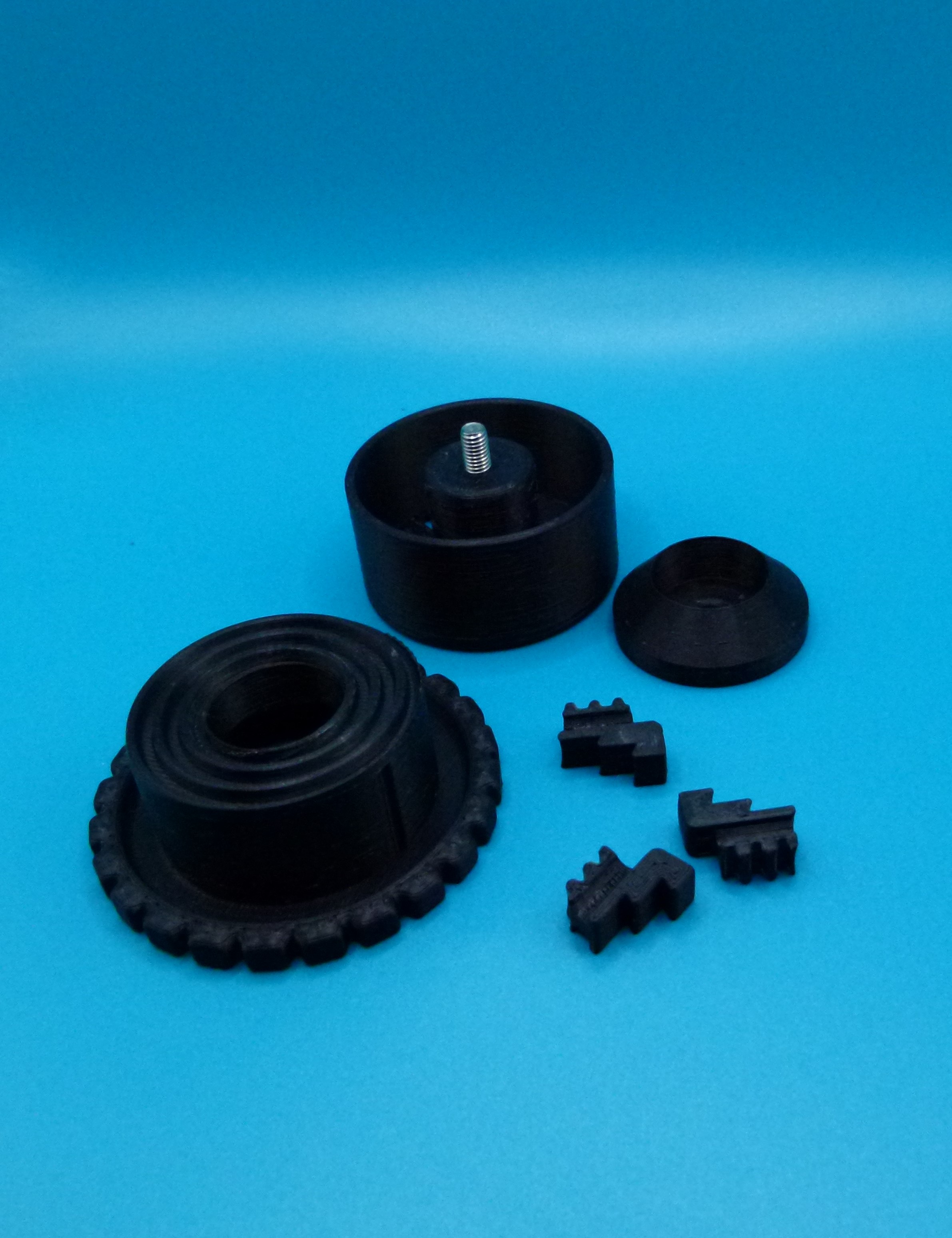

I recommend following the assembly instructions provided by 3D Printing Dude. The only difference is that the countersunk screw is inserted from the top, while the steel plate serves as the threaded counterpart and is locked in place by the printed base section
If you use the vise directly on a tabletop without a mat or something underneath, I recommend printing the base in a flexible filament - helps improving grip and protects the surface - A small drop of adhesive on the screw thread should be used to prevent the assembly from loosening
