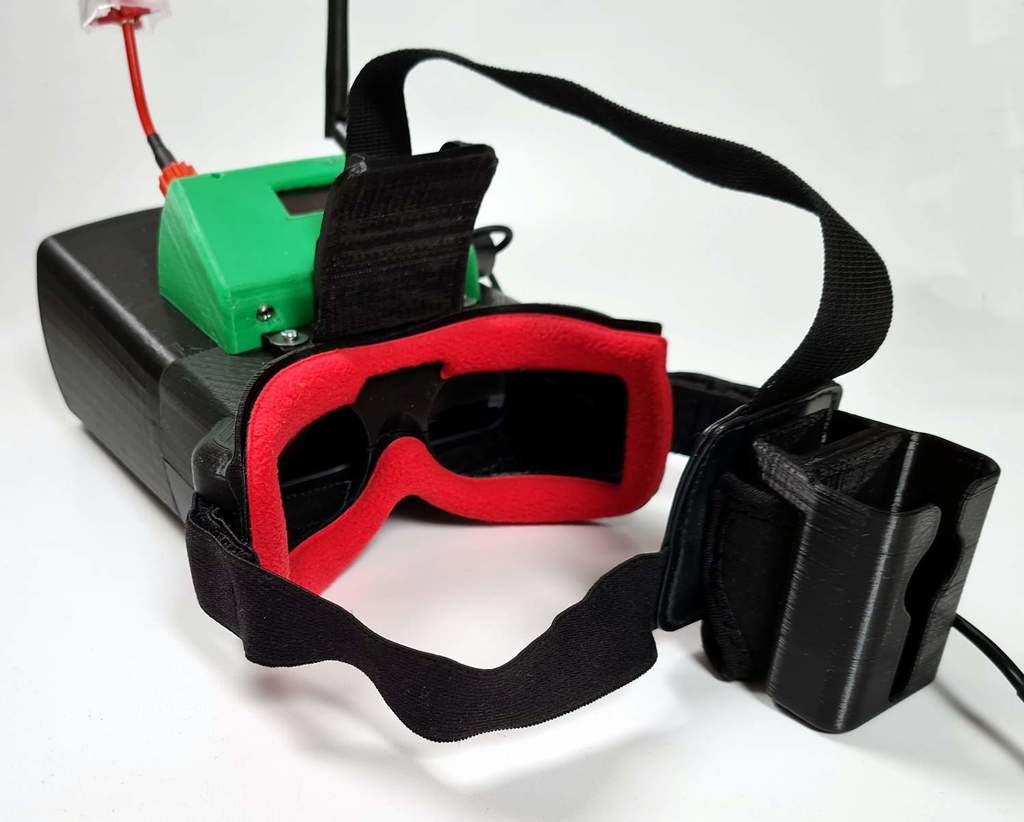

This is my Goggles using parts of a Quanum FPV Goggle.
The Quanum was not very comfortable to wear and the Fresnel Lens was not well for hyperopia.

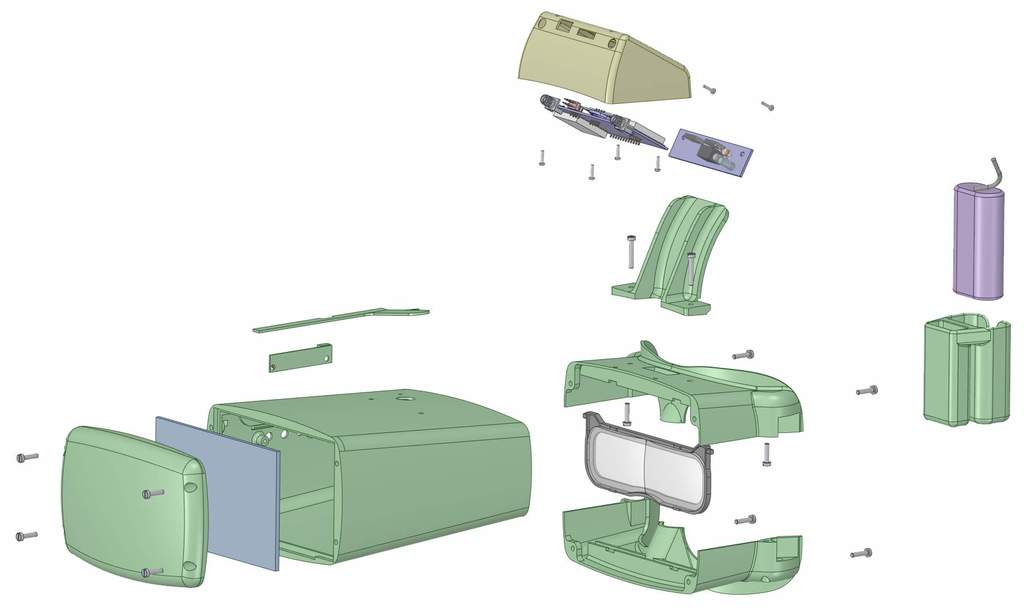

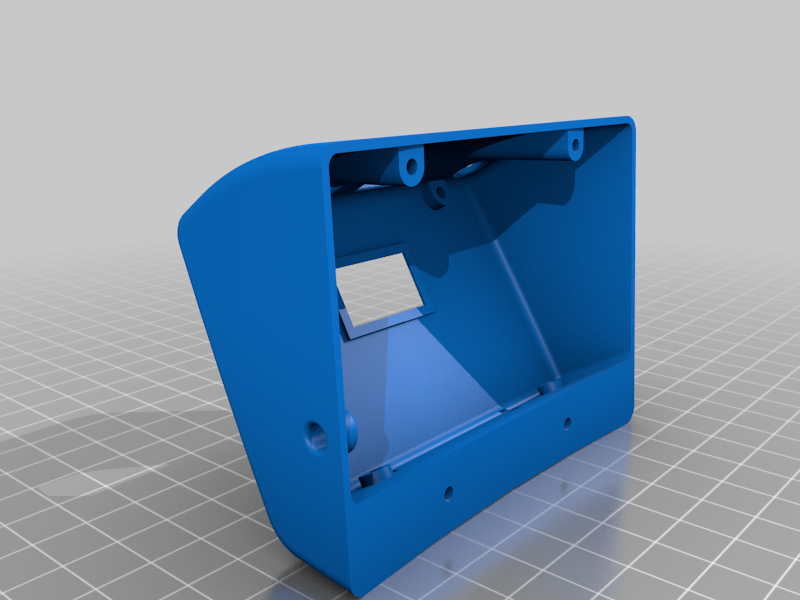

So I decided to use the LCD screen and headband, exchange the Video Receiver by a openpilot rx5808-pro-diversity, use a "Eachine EV800DM Optical Lens Zoom Screen Mannifier 3 Inch" from Banggood and create a complete new design.
The result is very comfortable to wear and with the used Lens and its distance to the LCD I don't need corrective glasses to get a sharp picture.
Print Settings
Printer:
Franx 3D Printer
Rafts:
No
Supports:
Yes
Resolution:
0.2mm
Infill:
20
Filament:
Das Filament PLA
Notes:

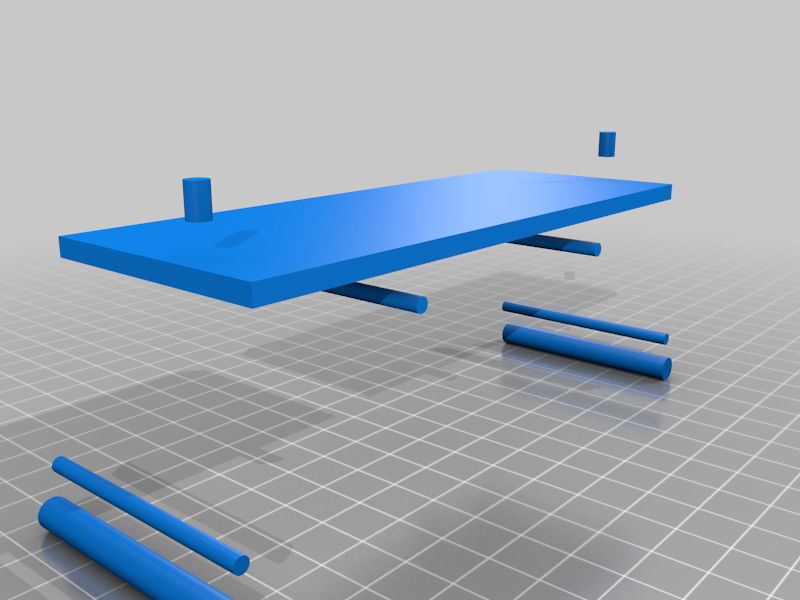

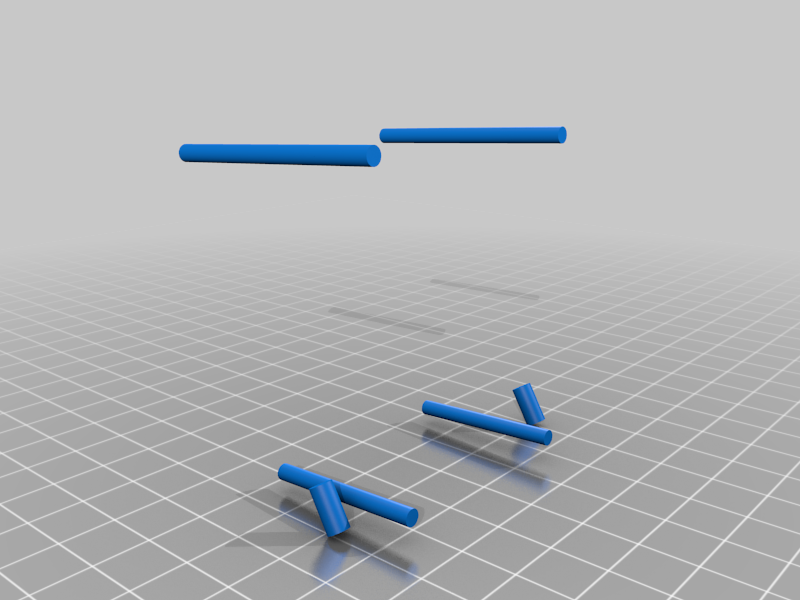

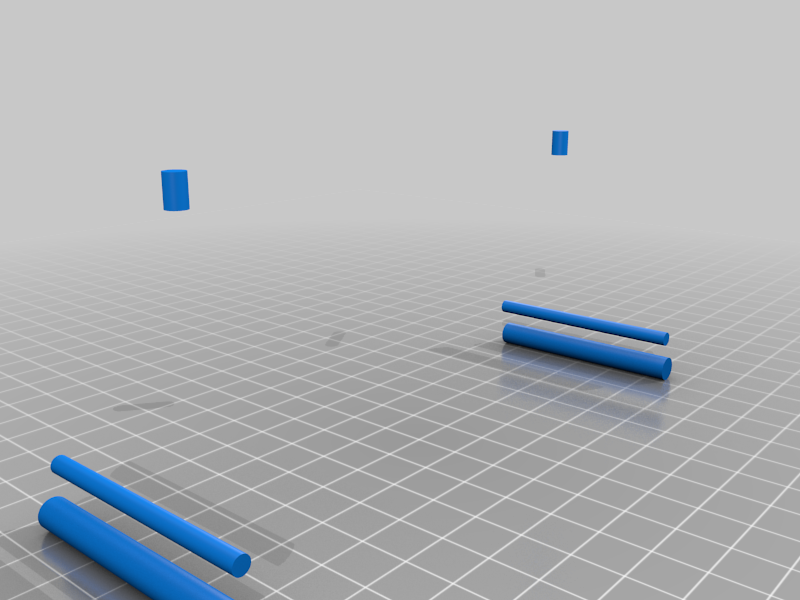

Use Blockers in Cura to ommit certain supports and get pretty holes.
