Range Finder Tripod Mount

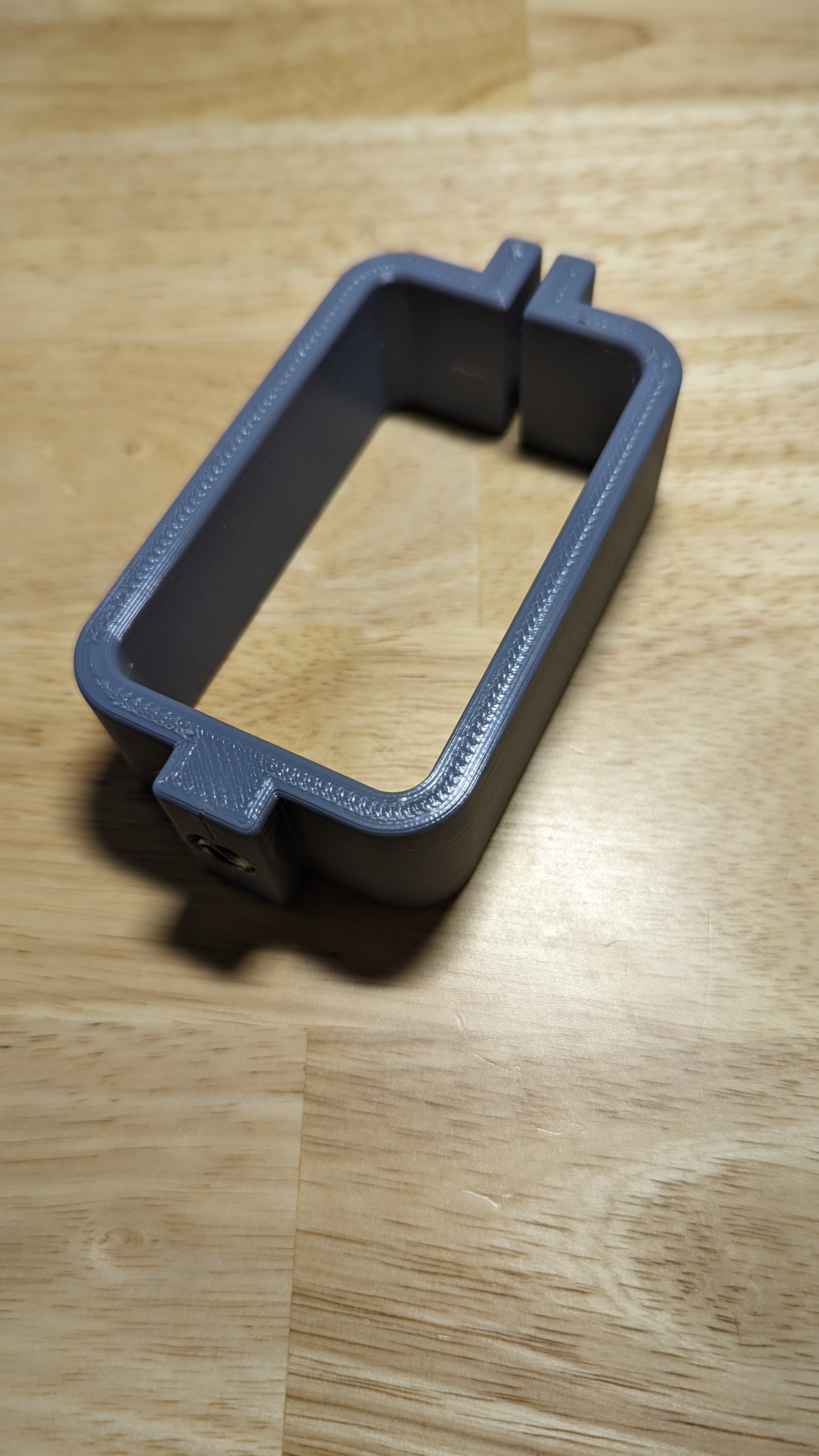

This is an adapter/mounting option for a range finder to a tripod.

The inside dimensions are 45mmx78.5mm

Printed in PLA+ @ 20% infill (gyroid)

Printed with paint on supports for the holes.

The specific range finder I have is this one (mount will work with other brands as long as the dims are close):

 https://www.amazon.com/dp/B07BMTSSTB?psc=1&ref=ppx_yo2ov_dt_b_product_details

the hardware used are these:

https://www.amazon.com/gp/product/B07NCNMDJN/ref=ox_sc_act_image_1?smid=AJVD03PRD8VF4&th=1

https://www.amazon.com/gp/product/B08YYGRCBG/ref=ppx_yo_dt_b_search_asin_image?ie=UTF8&psc=1

https://www.amazon.com/gp/product/B08LQDLV51/ref=ppx_yo_dt_b_search_asin_image?ie=UTF8&psc=1

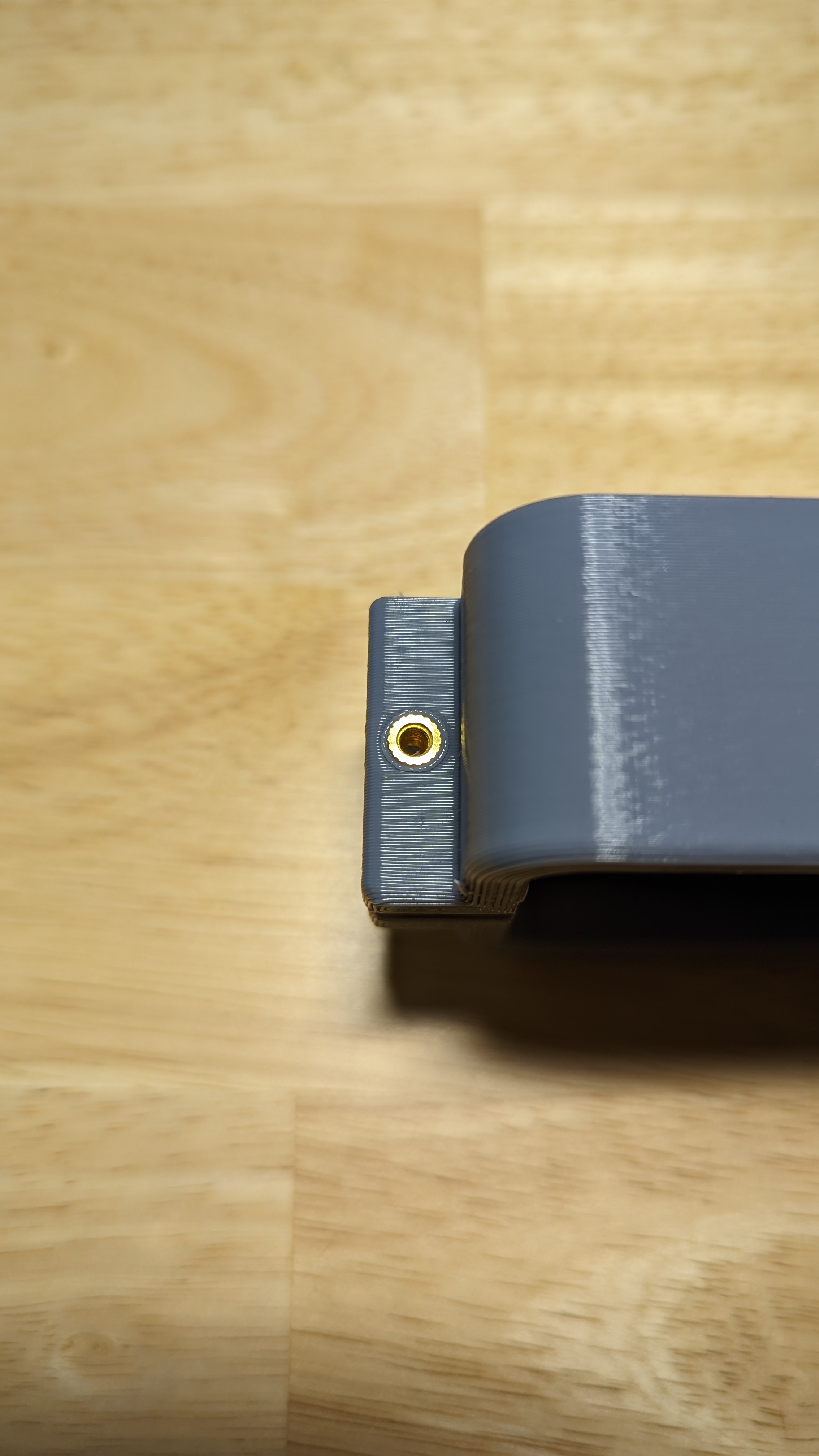

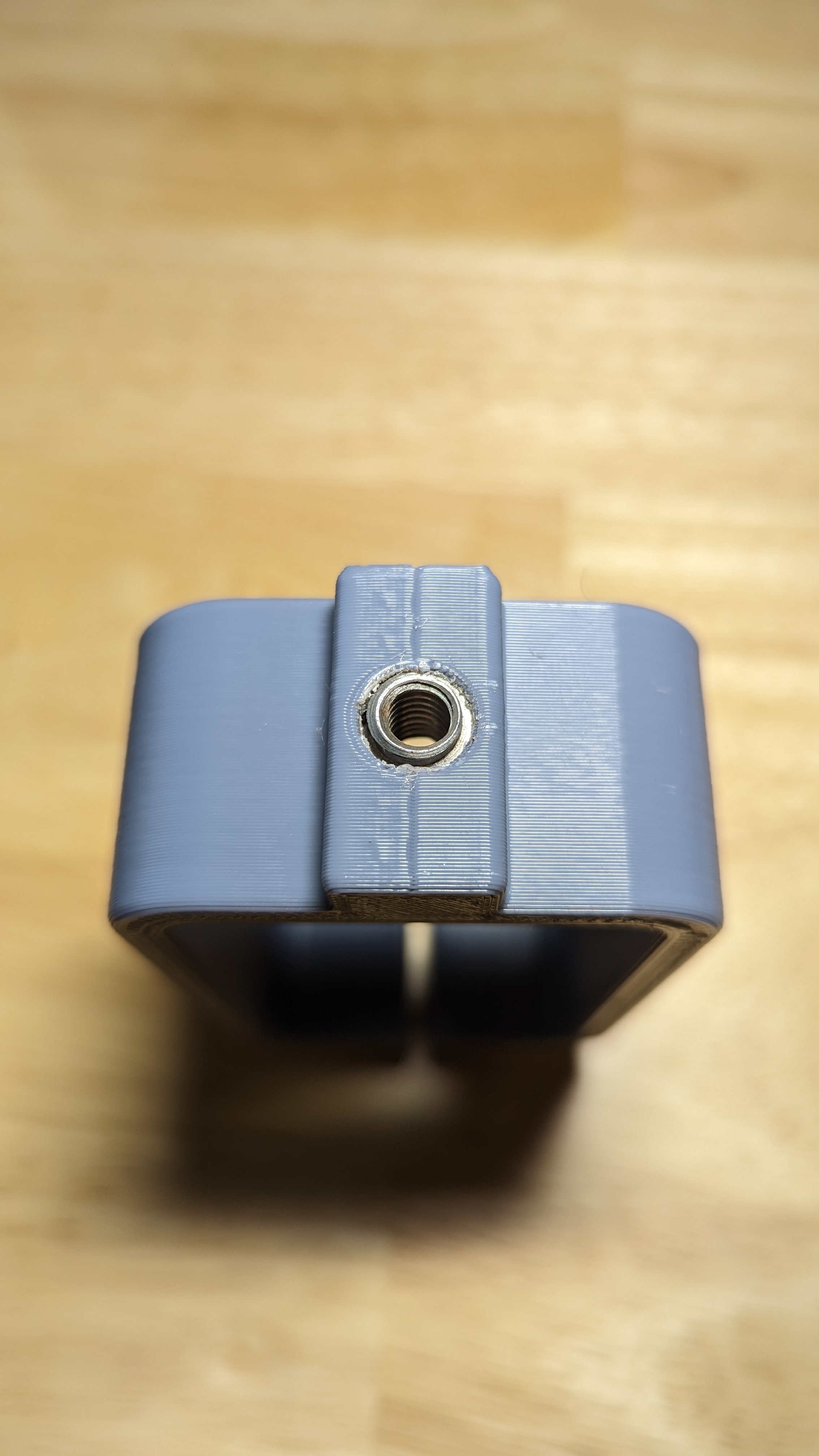

You will have to heat up the M3 insert and push it into the print. With the ¼-20 insert, you will need to heat it up then slowly push/ thread it into place making sure you keep it as straight as possible.

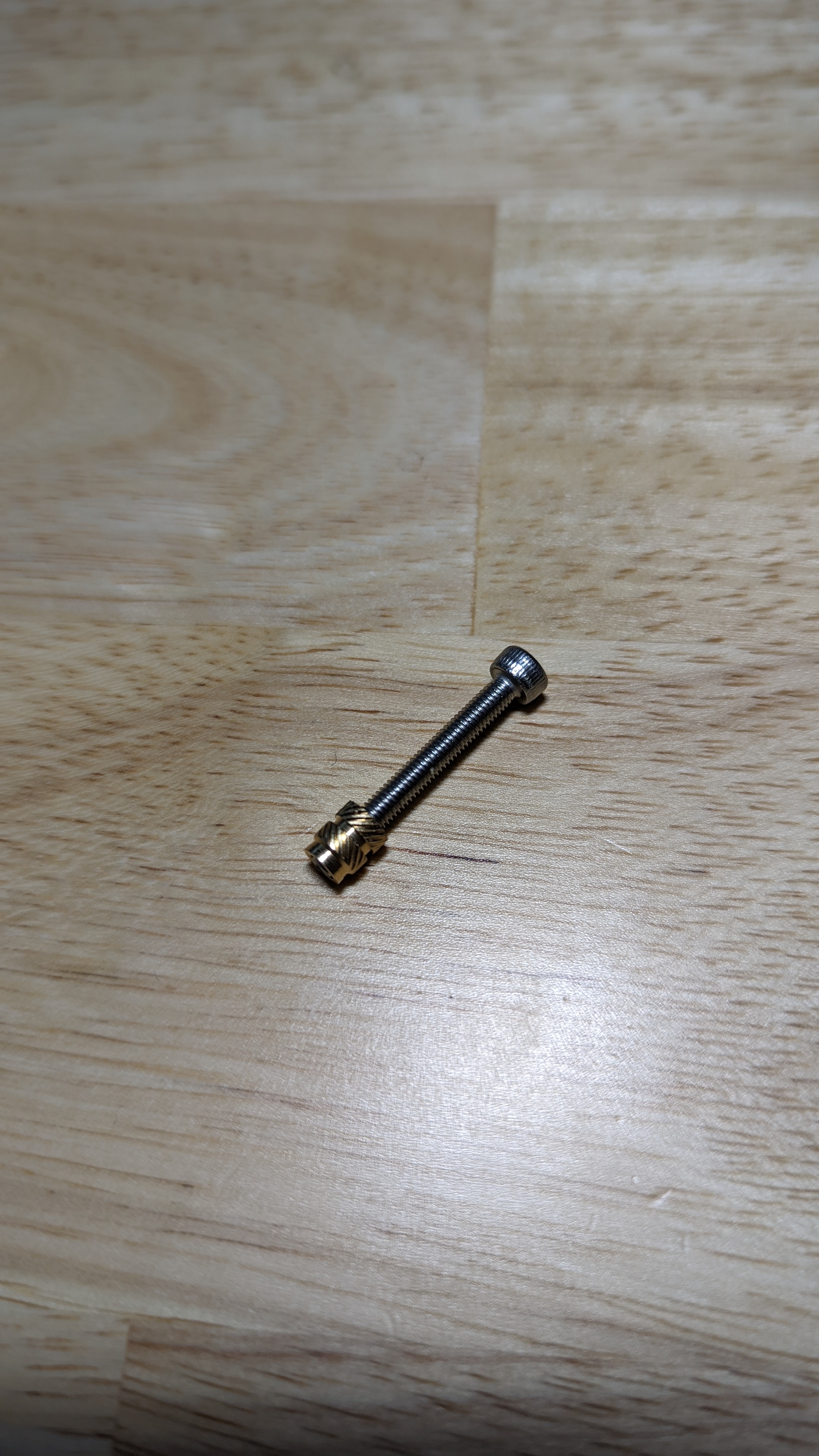

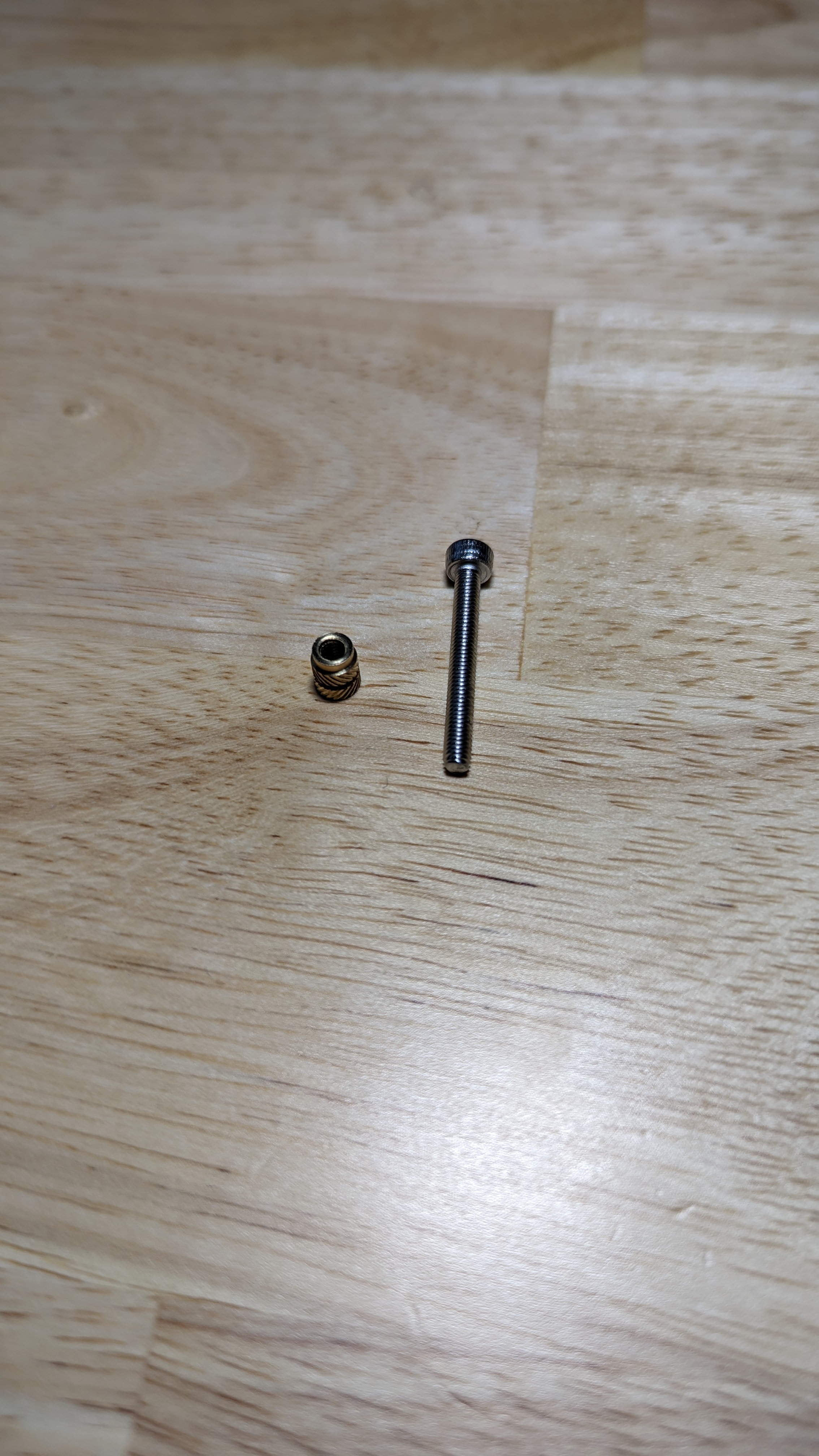

I used a longer M3 screw to hold the insert while I heated it up and pressed it in.

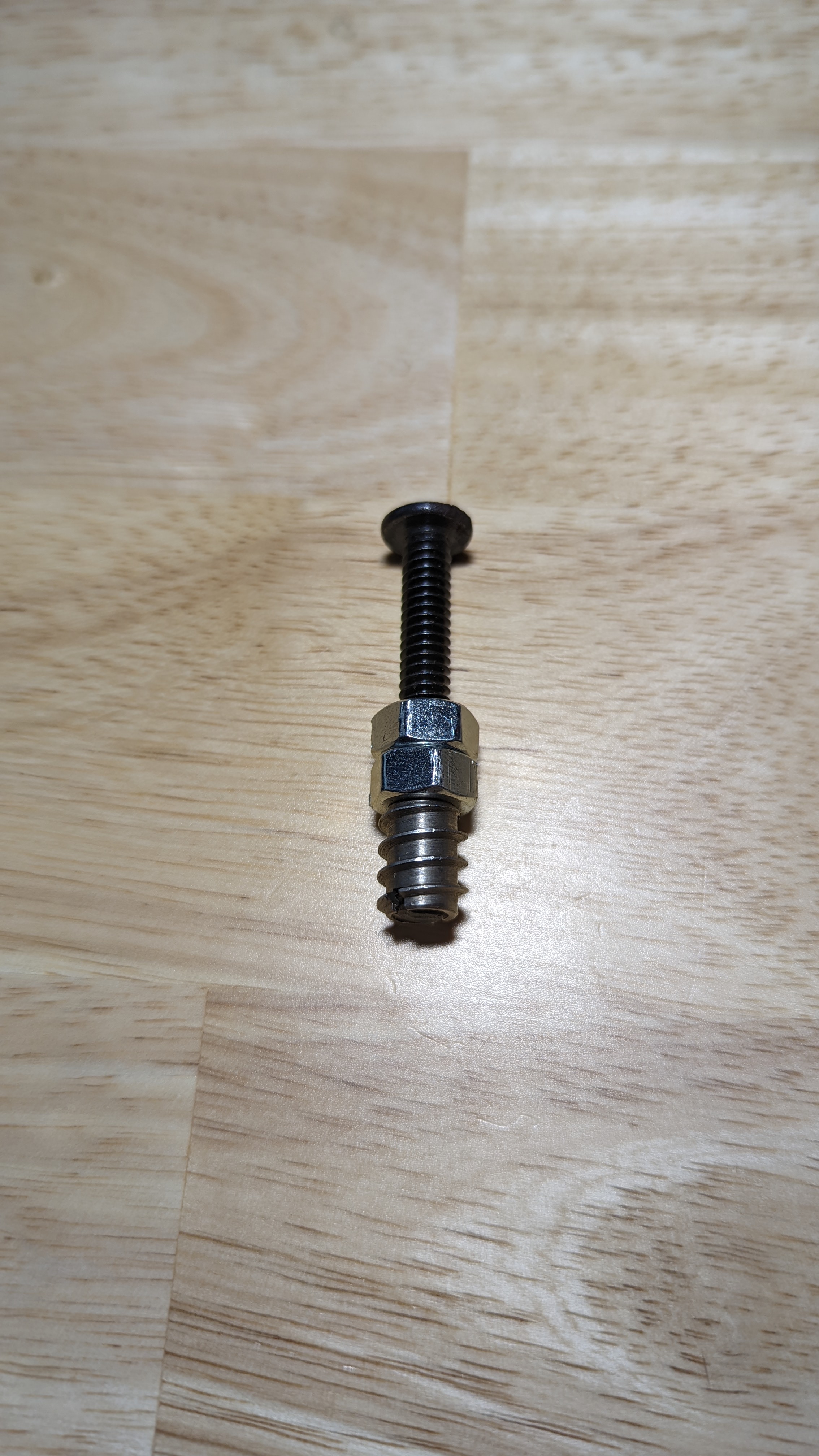

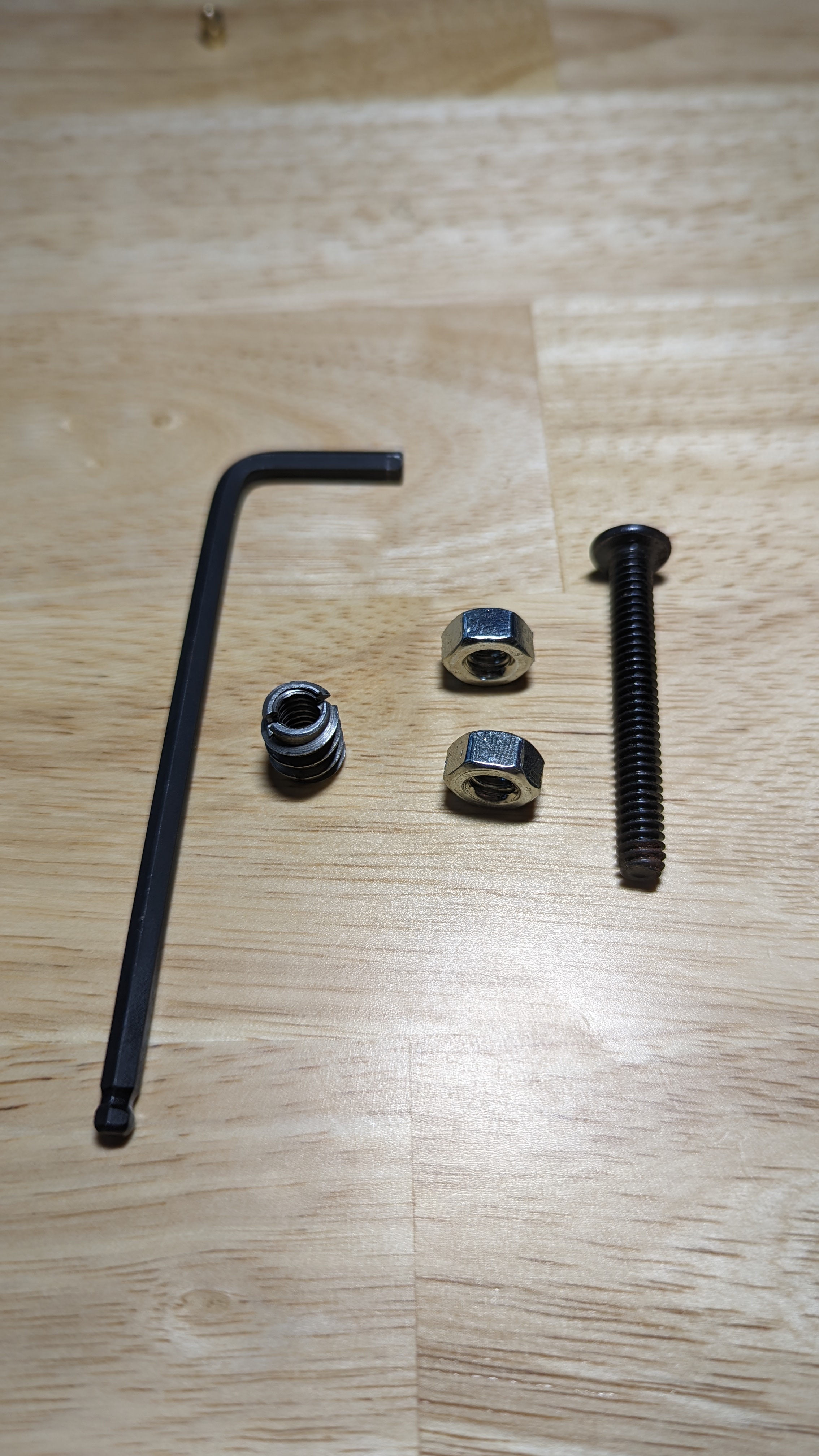

I used a longer ¼-20 bolt for the same process for the ¼-20 insert. But I tightened some bolts against the insert so i could thread it into the print without burning myself.
