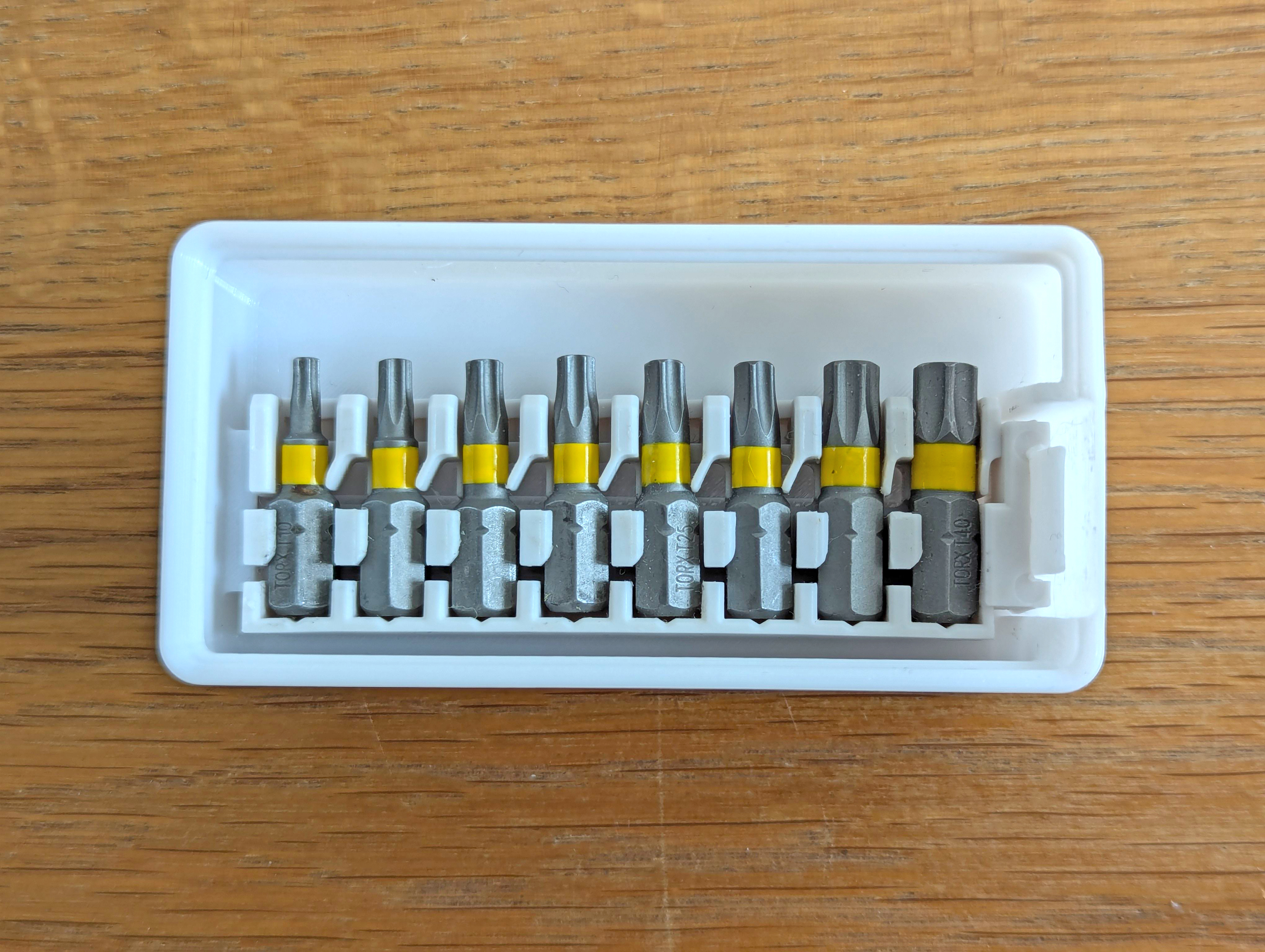

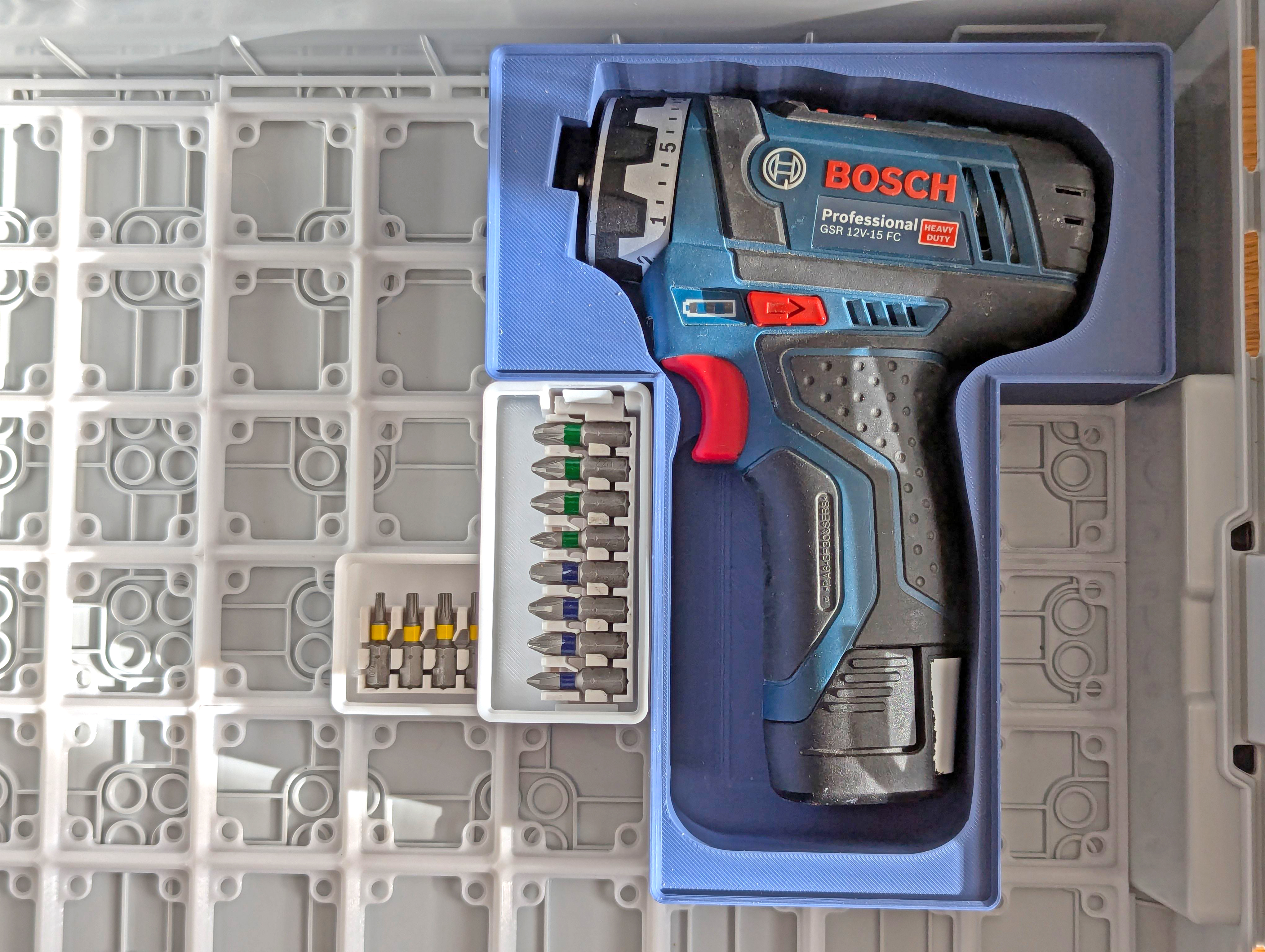

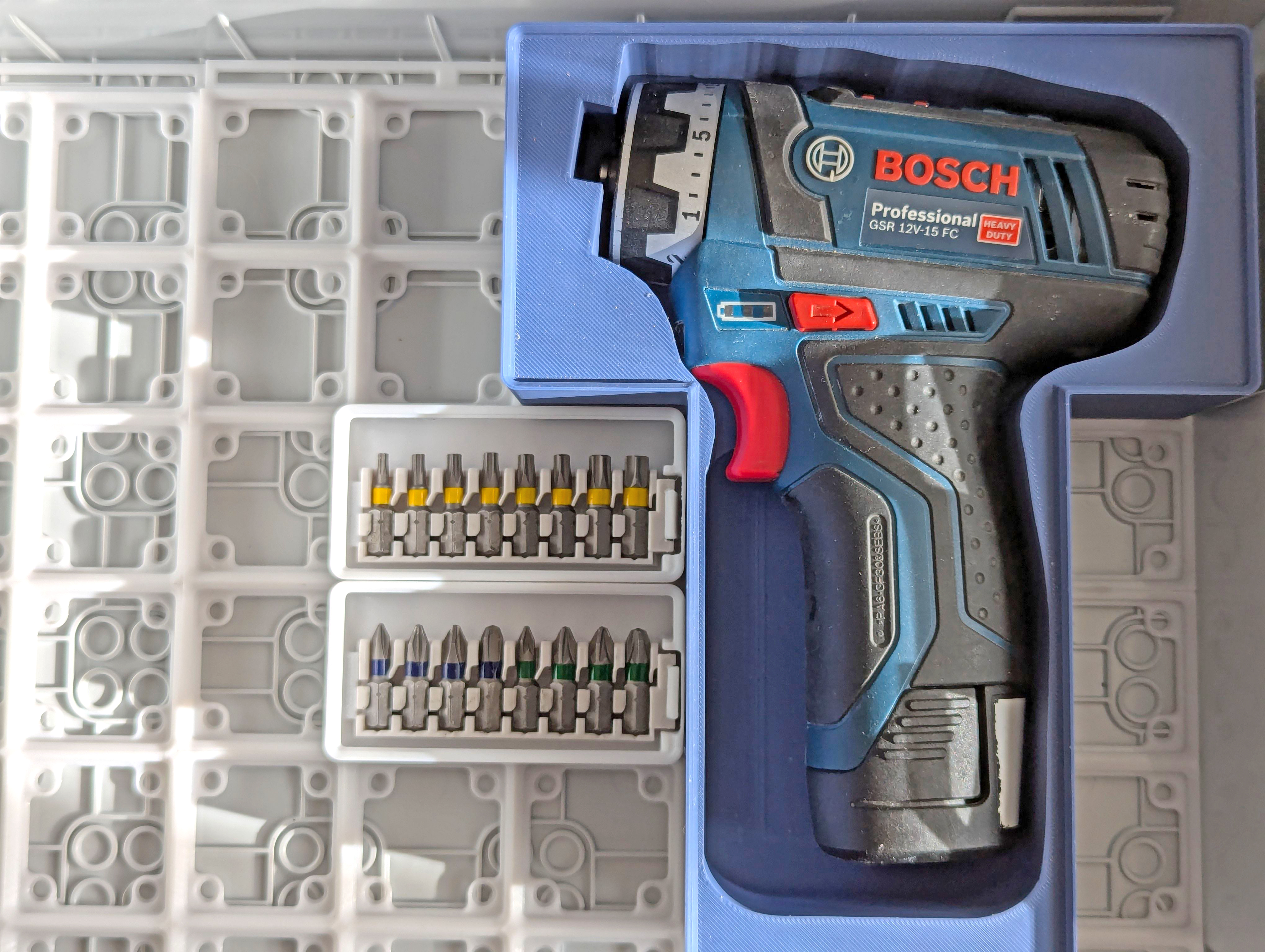

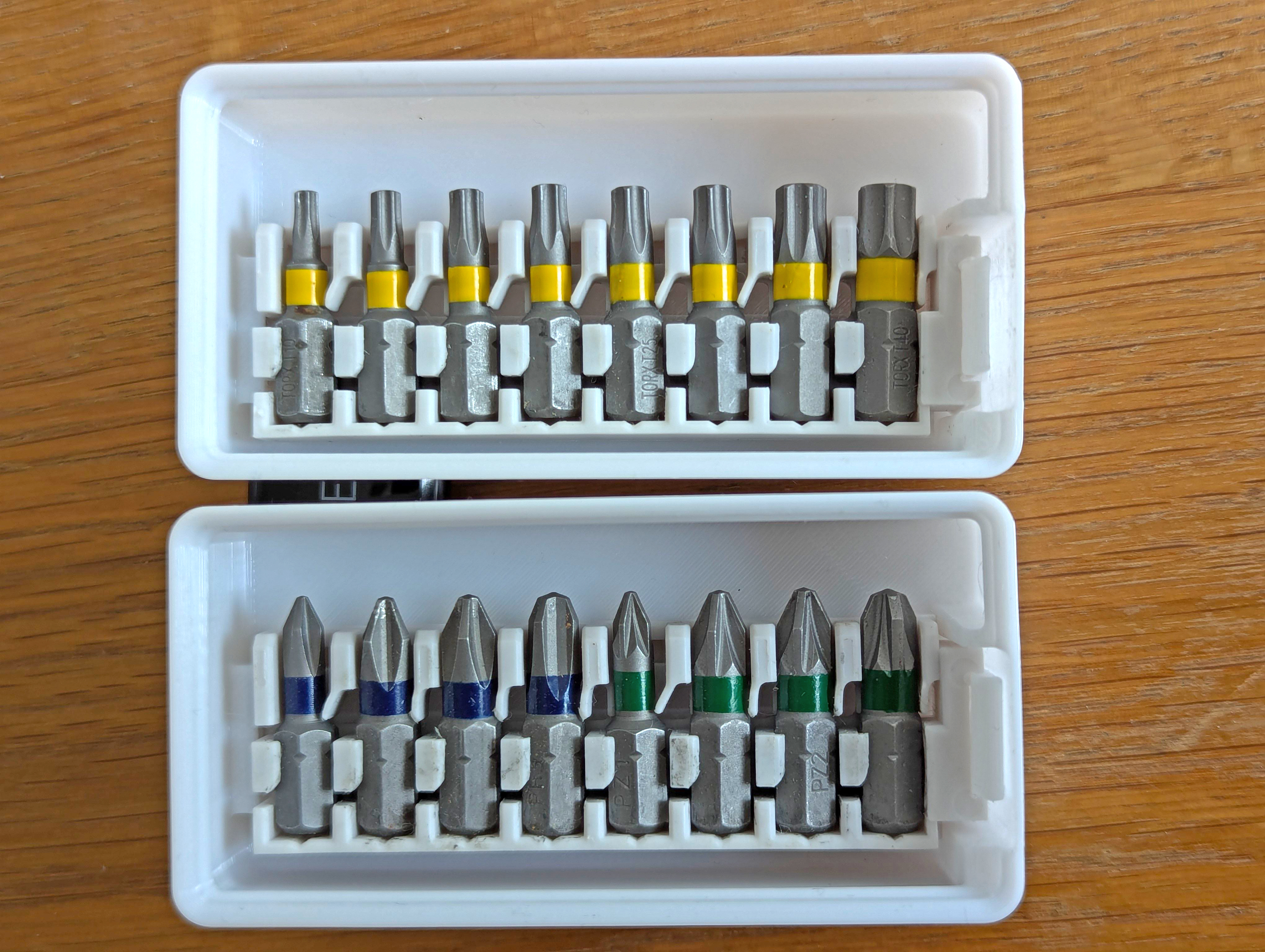

Gridfinity bins to click the Bosch Pick and Click modules / trays inside. The 2x2 Version is needed for long bits. The bins are ‘4u’s heigh and stackable.

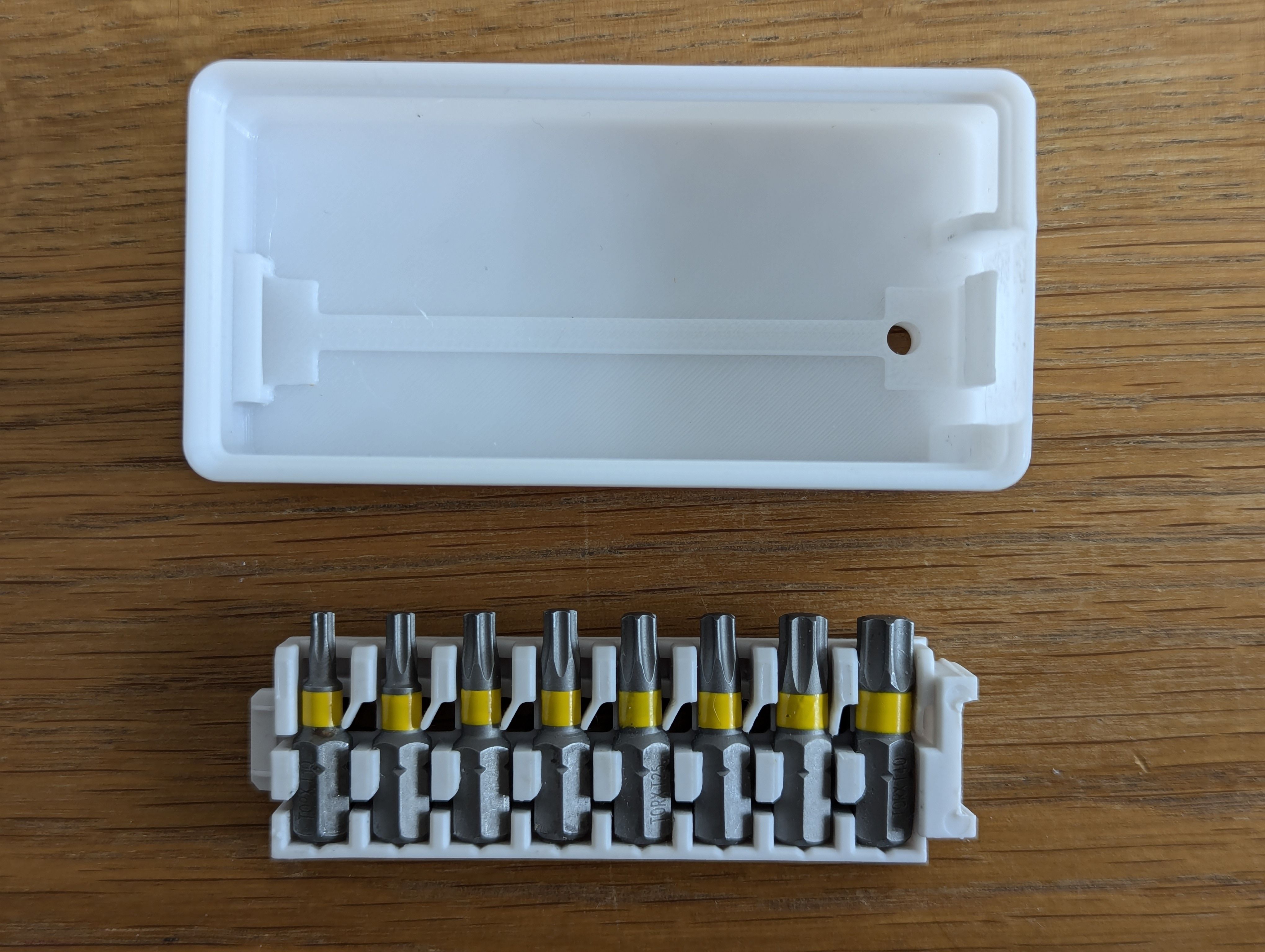

It's a very tight fit, so there's a hole in the bottom (to get them out if they are stuck) and in the left side to fit the tray inside. Even a 0.4 wall was too much and the tray wouldn't fit.
The color change i did was at the 130th layer (printed with 0.2mm layer height).
NOTE:
o In version 1.0 i made a mistake in the model. In 1.1 it's fixed.
o The Pick and Click bin, which needs two slots, doesn't fit! It just slides out.
It's slimmer than the bit trays and i can't figure out what's the difference beteween my design and Bosch's…. If you figure it out, please let me know!
o I don't have the round drill bit insert, so i couldn't test the model with these.
I provided the following versions, if you need others, let me know :)
1x2 ( 1 tray )
2x2 ( 2 tray )
3x2 ( 3 tray )
4x2 ( 4 tray )
