The "Thrifty" KX3 Desk Stand is a simple, functional desk stand designed specifically for the Elecraft KX3 transceiver. The design supports the KX3 using its built-in rear legs. This model was created as a practical replacement for a…

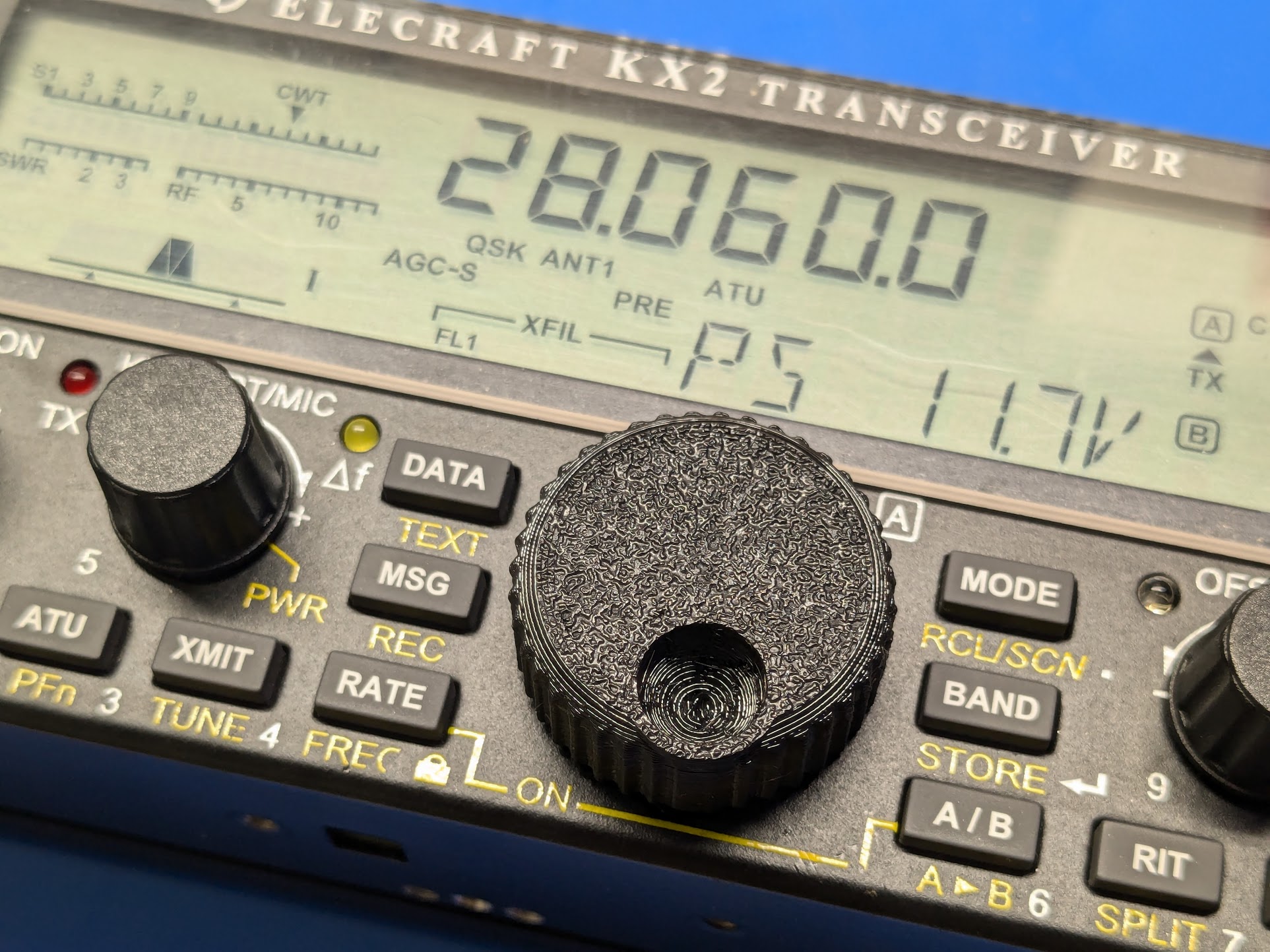

I wanted a better knob for the KX2, but one that was also still the same size to fit in small cases and to work well with after-market radio covers. The finger indent allows quick tuning and efficient spinning of the dial with no added…

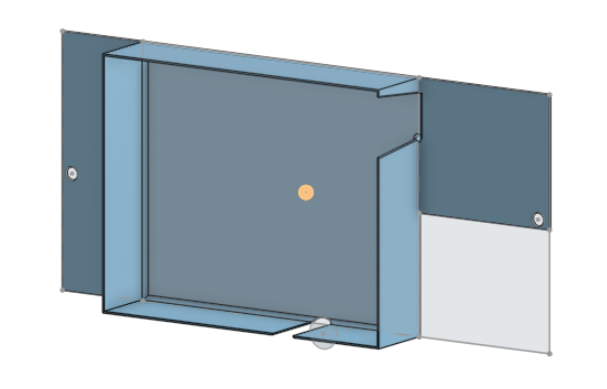

If you want to use Li-ion 18650 battery (like original KXBT2) internal in your Elecraft KX3 instead of NiMH batteries, you will need this new holder and retainer. Material PETG or better Layer height ≤0,2 mm Infill 100% Support None. The…

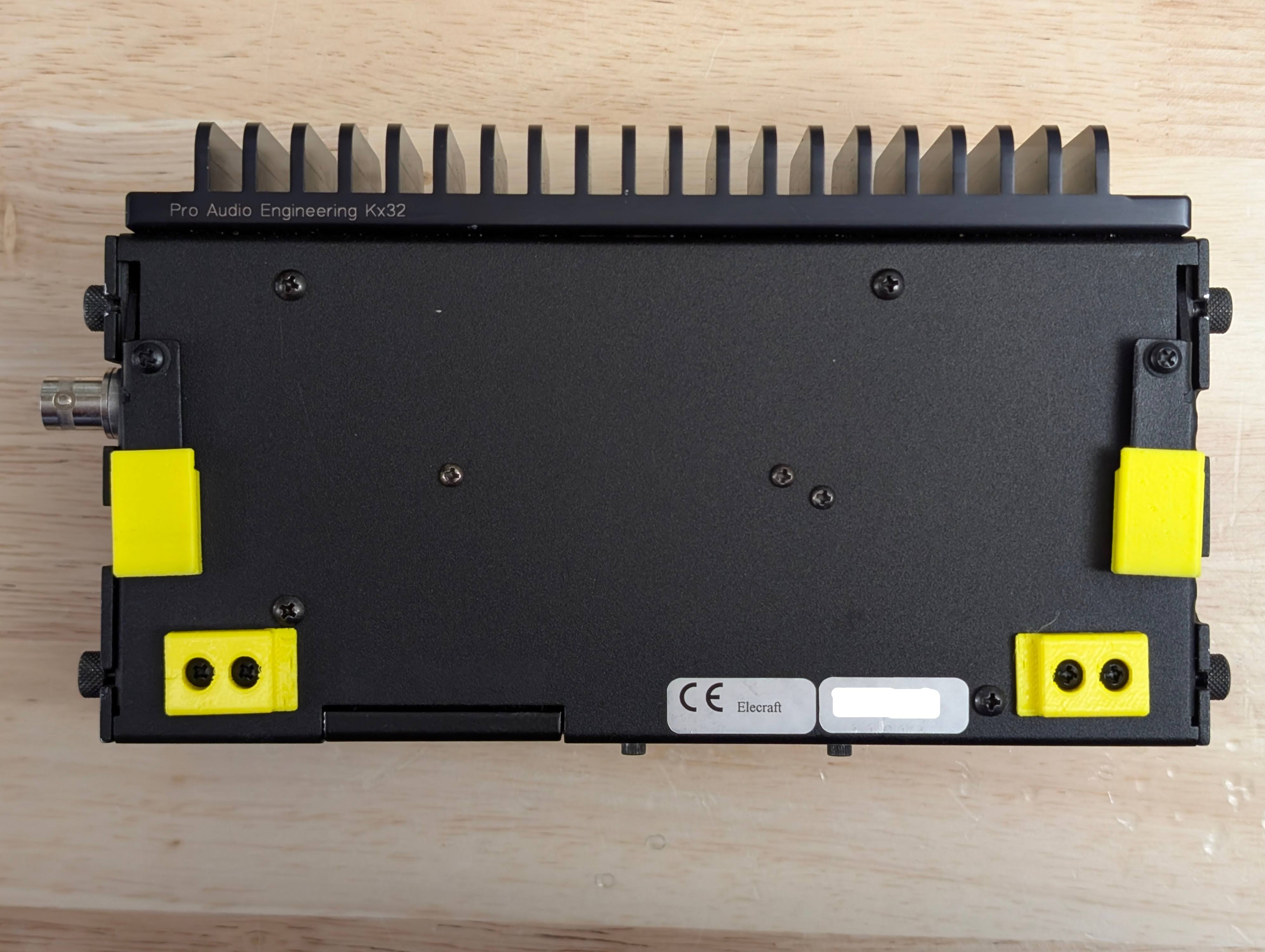

I printed these in Bambu Lab TPU 95A HF and, while not as tacky as the factory feet, they are functional. They also work printed in PLA in a pinch, but of course won't provide any traction.

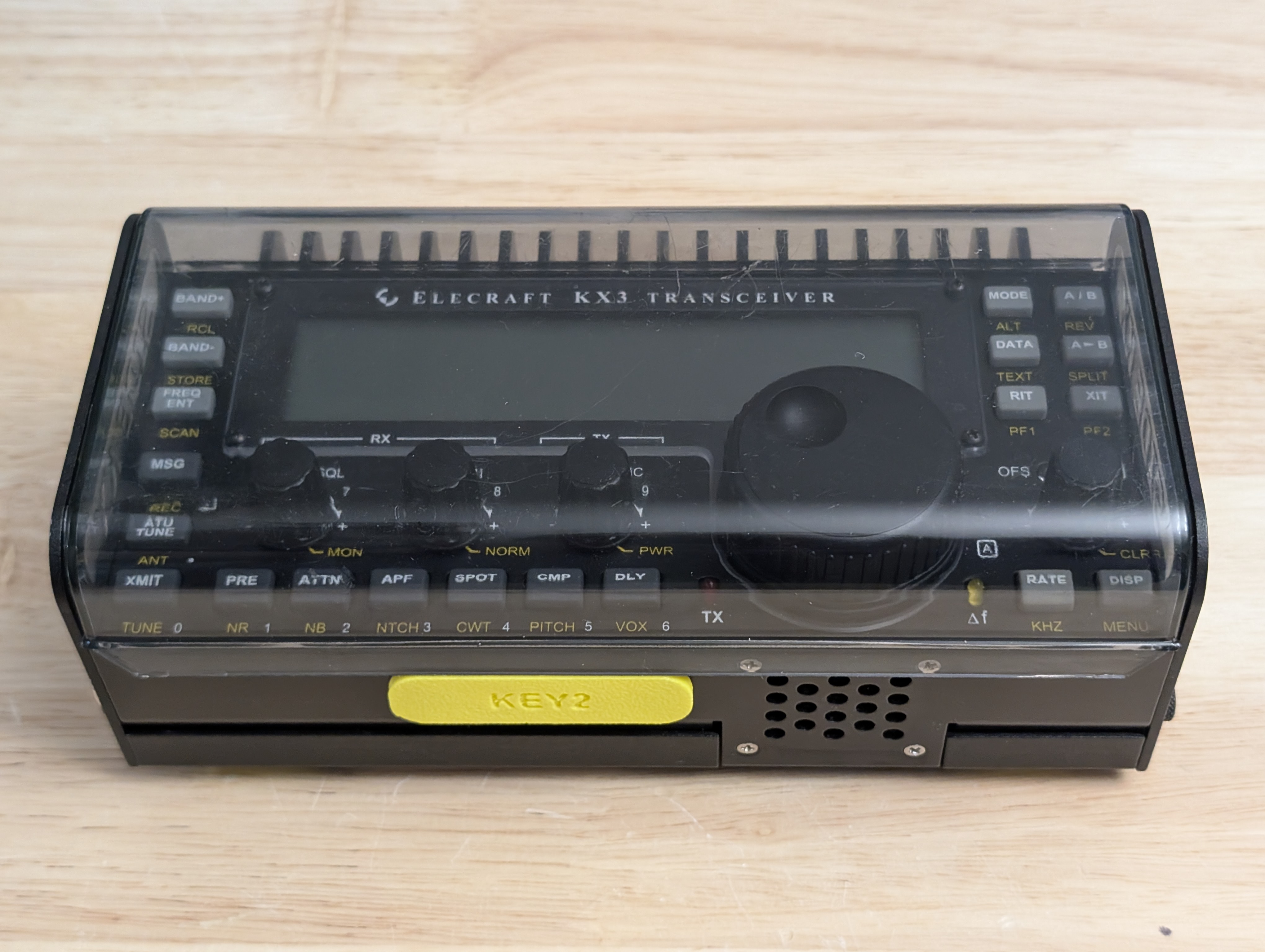

Pictured in Bambu Lab TPU 95A HF; also tested in PLA. Should print fine in other materials but may require adjustment or drilling if the holes in the 4-pin connector come out too small. Three options for the “KEY2” legend: none: flat…

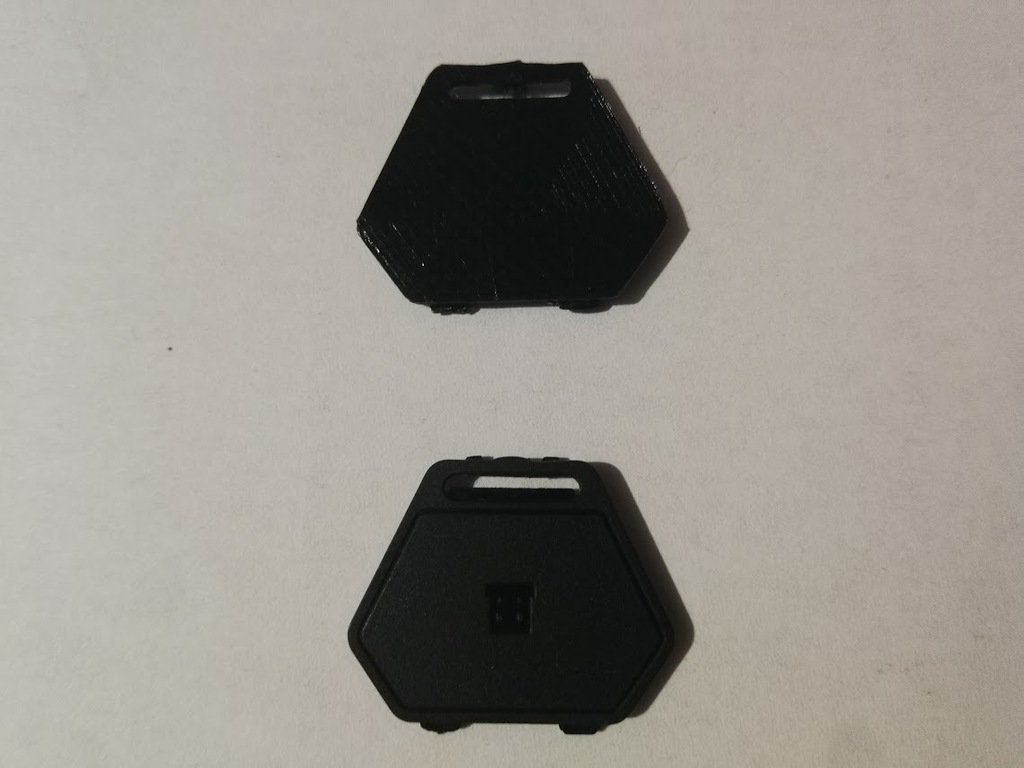

Dongle cover for the AttacksharkX3/Kysona M600 mouse Category: Other
Printed in PETG, it's split into two parts to fit normal build plates. Recess on the front right is for the lovely BaMaKey TP-ii. Recess on the back fits a 6Ah LiFePo from Eremit. PowerPole to DC adapter for the Elecraft KX3 can be…
Protects top of radio, display, and knobs from damage. Remove existing side panels by taking out screws and nut securing microphone connector. I printed these in PETG.

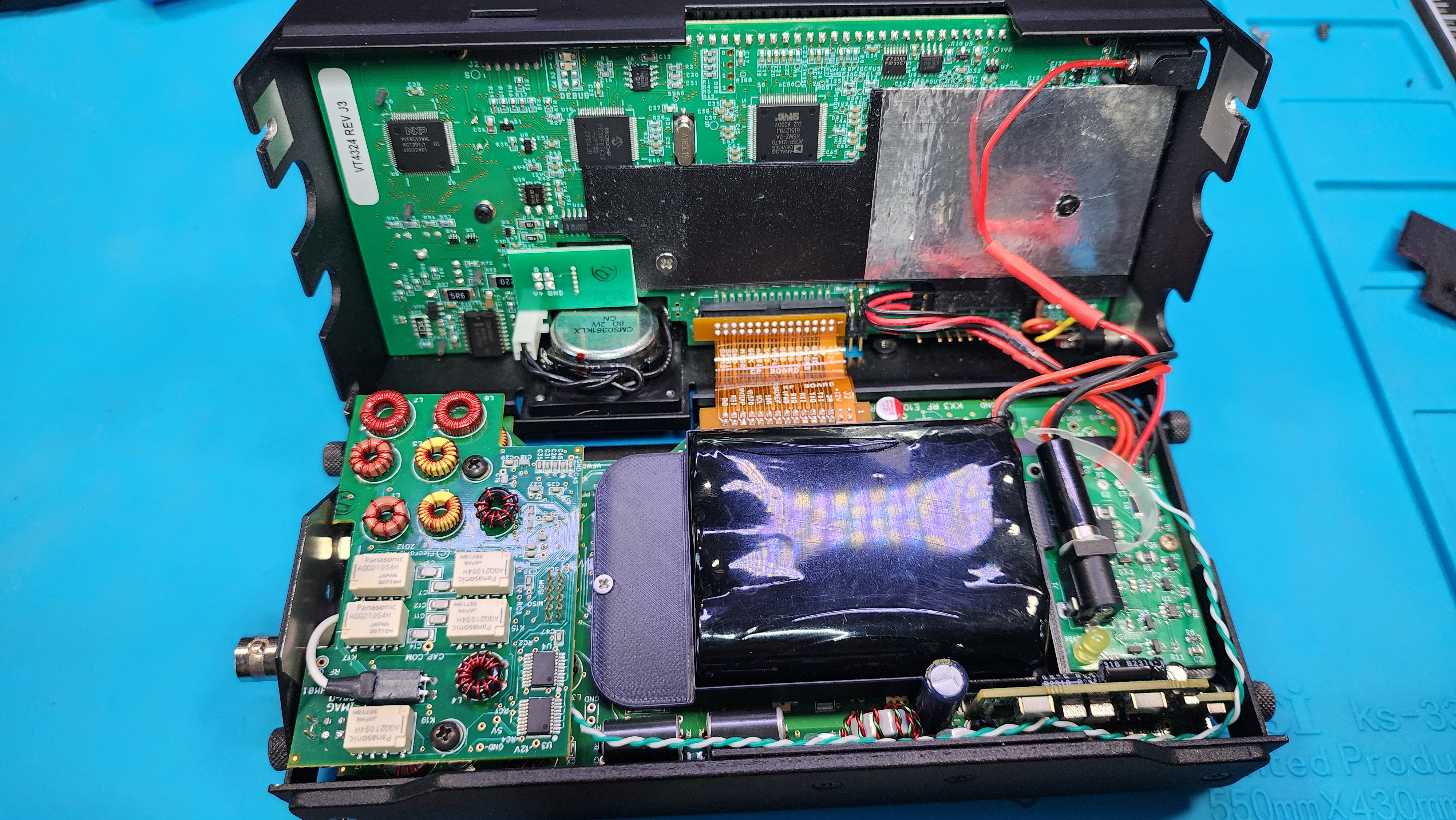

The two parts house a 3S LiPo Battery and a PCB I designed to allow for the internal charging of the battery much like is done in the KX2 radio. This is remix of Stephan Gollubs original design. I optimized the holder area for a little…
This is a special box for Elecraft KX3 owners to store their KX3 radio and accessories in an adjacent space. The box is a reworking of the excellent Frog Box, originally designed and posted on Thingiverse by user Nibb31. Size…
An easily attached sun shade for the KX3. It fits nicely in the bottom of the side compartment of a WindCamp KX3 case with mic and cables on top of it. Designed in OpenSCAD and printed in PETG.
A sunscreen for the KX3 that attaches to the side rails and folds down to protect the display and controls. Designed in OpenSCAD. I printed mine in PETG. Print top and 2 side pieces and put together using 2 M3x8 self tapping screws. Shade…
The "Thrifty" KX3 Desk Stand is a simple, functional desk stand designed specifically for the Elecraft KX3 transceiver. The design supports the KX3 using its built-in rear legs. This model was created as a practical replacement for a…
This is a leg-mounted kneeboard for the Elecraft KX3. The radio lays flat on the board and is held firmly by 3 mm shock cord routed across the rig and anchored through holes at the board edges. The board straps to your thigh, so you sit…

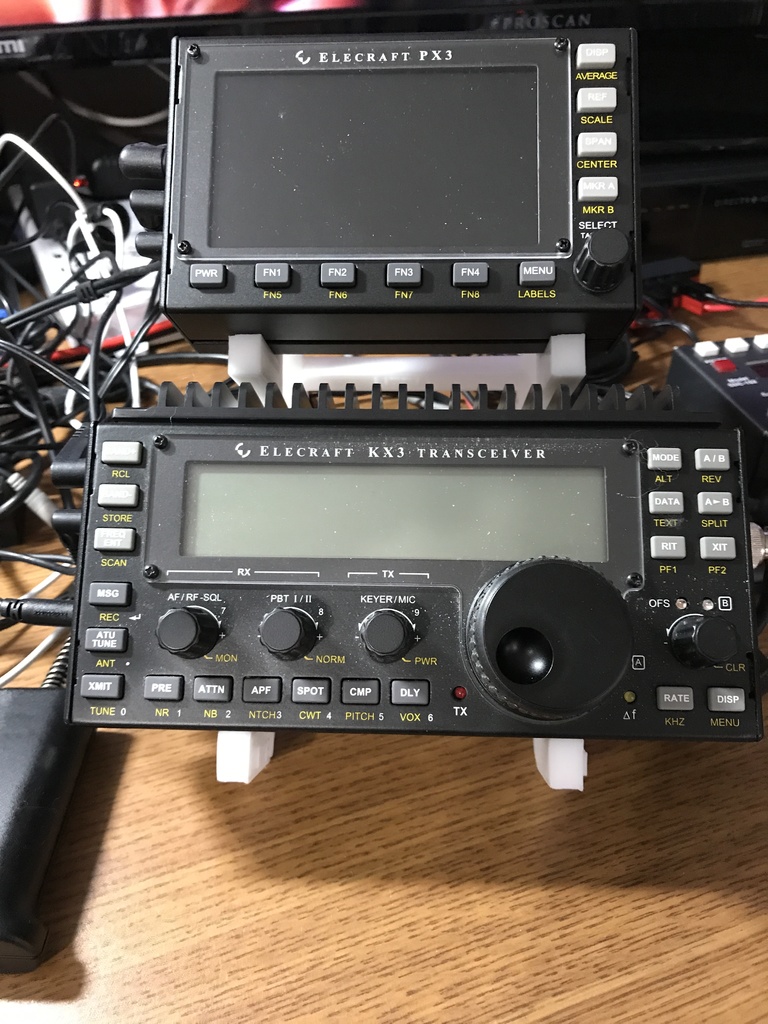

This is a stand I designed for the Elecraft KX3 and PX3. You will need to print two of both STL files to make the stand. I forgot to add the cross brace for the bottom and back. My QRP Club the North Georgia QRP Club offers a very nice…
This is a stand I designed for the Elecraft KX3 and PX3 using Fushion 360. You will need to print two of each STL files to make the stand. I forgot to add the cross brace for the bottom and the back. My QRP Club the North Georgia QRP Club…
This is a stand for the Elecraft KX3 and KX2. The smaller stand is designed for the matching Panadapter. The stand can be used for other devices like HT radios. You will need to duplicate the number of parts needed for each project. Print…
BACKGROUND: The QMX , (tr)uSDX and Elecraft KX2 and KX3 are fantastic portable radios, but the microphone for the KX2/KX3 is relatively big and heavy, and there really is no good mic option for the (tr)uSDX. So, I decided to design one.…
This is a simple stand to turn a Raritan Dominion KX III User Station (DKX3-UST) on its side. The user station is reasonably stable on its own and doesn't need too much help. The tolerances of the user stations aren't very tight, so the…
12/28/2023 Update Filleted parts to make them easier on the hands and included a “fence” around the fans (visual and cuts back some of the sound from the fan intake side). The fence is very thin and only intended to obscure the fan…
About This is the first draft of a stationary or portable stand for a stack of Elecraft KX3 radio and Elecraft PX3 panadapter. The radio and the panadapter are stacked on each other, steeply raked, to create a compact and comfortable…
This is a set of magnetically attached covers for the Elecraft KX3 and PX3. These require common 6mm diameter by 2mm depth magnets. Designed in OpenSCAD. Since all KX3s and PX3s are hand assembled, I recommend trying the test print option…
A stand for mounting an Elecraft KX3 on a shelf. The SCAD design can be adapted for a KX2 or any rectangular device. 73 KD8CGH Print Settings Printer Brand: Prusa Printer: i3 MK3 Resolution: optimal .15 mm Infill: 25% Category: Electronics

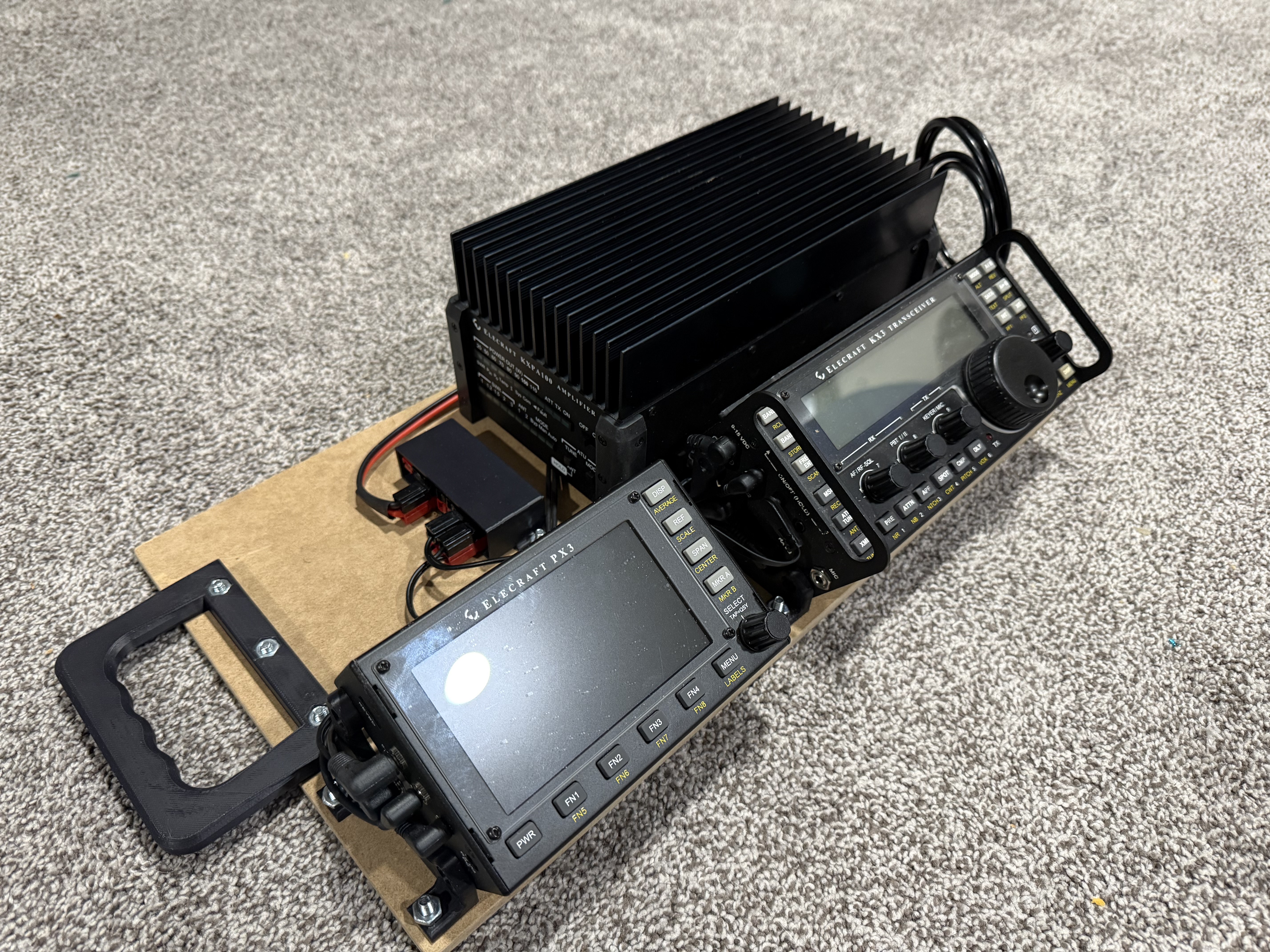

Printed in ASA for strength fill needs to be 45% or higher. The screws for the side of the amp are 10-32 x ½ long. Tighten the thumb screw on both the radio and panadapter prior to putting on brackets. the same brackets fit both.
