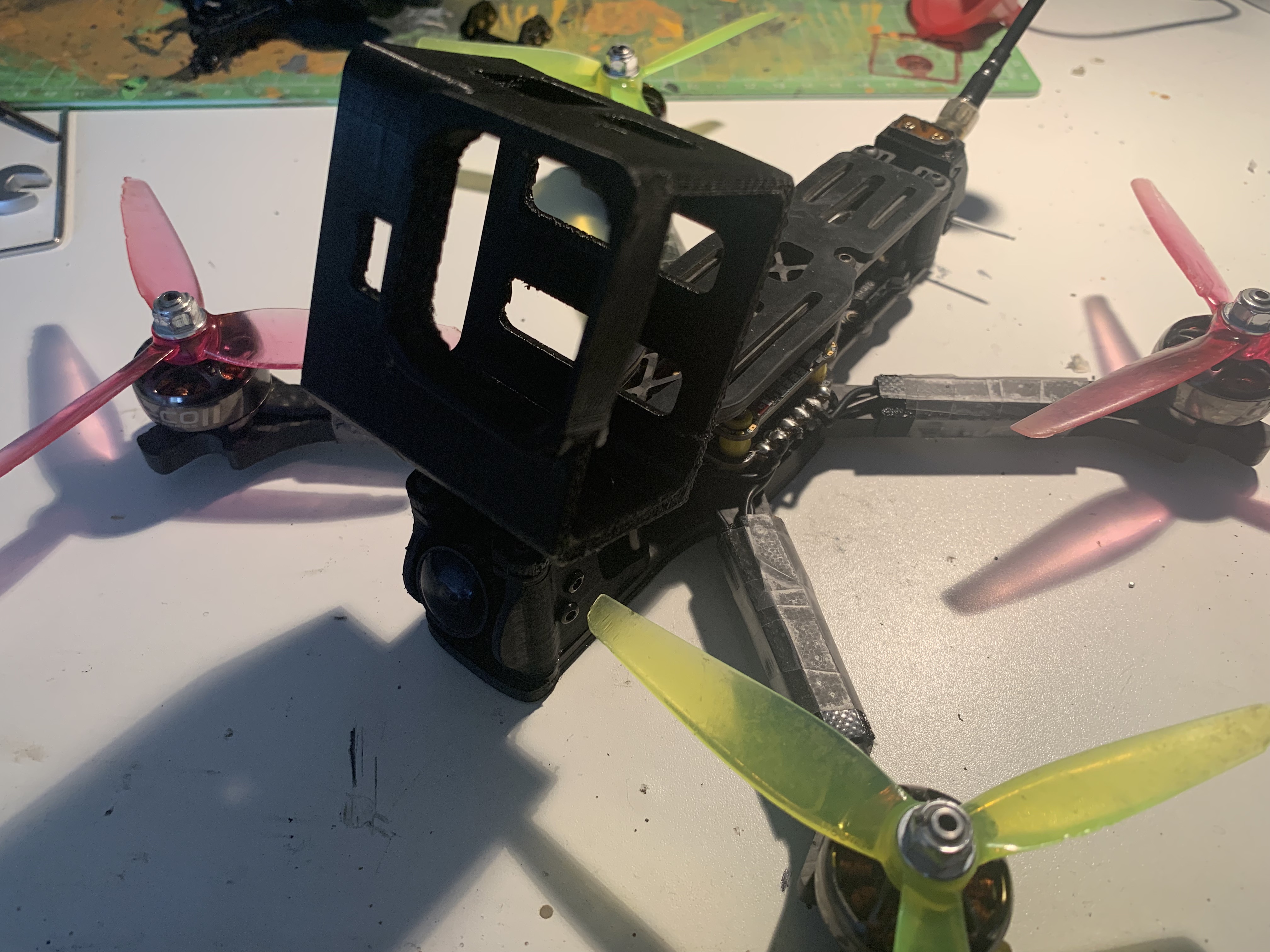

SourceOne V4 & Apex - GoPro Hero 11 Mini Mount - Side Load & Vented Thanks to Pokey FPV for providing the GoPro Hero 11 Mini top originally clam shell style. Check him out at: https://www.youtube.com/c/PokeyFPV Category: Other
TBS SourceOne GoPro Couch (30 Degrees) Made this couch but haven't tested fitment yet. Feel free to try and report back. Category: R/C Vehicles
Model of feet and arm protectors for the SourceOne V5.1 5 inch drone frame.

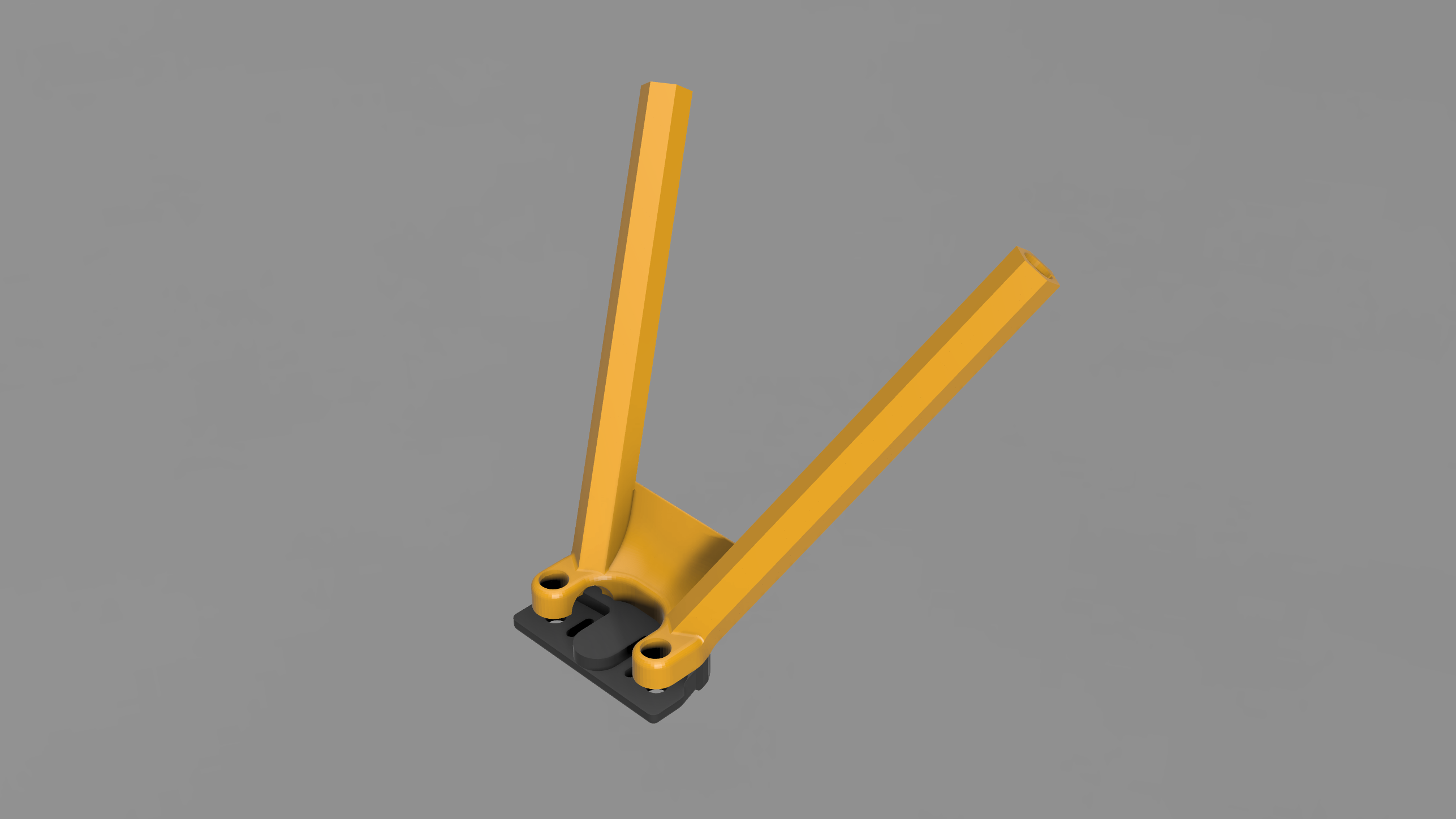

A dual antenna mount for the SourceOne V5.1 drone frame.
This model provides some extra protection for the camera.
This is a mount for a GoPro 12 and maybe some other previous ones.
Antenna mount : TPU 95A, supports only on the build plate under the small arches at the bottom. The two antenna legs don't require supports. Mount support & spacers : Can be printed in any non-flexible filaments, I used Polycarbonate for…
Camera mount : Can be printed in either flexible filament or rigid and durable filament. I do not recommend using PLA. Use either TPU 95A if you want flexible, or ABS/PC if you want to use rigid filament. You will need to remove the two…
Remix of a design not on this site. Recreated the mount body in Fusion360 to have a clean model to work with. Modifying a mesh (and thus having a face consist of like 3000+ triangles) got old pretty darn fast. But since the design (for a…
A simple battery pad for the SourceOne V3 bottom Plate. Print in TPU with low infill. FreeCad file included. Print Settings Printer Brand: Creality Printer: Ender 3 Rafts: No Supports: No Resolution: 200 Infill: 15 Filament: Creality TPU…
ExpressLRS rocks! This little mount is designed for the TBS SourceOneV3 frame, to attach the small 2.4GHz T-antenna to the back of the drone, right beneath the mount for the video antenna. The holes for the poles of the frame have a…

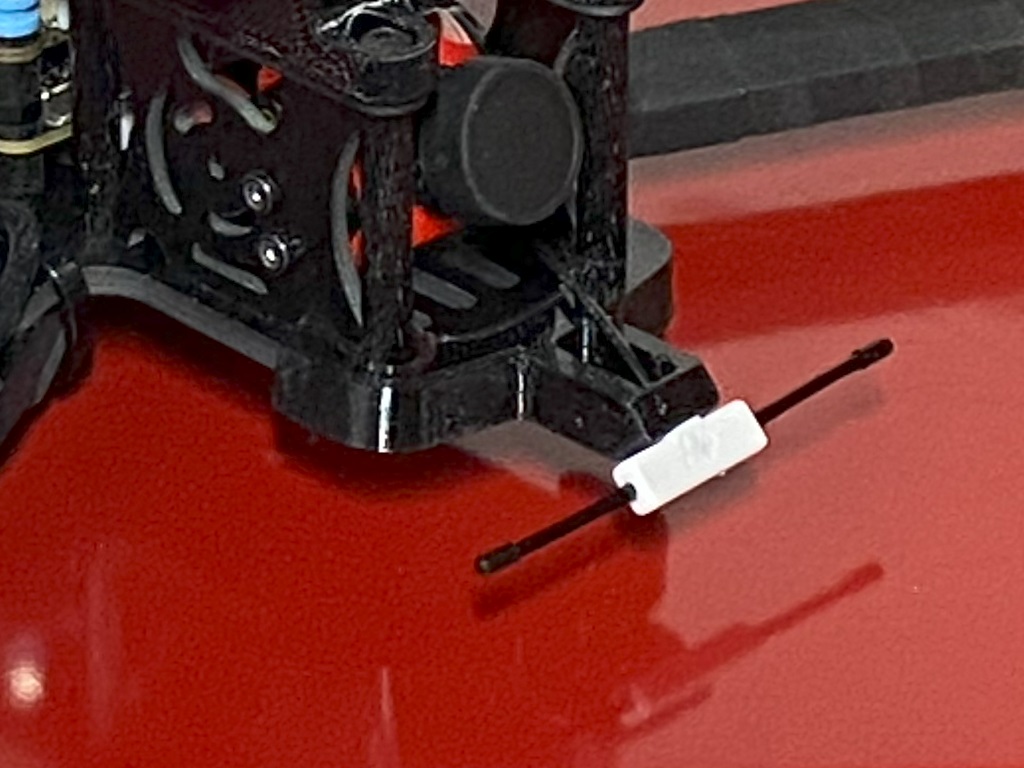

This design is a combination of the front and rear bumper for the TBS SourceOne V3 integrated with my antenna mount design for the Happymodel ExpressLRS ep1 antenna. This design is also a remix of the TBS Source One Accessories but this…

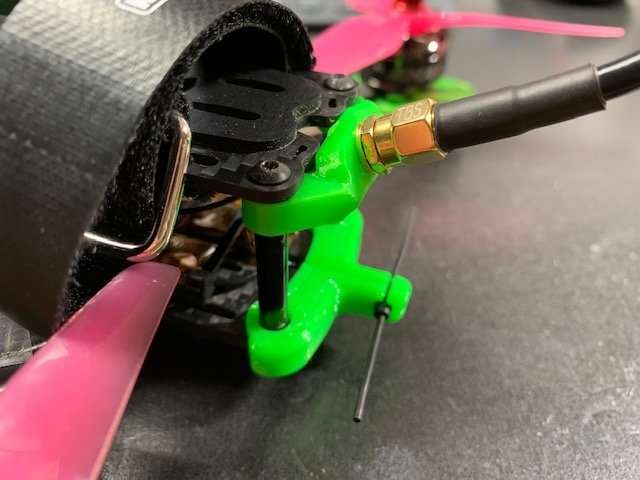

Just a Apex-Style VTX SMA stubby mount for the pigtail. Added one version without the extra holes for the to screws but instead with a hole for a hex nut. Update(2022-03-14): Recognized that a 6mm hole for the version with just that hole…

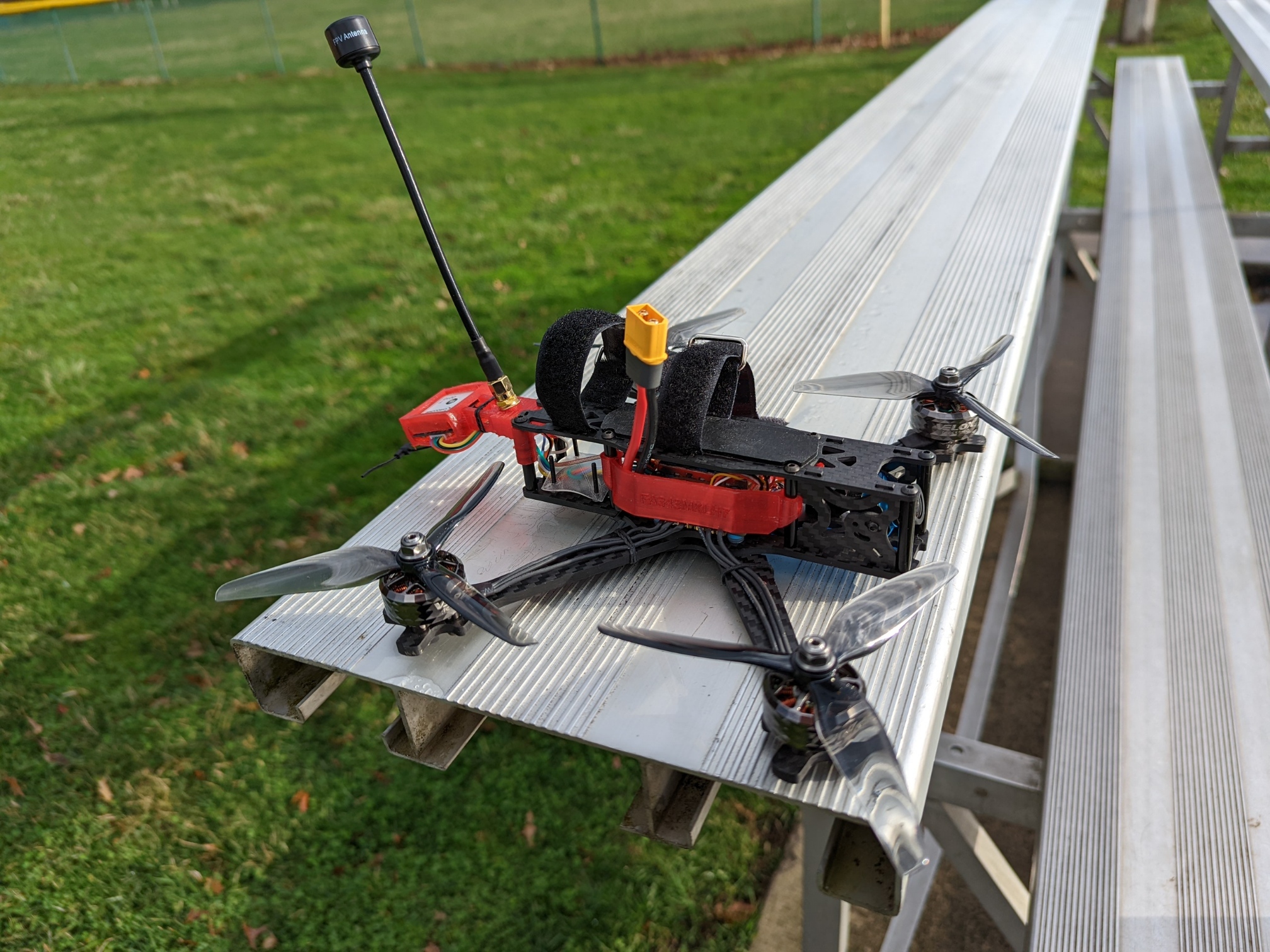

intended to be printed in TPU, one plat has a cutout to accommodate the USB port placement, but your mileage may vary depending on the board layout. otherwise print one right handed and mirror the other.
Same as the original but 5mm wider. This is intended to be printed in TPU, but with the additional girth, the solid version can be printed rigid and mirrored to fit both sides. The USB cutout side has a recess that allows easier access to…

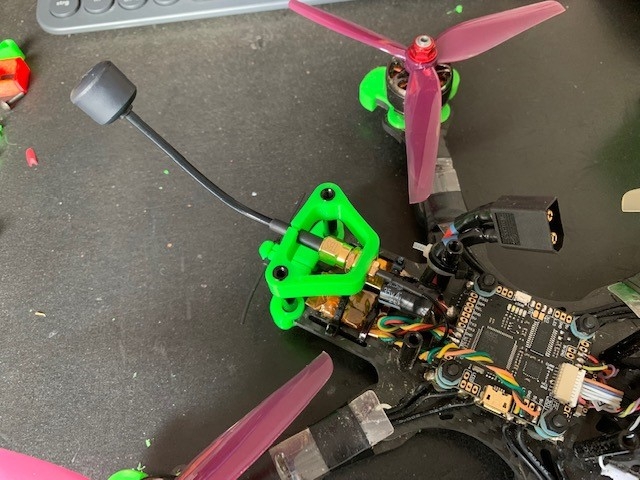

The TBS Triumph Pro antenna is quite long so I thought it should be mountet inside the frame. It works good and it takes load off the connector by supporting the antenna at two points.
A Mid Plate extension to be able to mount the FR7 Bumpers properly. Its designed to use M3x4mm brass inserts, but they do now fit properly as they deform the peg when installing them. Based on: https://www.thingiverse.com/thing:4635311
I did not find any feet for the SourceOne DeadCat version that I liked. I find that the motors screws must touch the carbon frame, If they squeeze the TPU part they come apart. So I make my own in freecad, sourcefile and step included.…
low profile runcam thumb mount to fit the front four holes on a TBS Sourceone HD 5inch FPV frame rear cut version better fits the stock battery pad
Includes all the most useful parts I've found over the past few years including: Motor guards/arm end protectors Motor wire covers Battery cable clip for power wire strain relief Camera guard VTX SMA connector bracket All printed in TPU…

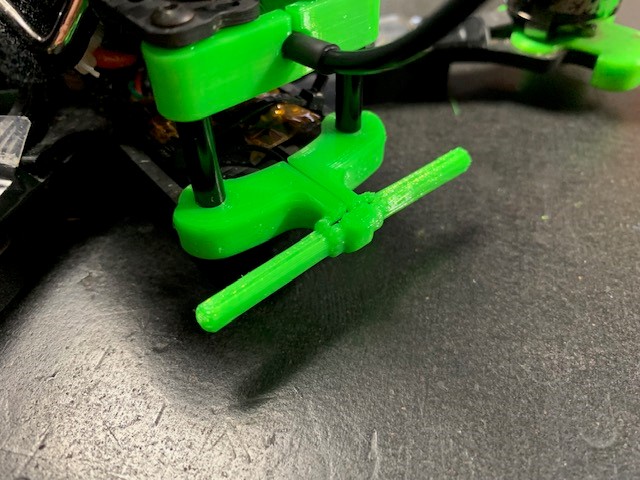

Another version of my design for an antenna mount for the TBS SourceOneV3 Frame. This one has extra protection for the antenna tips. Like shown in one of the pictures you have to add a little cut to more easily insert the anteanna tips.…
print out of tpu. for 20mm standoffs Category: R/C Vehicles
Remixed this. Few changes: added about .75 mil of height. The original is a tight fit and holds with friction, problem is it stretches a tad and the vertical bars on the face "warp" inwards. Not a big deal, it just bothered me. pulled…

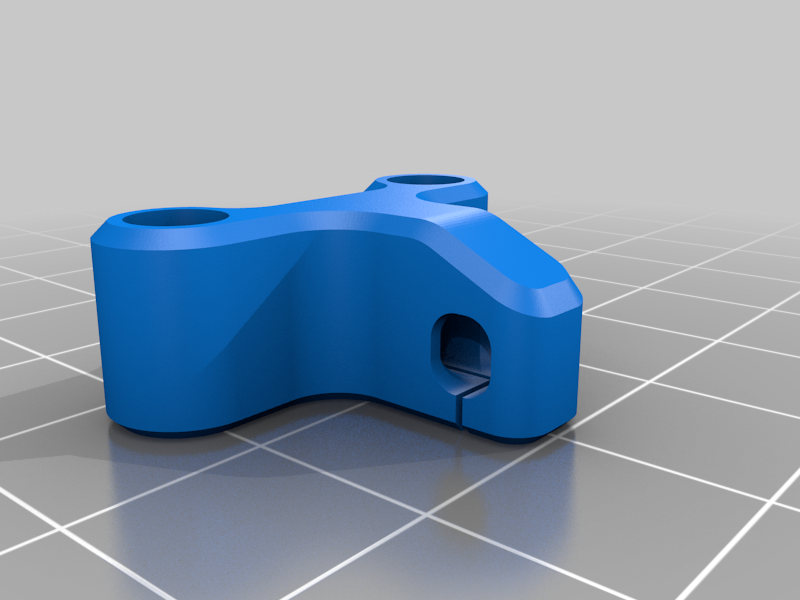

A version of my ExpressLRS antenna mount design. Should fit for the TBS SourceOne V5 frame. I don't own one, so I had to rely on specifications and other uploaded designs for this frame.

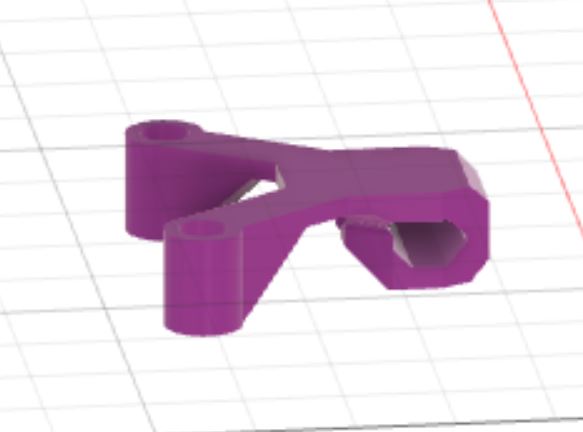

T antenna holder for any 2.4gh control link. This will fit any frame with 30mm standoffs, but specifically made to fit the source one 7inch V3 frame. March 28 update: 6mm standoff version added

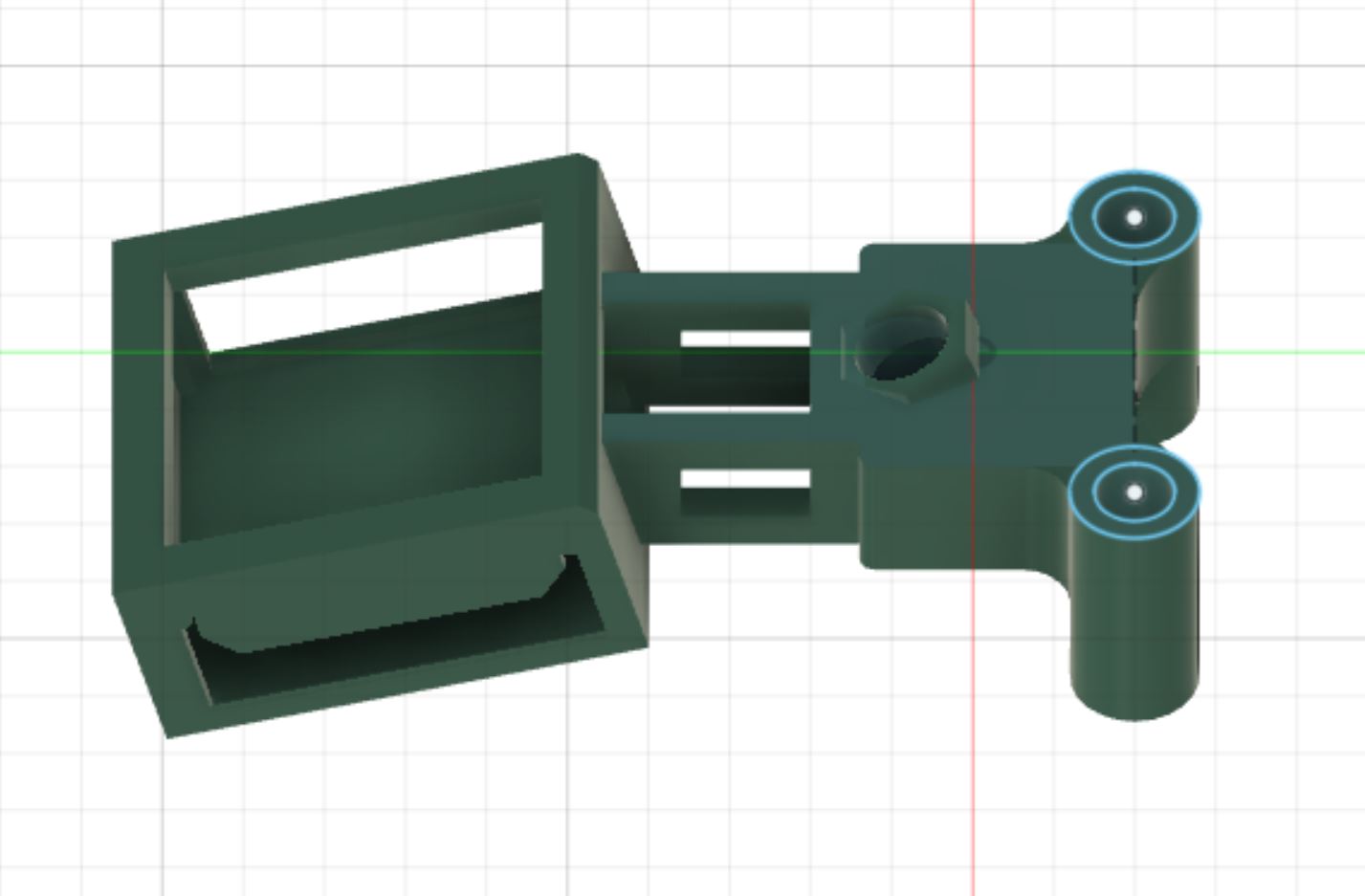

made specifically to hold the antennae for a walksnail Micro VTX, but will handle any VTX with dual antennae and a GPS 880 with Compass. This basic design works well with both the HGLRC (my default) and the RDQ 880 GPS receiver. March28…

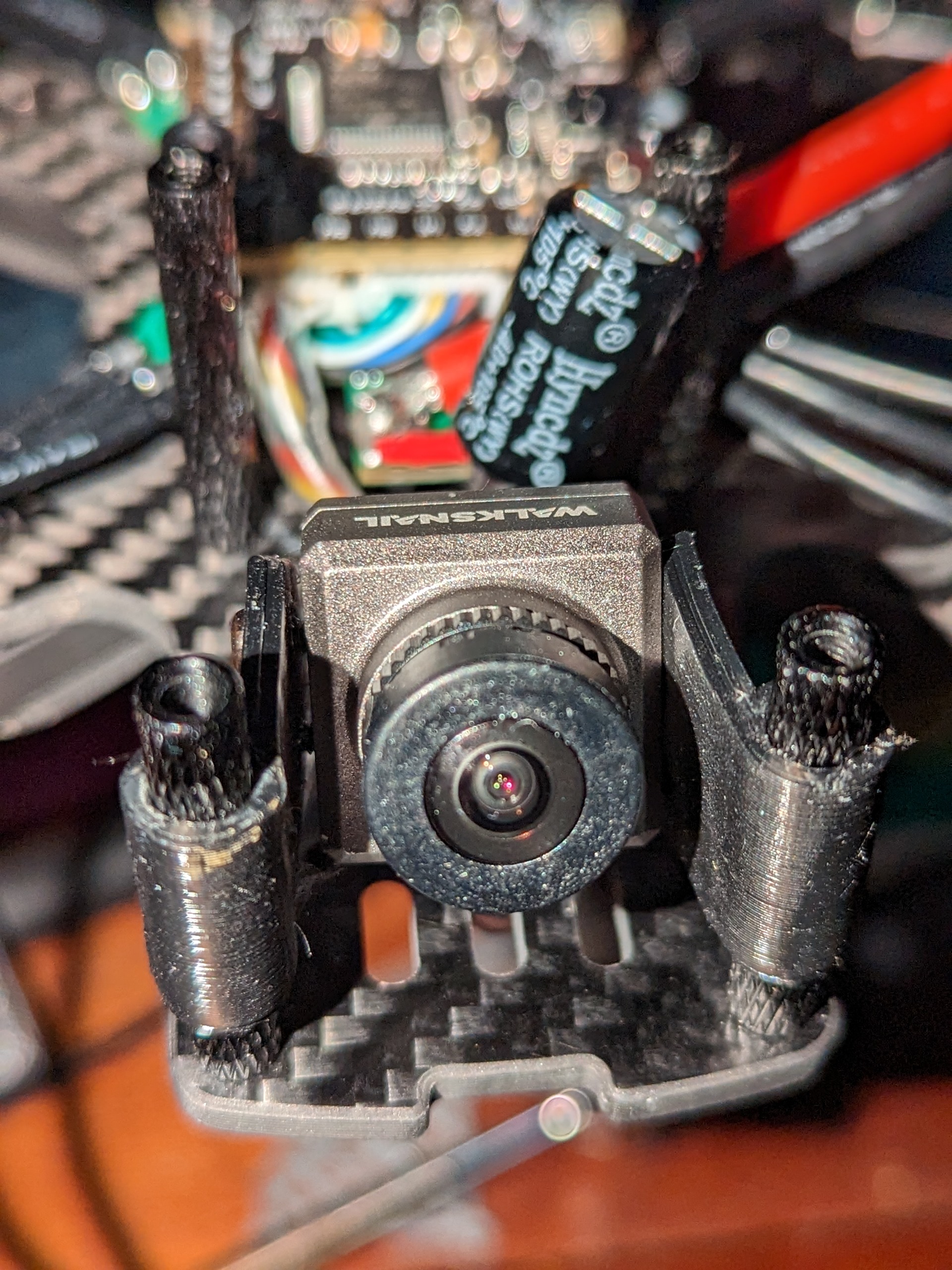

crazy amount of space for an FPV camera, would easily fit a 25mm mini camera. 6mmspacing between mounting holes and meant to flex to hold tension on the camera. allows for a 30 and 45 deg up tilt. Update March 27 2023. 6mm standoff…
25mm mounting for a 20x20 pattern using the center standoffs as the front facing mount point. This model is an exact replica, with 6mm standoffs and a small lip to aid in retention.

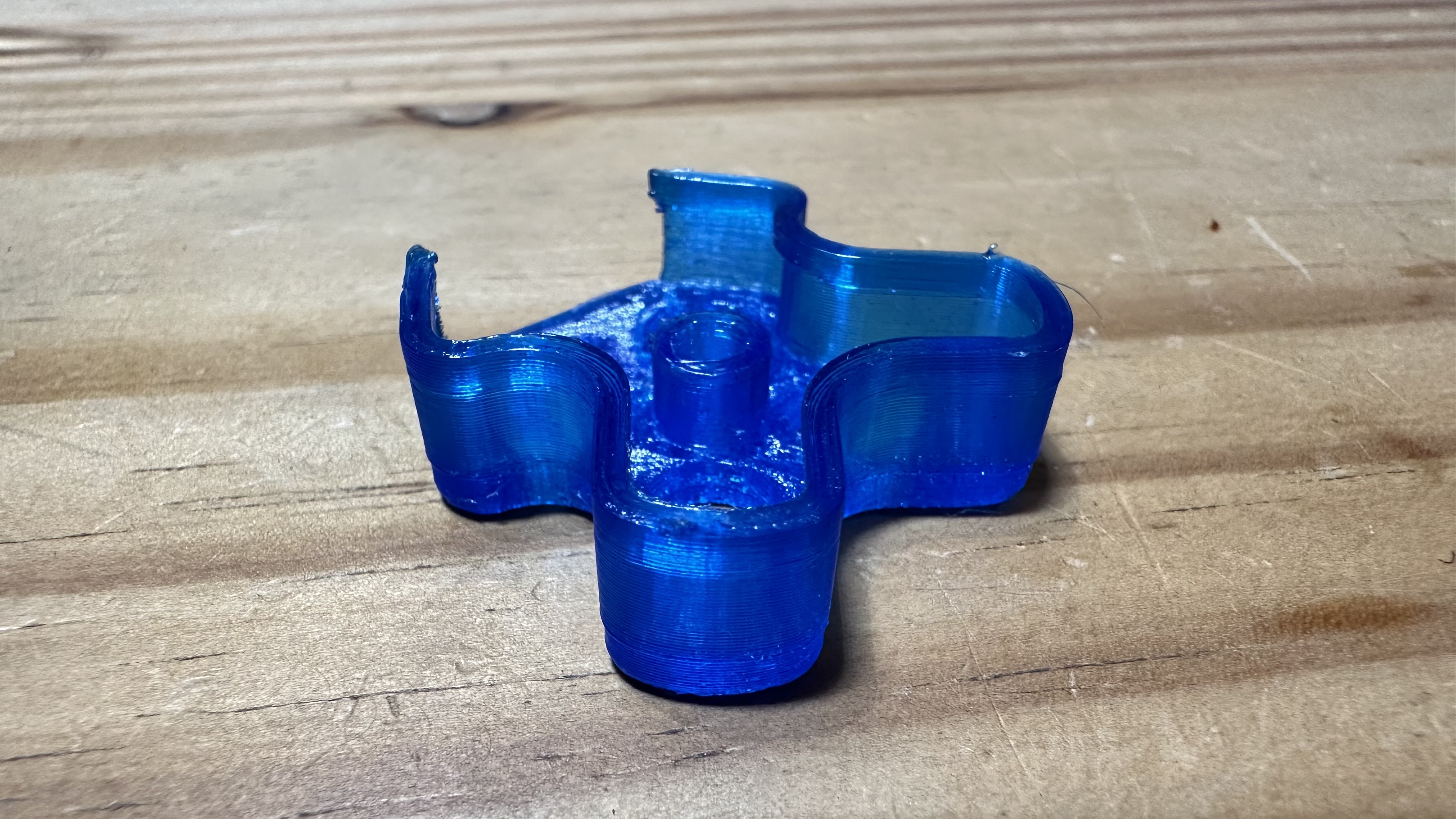

EZ Print Arm Protection for your TBS Source One frame. Clips On for a perfect fit so no need for screws! Access to center screw if needed. Printed in SainSmart TPU - 3 Walls - 40% Cubic infill Print with Supports OR enable “ Make…

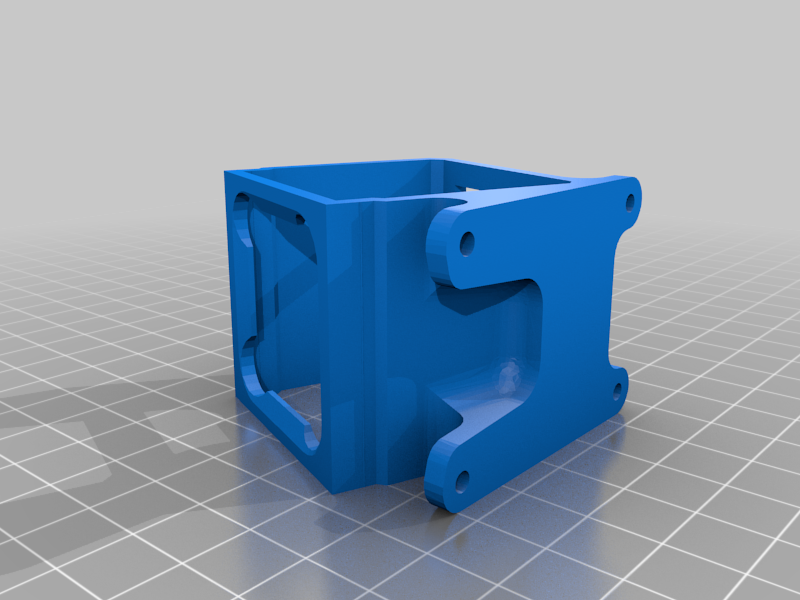

I tried out several other online available hero3/4 mount designs for my s1v3 7", but they all resulted in major jello. So I set out to design my own, focusing on advice from Oscar Liang that a harder mounting is better than floating. The…
I run an elrs 2.4 dual rx on my 7" sourceone v3, and needed a better front mount to go with it. So I designed this in f360, and it works well. It features a stiff mount for less vibes, and no printed material wrapping the feed point or…
Hello guys, Kudos to @deft0nes for his design, I just modified it a bit to fit the v4 frame which has a different spacing. Category: R/C Vehicles
An adapter for the 19mm wide AvatarPro camera to the 28mm wide frame of the TBS SourceOneV3. Printed in TPU for damping reasons. Uses 4-6 M2 hex-nuts.
I just edited the mount so that it will fit the standert battery pad that comes with the frame. I would recommend to print it with low infill and a little bit bigger so that you can take the GoPro easier out and put it in. (101%-103%)…
I am new to printing and drones an i couldnt find a mount for the M100 from HGLRC so i made a simple one. TPU 30 % infill (maybe less but thats what i went with)
Slides over standoffs, parts orientated, no supports needed. Supports O3 camera with loss of FOV.

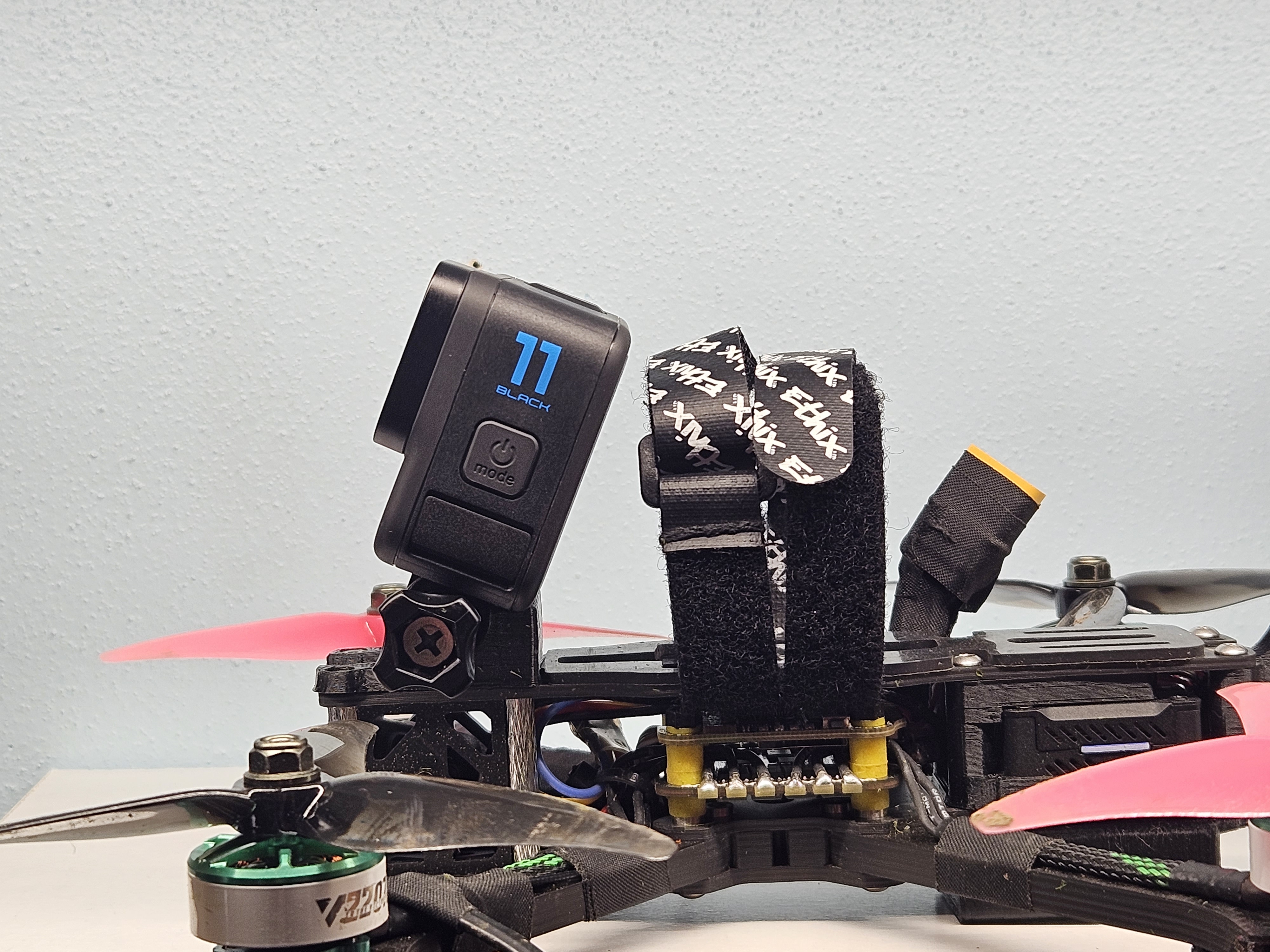

Prevents battery from slamming off the front of quad. Dual purpose GoPro option. Designed with socket head screws in mind. Will still work with button head.

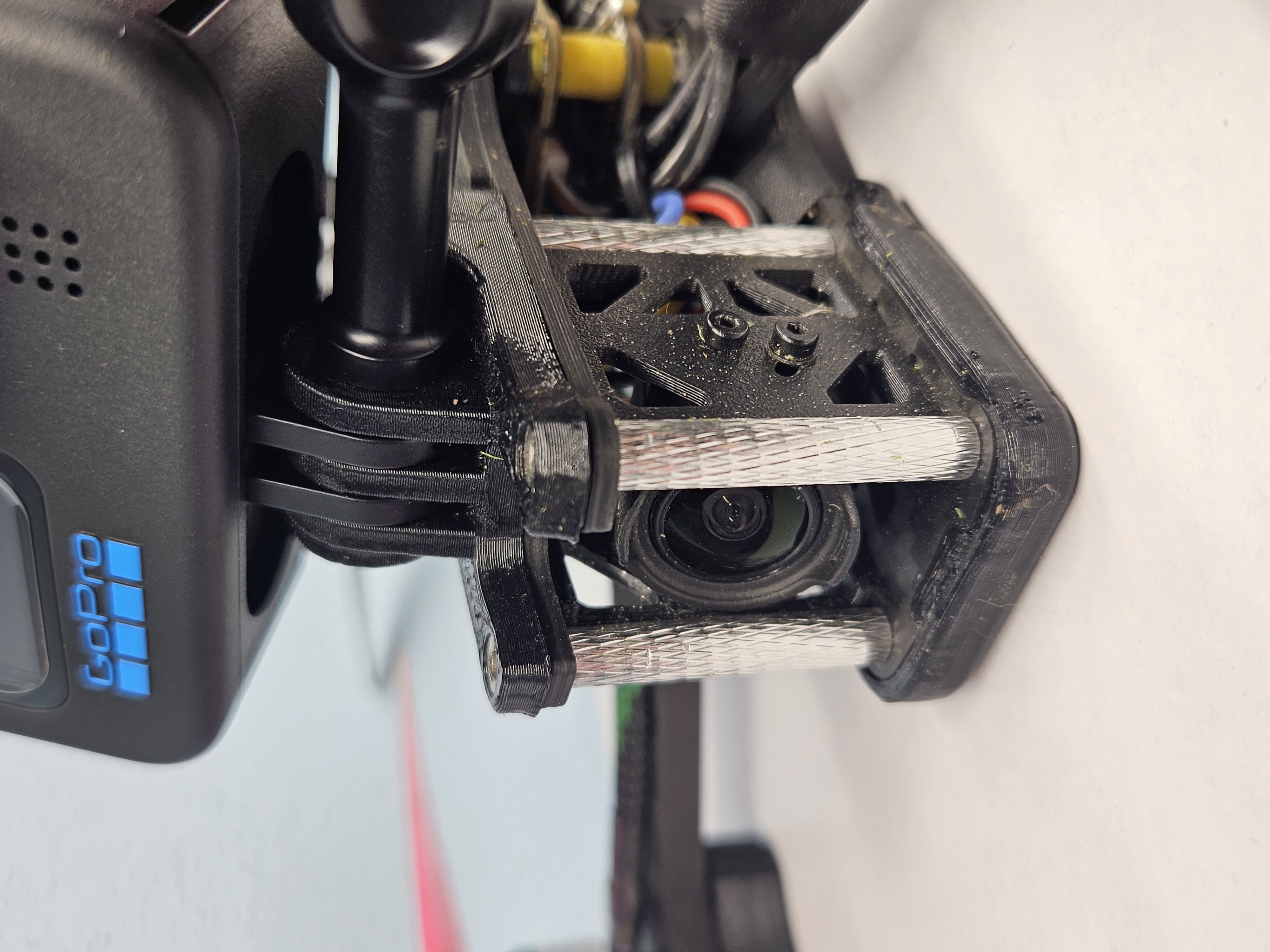

Front bumper for Source one v5 Designed with socket head screws in mind. Will still work with button head.
Arm and Motor guards/bumpers for Source one V5. Thick and thin versions. Thick version is around 6g per with Voron V0 TPU settings.
Camera mount : TPU 95A, supports only on the print bed, supporting the drop under the screw hole. I recommend printing using 100% infill
File Info Use needle nose pliers to hold the SMA in the hole in place. Tighten the Antenna by hand. Its pretty tight, but the result is, that your Antenna wont move! I created different versions for different SMA Connectors! Print it in…

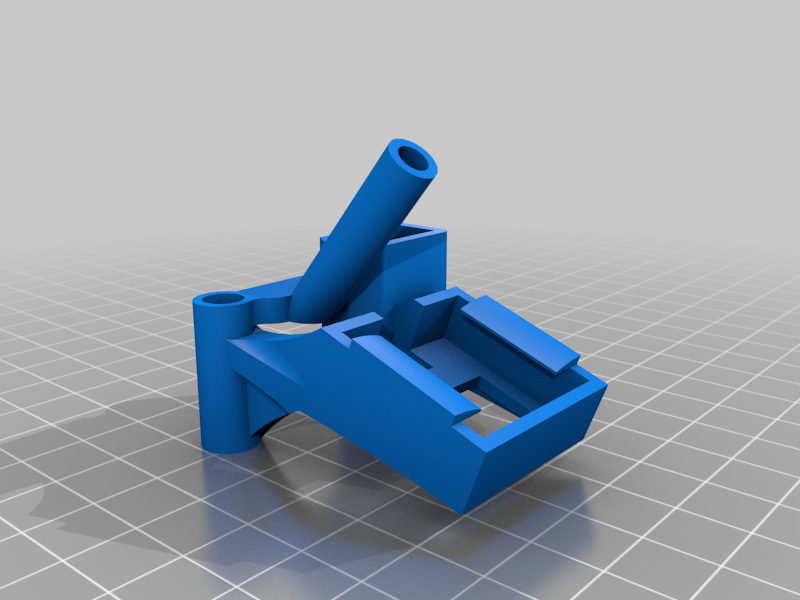

Mounts for: GPS M80Pro (26mm x 25mm x 8mm) XT60 Caddx Vista antena HD lower 6mm version mounting on: TBS Source One v3 Print Settings Printer Brand: Creality Printer: Ender 3 Pro **Rafts:** Doesn't Matter Supports: Yes **Resolution:** 0.2…
