Clearance Ring W/ Gauge Peg
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
For those of us who can't visualize printing clearances, I made a ring that shows the gaps visually.
- Rating
- 5 / 5
- Likes
- 44
- Downloads
- 145
- Makes
- 2
- Views
- 761
- Reviews
- 1
Updated at source:
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

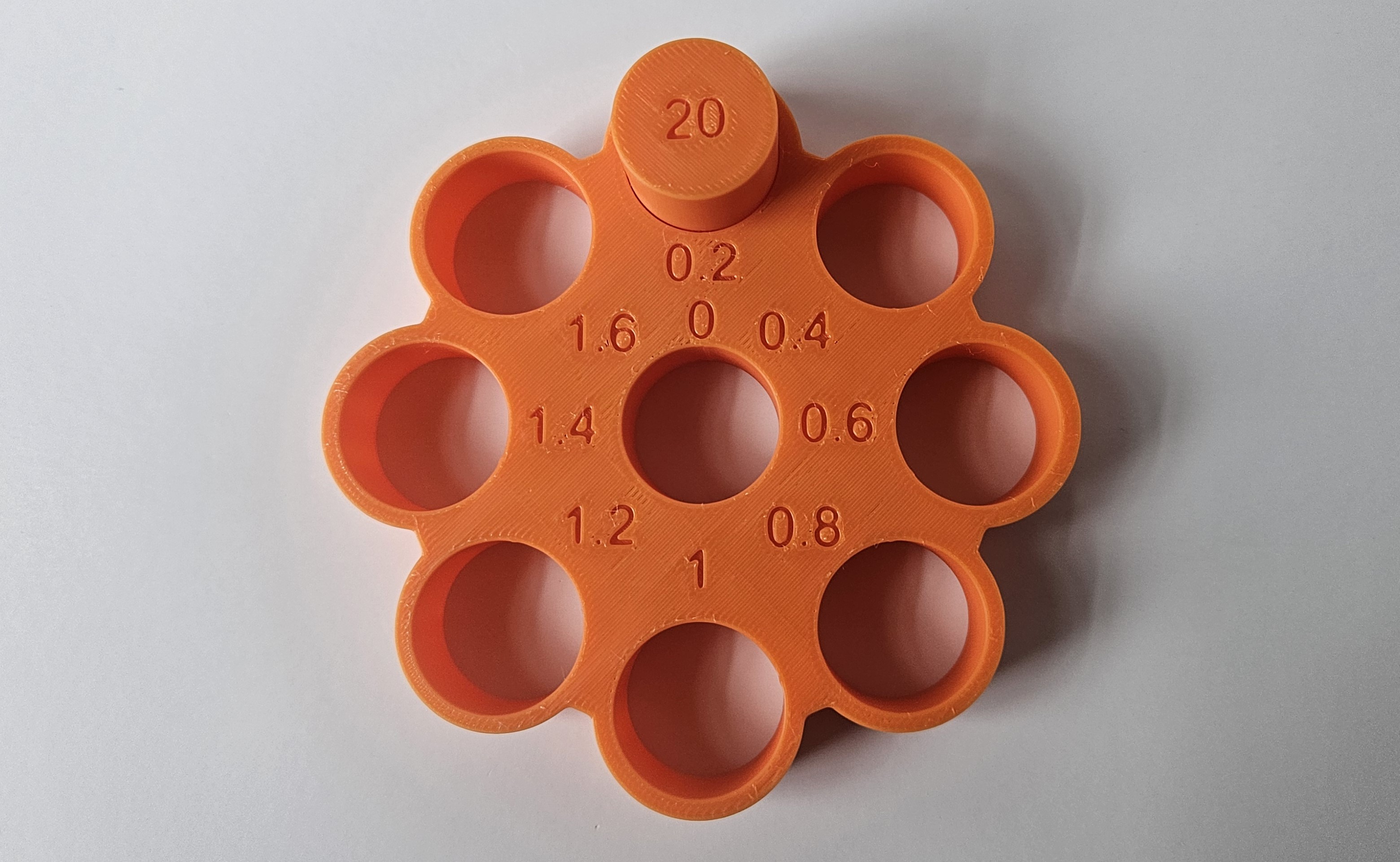

This ring has 9 different clearances on it, each starting at 20mm diameter in the center and moving up .2mm with each clockwise circle. The Peg is 20mm in diameter and 30 in height so you can also use it as a gauge tool of you're printer is in spec enough. It's meant to give those (Myself) who have a hard time imagining gaps to better see how their parts will fit together.
