I needed an outdoor enclosure for my aquaponics pump timer/controller using a simple Sonoff Basic.

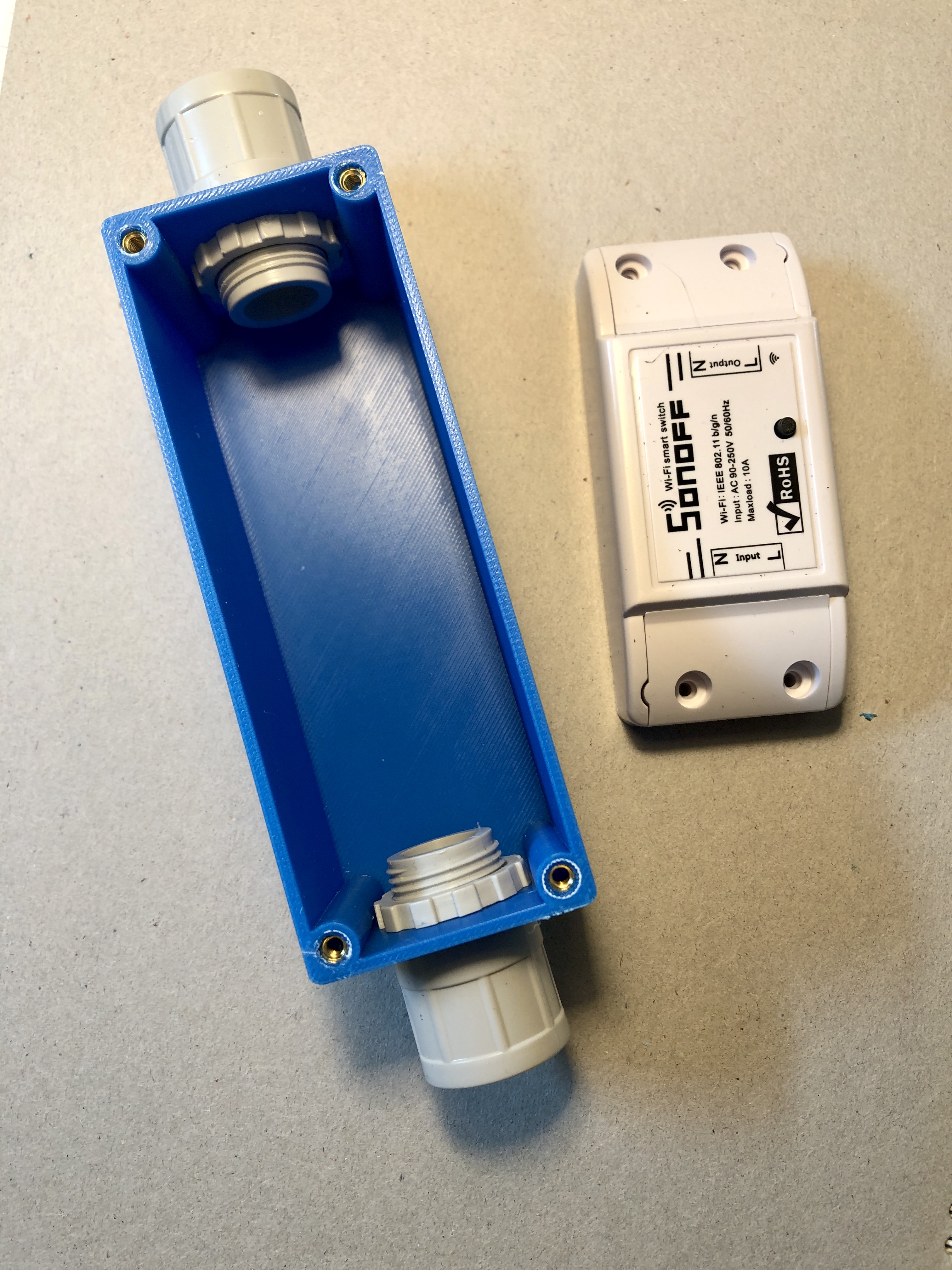

This slim case suits 20mm conduit fittings allowing me to insert the timer/controller inline with the existing 20mm plastic conduit.
There is room for a screw connector to enable the earth cable to be included. In my opinion an absolute necessity.
I used 3mm heatset inserts and screws to secure the lid.
I was too lazy to incorporate the conduit fittings into the enclosure design. Meh - the conduit fittings are so cheap so why not use them!
Note that this is NOT waterproof. My application is sufficiently sheltered from the weather.
Enjoy ;)
