Ikea Mittled light bar shade
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Attribution — Noncommercial

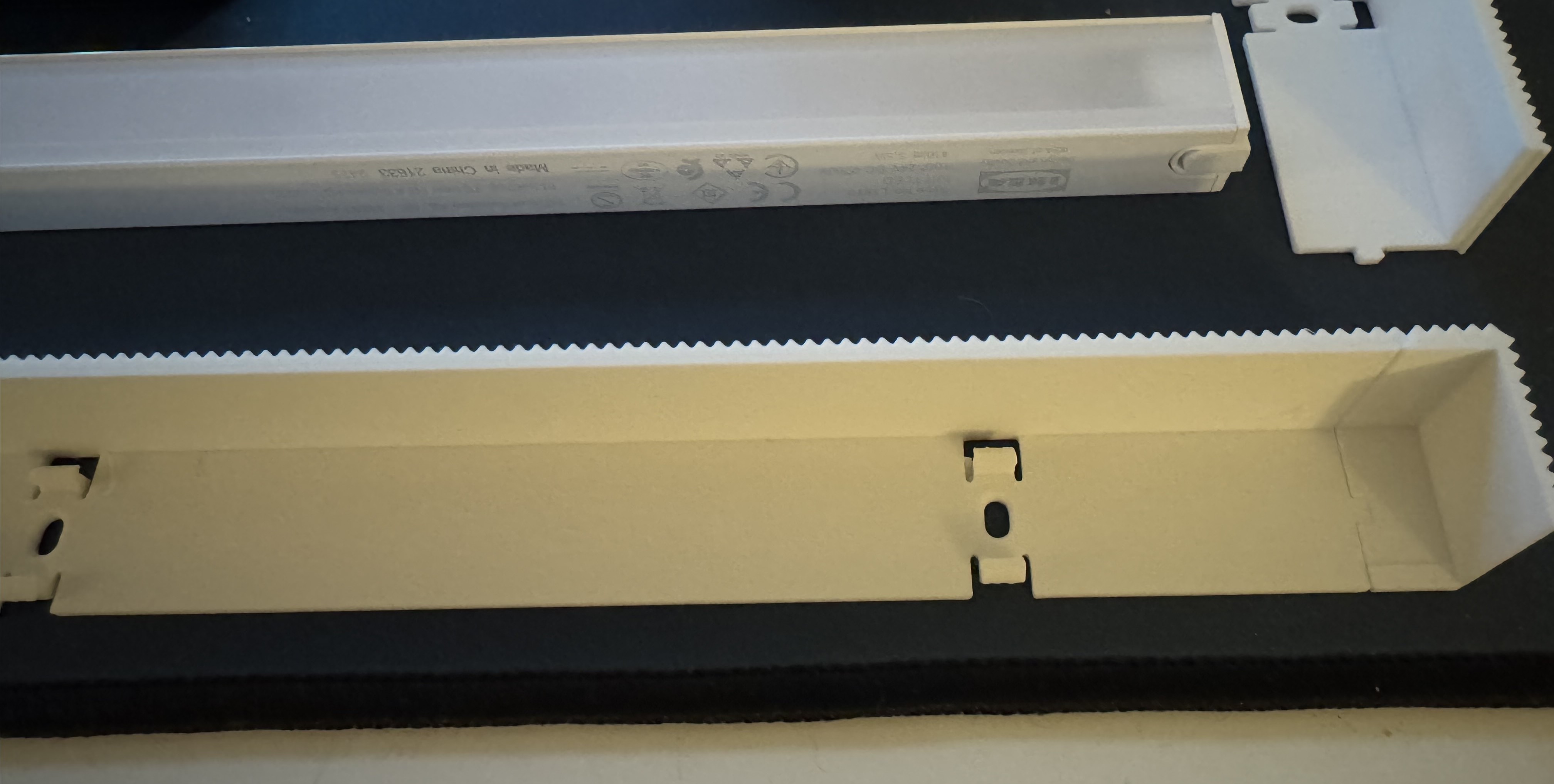

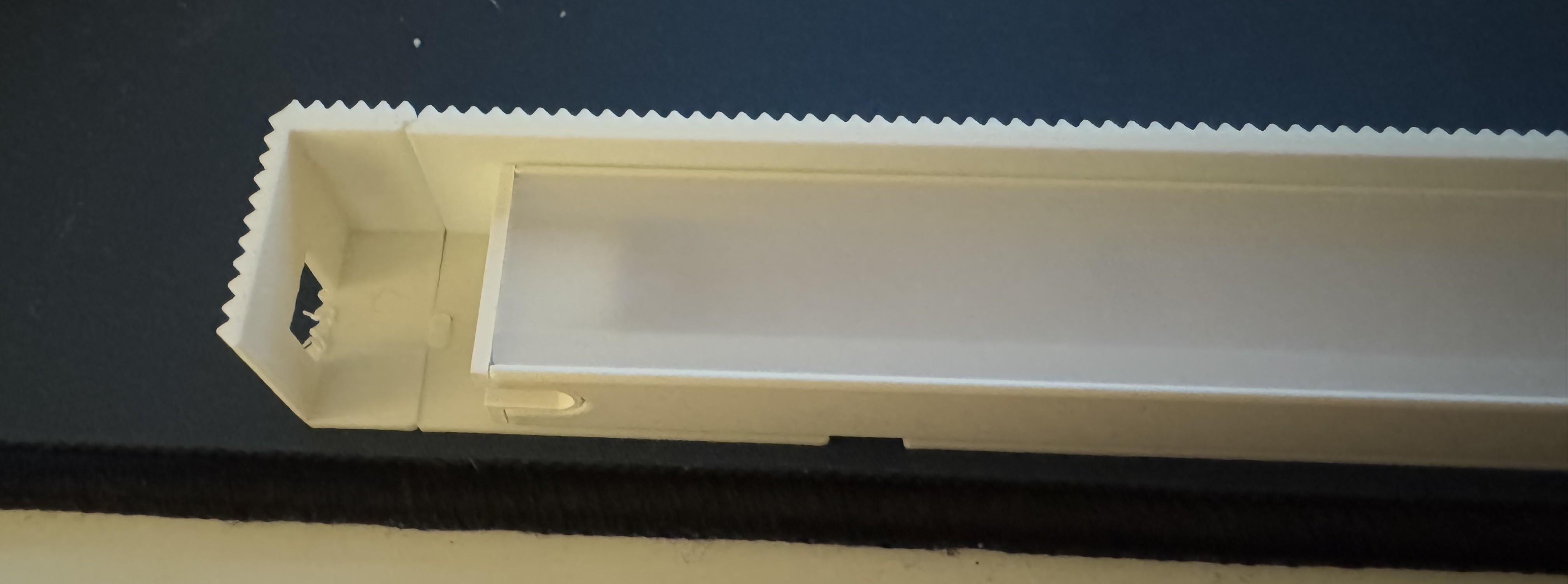

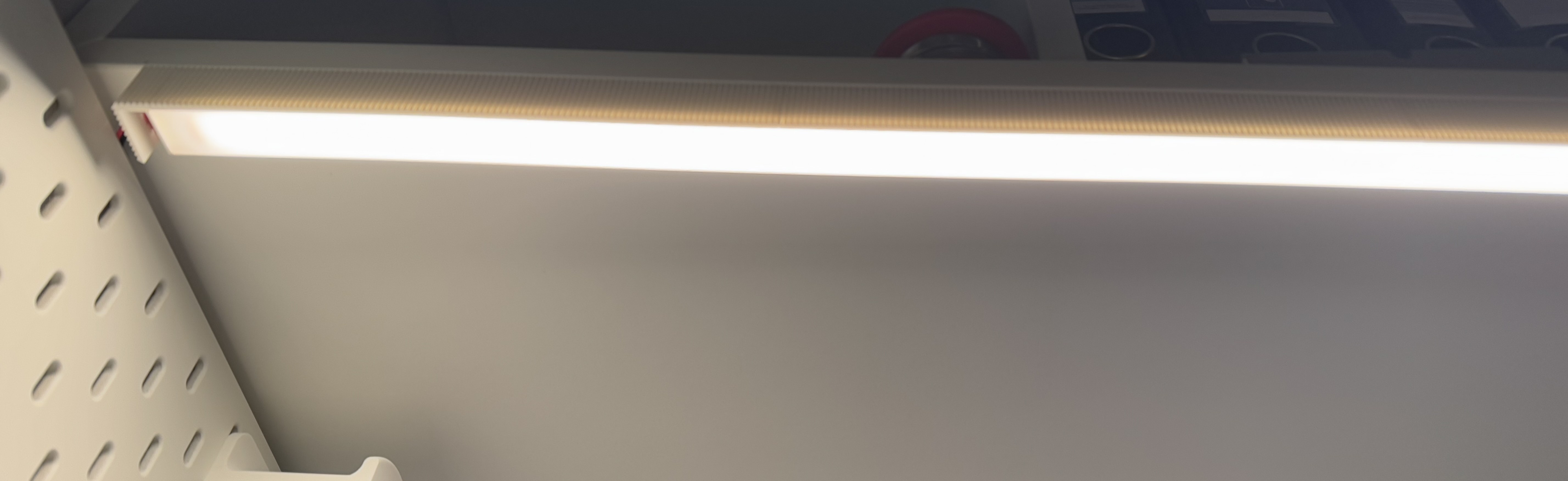

I created a simple shade for the Ikea Mittled lightbar.
It's modular and can be used for all length of the lightbars (40, 60, 80cm).
The ripples at the front cover the seams between each part as good as possible.
To connect the single parts use some glue.
Afterwards use screws or tape to mount the shade and click the lightbar in.
There are end pieces with and without hole for the cable.
How to print:
- 0.12mm layer height (at least for the first 4mm)
- Supports
- Infill as desired (you can use 0% for the rippled wall to save time and filament
I printed it using matte PLA.
