Roll Dispenser Stand (parametric)
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Organizers
- License
- Creative Commons — Attribution

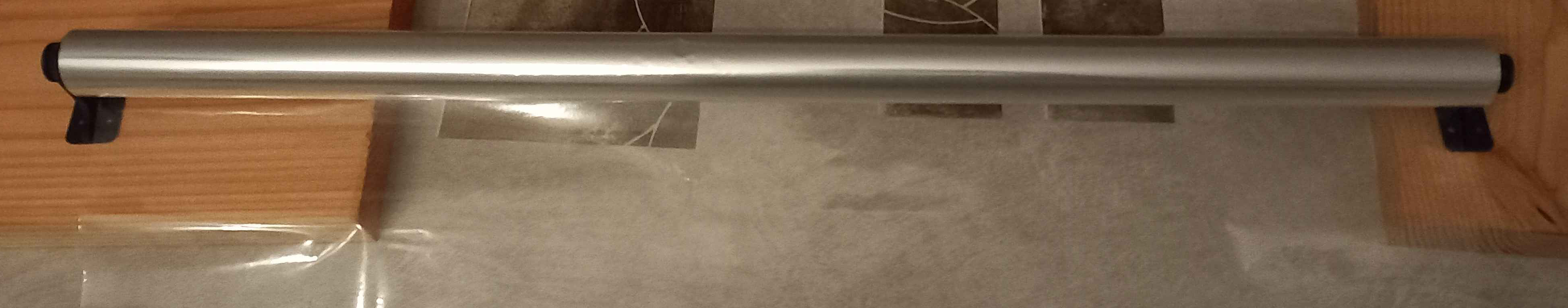

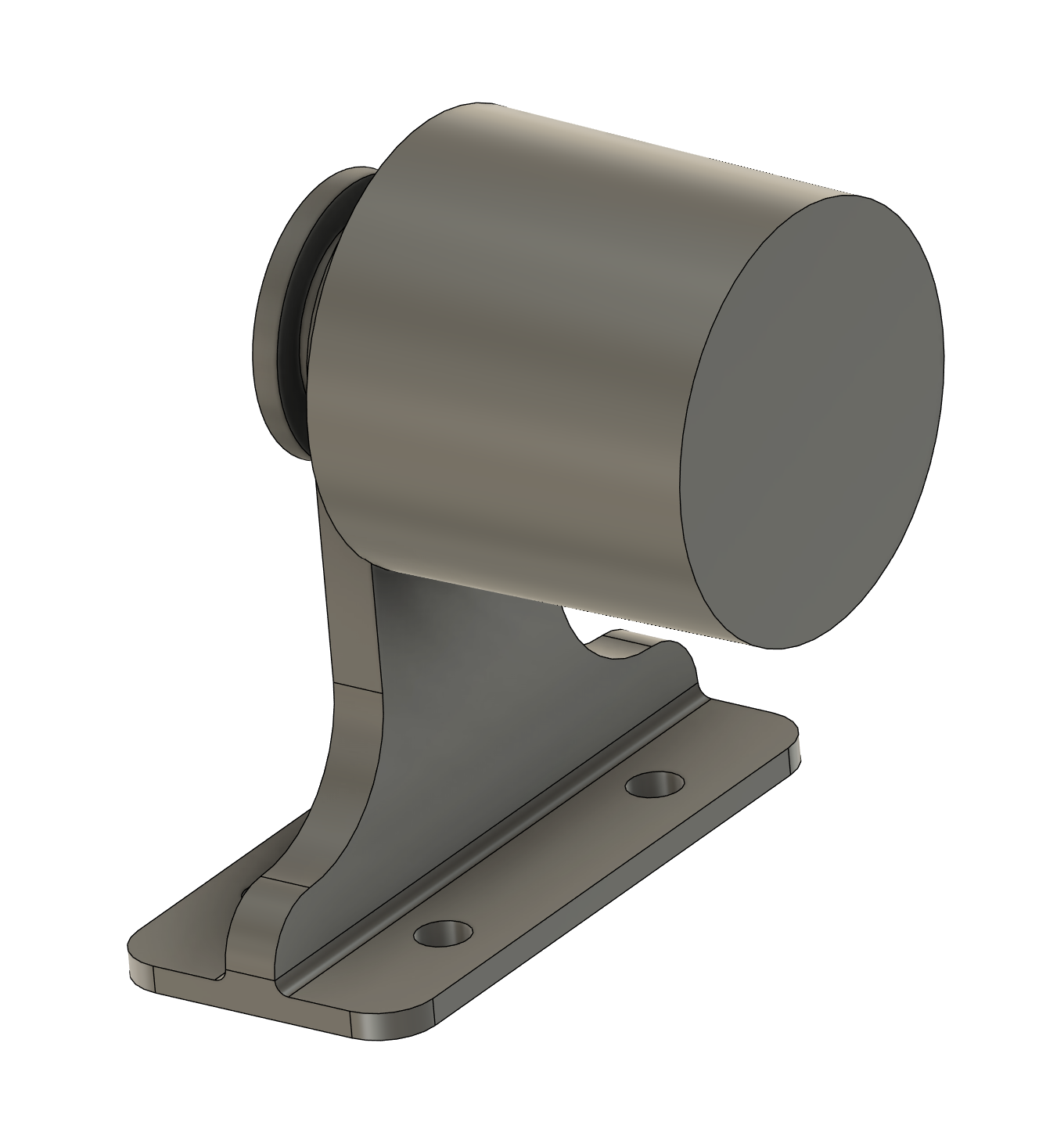

This model should work for a large range of rolls but, as is, it is made to fit a Ø32mm gift wrapping roll. You can modify the parameters of this model in In Fusion360 to suit your needs.
Printing information:
- Split the model to its parts and print them all on their flat face
- The roller is filled-in for ease of printing, you can use 5% infill without issues to print it.
- You will need to print the whole model twice, one for each end of the roll
Assembly:
- Slide the roller inside your roll
- Slide the stand onto the pin of the roller
- Lock the stand in place by sliding the cap thought the stand into the roller pin.
- Screw the stand into a plank (or similar) to secure it in place (Ø4mmx8)
