E3d Tian Idler Arm mod
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Remix from madsoul666's model. Added cutout to allow the arm some clearance. Added cutout for ziptie Added PTFE tube…
- Rating
- 0 / 5
- Likes
- 1
- Downloads
- 17
- Makes
- 0
- Views
- 185
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Other Printer Parts & Upgrades
- License
- Creative Commons — Attribution
Remix from madsoul666's model.
- Added cutout to allow the arm some clearance.
- Added cutout for ziptie
- Added PTFE tube stopper to prevent the tube go too deep into the bearing.
Use MR95zz bearing for the motor shaft and a grooved bearing FZ0463 to guide filament.

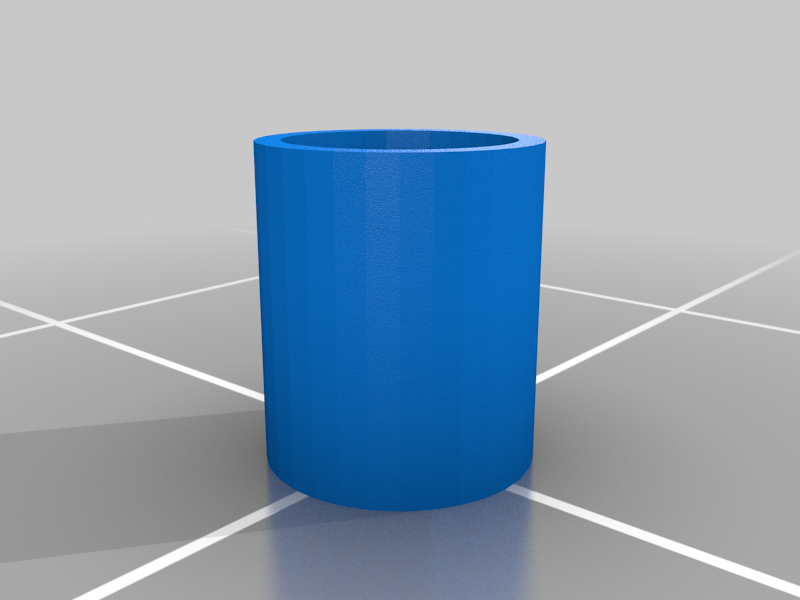

To mount the FZ0463, use 8mm m3 grub screw and printed adapter.Print Settings
Printer:
FlyingBear Ghost 4S
Supports:
No
0.2
Infill:
25%
Filament:
Inland PLA RED
Notes:
I used red fillament because I don`t have black filament at this moment. Will paint it in black color, not a big deal)))
