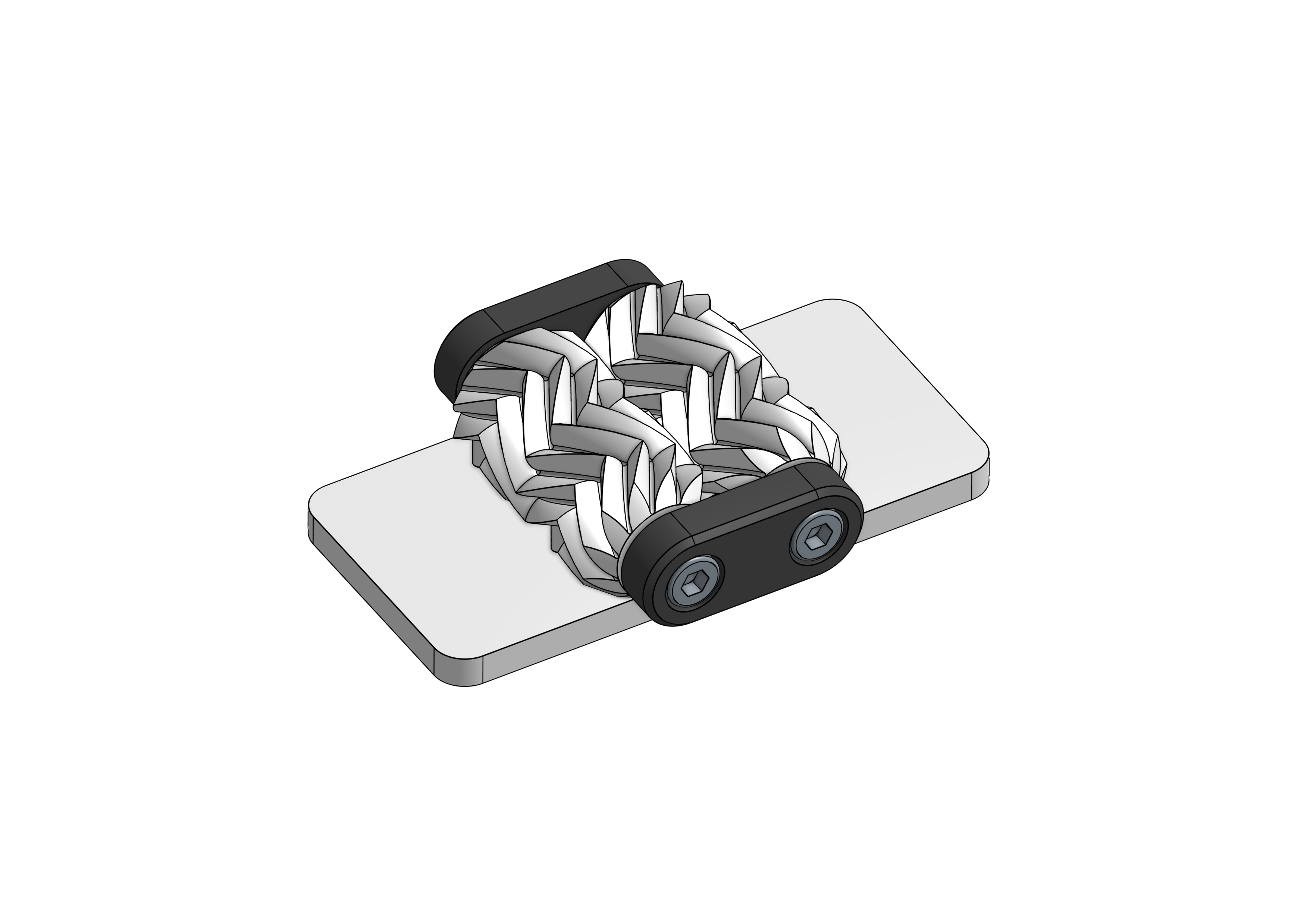

Adjustable Geared Hinge with Screws
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Mechanical Parts
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Version 2 (recommended)
- works with all doors from 3-6mm thickness
- added a slotted hole on the mounting Side of the Door
- added a M5 Thread, so you just need Screws to fasten the “Spange”
- prevents from loosen the nuts

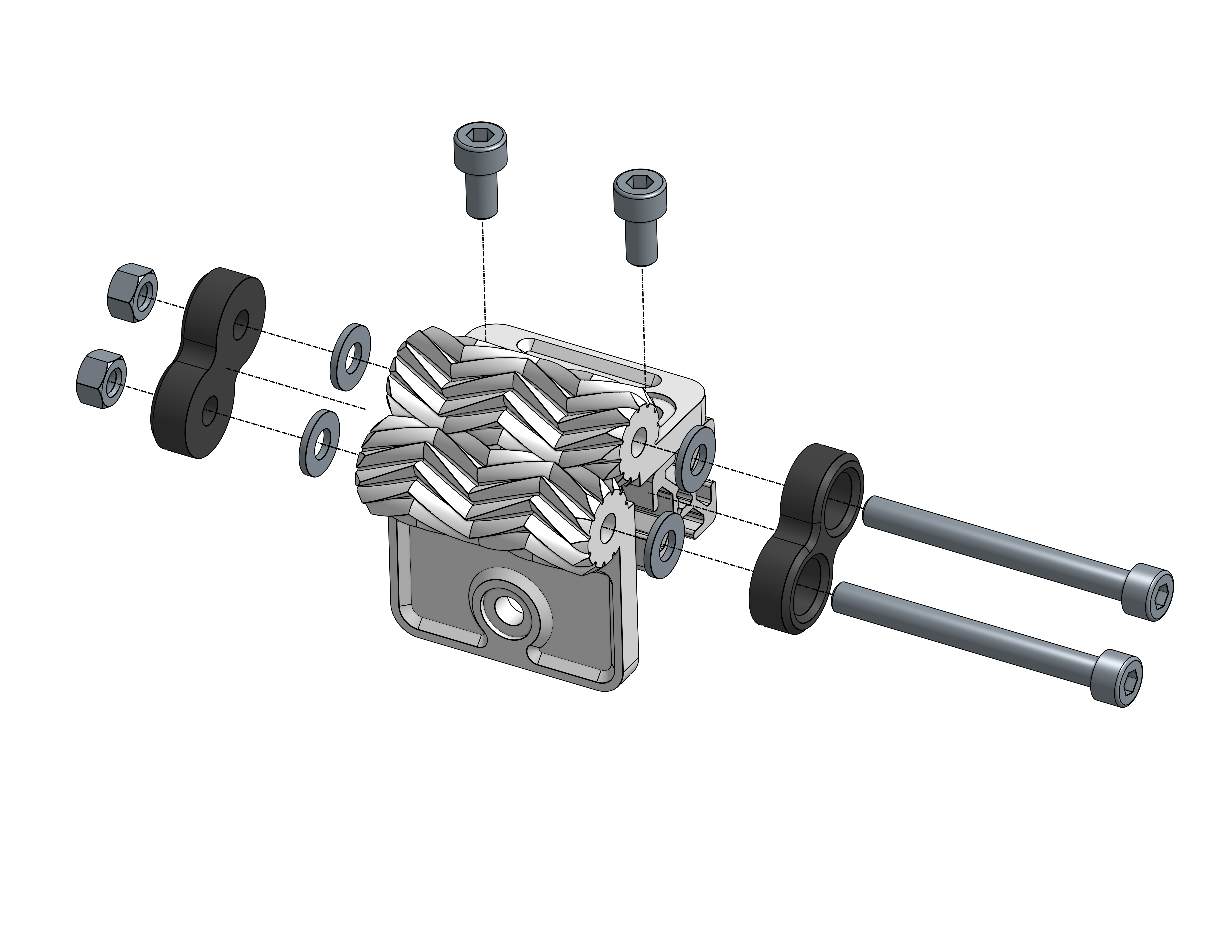

For assembly for Version 2 you need:
4x M5x12 or M5x16 or M5x20 Cylinder Head Screws
4x M5x15mm Washer
may you have to cut the thread after printing
Version 1 (just for archive)
- works with all doors from 3-6mm thickness
For assembly for Version 1 you need:
2x M5x55 Cylinder Head Screws
4x M5x15mm Washer
2x M5 Nut

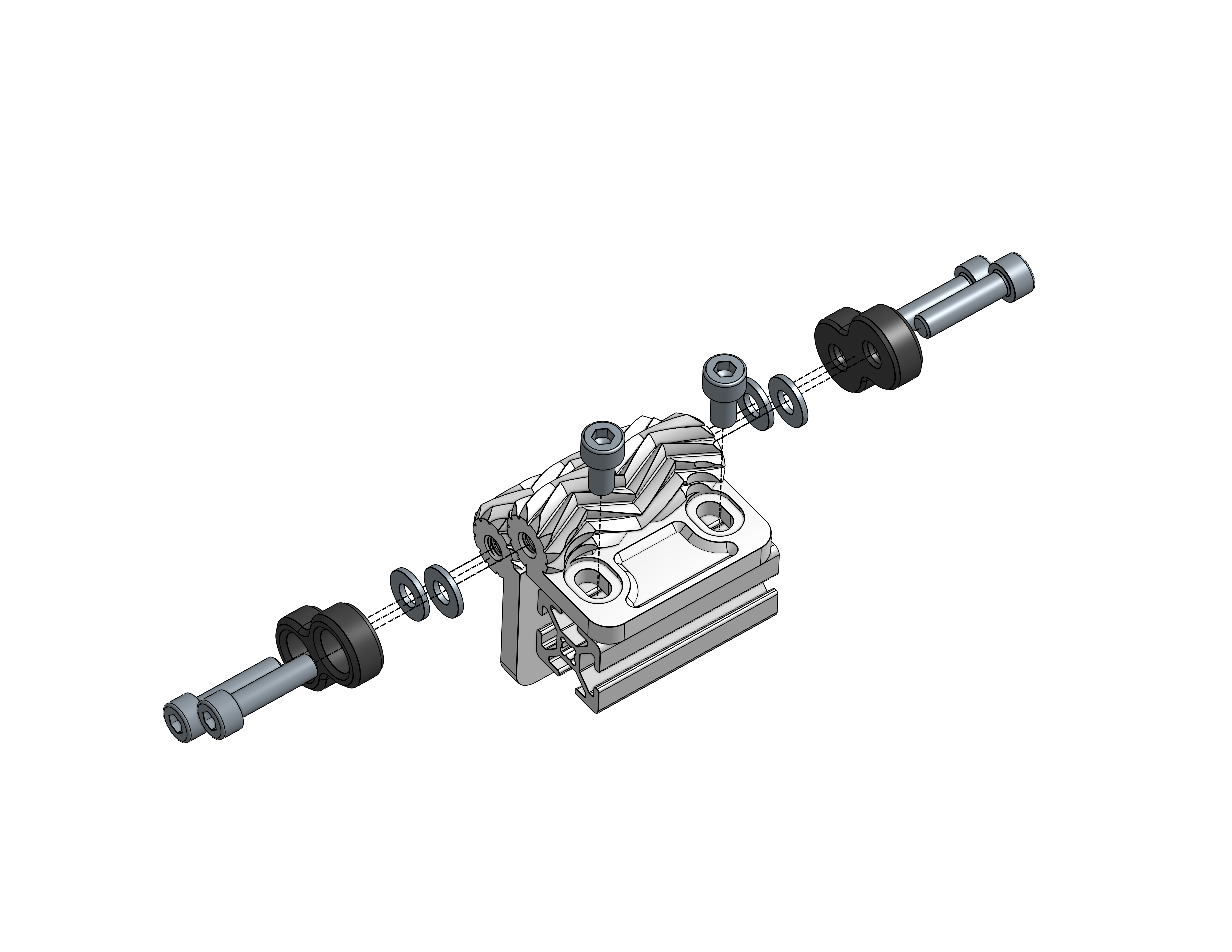

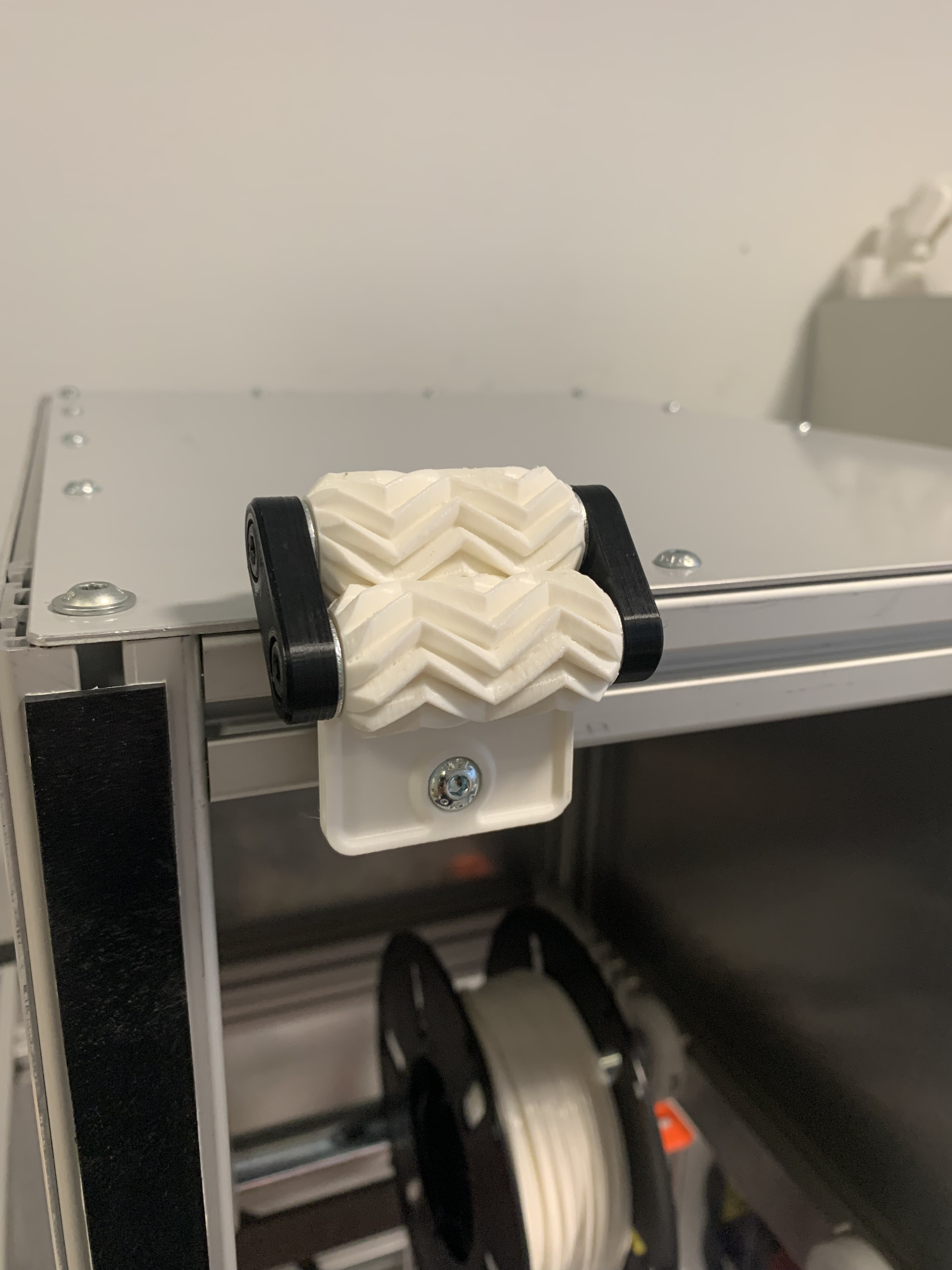

For mounting on 20x20mm Aluminum Extrusion:
2x M5x10 or 2x M5x8 Cylinder Head Screws
and last but not least the screw, washer, nut for your door.
I think it can take a fair bit more torque than the original version, has a larger spread angle, and is easier to print.
