Parameterized Magnetic Tube Holder for Siemens EQ.6 (and more)
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Kitchen
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

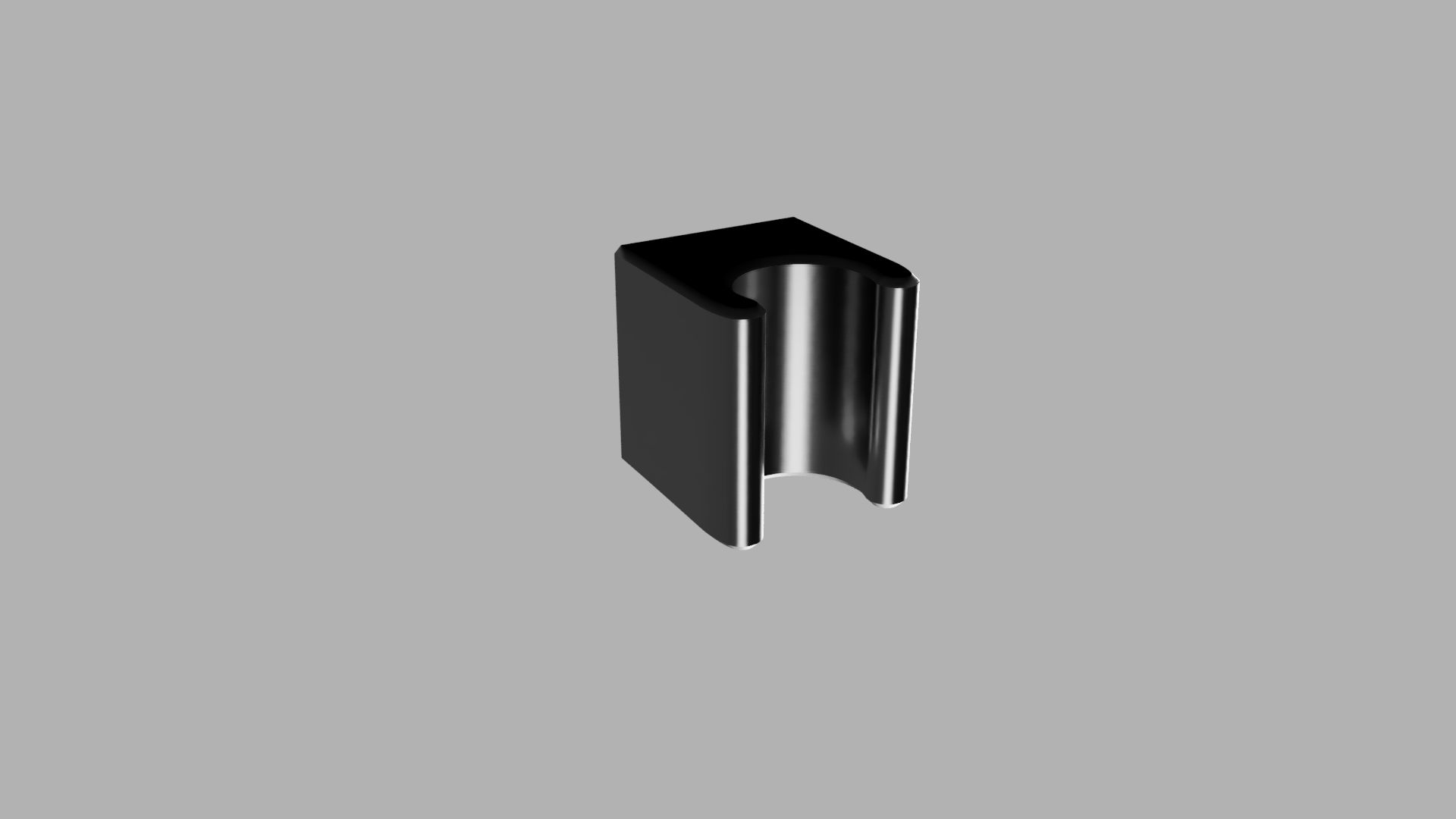

This is a versatile, parametric tube holder designed to securely hold the milk frothing tube of the Siemens EQ.6 espresso machine, but adaptable for many other uses. The inner diameter is set to 6.95 mm with a 0.1 mm clearance, making it ideal for snug but smooth tube insertion and removal.

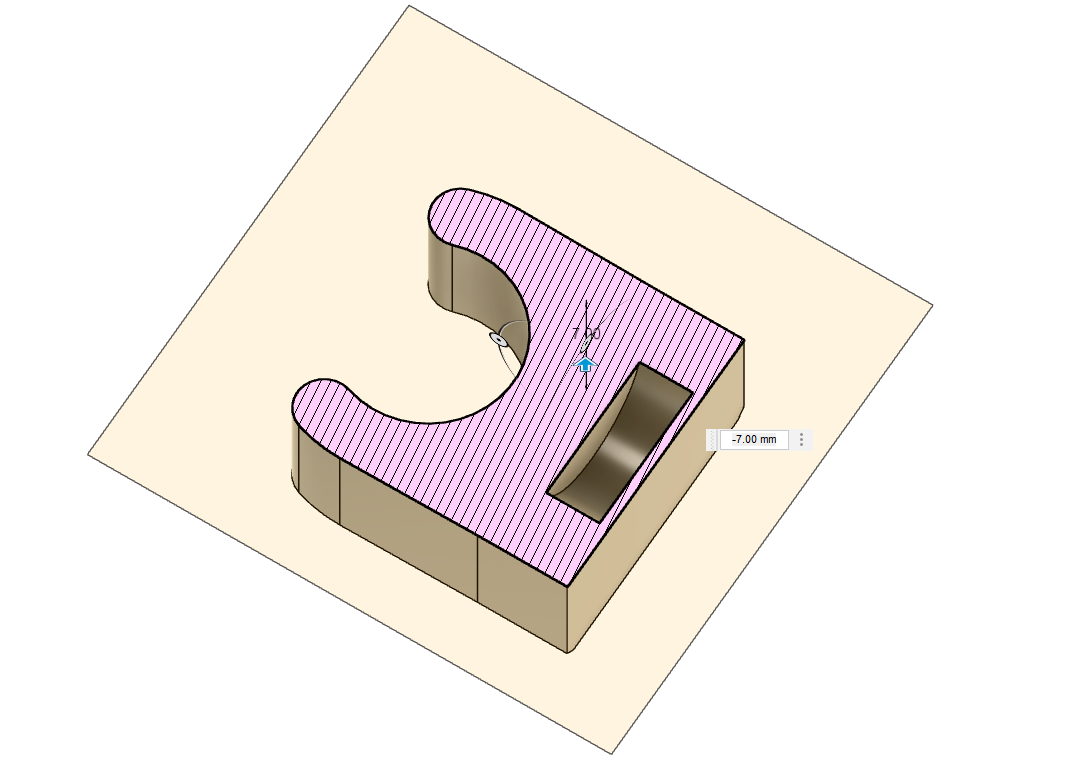

The design features an embedded slot for a 6x2 mm magnet (you should pause your print to insert the magnet), allowing the holder to be conveniently attached to any metal surface—perfect for keeping your coffee setup tidy.
The holder is fully parametric, so you can easily adjust dimensions like tube diameter, base size, or magnet clearance to suit other applications or devices.
✅ Designed with a 115° opening angle for ease of use
✅ Clean, minimal aesthetic
✅ No supports needed
Print settings:

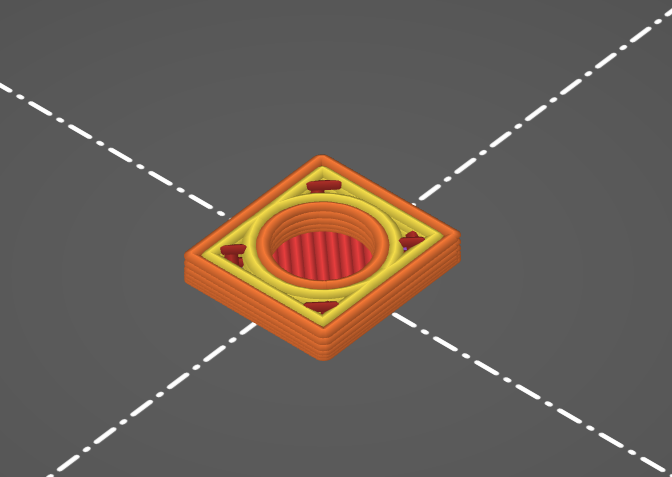

I printed mine using PLA with a 0.8 mm nozzle for strength, accuracy, and faster print time.

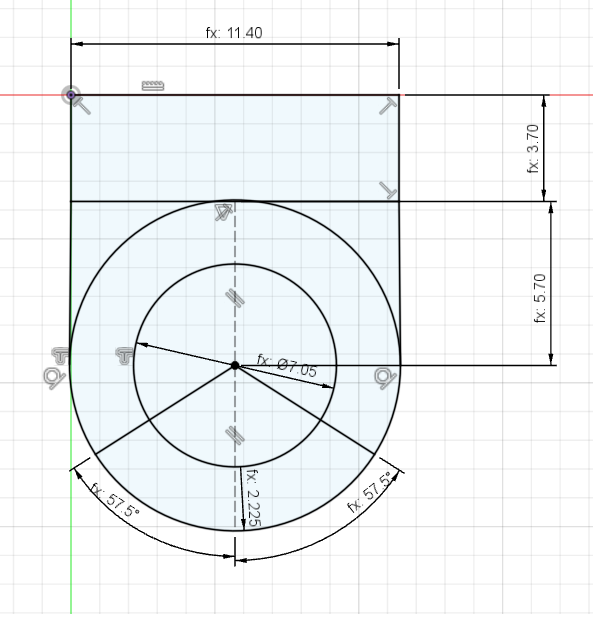

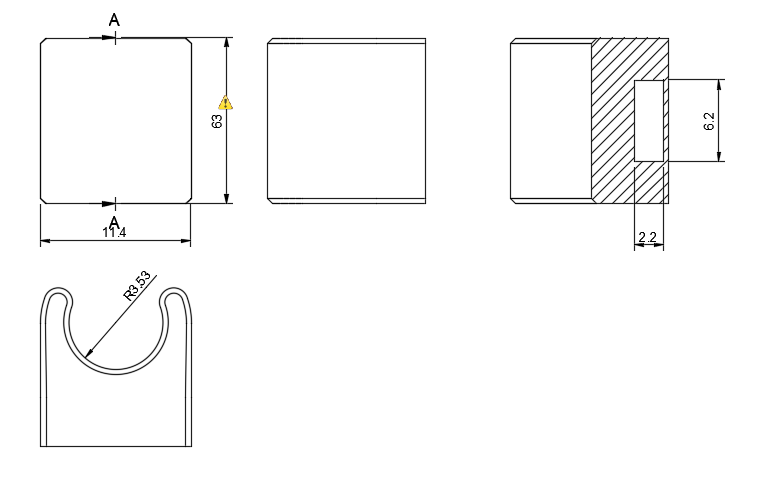

Parameters:
| Parameter Name | Unit | Value | Formula/Expression | Description |
|---|---|---|---|---|
| magnetsHeight | mm | 2.00 | — | Height of a single magnet. |
| baseHeight | mm | 3.70 | magnetsHeight + (0.4 * 4) * 1 mm + 0.1 mm | Total height of the base. |
| baseWidth | mm | 11.40 | 6 mm + (0.9 * 6) * 1 mm | Total width of the base. |
| tubeDiameter | mm | 6.95 | — | Outer diameter of the tube being held. |
| distanceBetweenTubeAndTheTopOfTheBase | mm | 2.225 | (0.4 * 5) * 1 mm + 0.225 mm | Spacing between the tube holder and the base. |
| openingAngle | deg | 115.0 | — | Opening angle of the holder clamp. |
| holderLength | mm | 12.60 | (0.9 * 14) * 1 mm | Total length of the holder. |
| numberOfMagnets | — | 1 | — | Number of magnets used per holder. |
| magnetDiameter | mm | 6.00 | — | Diameter of a single magnet. |
| magnetClearance | mm | 0.10 | — | Gap between the magnet and surrounding surface for tolerances. |
| tubeClearance | mm | 0.10 | — | Gap between the tube and the holder for easy insertion/removal. |
