Flashlight Ballmount

Order a print of this model

We calculate the final price from your selected file. You review and accept it before payment.

Saved on this device.

Model information

License
Creative Commons — Attribution — Noncommercial — Share Alike

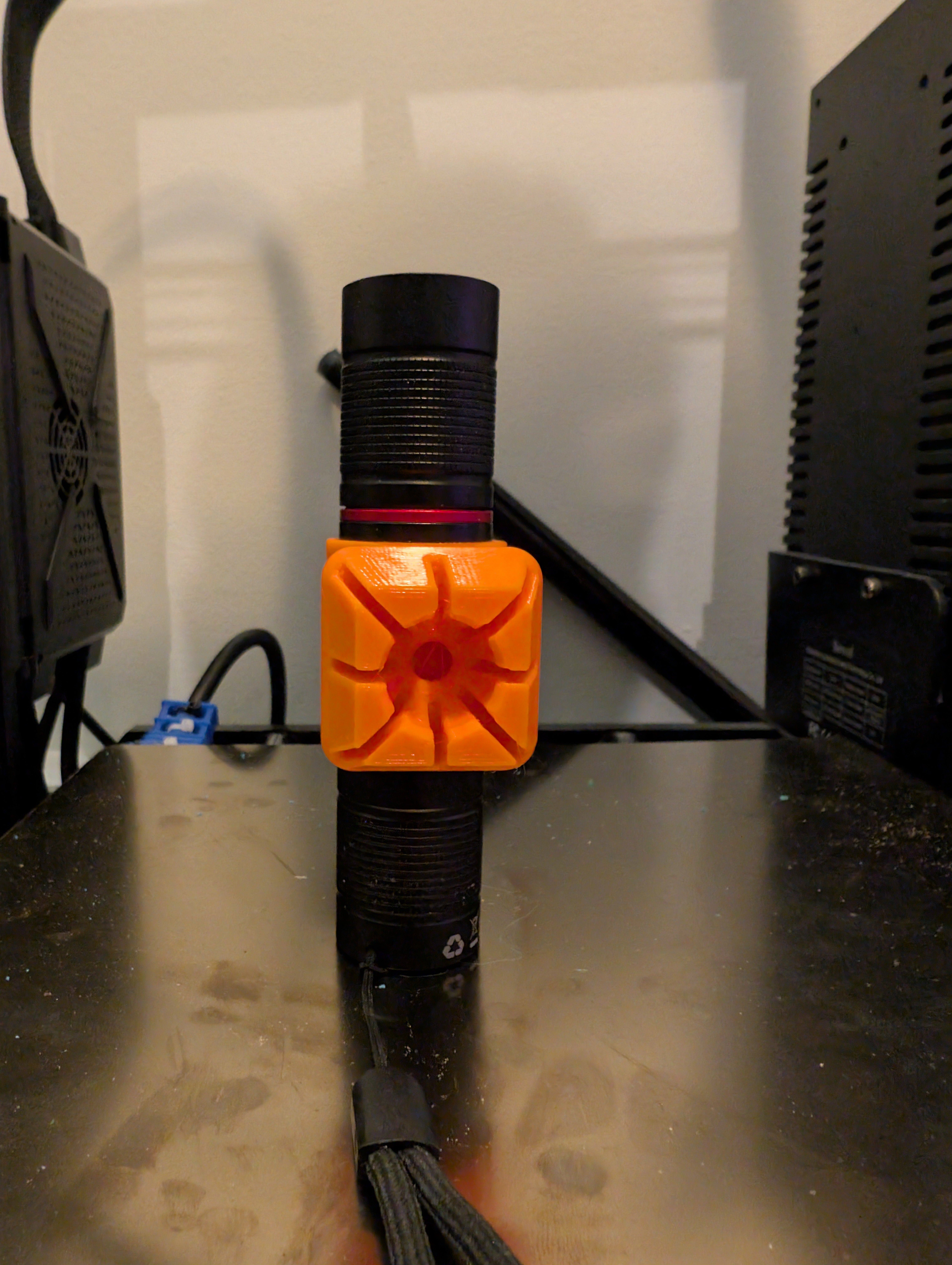

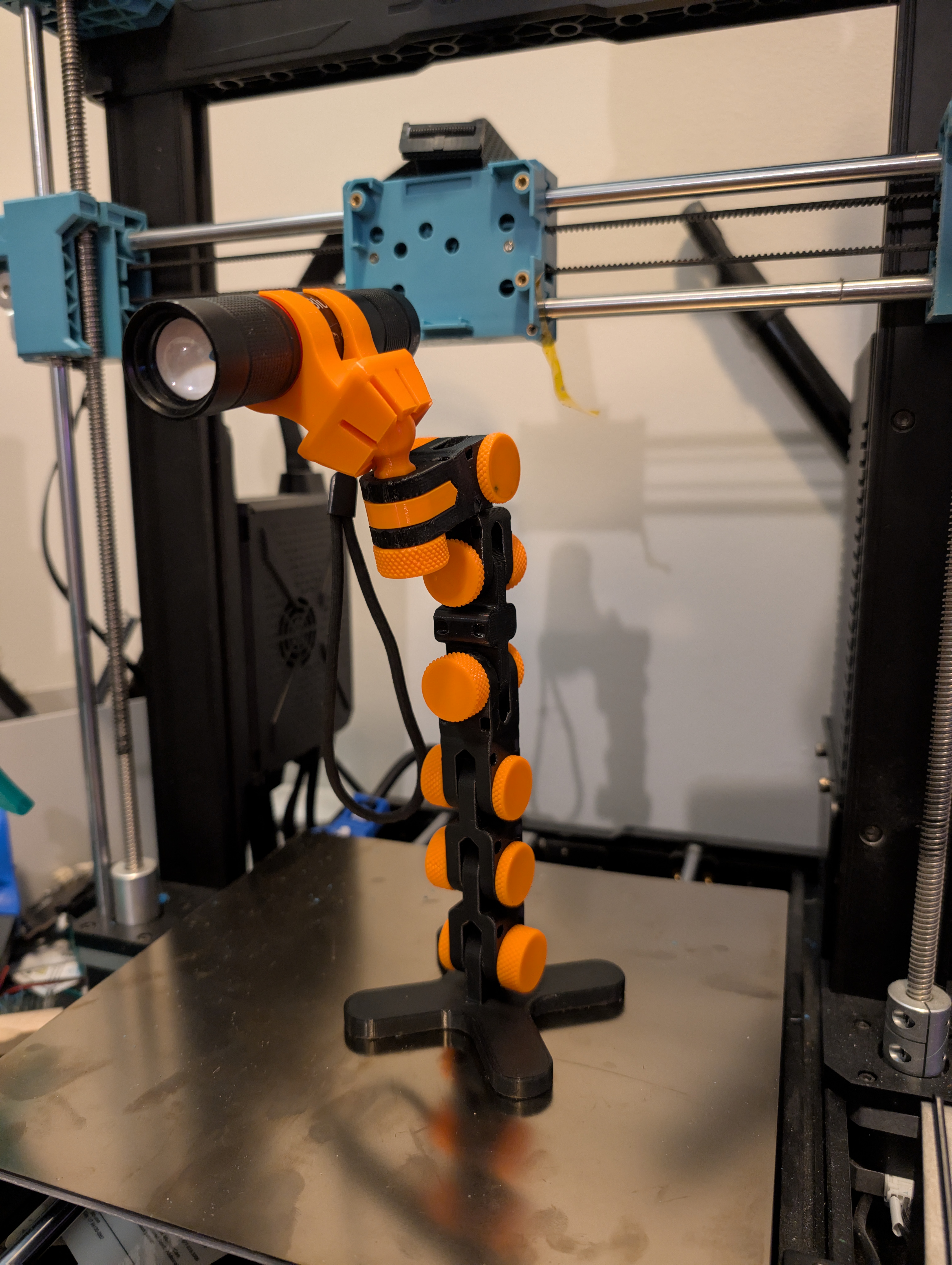

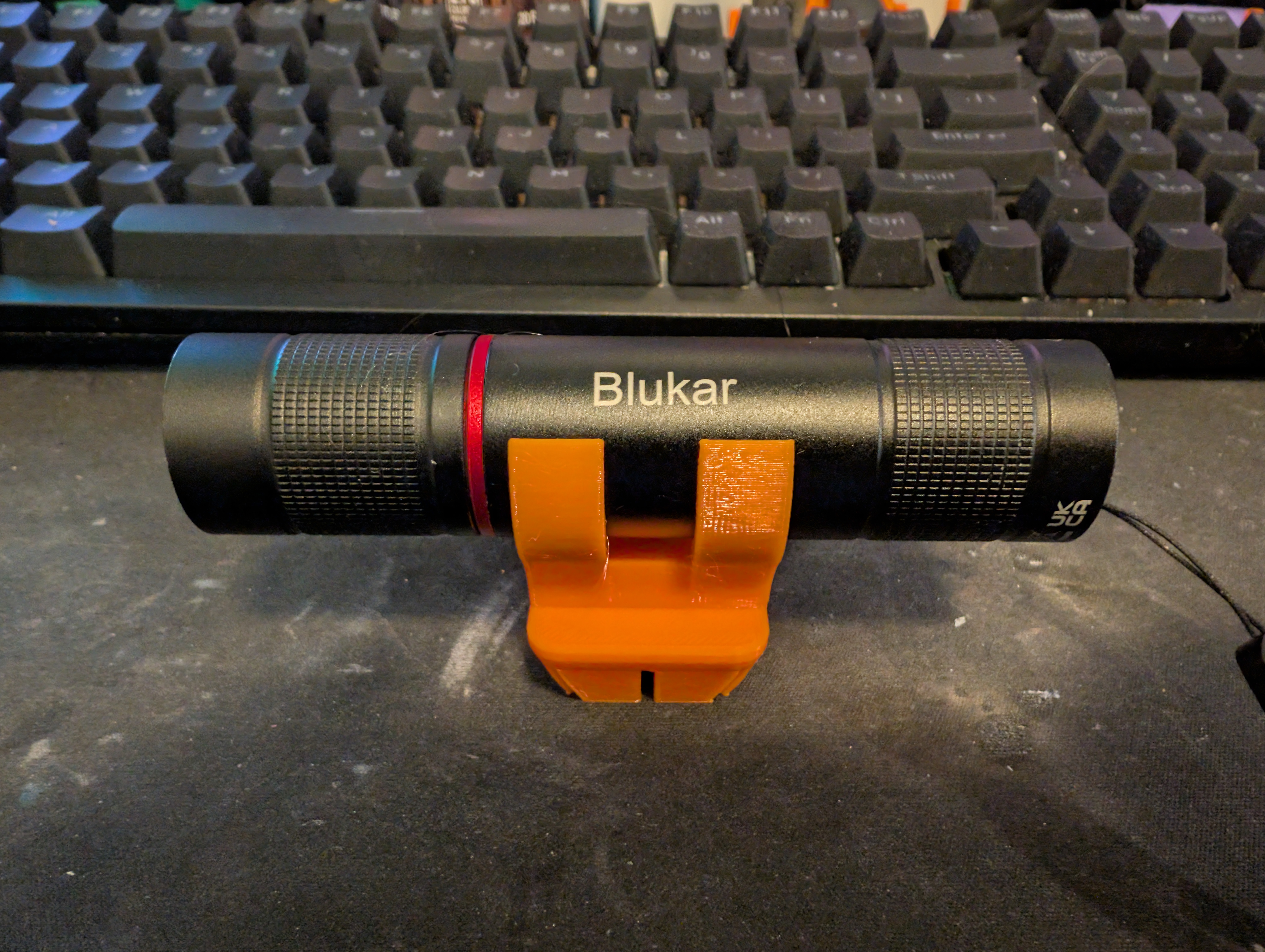

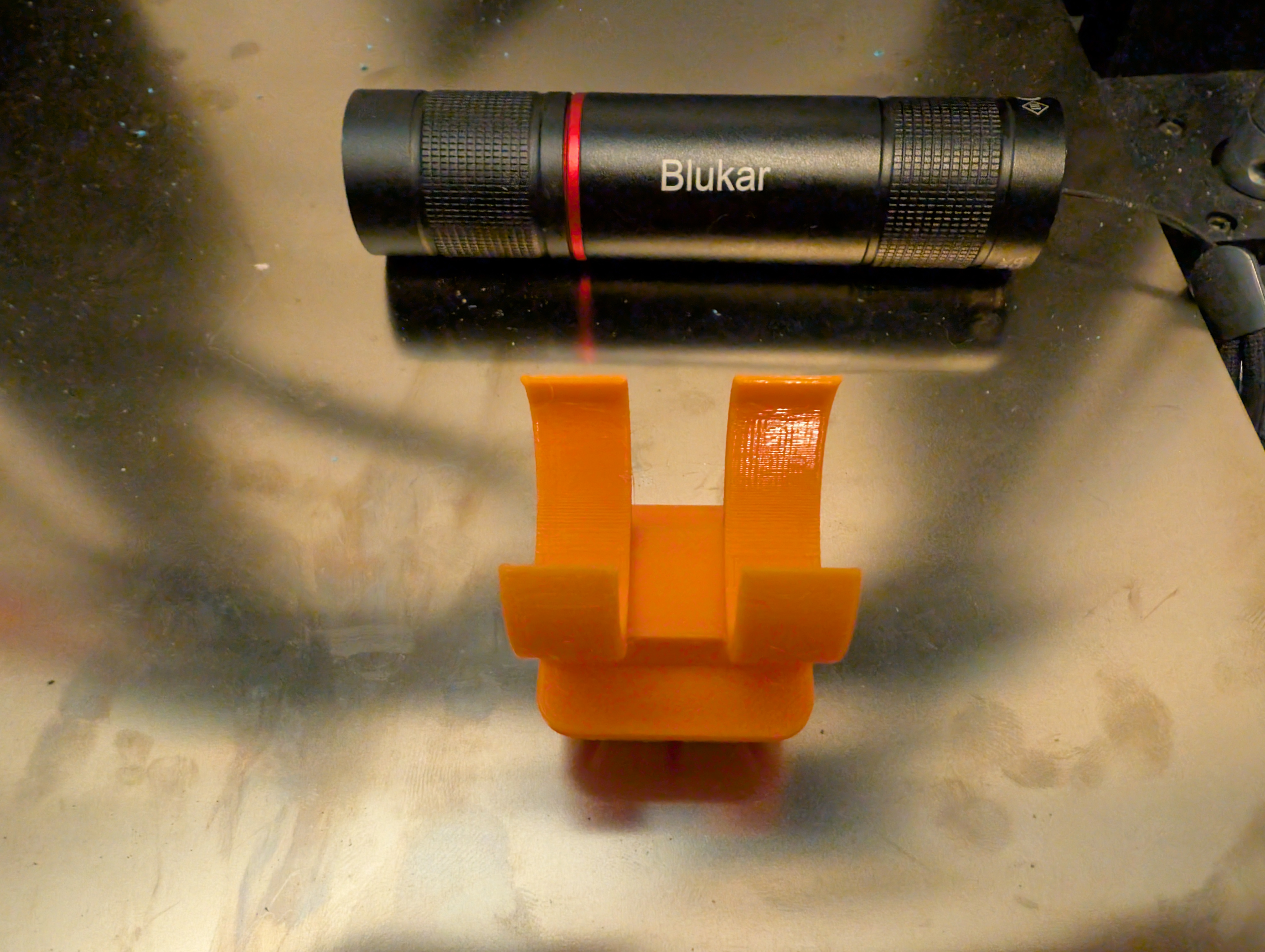

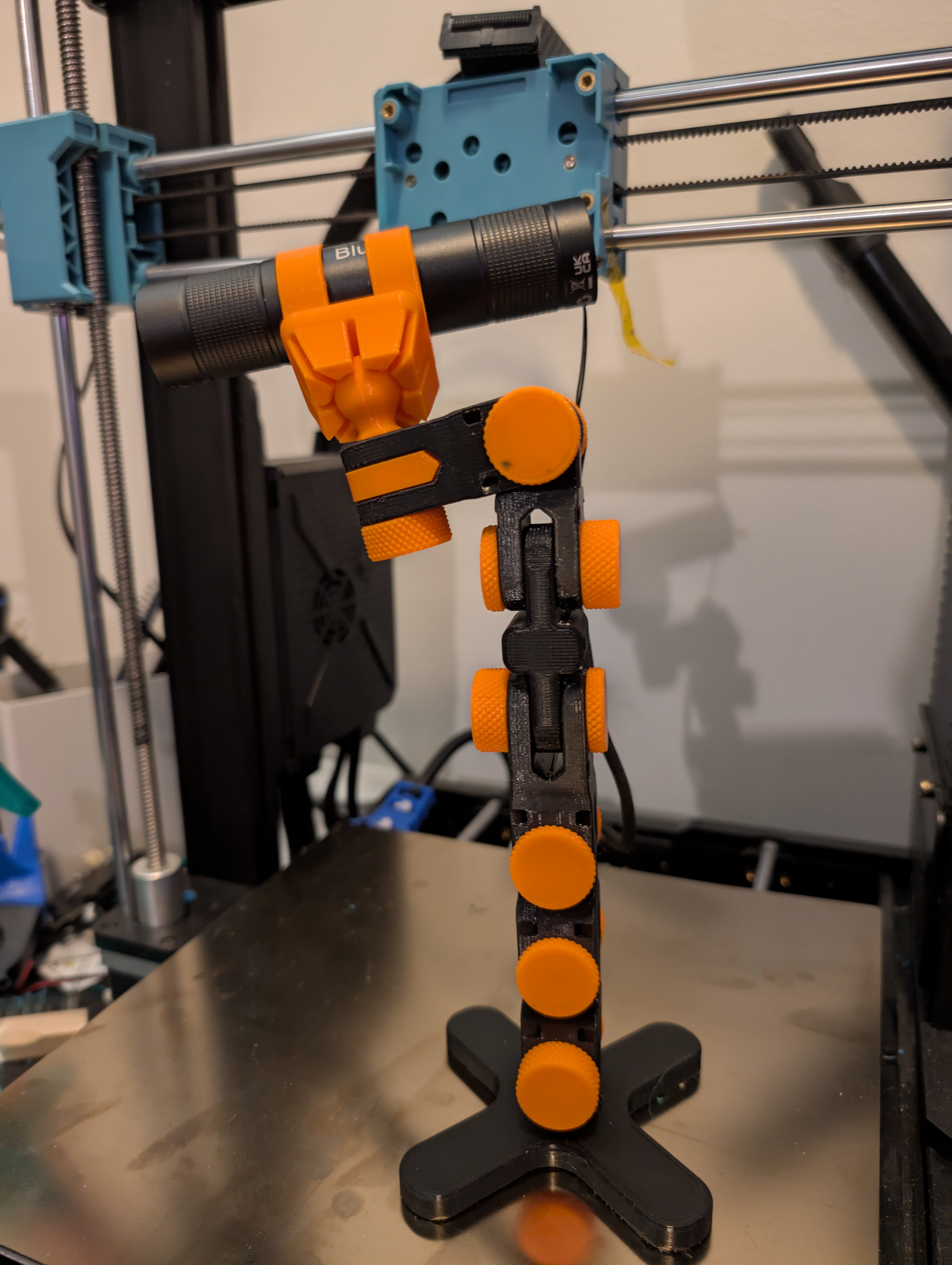

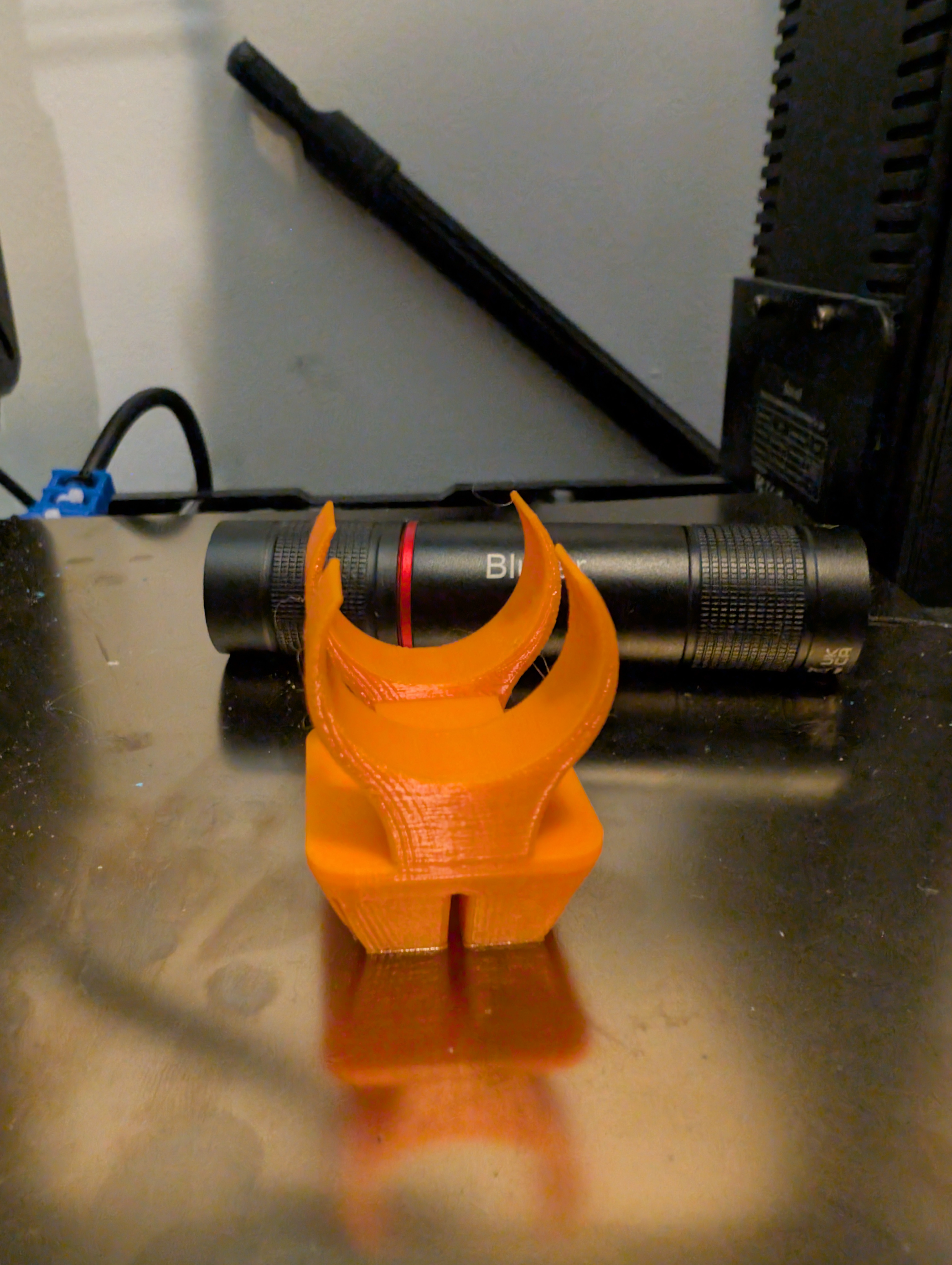

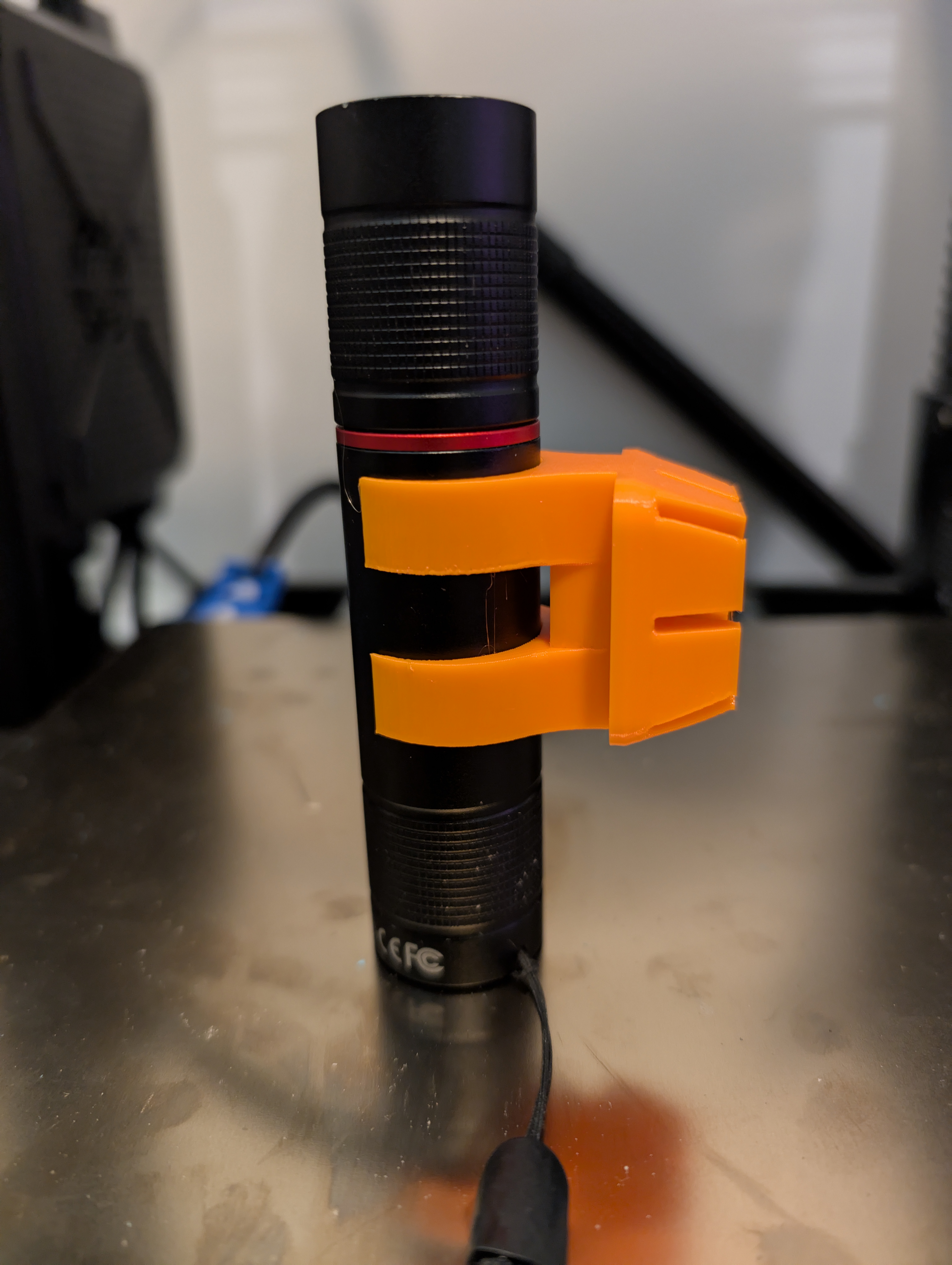

I was trying to find a Flashlight mount that I could use with the Articulating Arm from Sneaks. I couldn't find one, but I did find this Flashlight mount for a tripod on Thingverse and was using this generic webcam mount for the Articulating Arm. I fused them together, made the flashlight mount longer to cover the webcam holes, and added a cylinder to cover the screw hole on the bottom of the mount.



Printer:

     Prusa MK3S+

Slicer:

     Orca Slicer

Filament

     Overture PETG Orange

First Layer Nozzle Temp:

     225

Other Layers Nozzle Temp:

     230

First Layer Bed Temp:

     85

Other Layers Bed Temp:

     85

Layer Height:

     .2 mm

Wall loops:

     3

Top & Bottom Surface Pattern:

     Aligned Rectilinear

Infill Density:

     15%

Sparse Infill Pattern:

     Triangles

Internal Solid Infill Pattern:

     Rectilinear

Supports:

     None
