CR10SE Logitech C920 Camera Mount for X Axis tensioner
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Creality Parts & Upgrades
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Print material: PETG recommended
Print settings:
- CR10-SE C920 Mount: 5 Perimeter walls, 4 bottom layers, 4 top layers, 25% infill

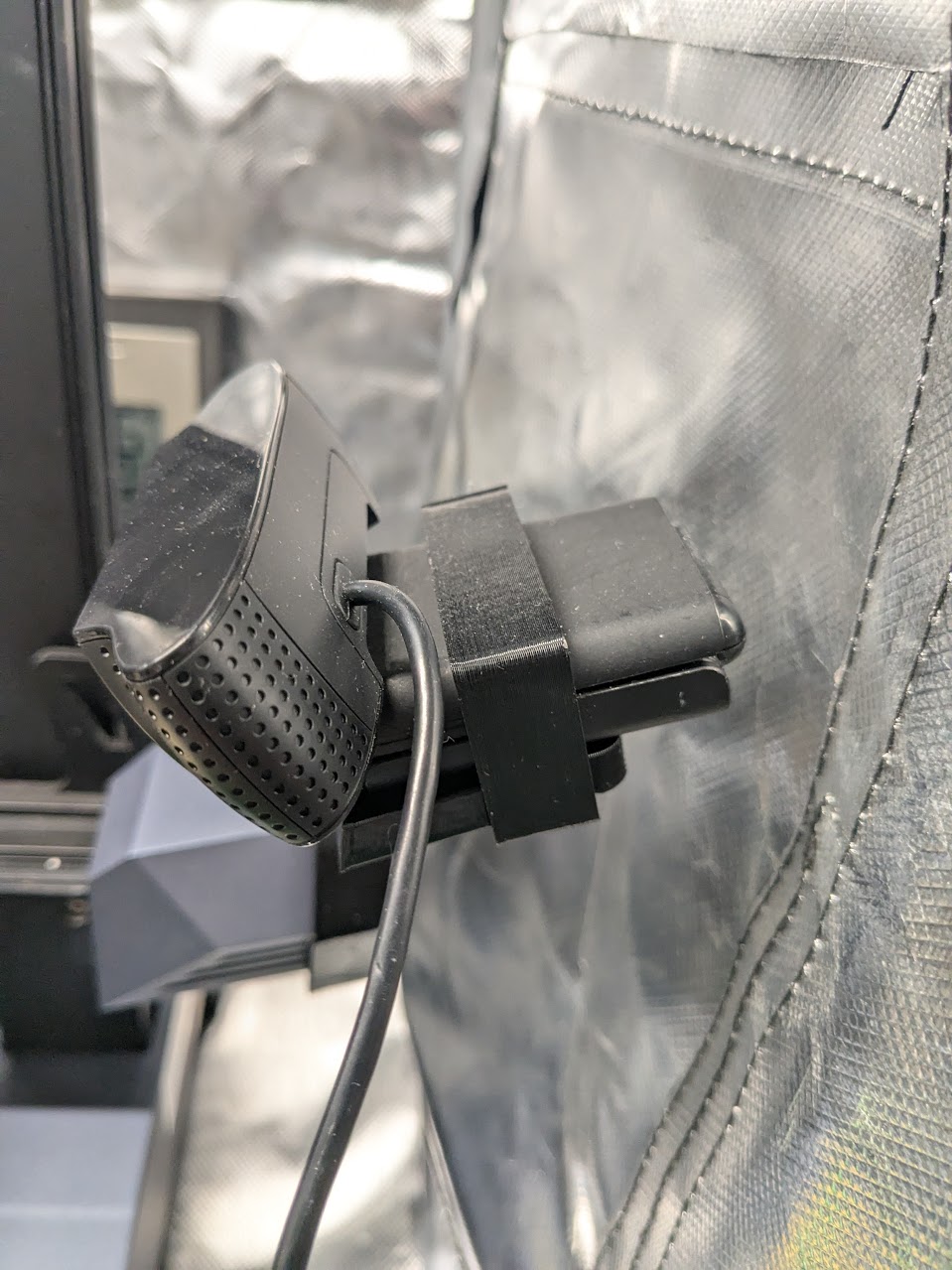

- Camera Antivibration top clamp: 9 Perimeter walls, 4 bottom layers, 4 top layers, 100% infill
- 04-58-inch-hex: 6 Perimeter walls, 4 bottom layers, 4 top layers, 100% infill. 0.20mm layer height.
- 04-58 blank spacer for non Logitech cameras: This is only an OPTIONAL part to print. This is for mounting other cameras. It spaces the gap under the camera mount.
I use Destinal's custom Klipper firmware on my CR10-SE. You may need to modify the firmware of your CR10SE to have your Logitech C920 webcam work with the original CR10-SE hardware / screen. This camera holder may require additional advanced printer modification to fully utilize.

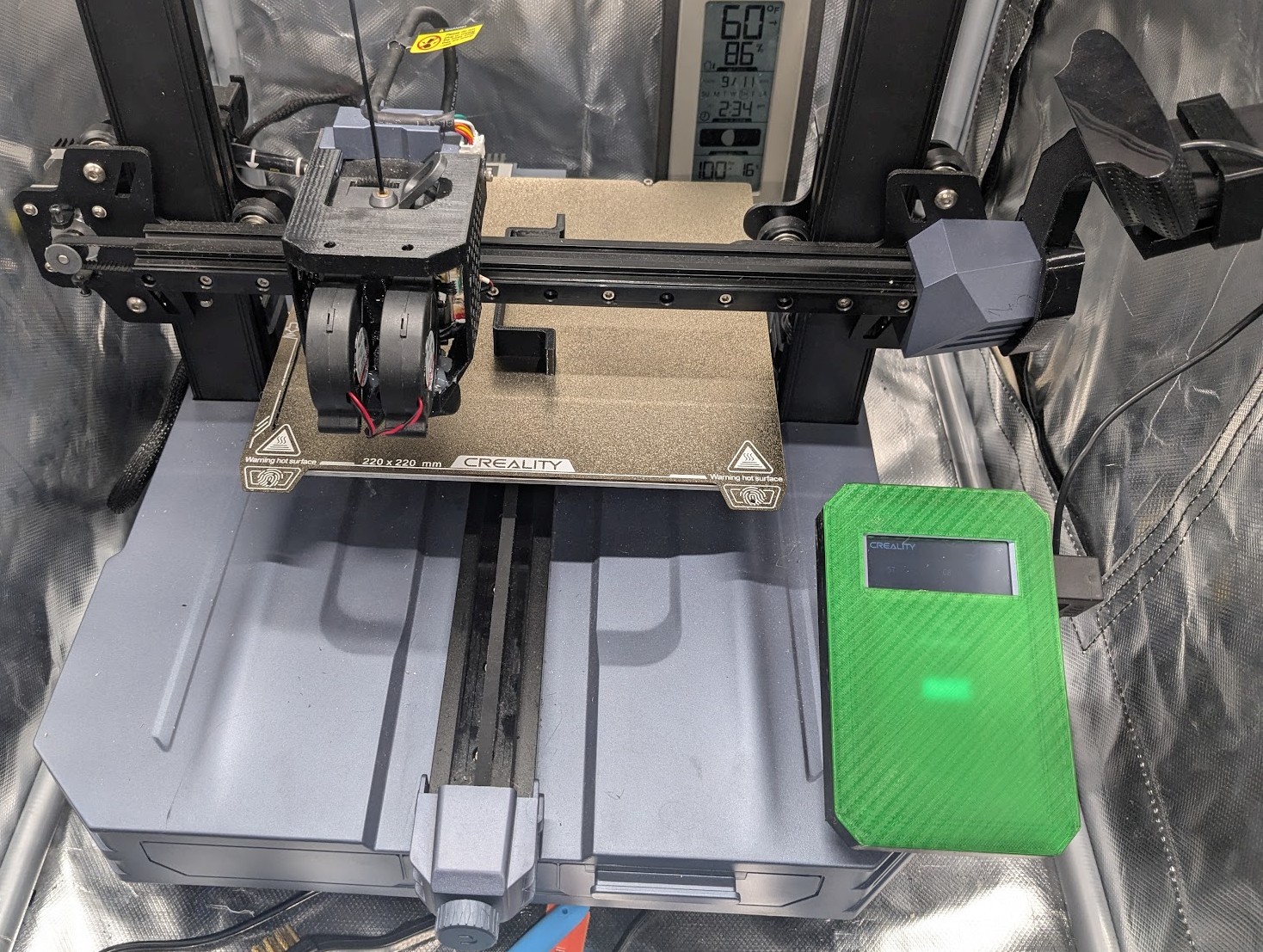

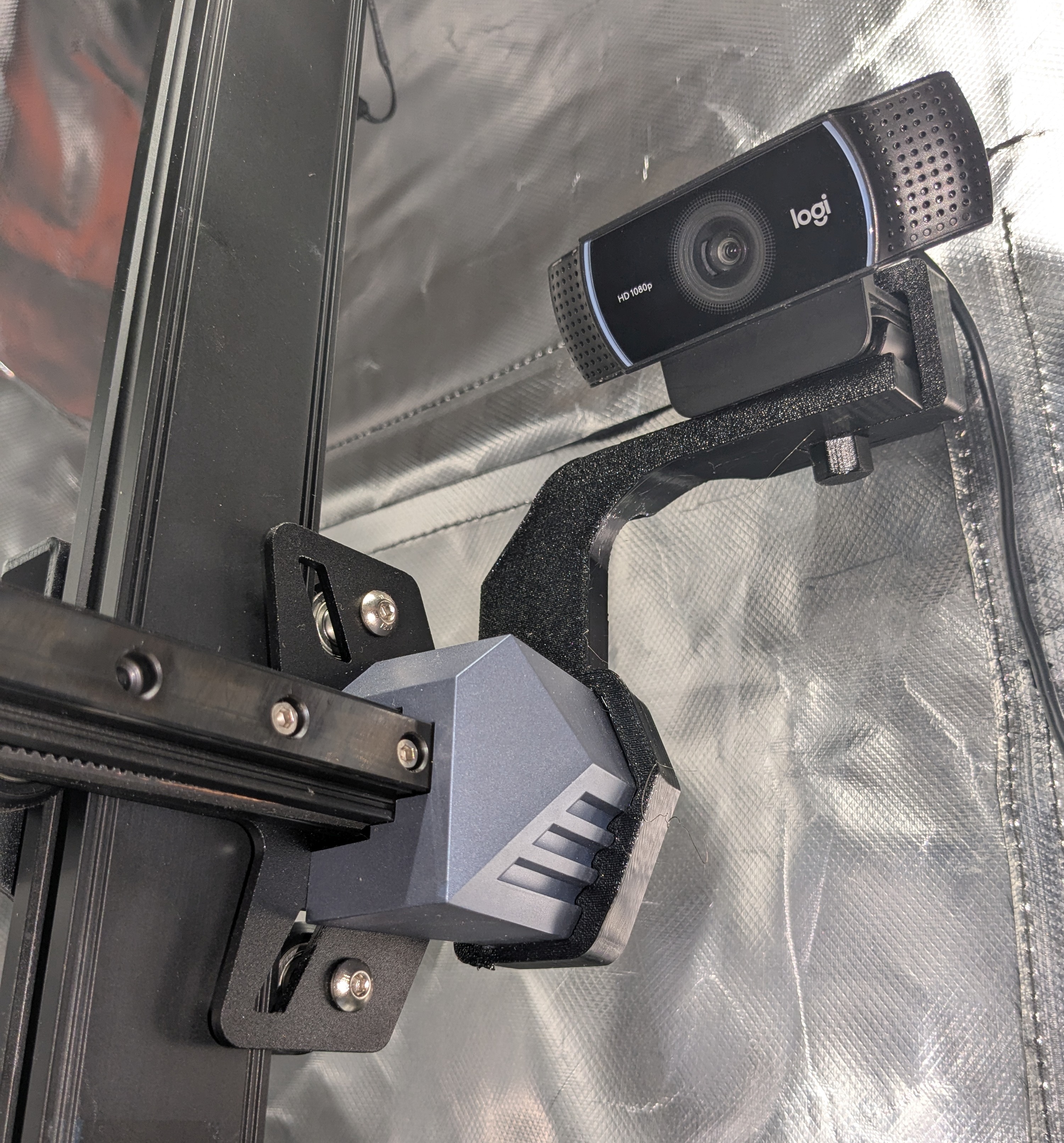

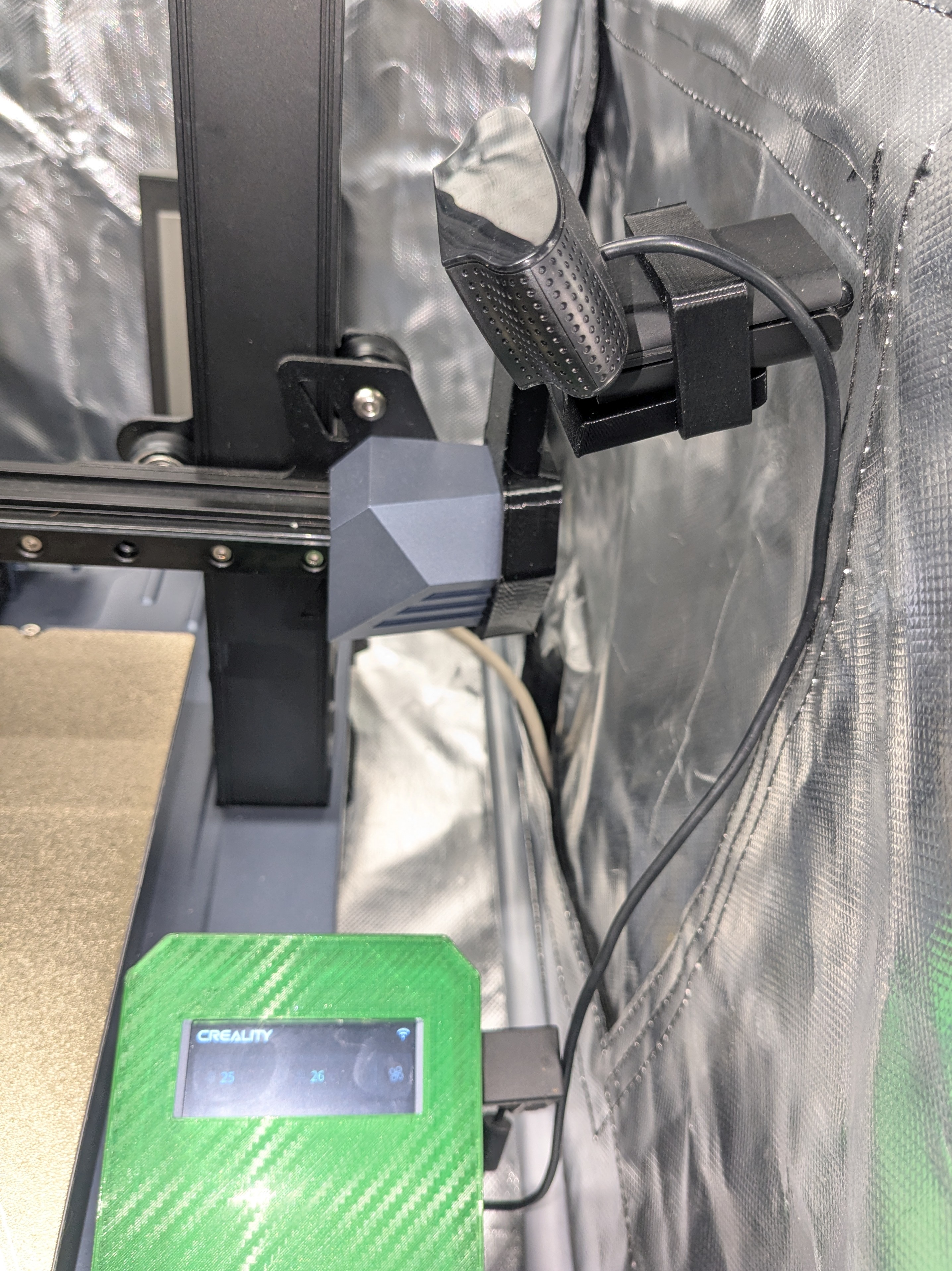

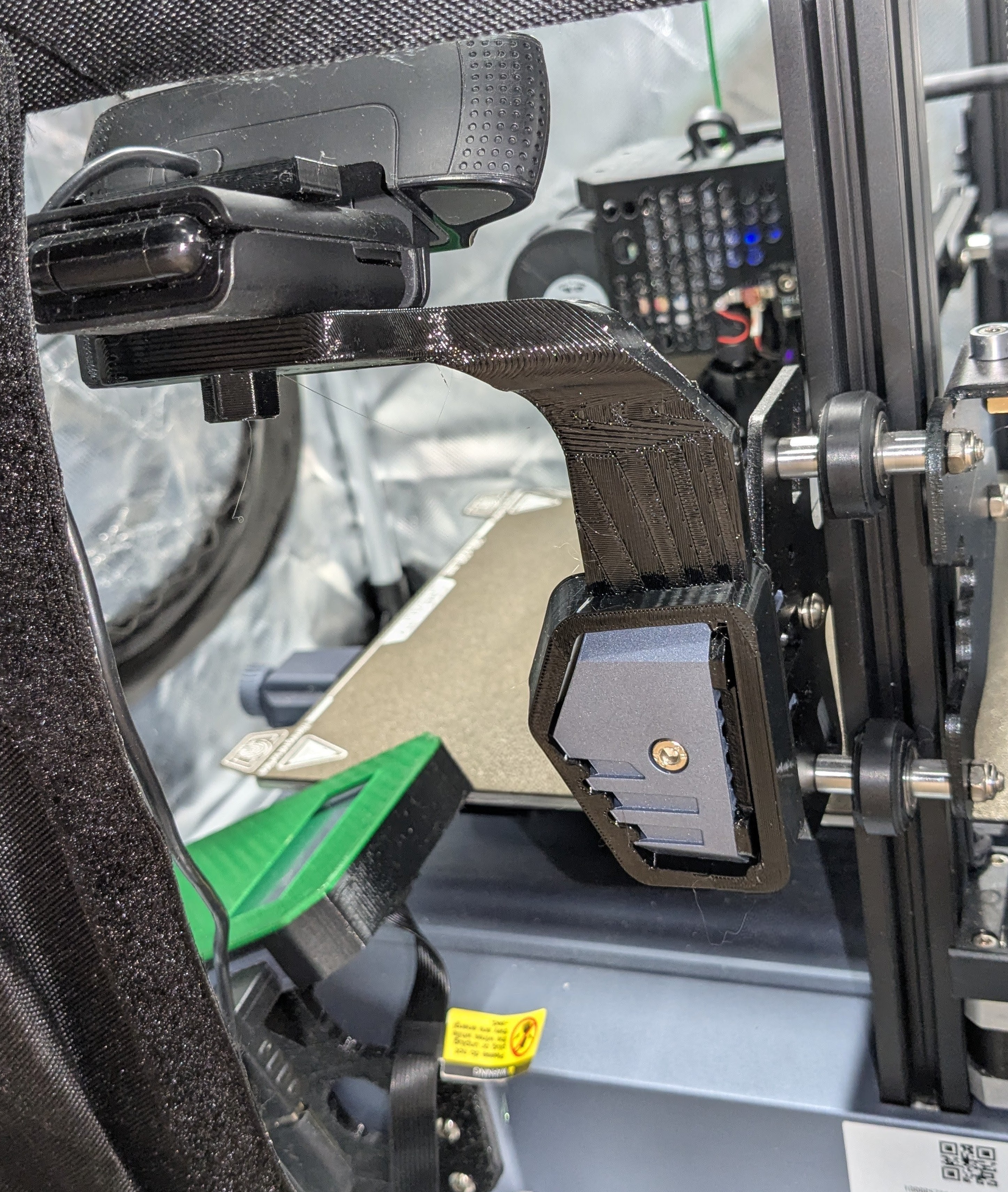

This Camera mount was designed to be mounted directly high above the X-Axis belt tensioner. This allows the camera mount to work with the Nebula Pad Space saver mod, and it should also stay clear of making contact any custom hotend designs beyond the factory CR10SE hotend cover.

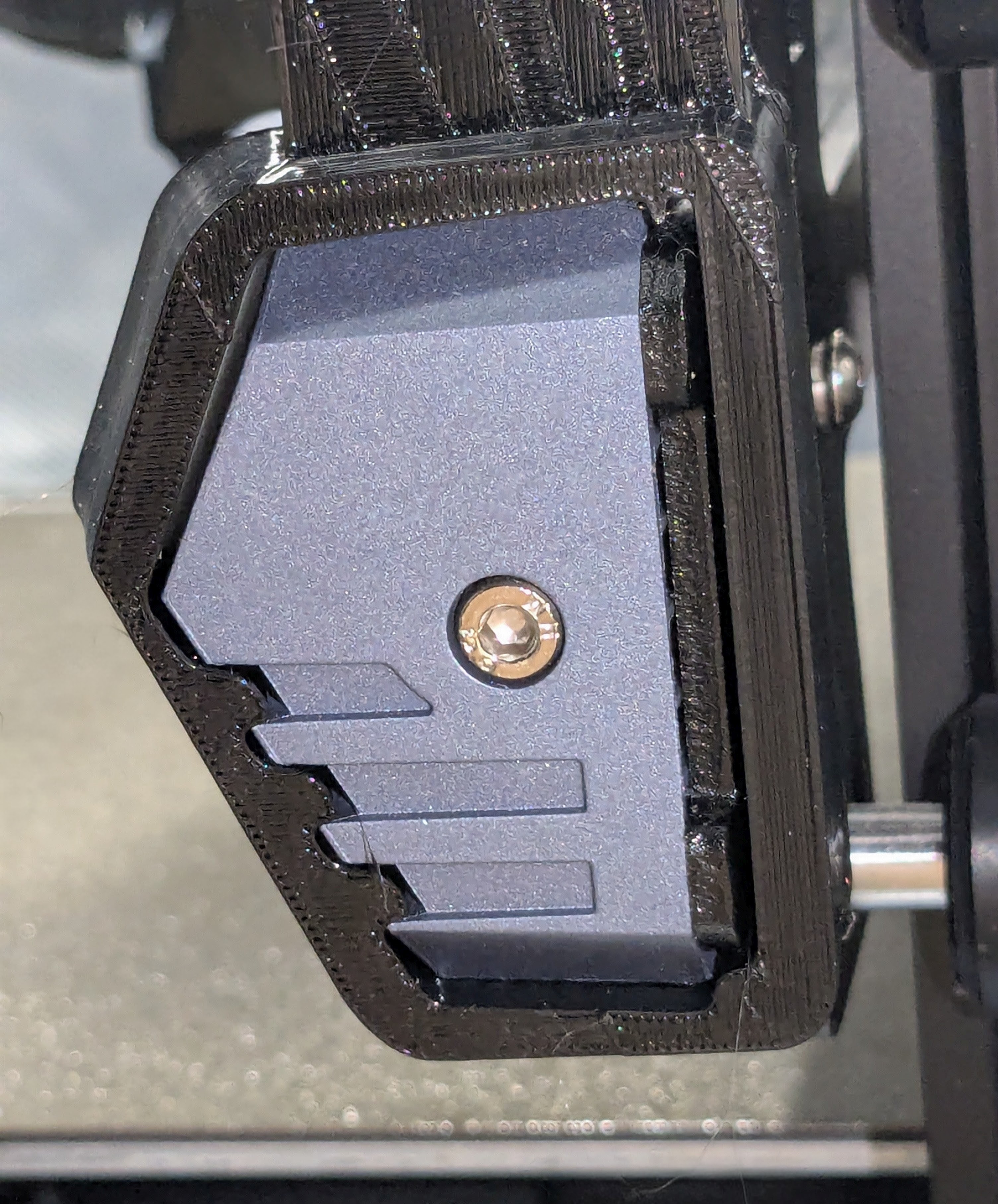

The CR10SE X Axis tensioner “Cuff” part has many triangles if you import it into Fusion 360. I have included the .f3d project file. You may experience slow performance when working with this file due to the complex shape of the model.
