Cesello - Modular Router System

CHANGELOG

(dd-mm-yyyy)

02-01-2026 - V1 Release

ENG

Whether you are a dedicated hobbyist or an experienced woodworker, routing operations demand one thing above all: control.

Poor stability and unsafe hand positioning are the primary causes of inaccurate cuts and accidents.

This Modular Router System is designed to address these problems directly. It's a solution that combines modularity, stability, and operator safety, allowing you to perform precise routing and shaping operations on solid wood with confidence and repeatability.

Use Cases

• Hinge recesses and mounting holes
  Accurate routing of hinge pockets and mounting holes with consistent depth and alignment across multiple workpieces.

• Custom-shaped cutouts
  Creation of non-standard or application-specific openings using custom-designed inserts.

• Custom handle recesses
  Controlled routing of ergonomic or design-specific handle recesses directly into solid wood panels.

• Decorative patterns
  Routing of repeatable raised or recessed patterns for decorative or functional surface detailing.

• Custom routing guides and templates
  Rapid prototyping and use of custom routing guides tailored to specific operations or geometries.

• Custom joinery operations
  Execution of non-standard joinery solutions where commercial jigs are not available or suitable.

• Custom recesses and pockets
  Precise routing of pockets, mortises, and recesses with defined boundaries and repeatable results.

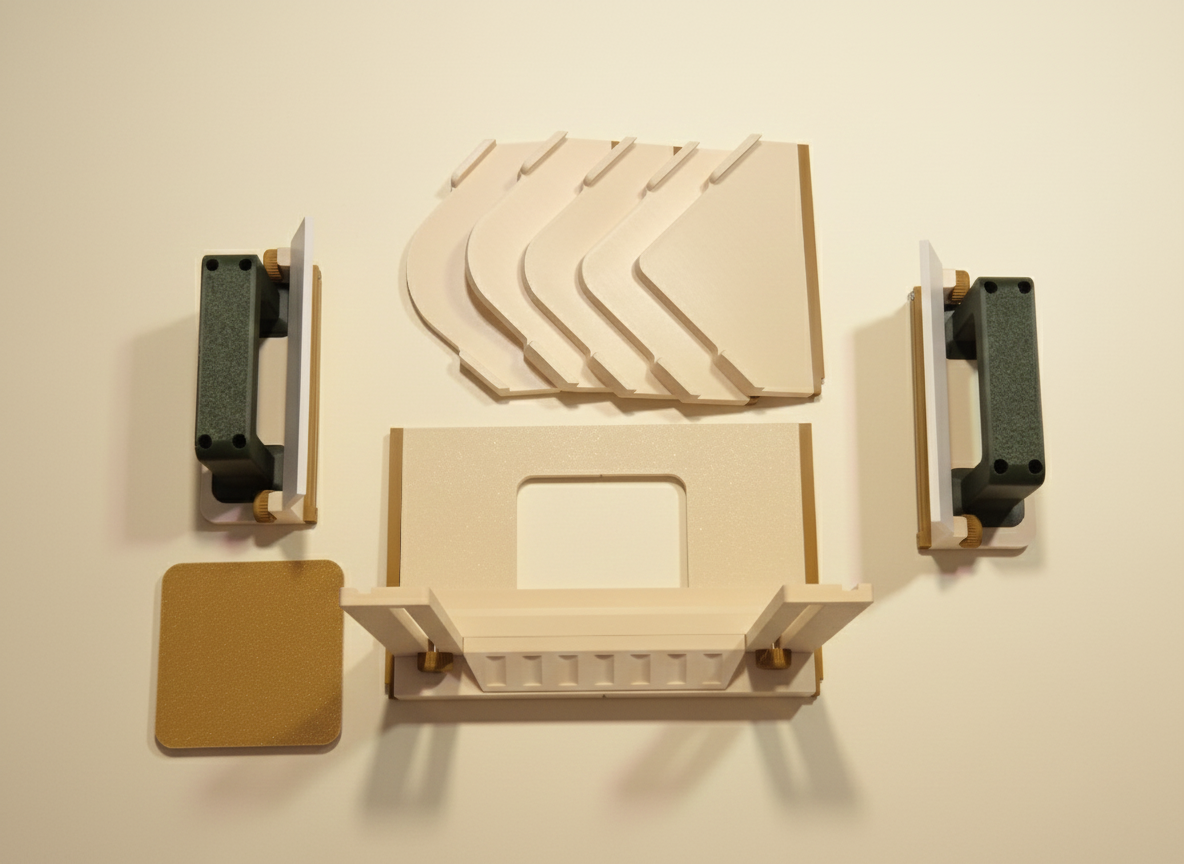

Key Features

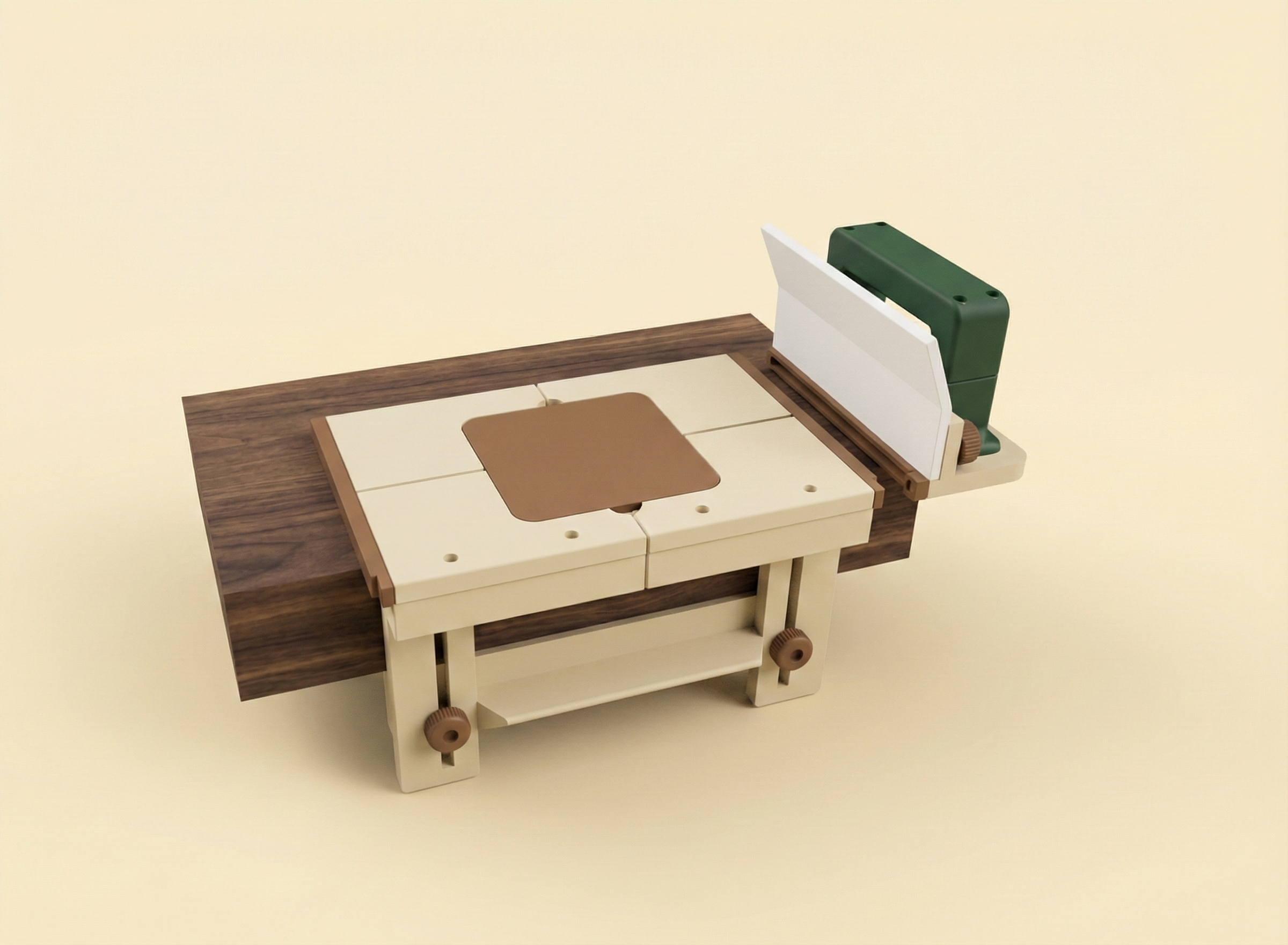

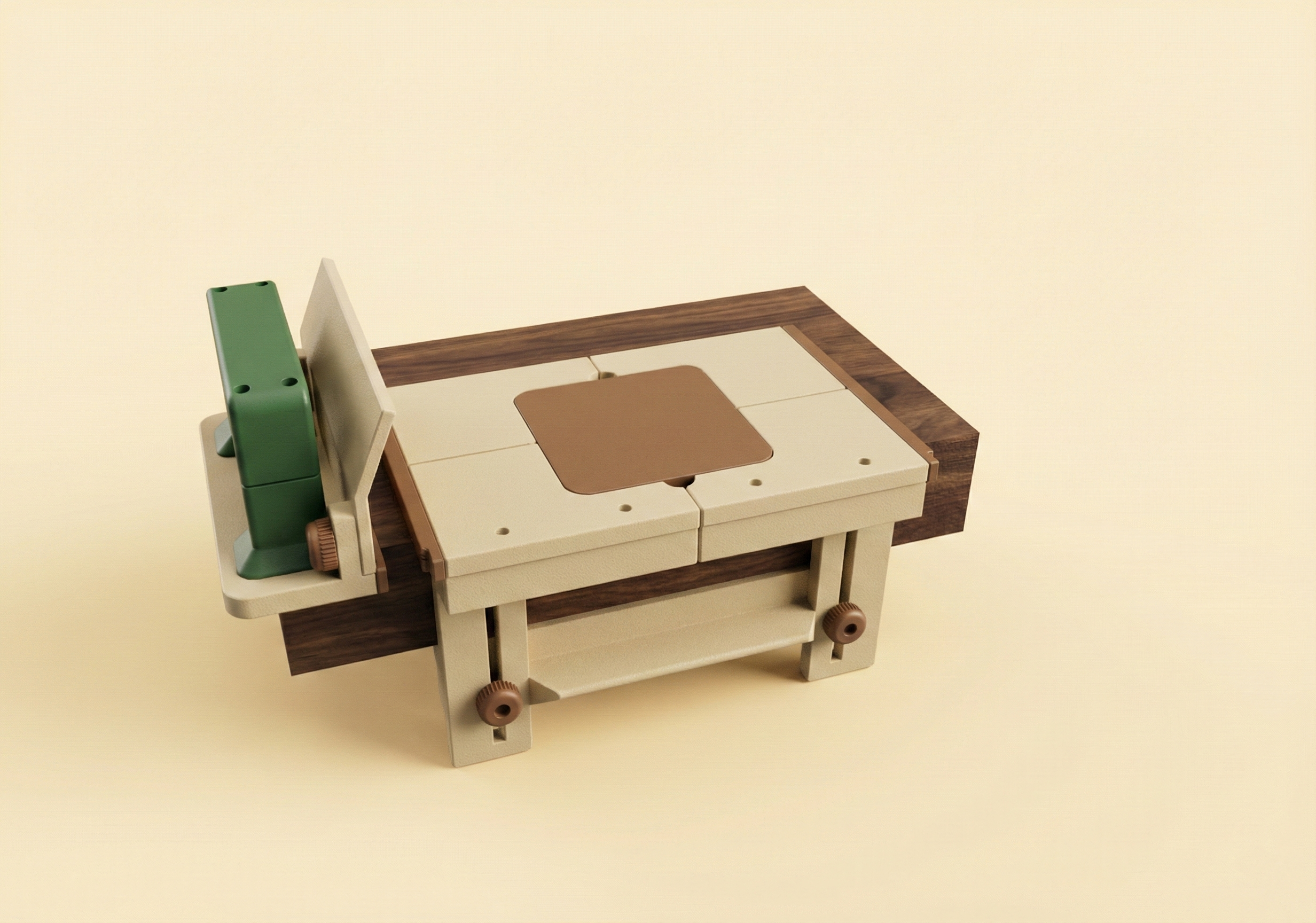

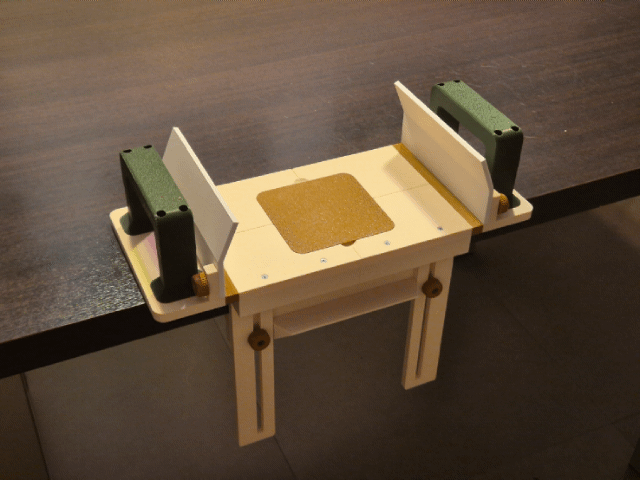

1. Adaptive Modular Base

At the core of the system is a rigid, adjustable base designed to securely clamp onto the workpiece itself.

• Workpiece Adaptability
  The base can be adjusted to accommodate wood pieces of different thicknesses and widths, ensuring a stable and repeatable setup without relying on improvised clamps or jigs.

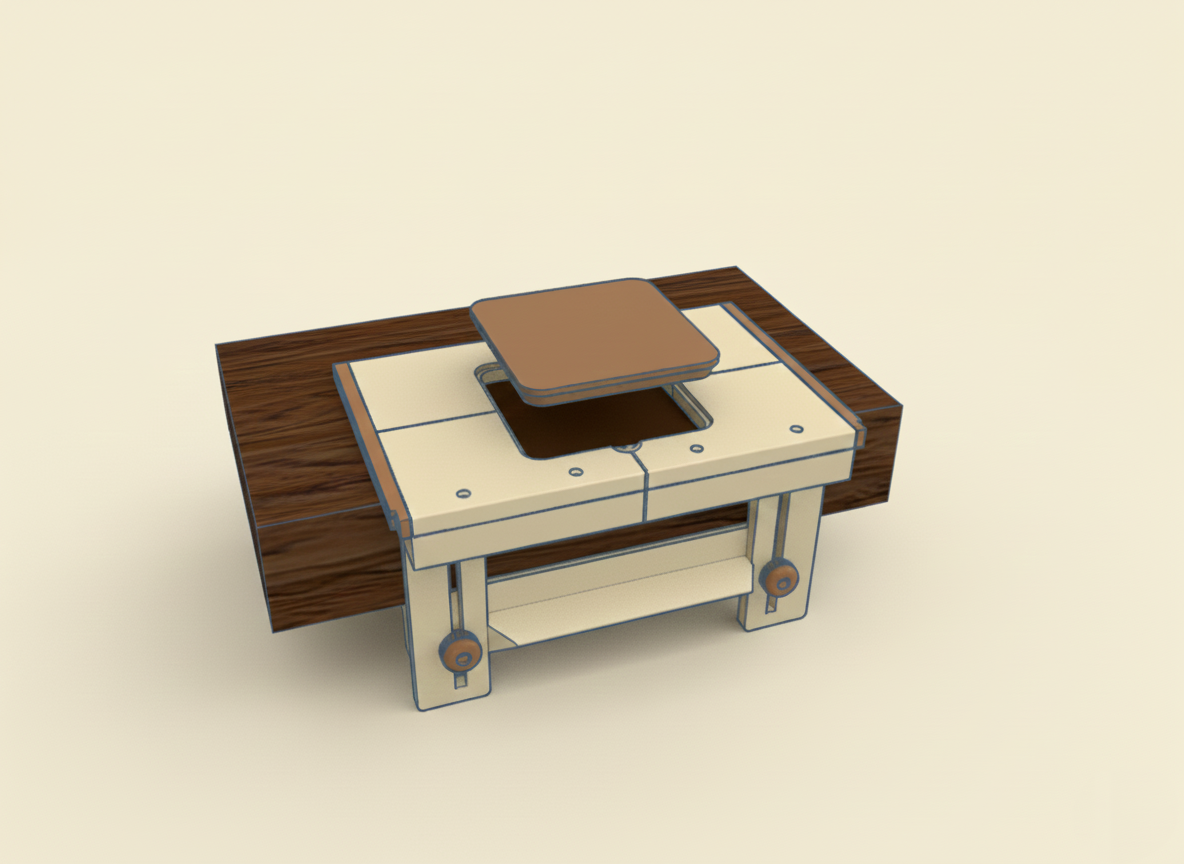

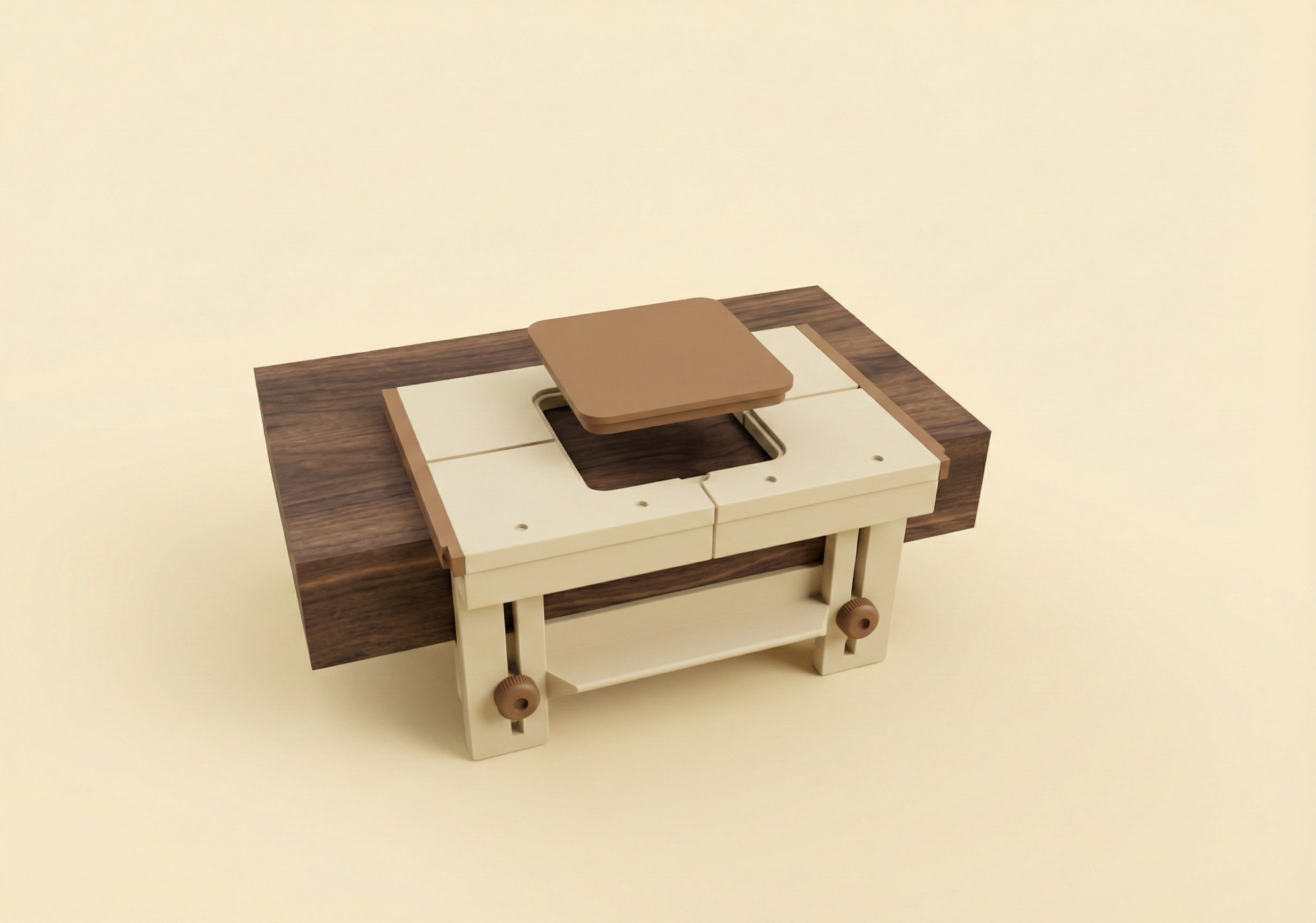

• Central Removable Insert
  A square removable insert is positioned at the center of the base. This insert defines the working area around the router bit and can be removed or replaced to suit different applications.

  Users can design and fabricate custom inserts to create:

  • Specific cutouts

  • Custom profiles

  • Specialized routing guides

  This makes the system inherently extensible rather than locked to predefined accessories.

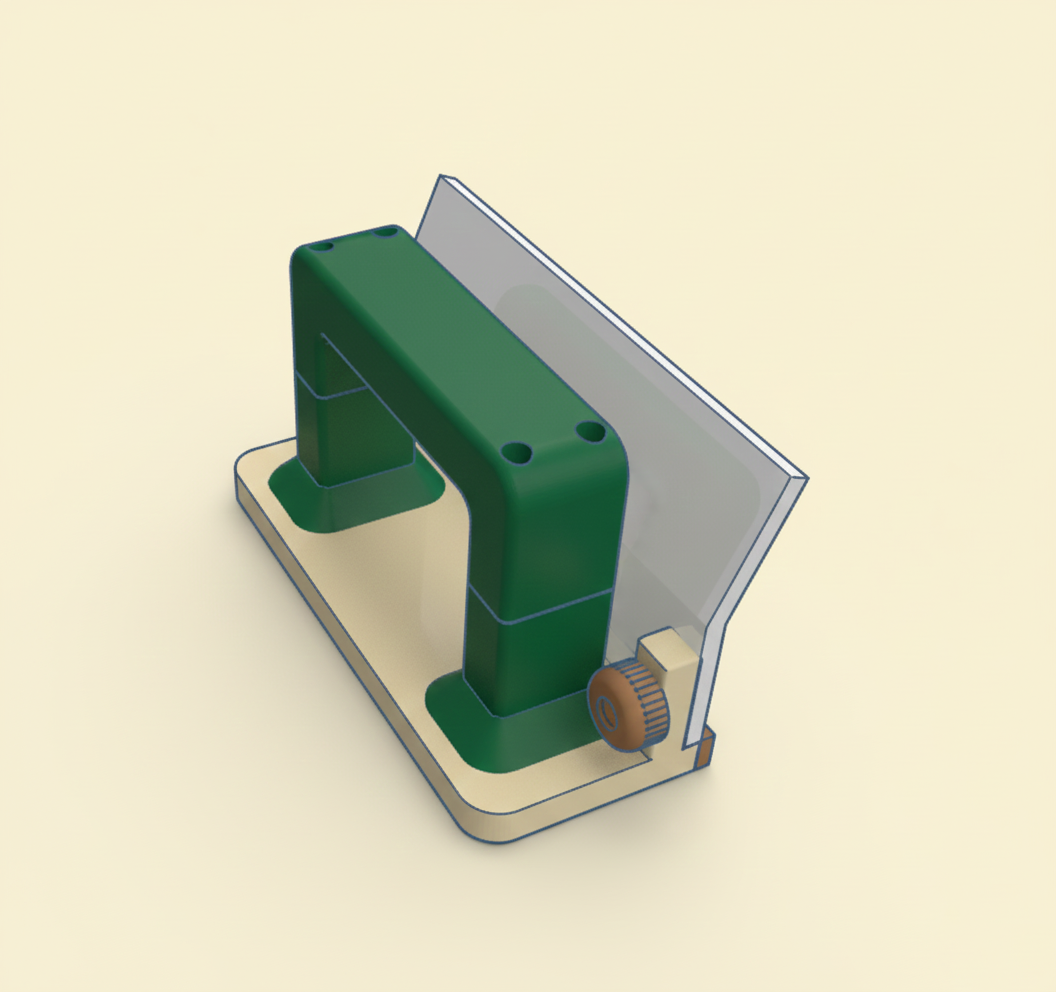

2. Side Handles with Integrated Hand Guards

Routing generates lateral forces that easily introduce errors, especially during long or repeated passes.

• Controlled Linear Movement
  The side-mounted handle units act as rigid guide rails, helping to maintain straight, controlled motion throughout the cut.

• Reduced Human Error
  By limiting unwanted movement and vibration, the system improves consistency and surface quality while reducing reliance on freehand technique.

• Physical Separation from the Cutting Area
  The hand guards create a clear barrier between the operator’s hands and the active cutting zone.

• Confident Operation
  With hands kept at a safe distance, the operator can focus entirely on feed rate and alignment, rather than constantly compensating for risk.

Precision and safety go hand in hand.

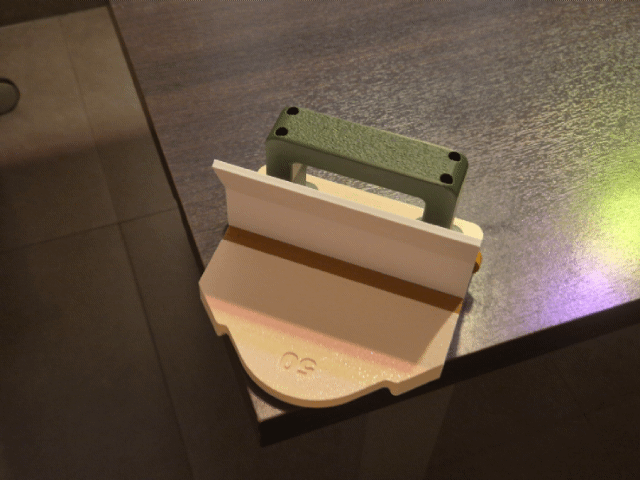

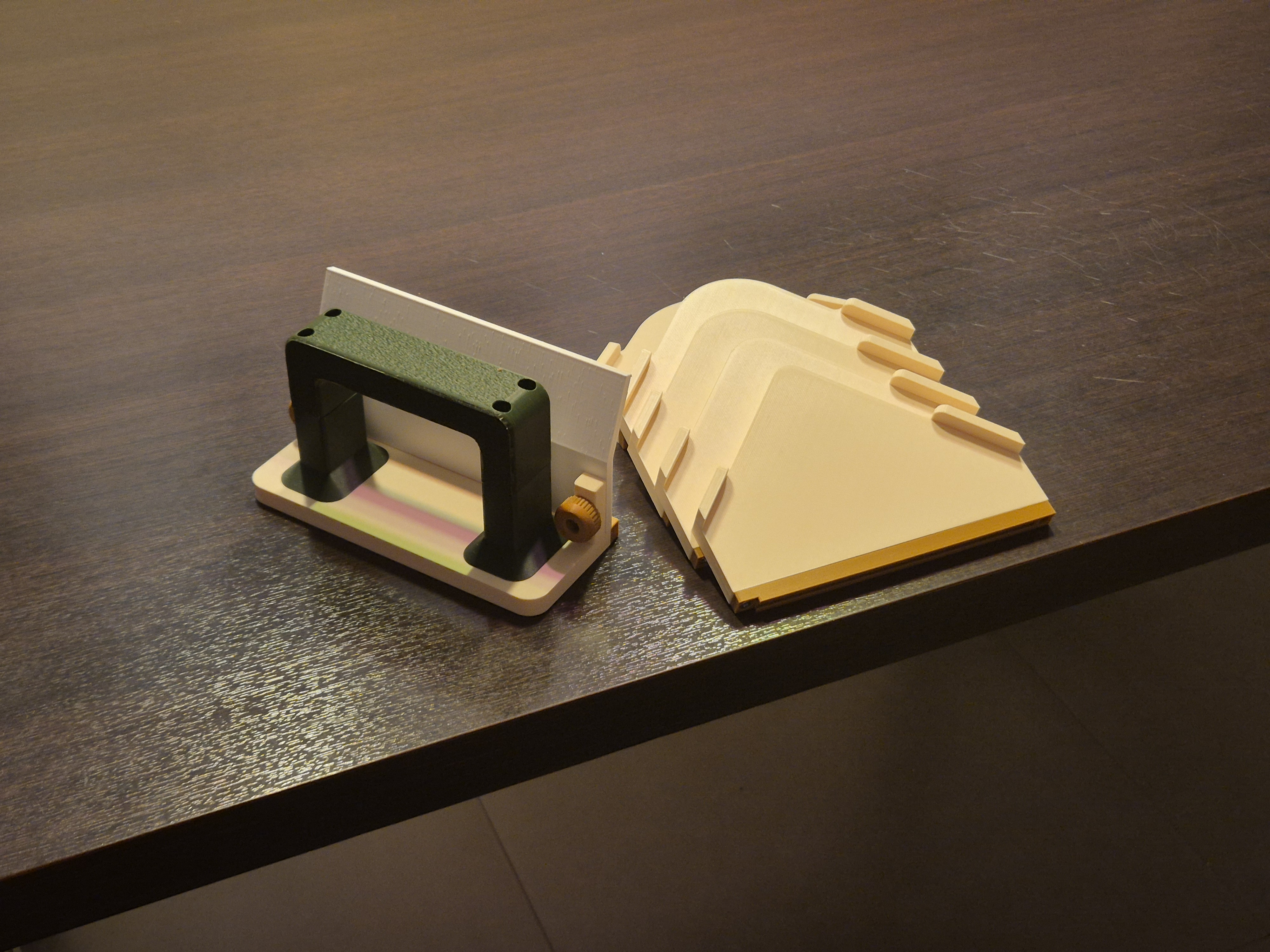

3. Corner Radius Guides Kit

Extend the system’s shaping capabilities with corner radius guides.

• Consistent Rounded Corners
  These guides allow the user to produce repeatable corners with clean, predictable results.

• Full Compatibility
  The guides mount is using the same side-rail interface as the main system, maintaining alignment and rigidity without additional adapters.

CONSIDERATIONS

This Modular Router System is not a simple accessory, it's a structural upgrade to your router work.

By combining a modular clamping base, guided movement, and integrated safety features, it enables precise, repeatable, and safer routing operations without sacrificing flexibility or creativity.

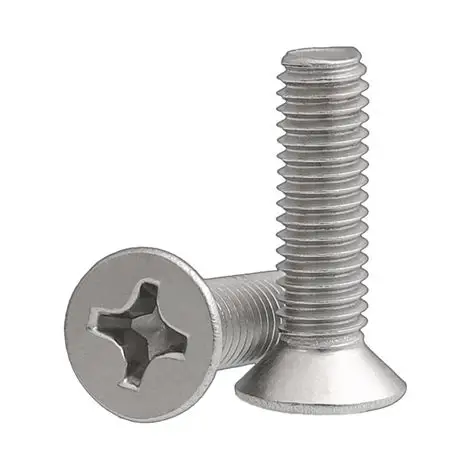

REQUIREMENTS 49x flat head screws (M3x16) (for full system)

Tredlux's wood working systems

Enjoy
