Parametric Tablesoccer Light
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Indoor Sports
- License
- Creative Commons — Public Domain

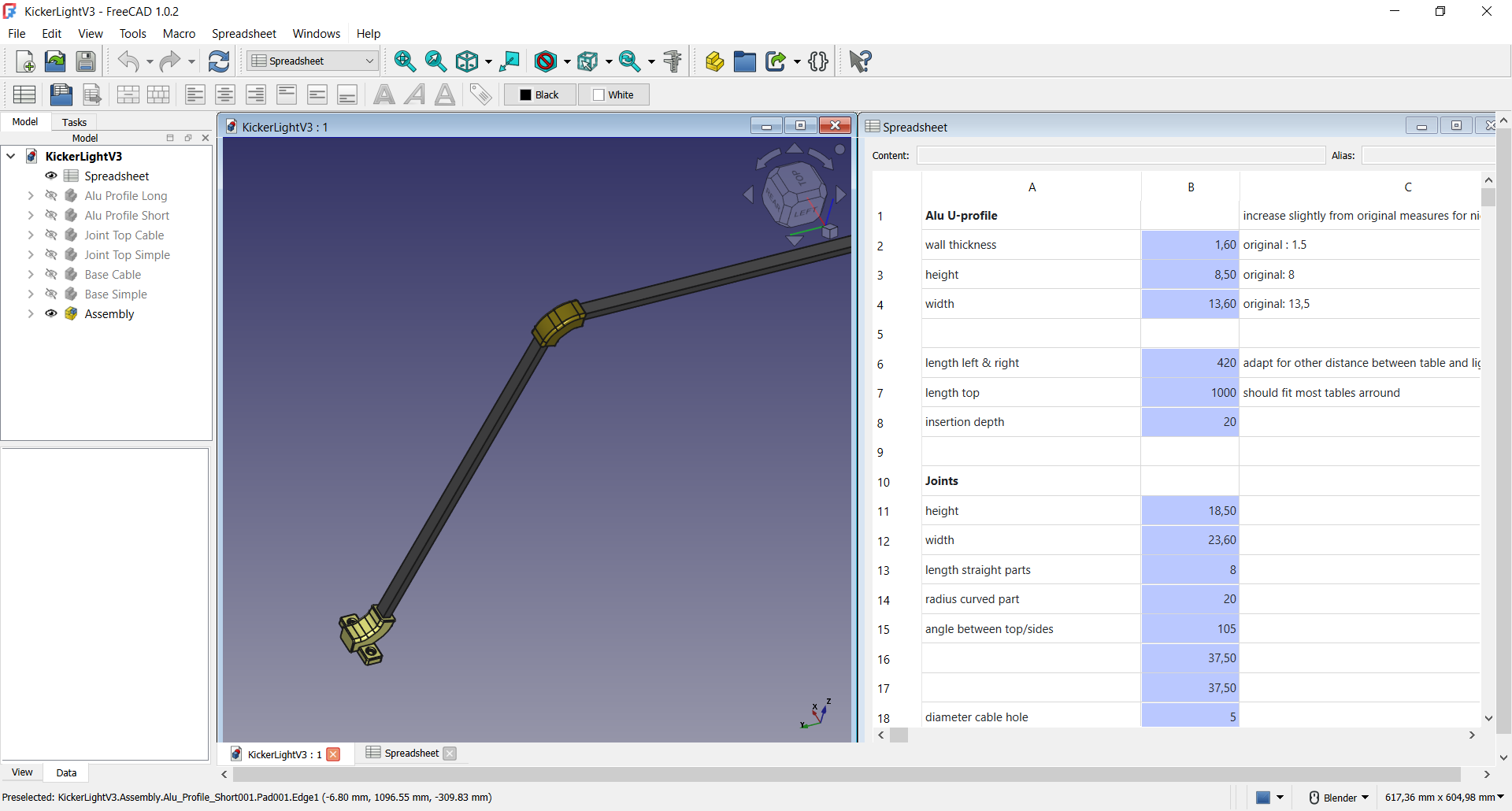

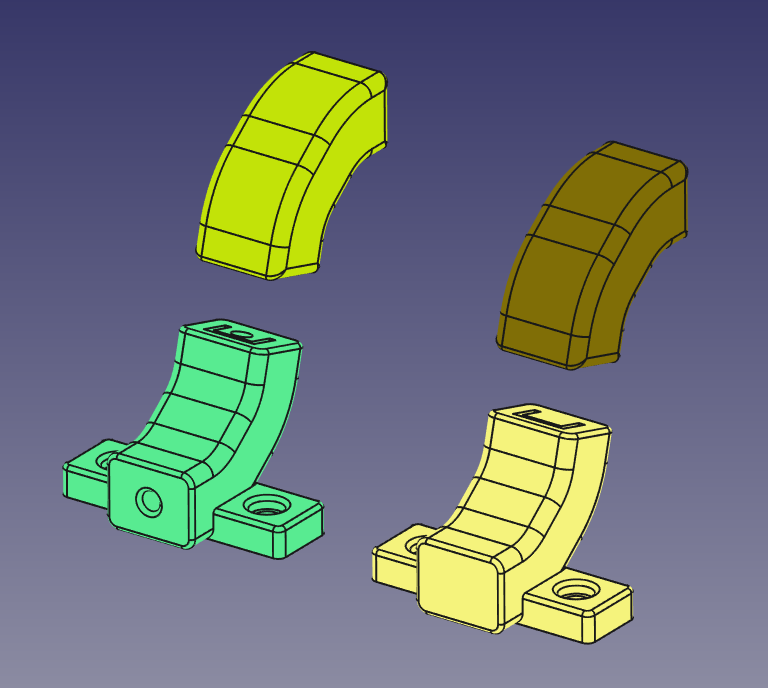

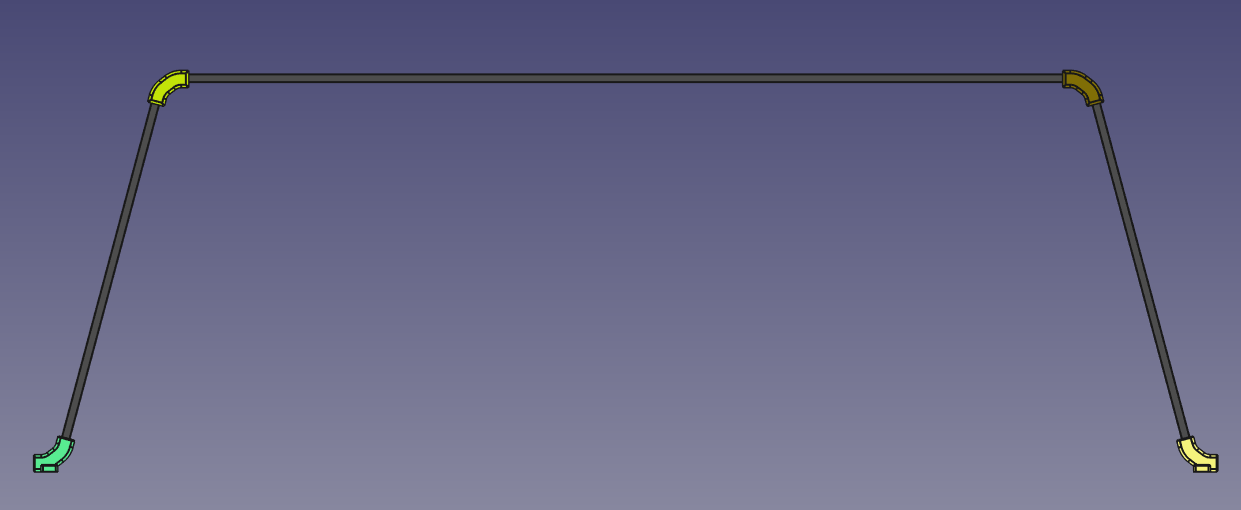

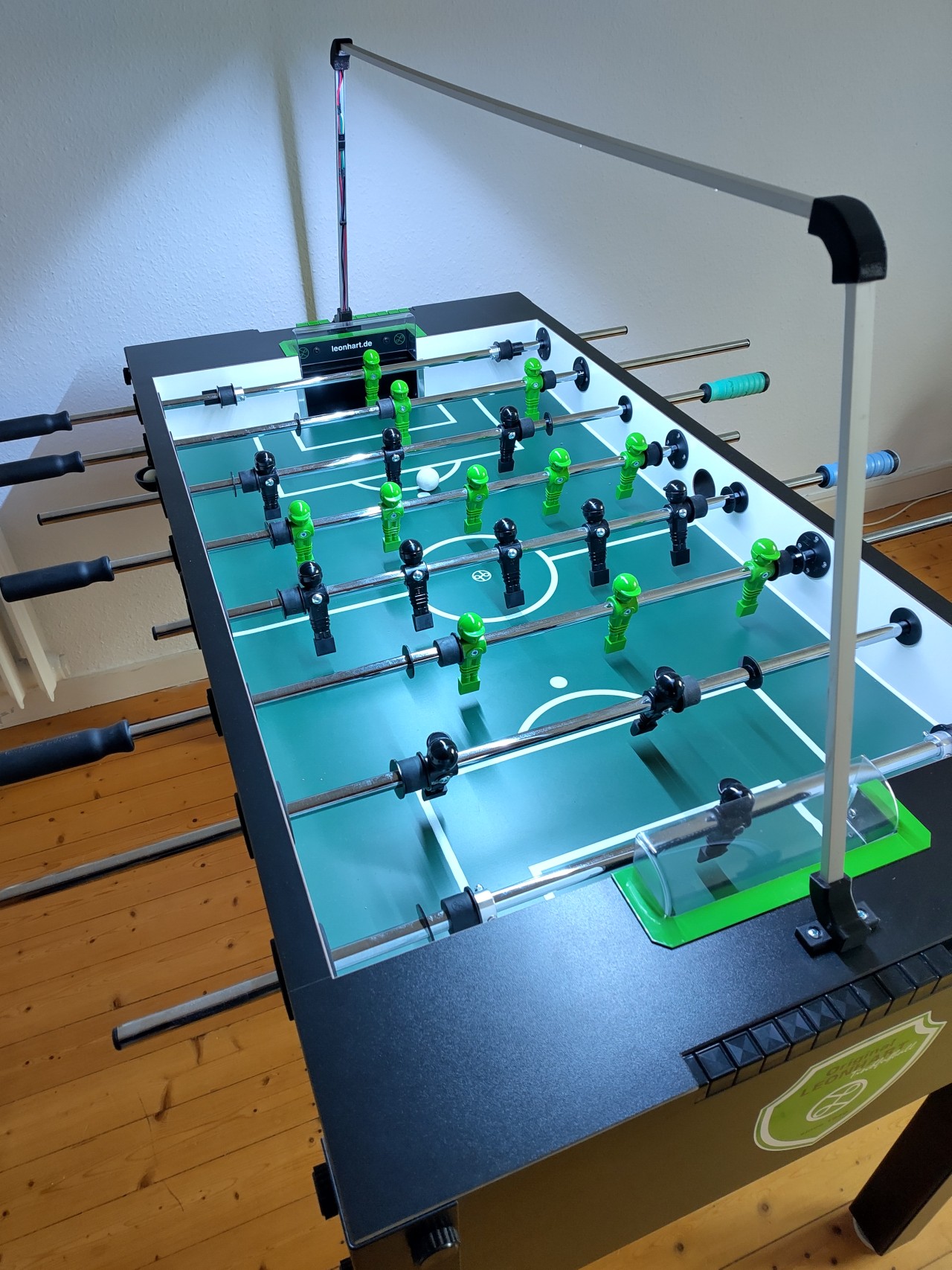

This parametric tablesoccer light is created with FreeCad 1.0.2. The dimensions are for a "Leo Home" table. Beside the four printed parts, you will need:

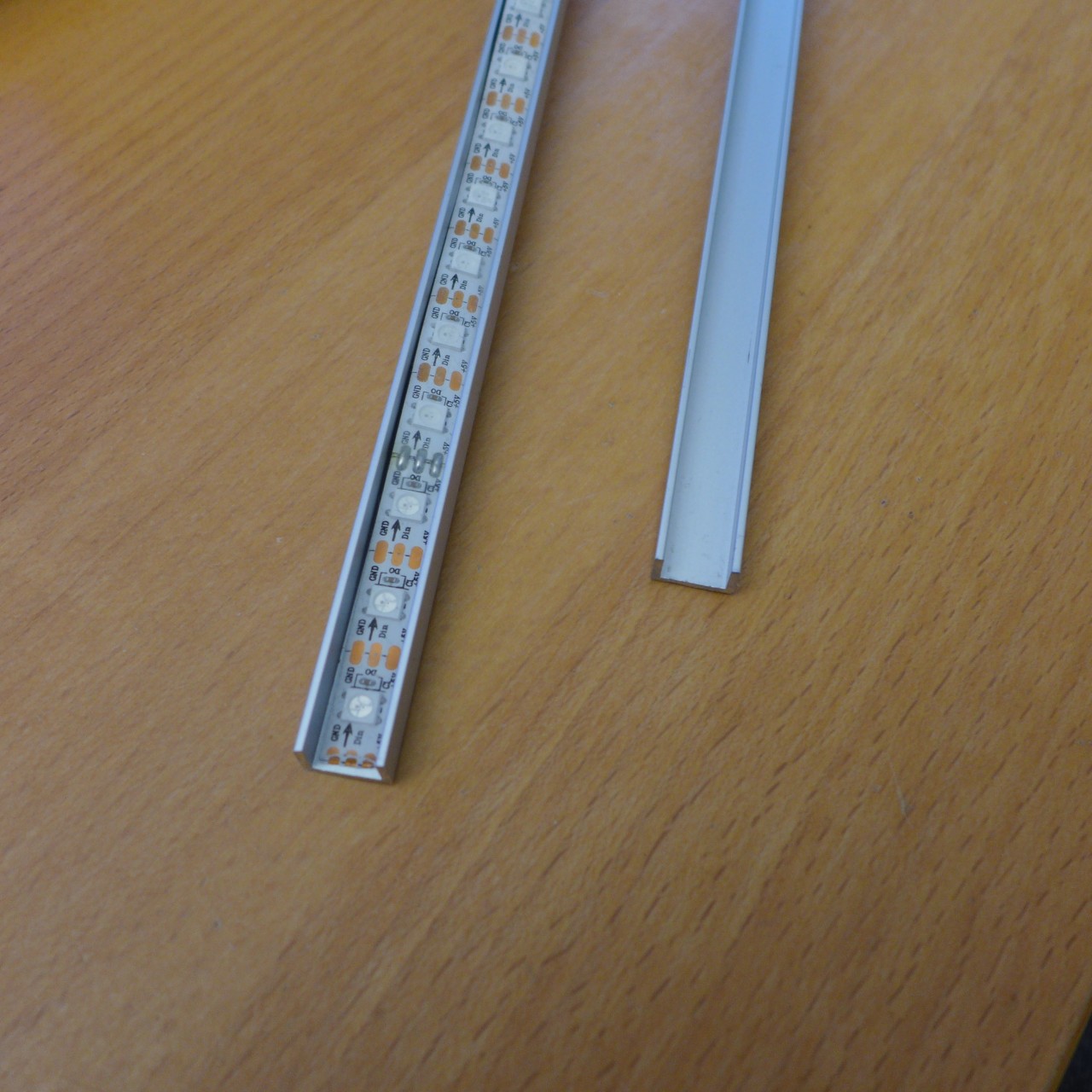

2m alu-u-profile, 13.5mm x 8mm, wall thickness 1.5mm.
approx. 1m LED - stripe, should fit in the profile, best self-adhesive

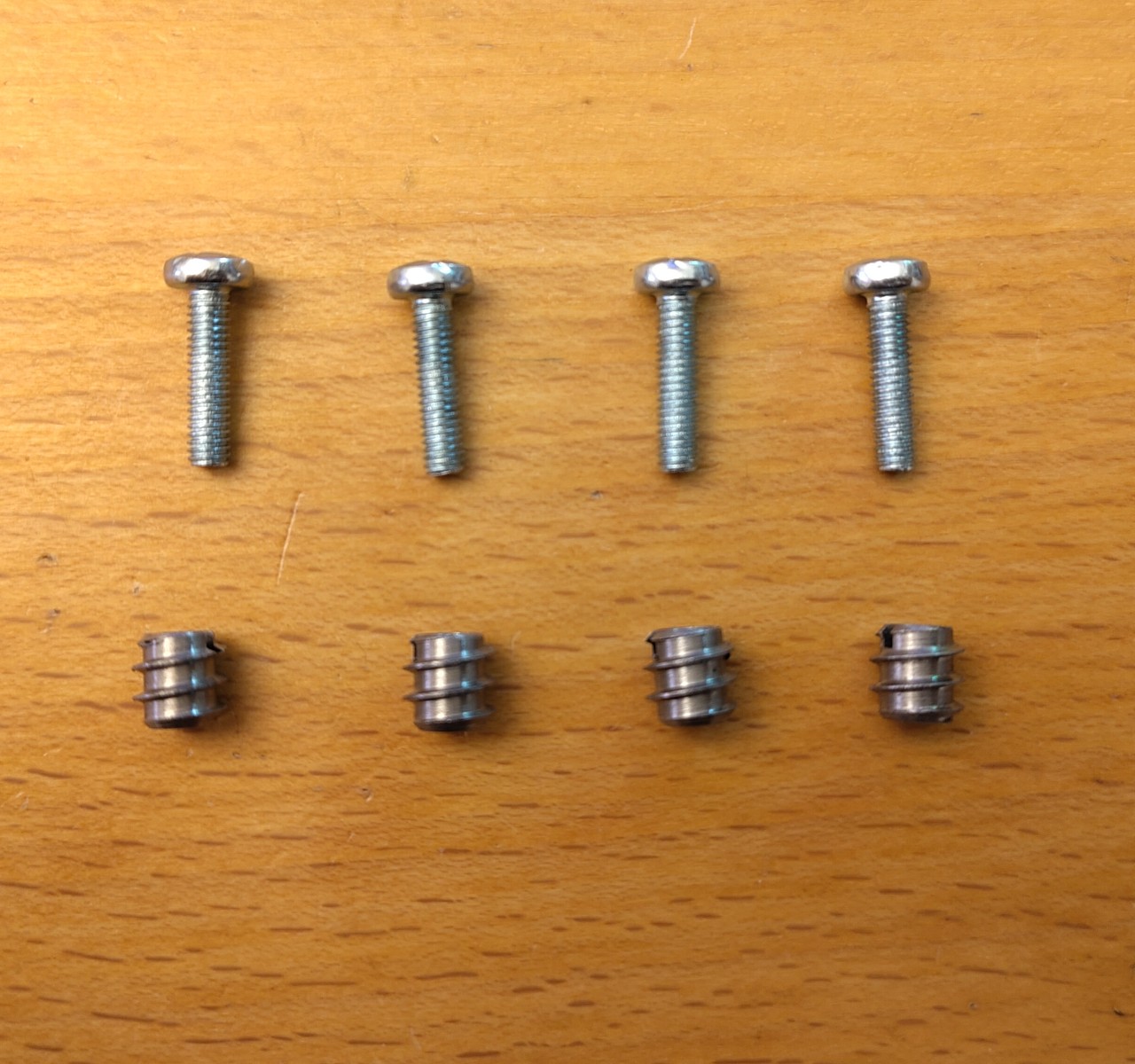

four M4 screws, approx. 16mm long
four M4 threaded inserts
Feel free to adjust the dimensions to your own table & needs. I printed all parts with PLA and 40% infill.
