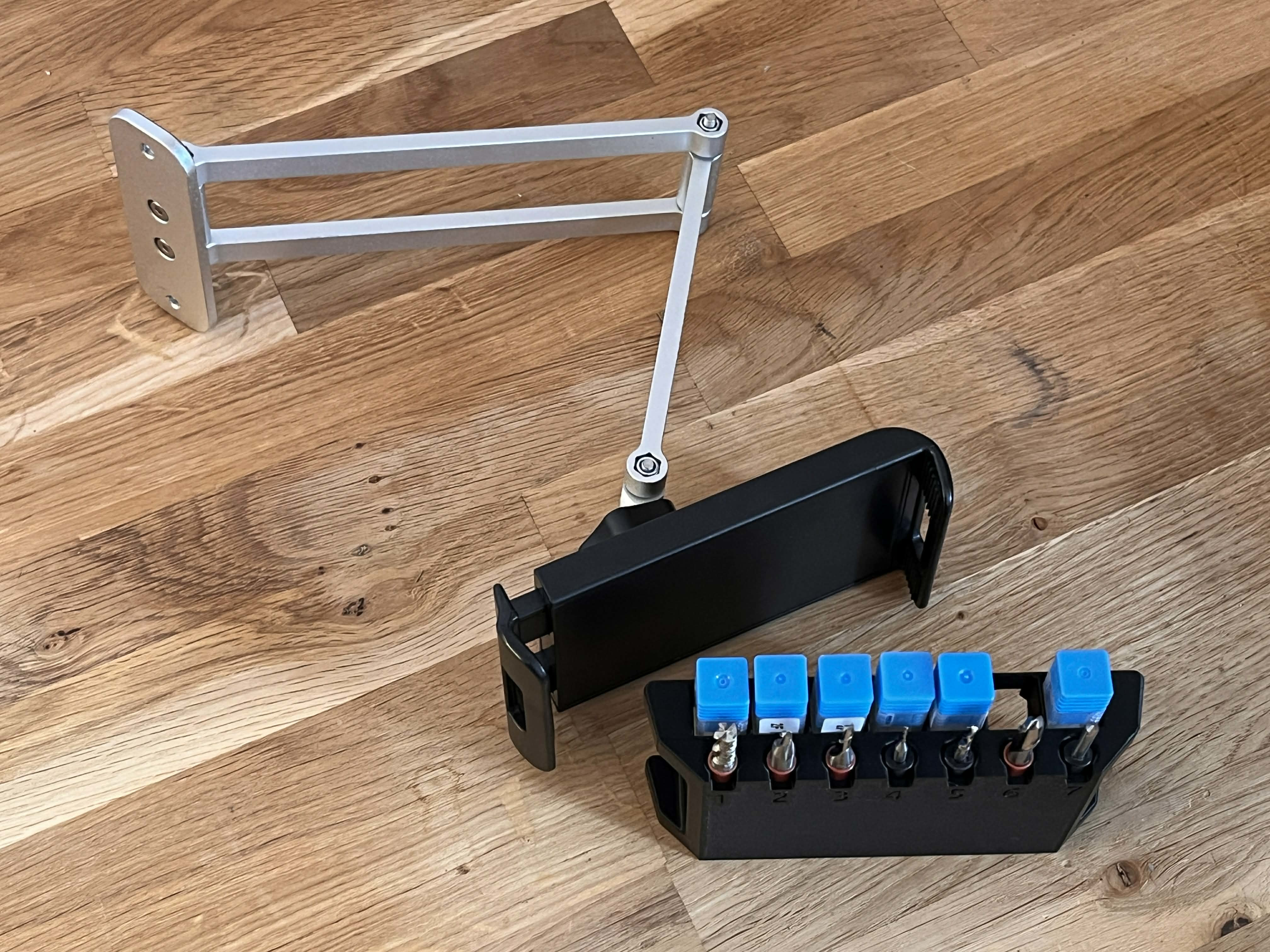

A 3D-printable tool insert for the Makera Carvera Air CNC that fits the universal phone/tablet mount that is included with the CNC.

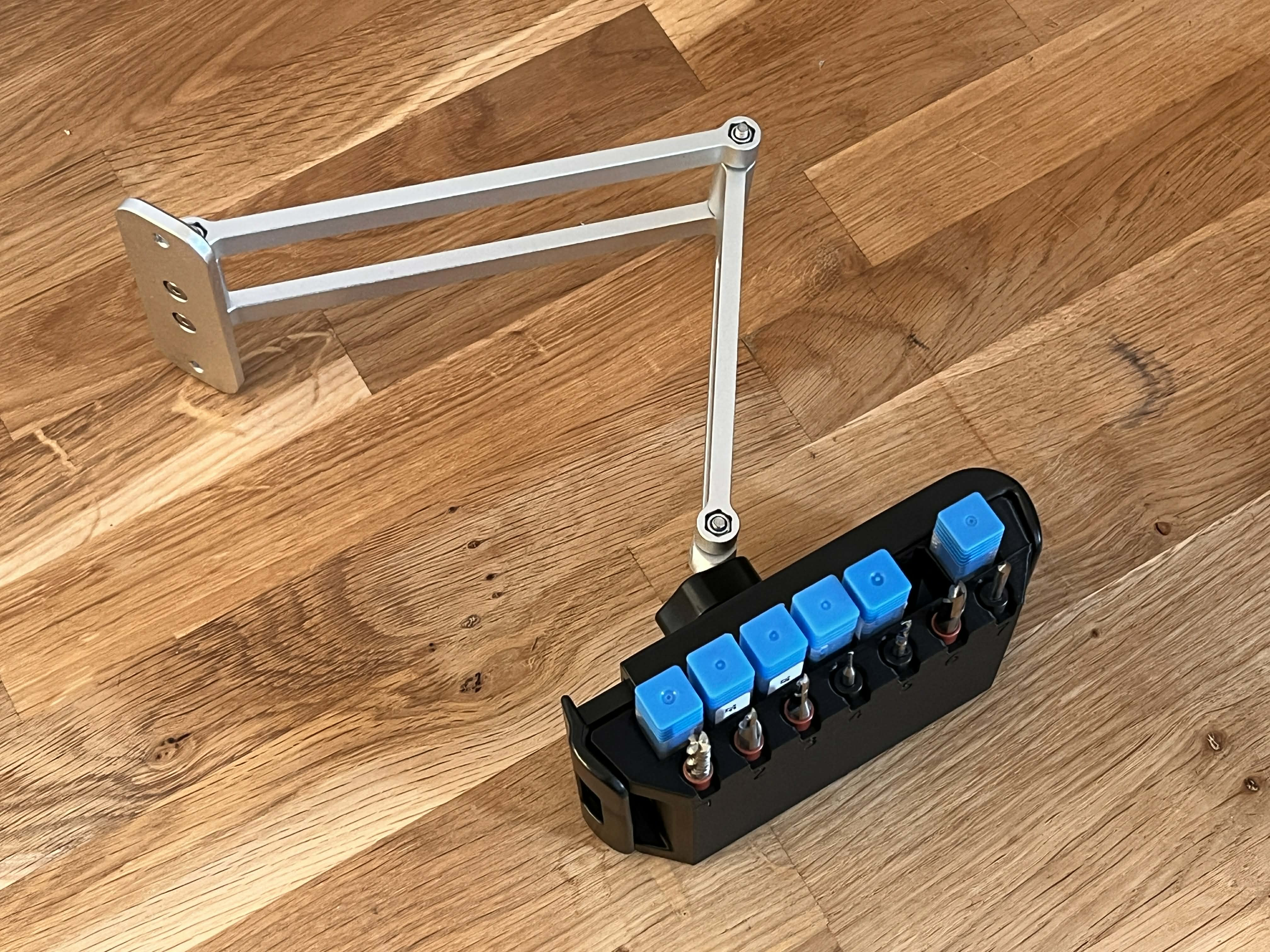

The tool insert fits one to seven tools including their storage case for easy organization and overview. It is really convenient to be able to have the insert and tools in front of you while you program the CAM. When you are done, simply take the insert and fit it in the Carvera Airs included universal phone/tablet mount and you are all set to go for the upcoming tool changes.
The insert fits tools ranging from 3.175 to 6mm. Note that 6.35mm (1/4 inch) tools might fit but you probably need to drill out the hole in order for good tolerance since the hole is designed to be 6.5mm.
The tools need to have bit collars fitted (The ones supplied by Makera).
Included files are;
- Carvera Air Tool Insert blank (No text)
- Carvera Air Tool Insert with text 1-7
- Carvera Air Tool Insert with text 8-14
It is recommended to print the tool insert with the front facing down (the side with the text) since that is how the insert is optimized for 3D-printing.
If you like the design, I would really appreciate if you comment and post a make! :)
Hope you like it!
Best regards,
Floppy_Moose
