Harbor Freight Stackable Tilt Bin Bin Inserts - Windowed and Windowless

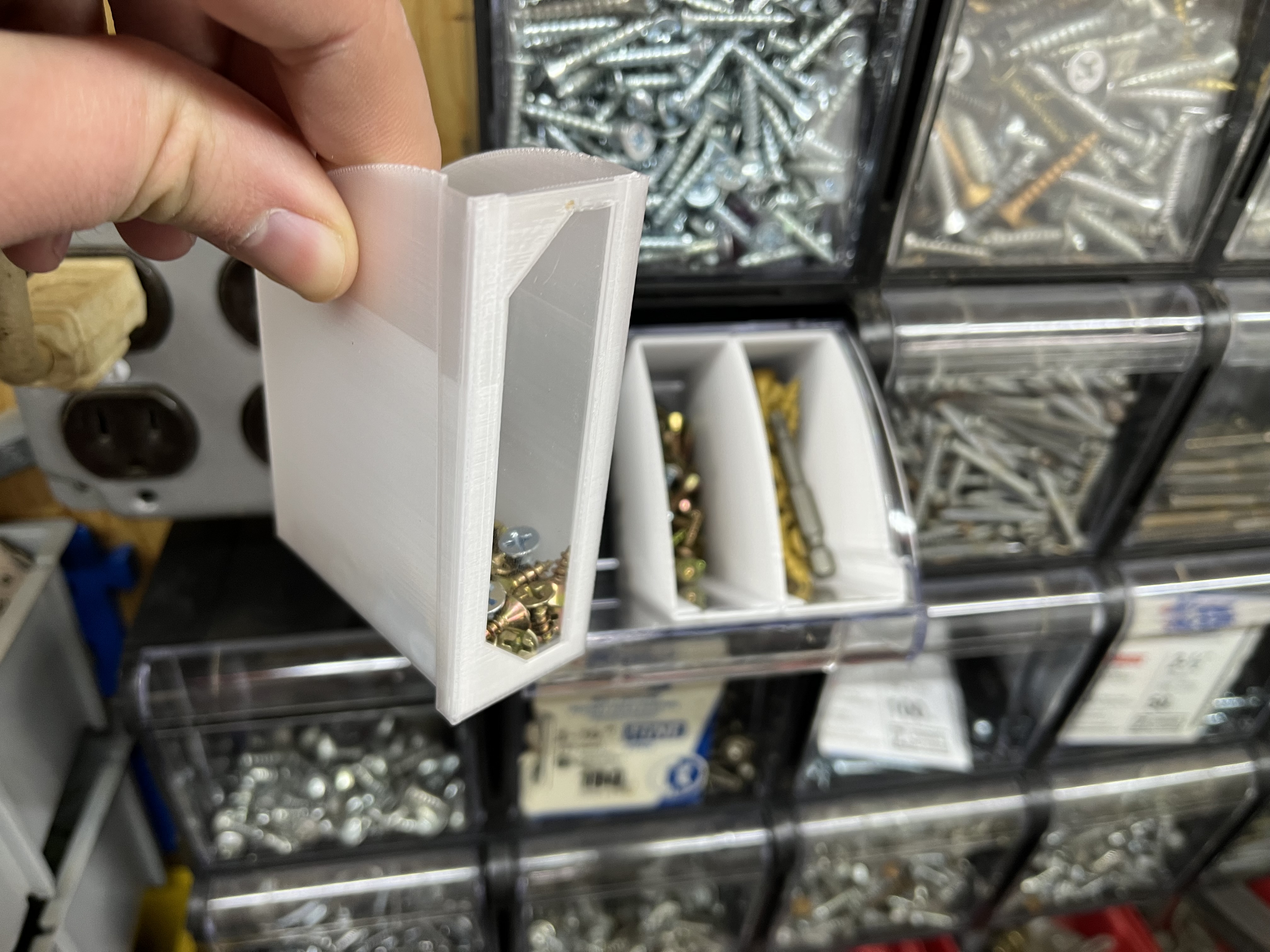

The Storehouse 4-inch stacking tilt bins from Harbor Freight (SKU: 56327) are a fantastic deal and a very functional product, but there are certain types of hardware that are small or I have a small quantity of that don't need that volume. To that end, I have created these bin inserts that allow you to split the bins into two or three independent, removable sections. While I was able to print all of these without support material, if your printer would struggle with bridging 10mm or so, you might want a little support on the underside of the window frames.

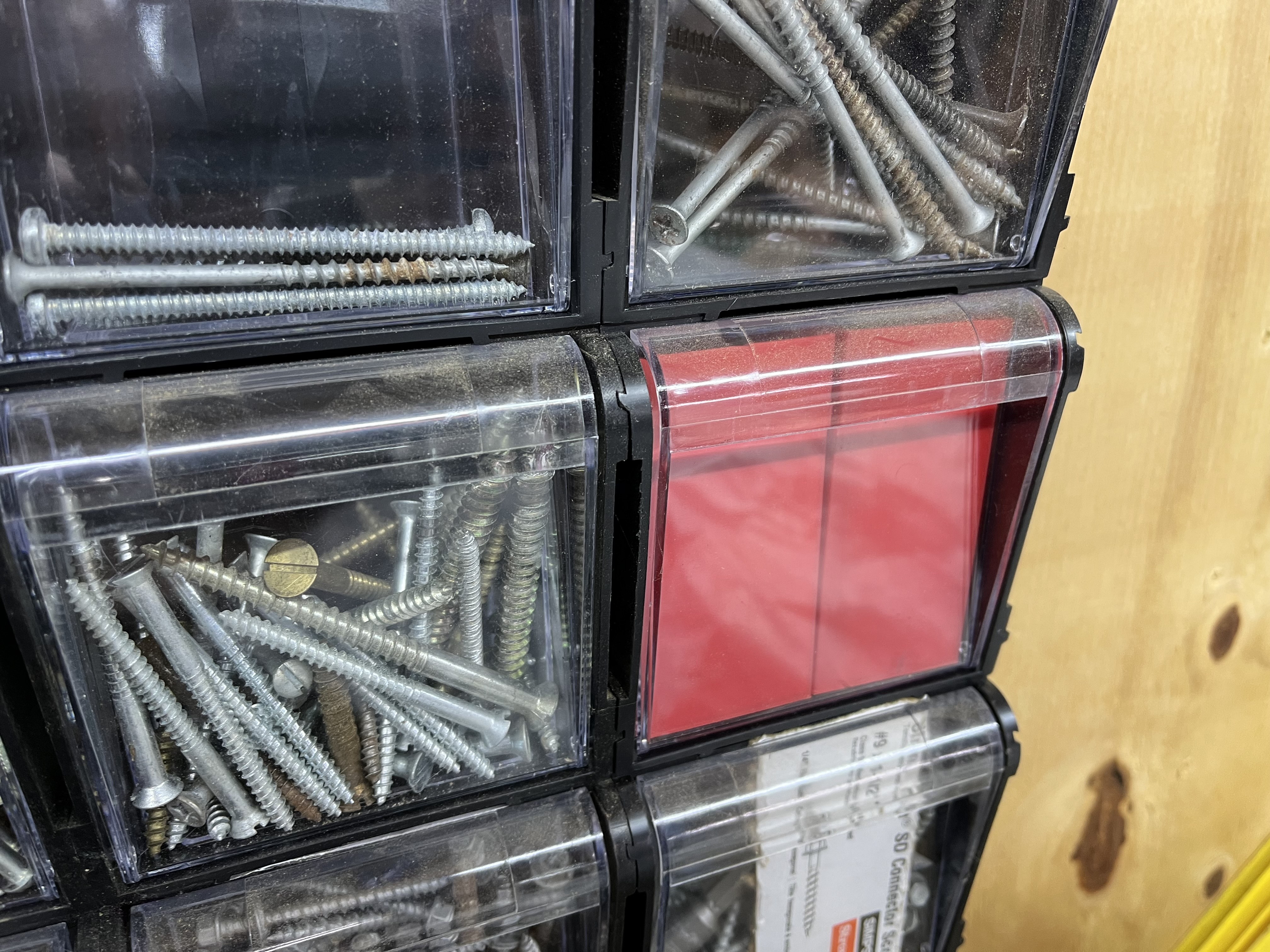

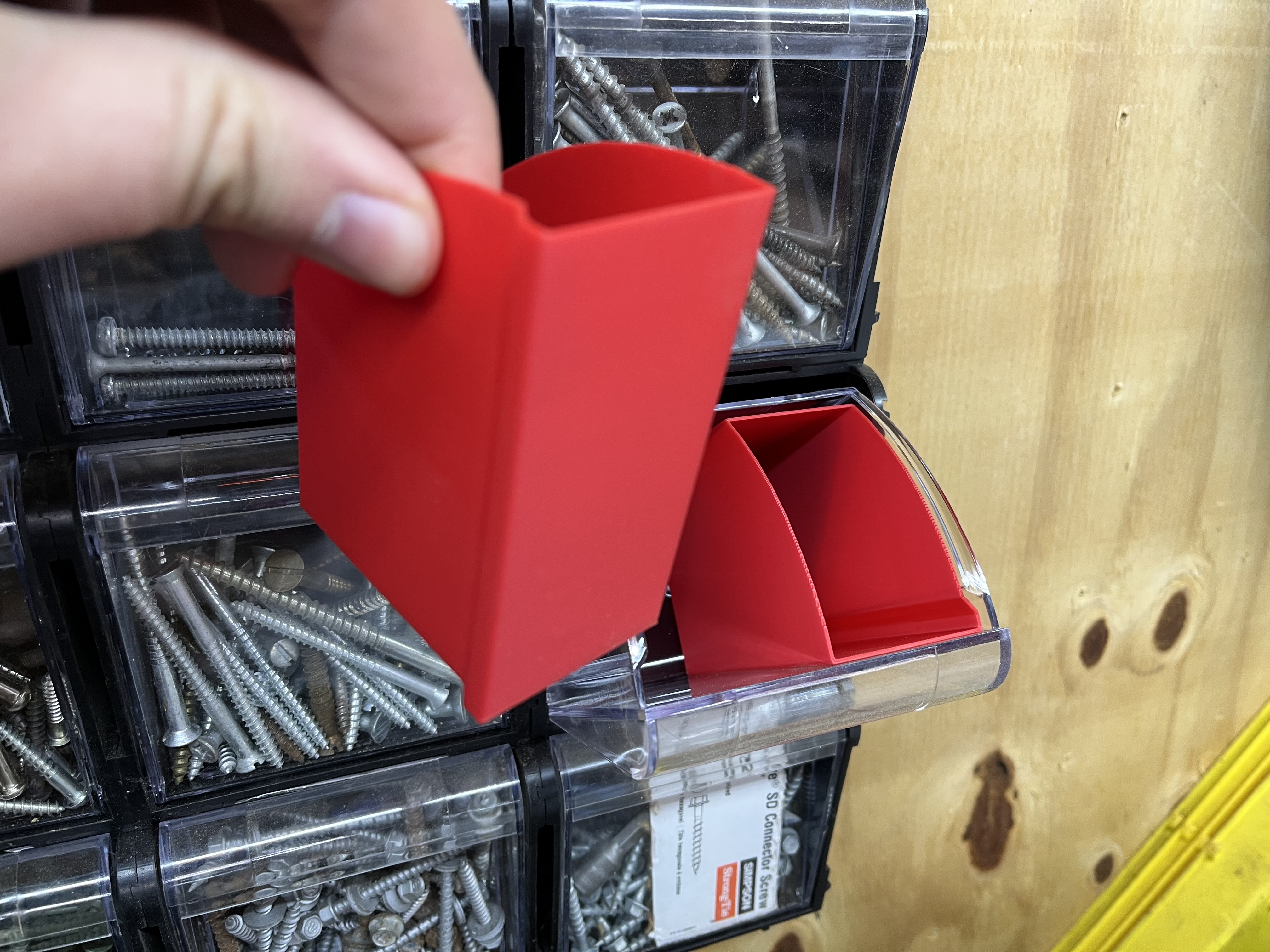

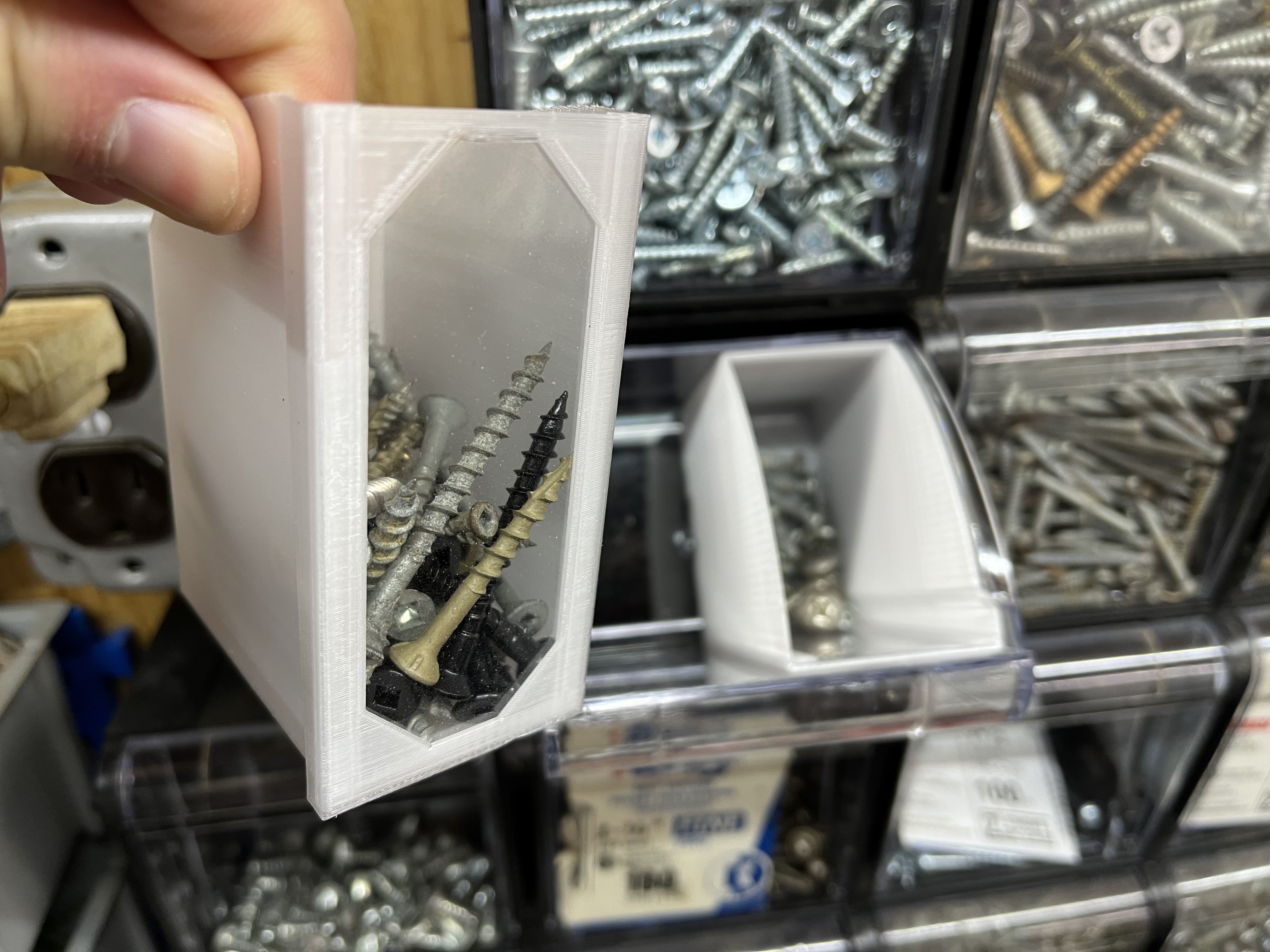

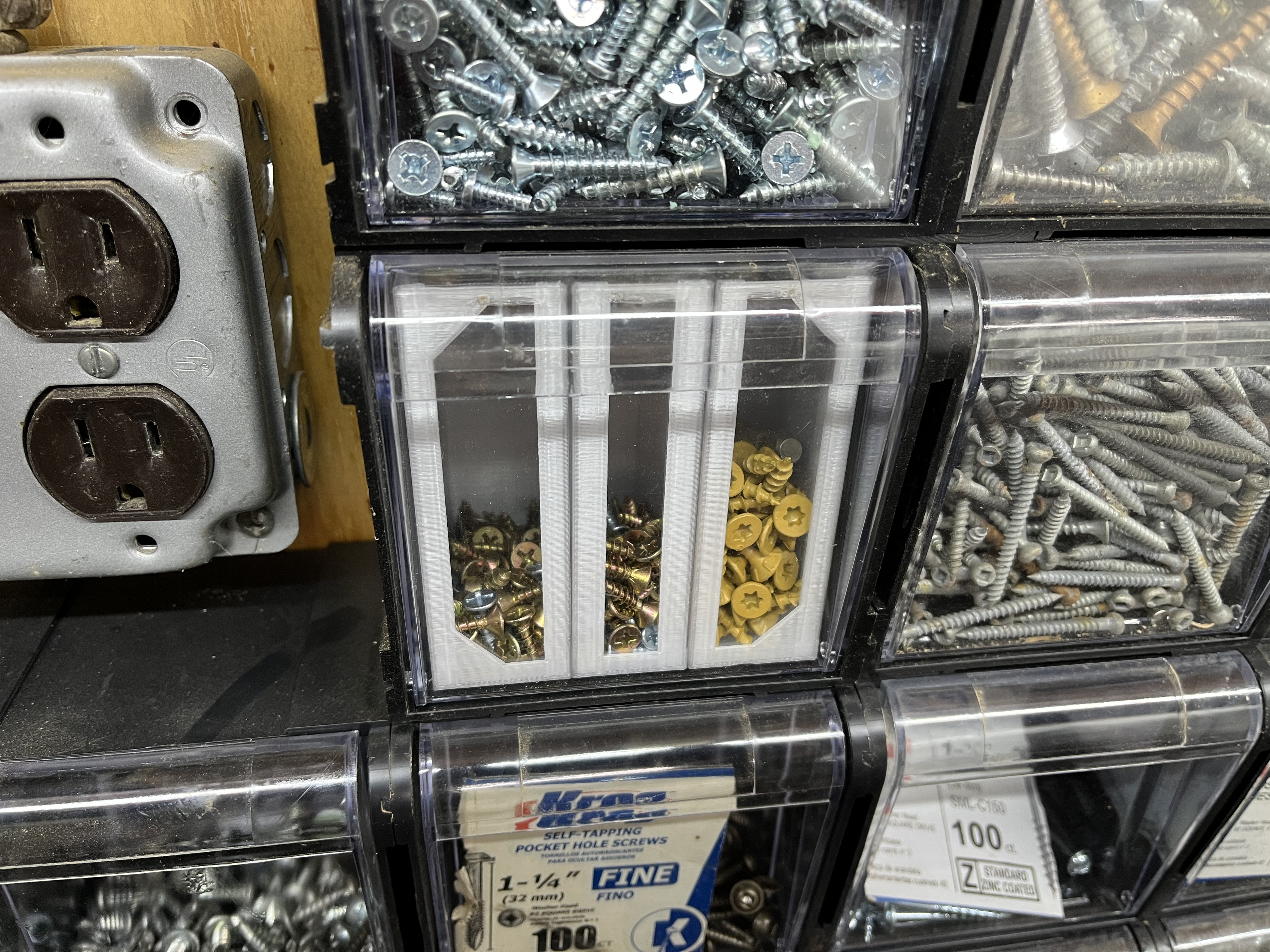

Looking for a tough, yet flexible solution that prints rapidly and requires little fuss, but you don't need to see the contents from the outside, then you might be satisfied with the windowless versions. If you are willing to do a little post-printing work to be able to see the contents of each bin insert through the bin, then consider the windowed version.

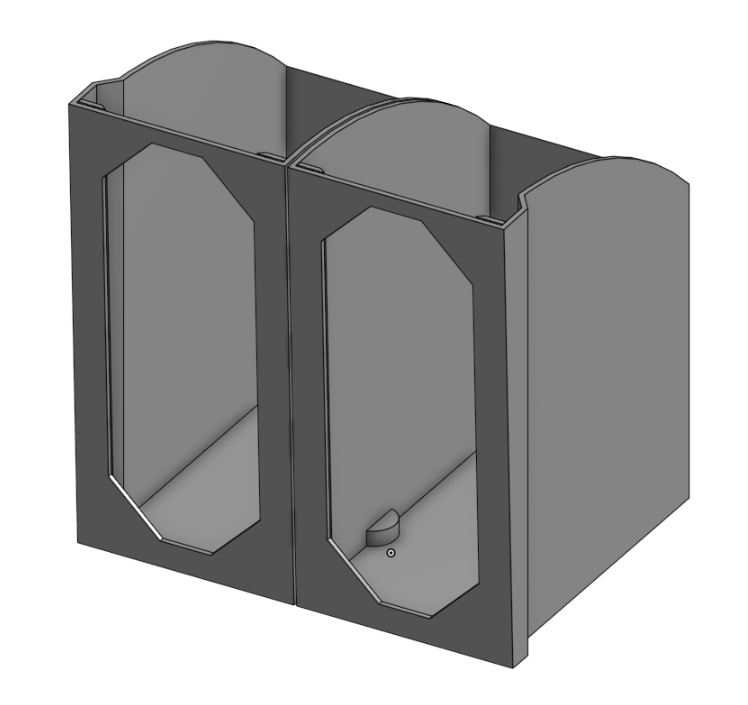

The windowed models are configured to hold soda bottle plastic (or whatever PET bottle with enough flat area to accommodate), and the sizes you would need to cut the material to are as follows:

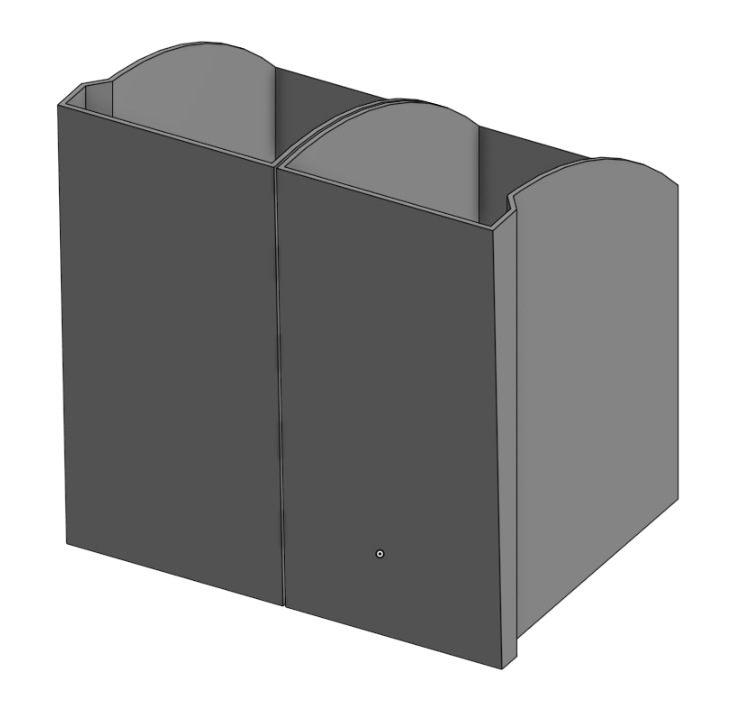

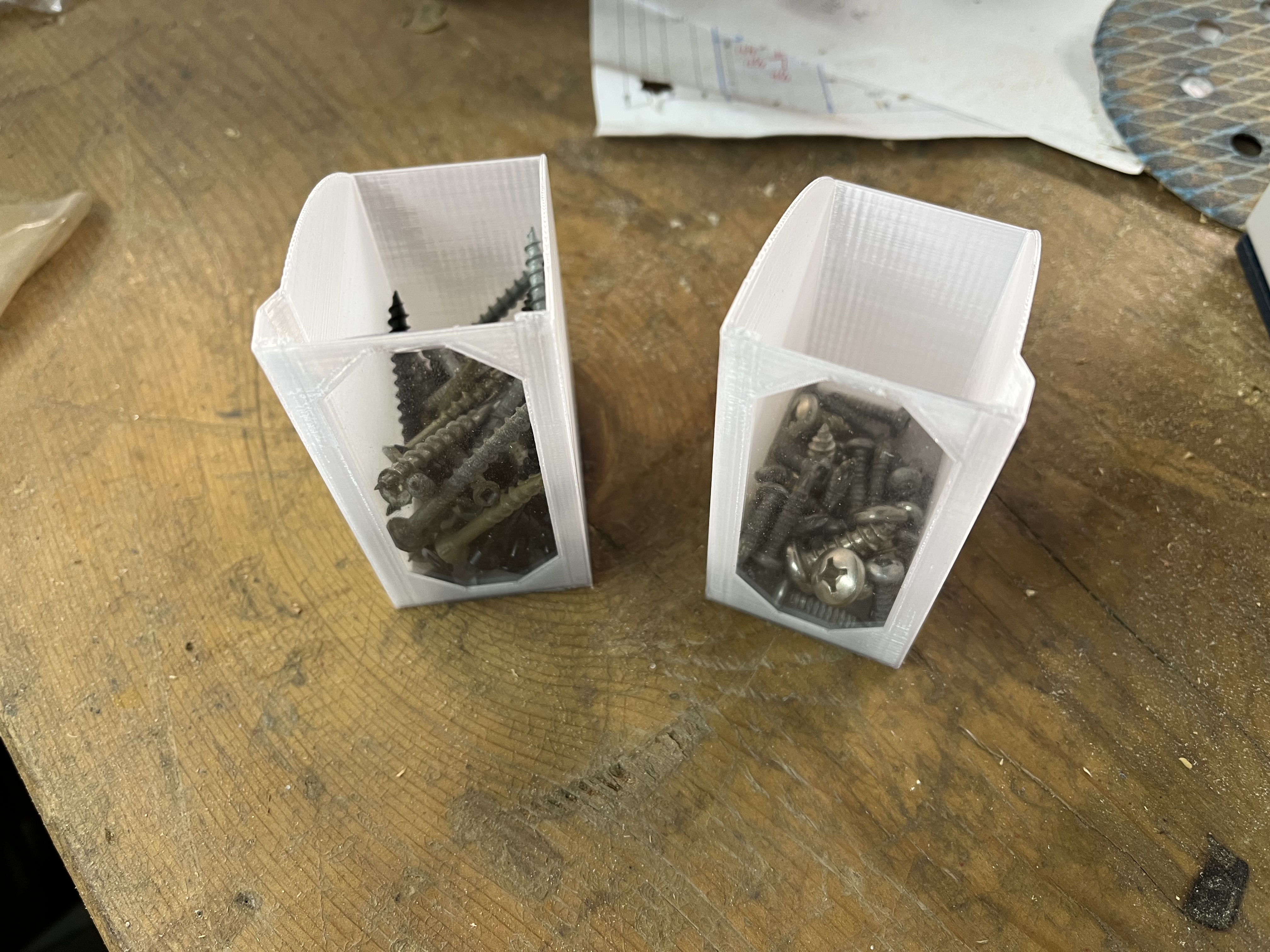

Double Bins

• Qty 2 - 36-40mm wide X 84-87mm tall

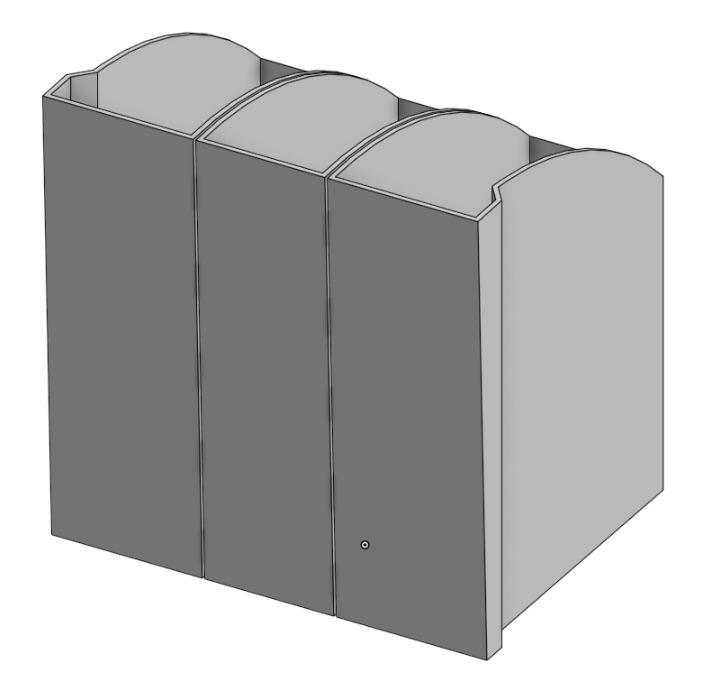

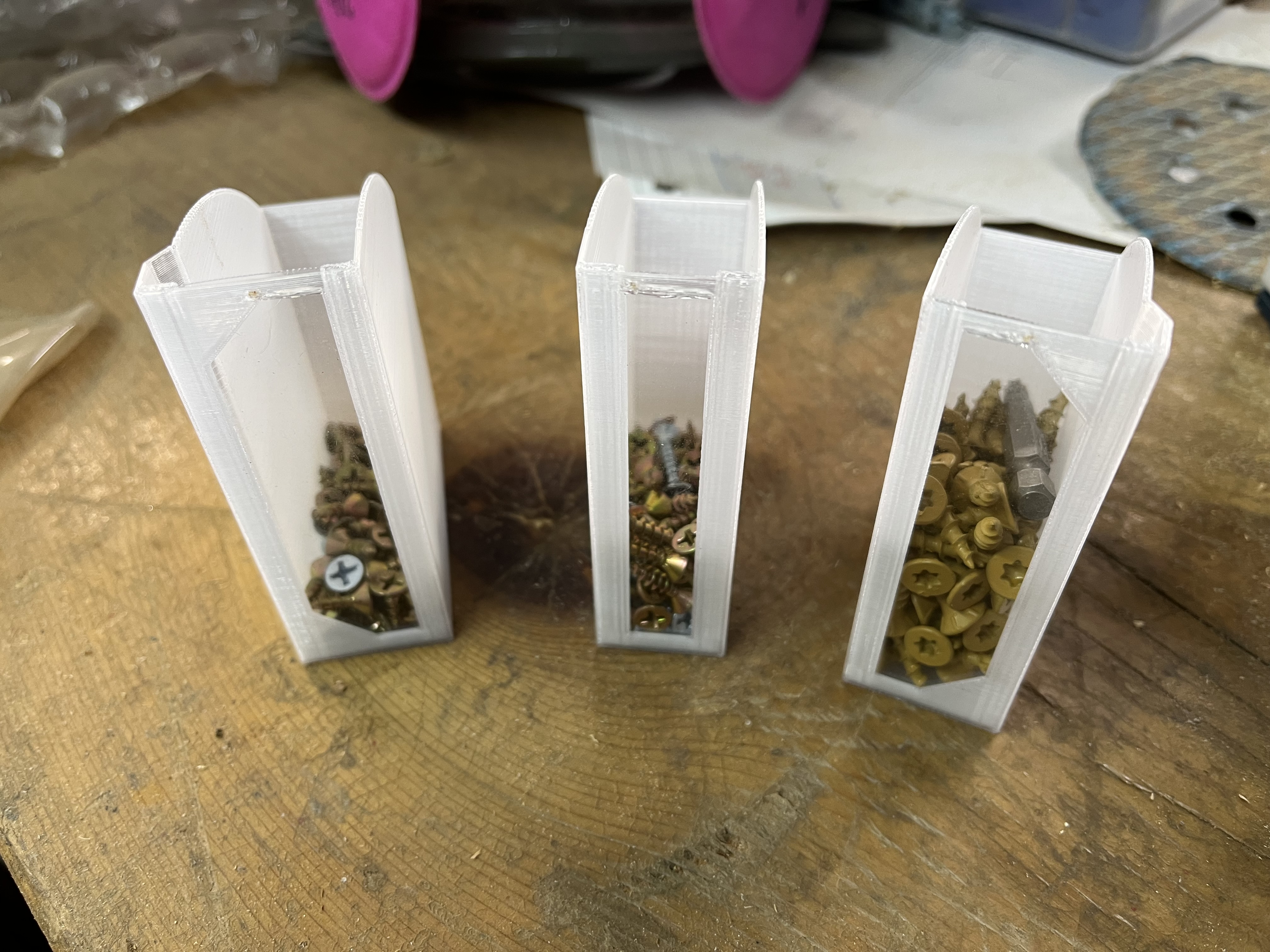

Triple Bins

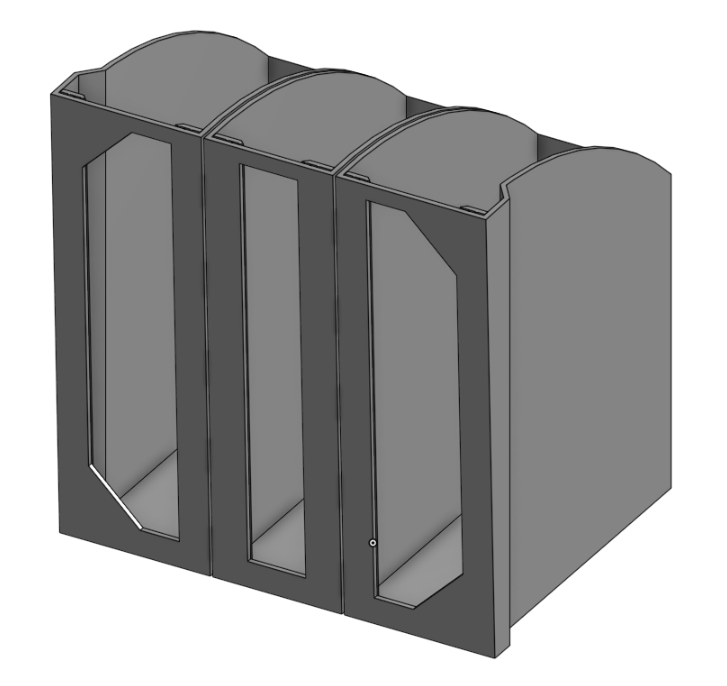

• Qty 2 - 23-27mm wide X 84-87mm tall

• Qty 1 - 18-23mm wide X 84-87mm tall
