FAN DUST FILTER (4 VERSIONS) (PLEASE NOTE: THE MODEL IS AVAILABLE FOR FREE DOWNLOAD, BUT COMMERCIAL USE IS ONLY POSSIBLE THROUGH ONE OF OUR MEMBERSHIPS!)

We just added a new practical model to our library: the Fan Dust Filter.

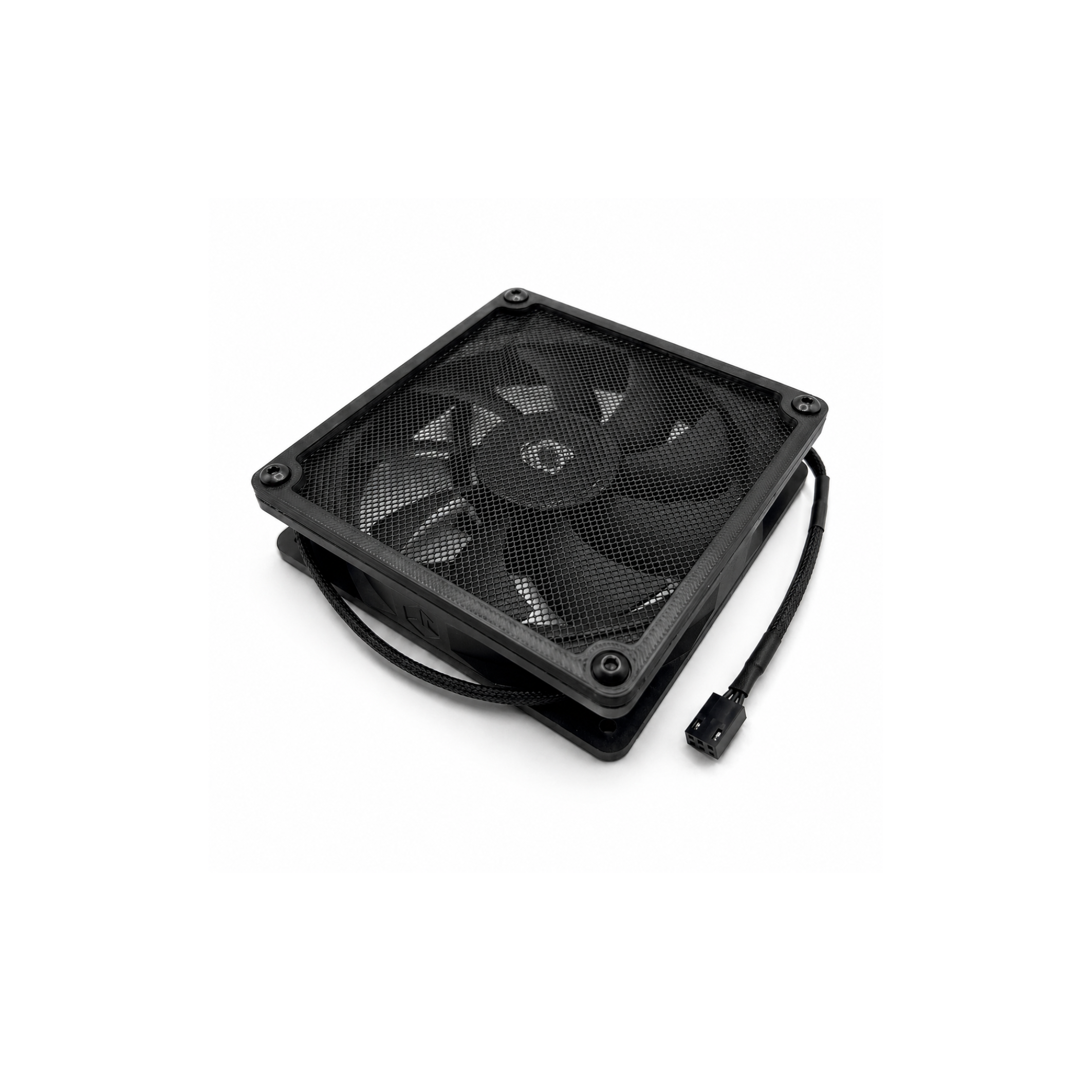

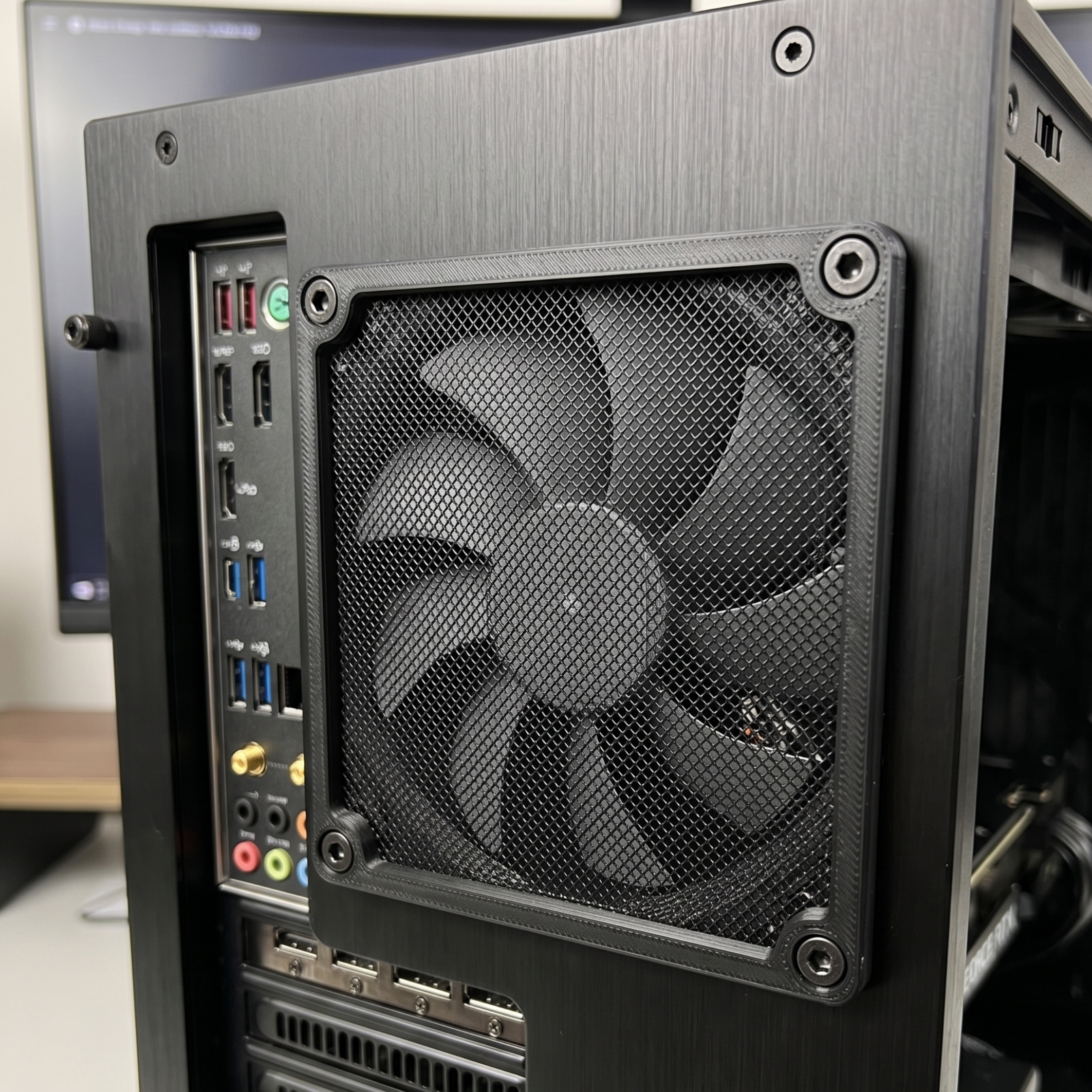

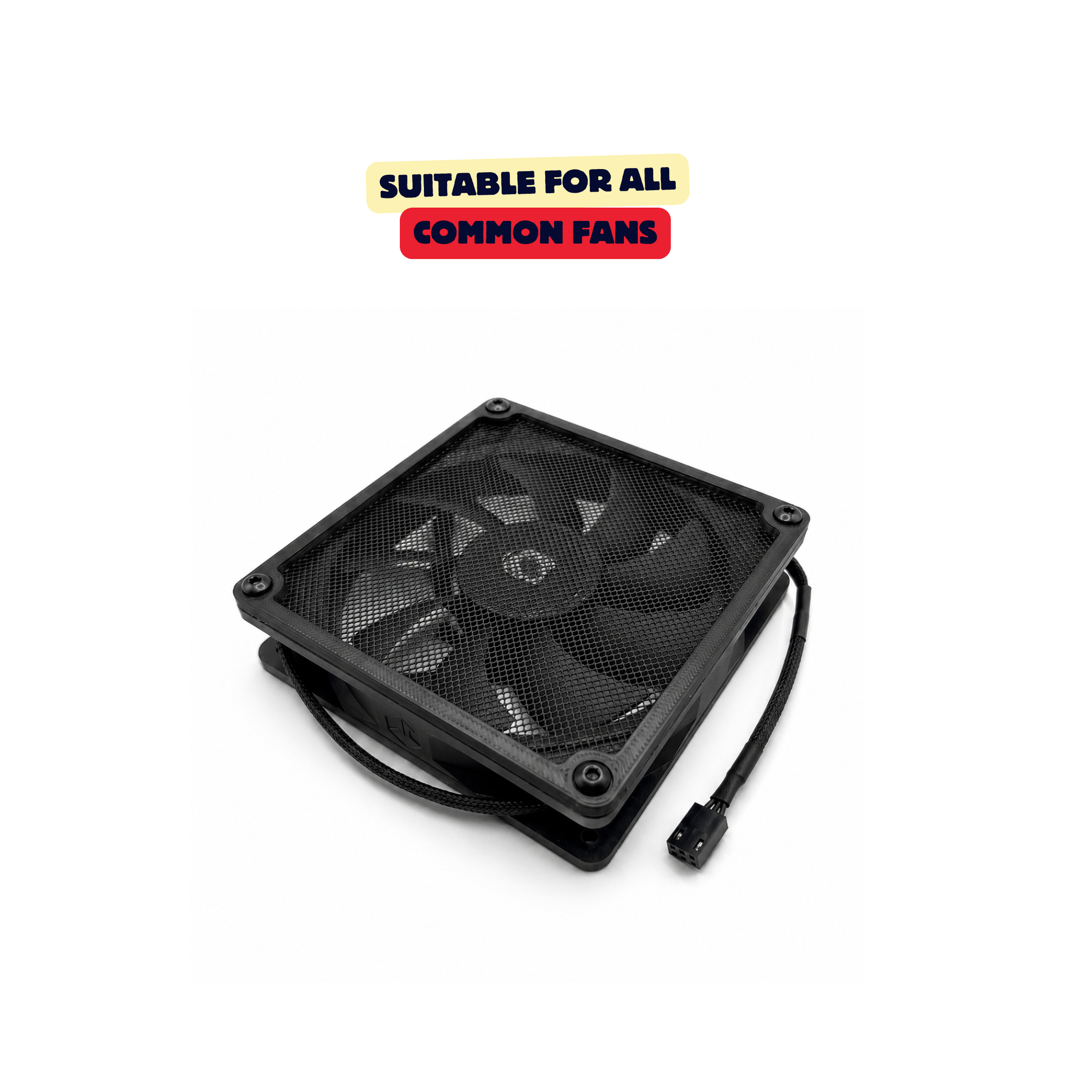

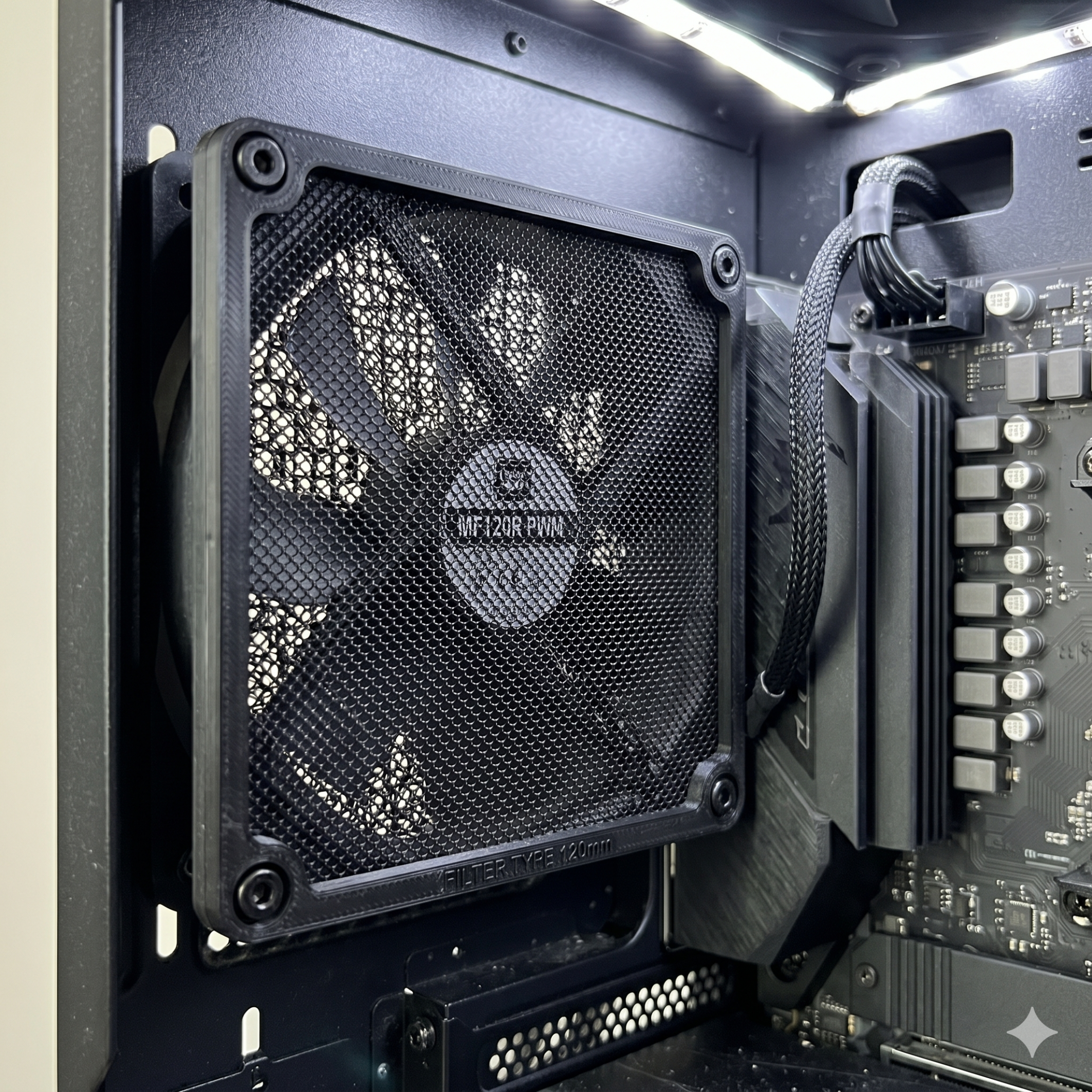

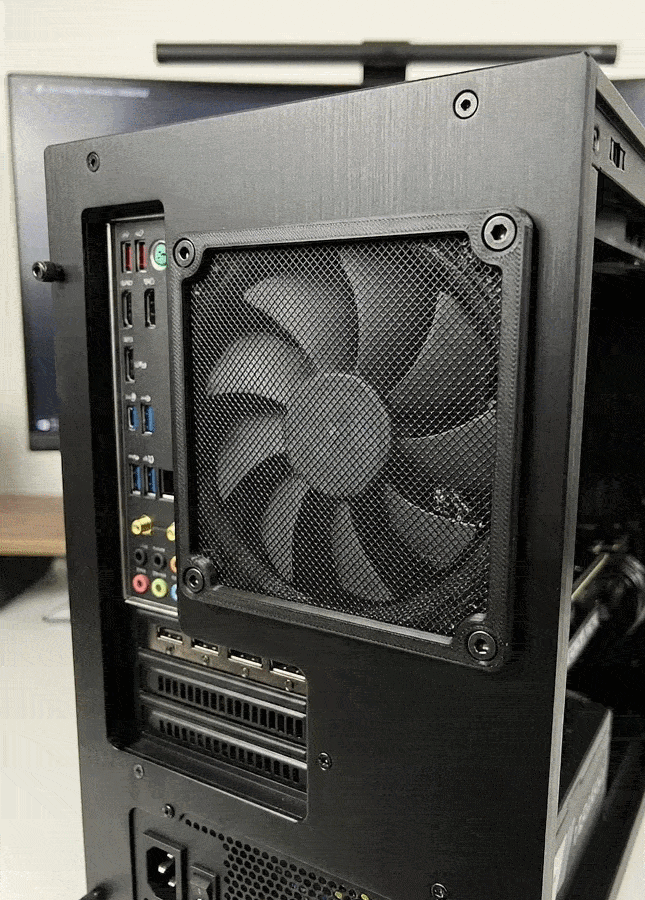

This model is designed to help protect your PC, electronics projects, workstations, enclosures, and other fan-based setups from dust while still allowing good airflow. It comes in multiple common fan sizes, making it easy to find the right fit for your setup.

This is a simple but very useful part for anyone who wants to keep dust away from fans and internal components while maintaining a clean setup.

NO SUPPORTS NEEDED!

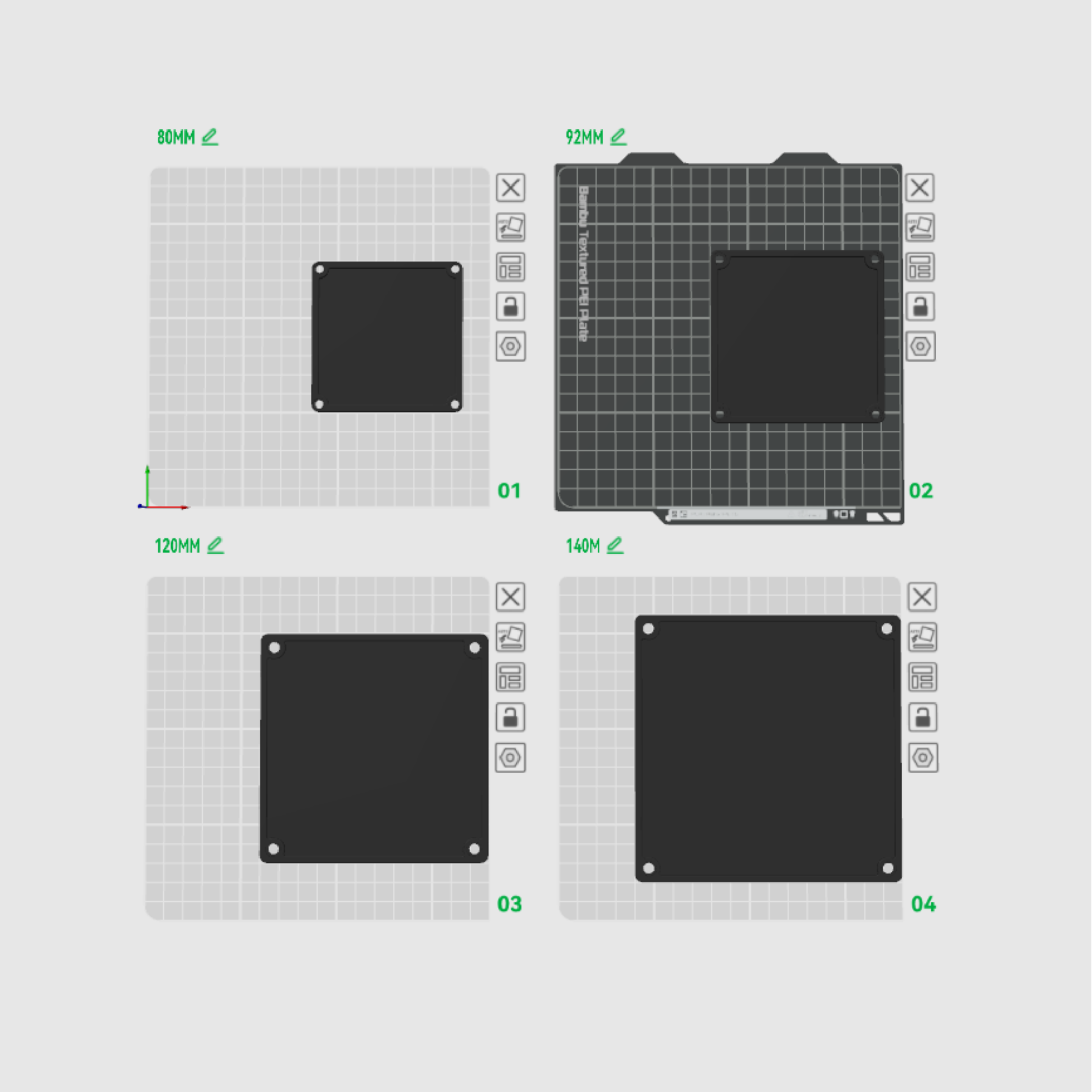

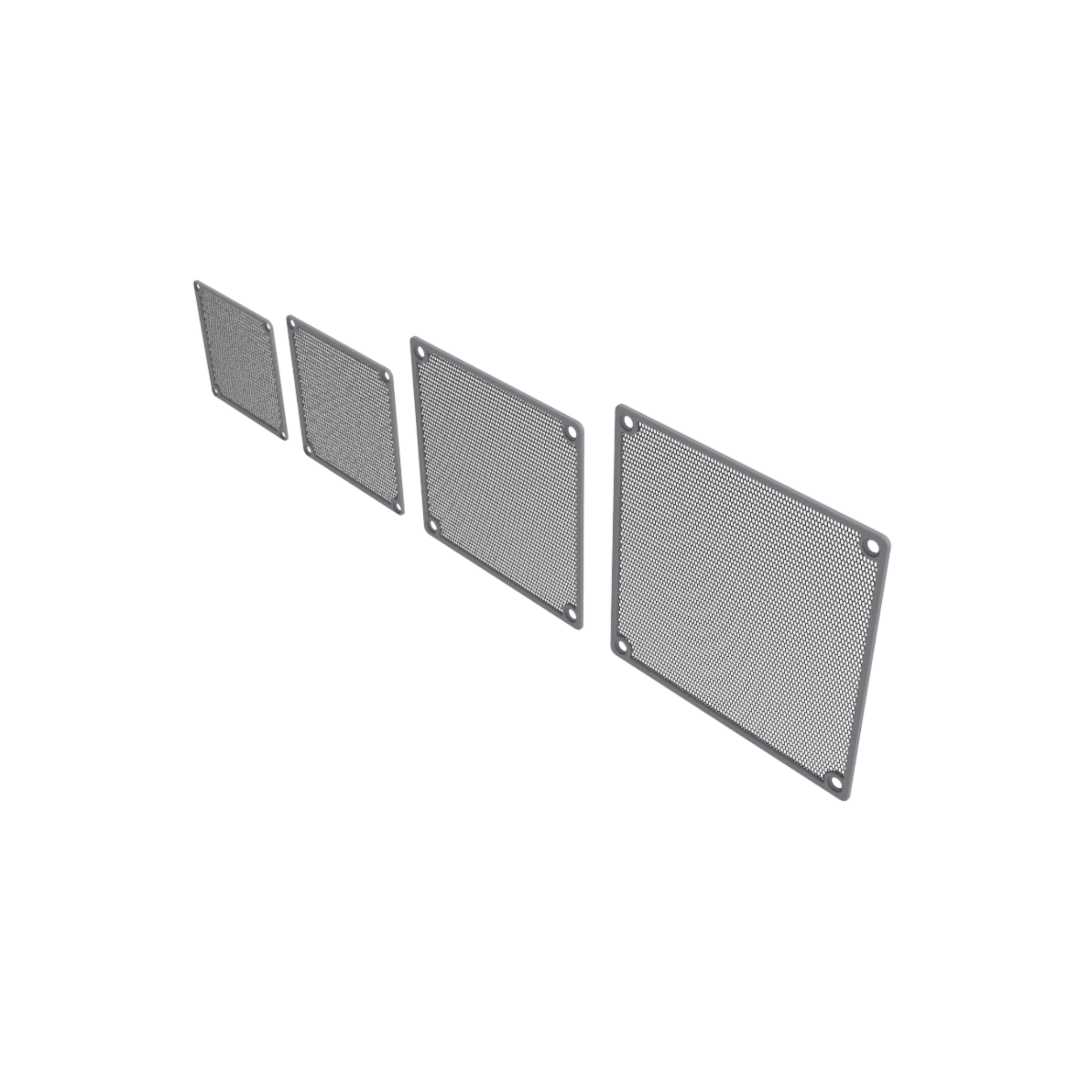

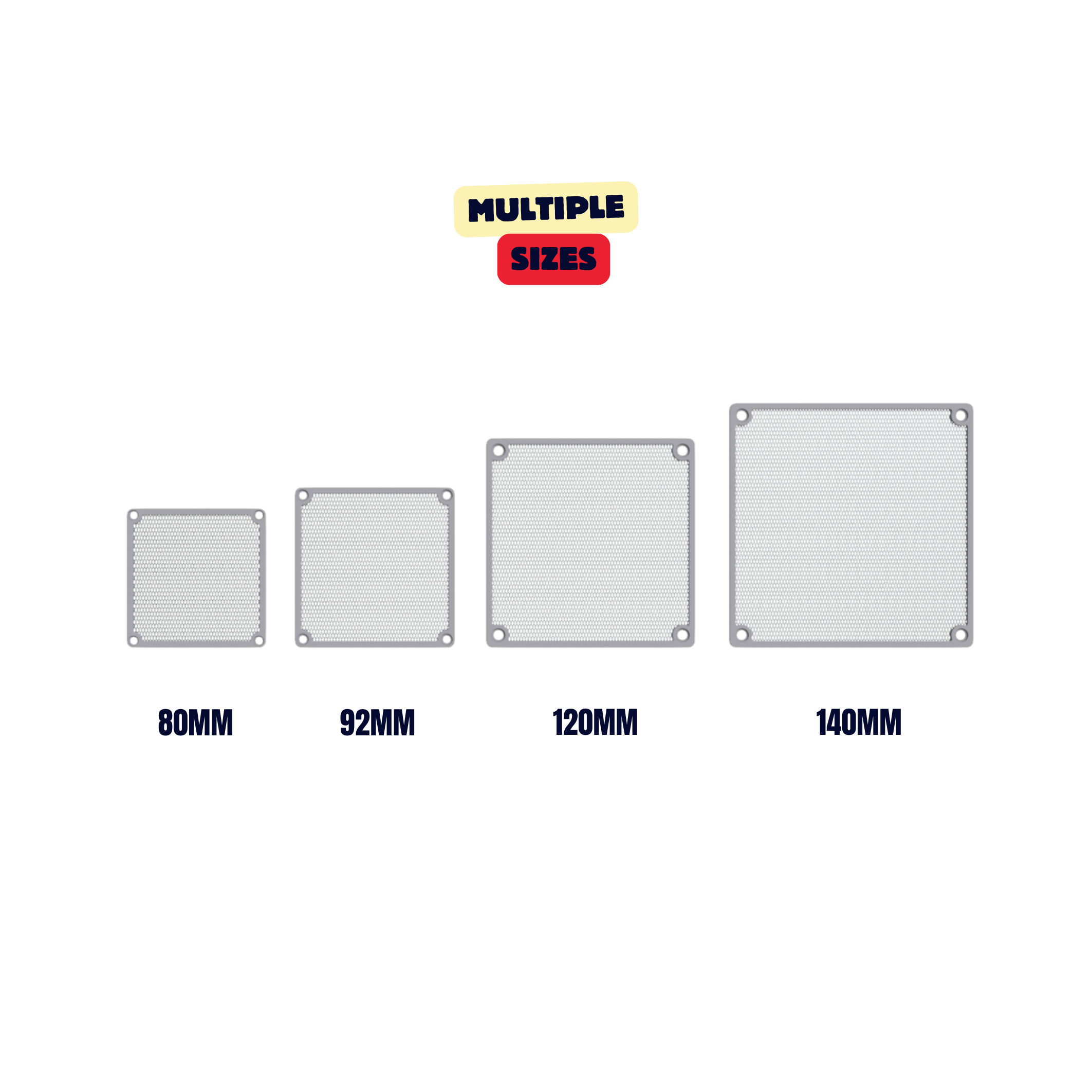

Included sizes:

• 80 mm

• 92 mm

• 120 mm

• 140 mm

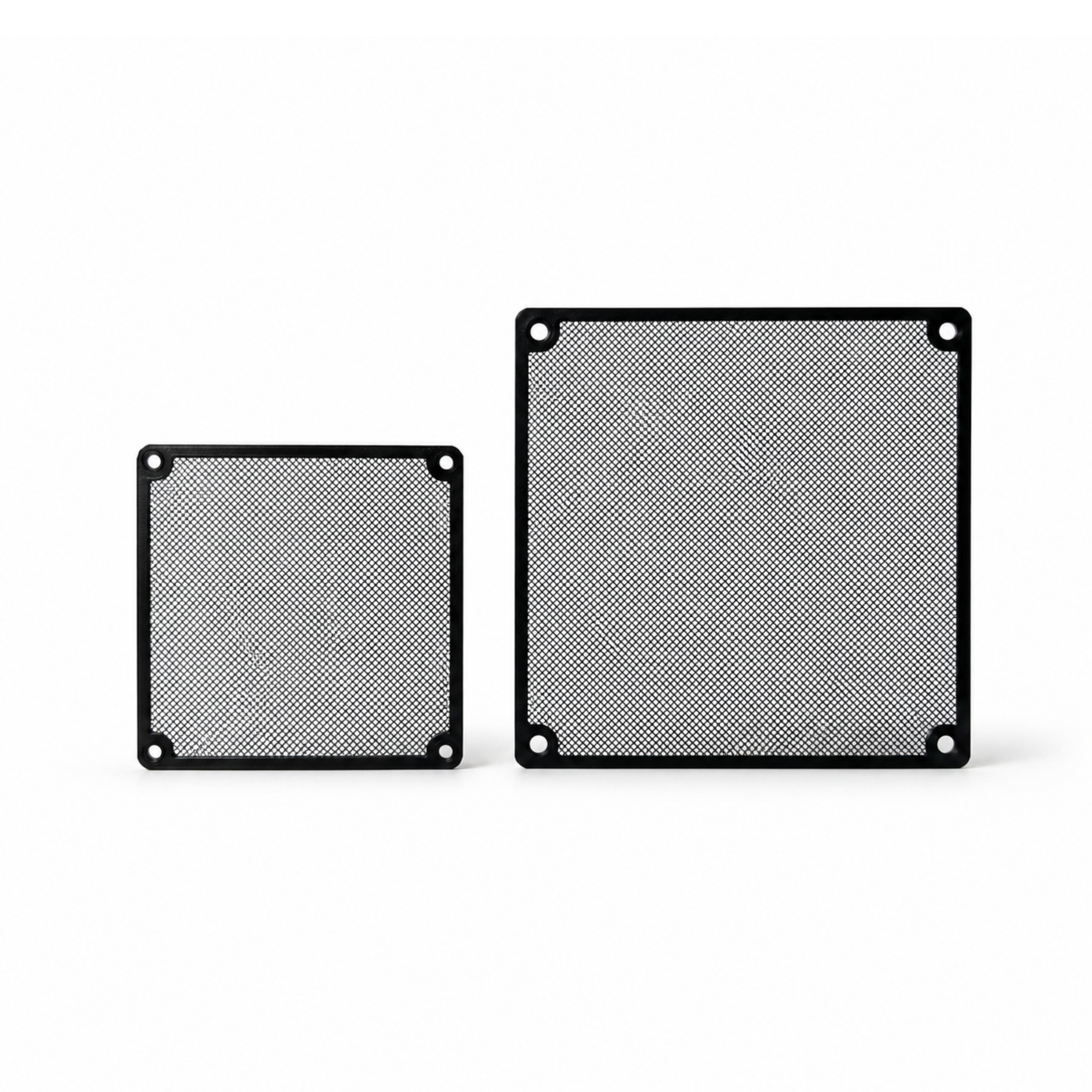

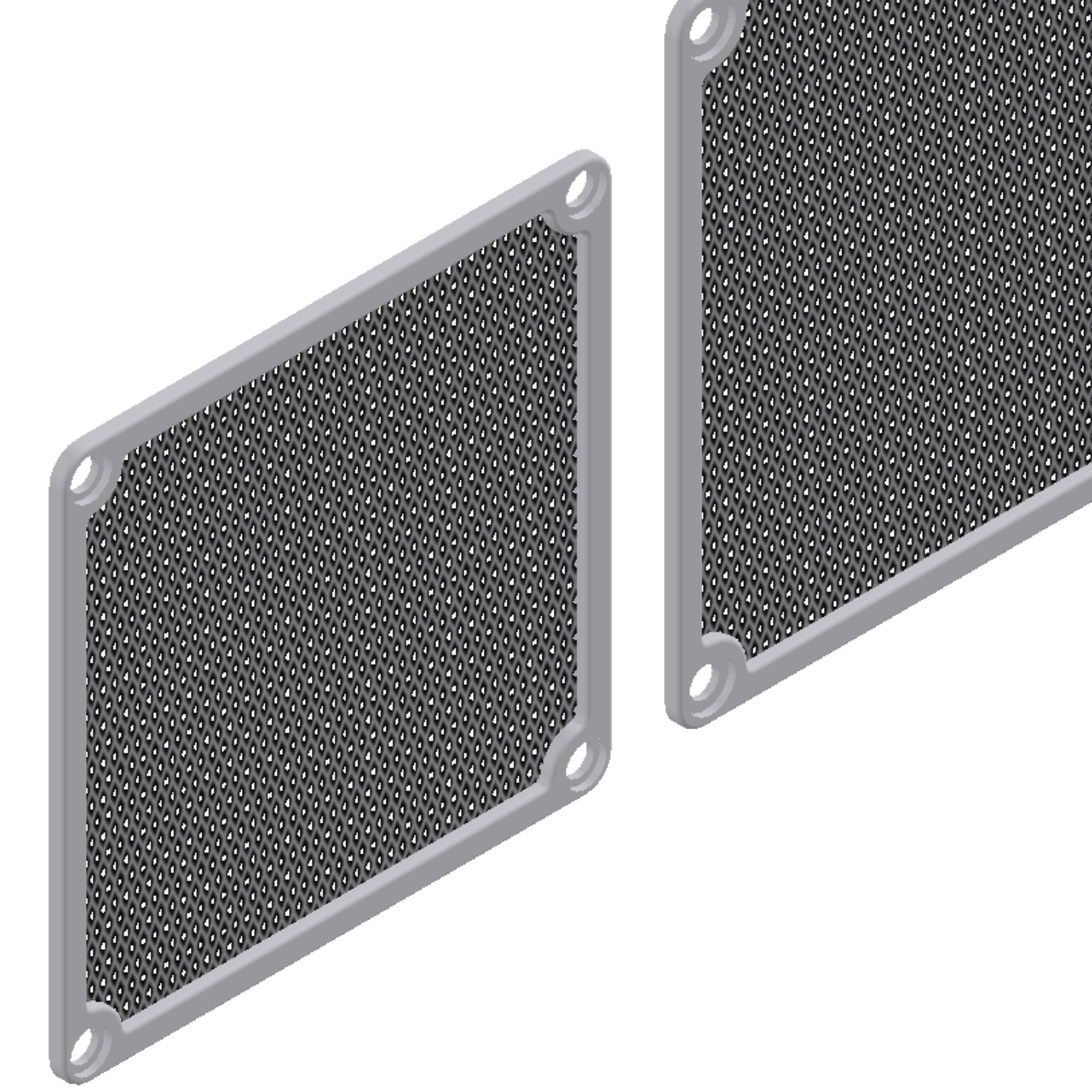

The design features a clean frame, integrated mounting holes, and a fine mesh-style pattern that can be printed directly. It is especially useful for PC builds, DIY electronics, 3D printer enclosures, workshop ventilation, and custom maker projects.

3MF-FILE ATTACHED WITH ALL THE SETTINGS!

RECOMMENDED PRINT SETTINGS:

• Filament: Anycubic PLA Matte black (used in our makes)

• Infill: 15% Gyroid or Grid

• Layer Height: 0.2mm

• Walls: 4

• Nozzle Size: 0.4mm

• Support Structure: none needed!

• Brim: None needed!

GRID SETTINGS (STP FILES INCLUDED)

• Top shell layers: 4

• Top shell thickness: 0 mm

• Top surface color layers: 5

• Bottom shell layers: 3

• Bottom shell thickness: 0 mm

• Bottom surface color layers: 3

• Internal solid infill pattern: Monotonic

• Infill density: 24%

• Infill pattern: Rectilinear

• Initial layer height: 0.36 mm

• Purge tower enabled: Yes

• Purge tower brim width: 3 mm

• Purge tower purge volume: 100%
